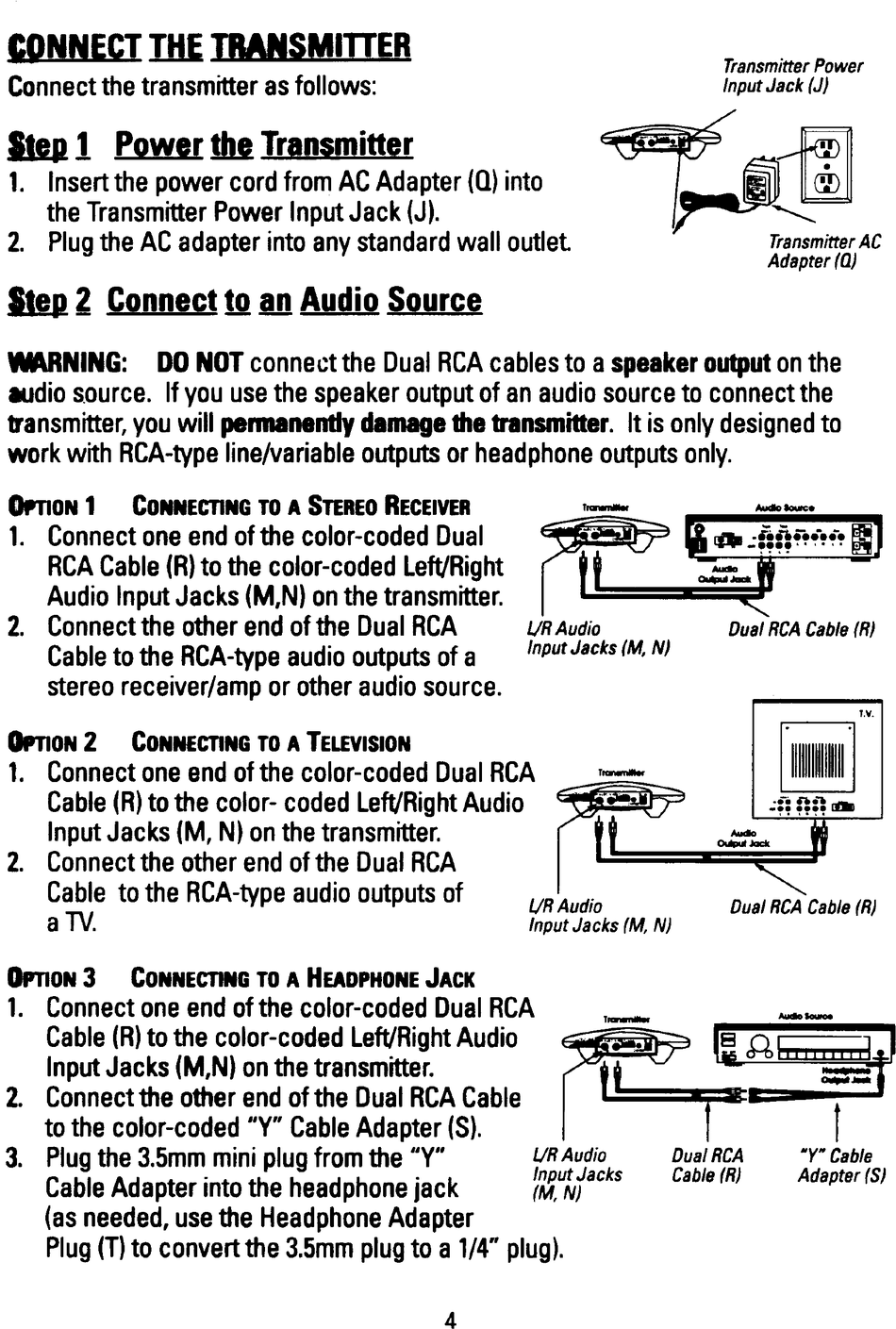

CONNECT
IHf
TMNSMITTER
Connect the transmitter as follows:
Itu
1
Power
lbI
Transmitter
1. Insert the power cord from AC Adapter
(Q)
into
the Transmitter Power Input Jack (J).
2. Plug the AC adapter into any standard wall outlet
Transmitter Power
Input Jack (J)
~
Transmitter AC
Adapter(Q)
Itu
2
Connect to an Audio Source
MUlNING: DO NOT
connect the Dual RCA cables to a speaker output on the
audio s.ource. If you use the speaker output of an audio source to connect the
1ransmitter, you will pennanently damage the transmitter. It is only designed to
work with RCA-type line/variable outputs or headphone outputs only.
Dual RCA Cable (R)
Dual RCA Cable (R)
l/R Audio
Input Jacks
(M,
N)
l/R Audio
Input Jacks (M, N)
OPnON
1
CONNECTING TO A STEREO RECEIVER
1. Connect one end of the color-coded Dual
RCA Cable (R) to the color-coded Left/Right
Audio Input Jacks (M,N) on the transmitter.
2. Connect the other end of the Dual RCA
Cable to the RCA-type audio outputs of a
stereo receiver/amp or other audio source.
OPnON
2
CONNECTING TO A TELEVISION
1. Connect one end of the color-coded Dual RCA
Cable (R) to the color- coded Left/Right Audio
Input Jacks (M, N) on the transmitter.
2. Connect the other end of the Dual RCA
Cable to the RCA-type audio outputs of
a
TV.
~~~A~9
I
t
l/R Audio Dual RCA
My M Cable
Input Jacks Cable (R) Adapter (5)
(M, N)
OPnON
3
CONNECTING TO A HEAOPHONE JACK
1. Connect one end of the color-coded Dual RCA
Cable (R) to the color-coded Left/Right Audio
Input Jacks (M,N) on the transmitter.
2. Connect the other end of the Dual RCA Cable
to the color-coded
"v"
Cable Adapter (8).
3. Plug the 3.5mm mini plug from the
"v"
Cable Adapter into the headphone jack
(as needed, use the Headphone Adapter
Plug (T) to convert the 3.5mm plug to a 1/4" plug).
4
