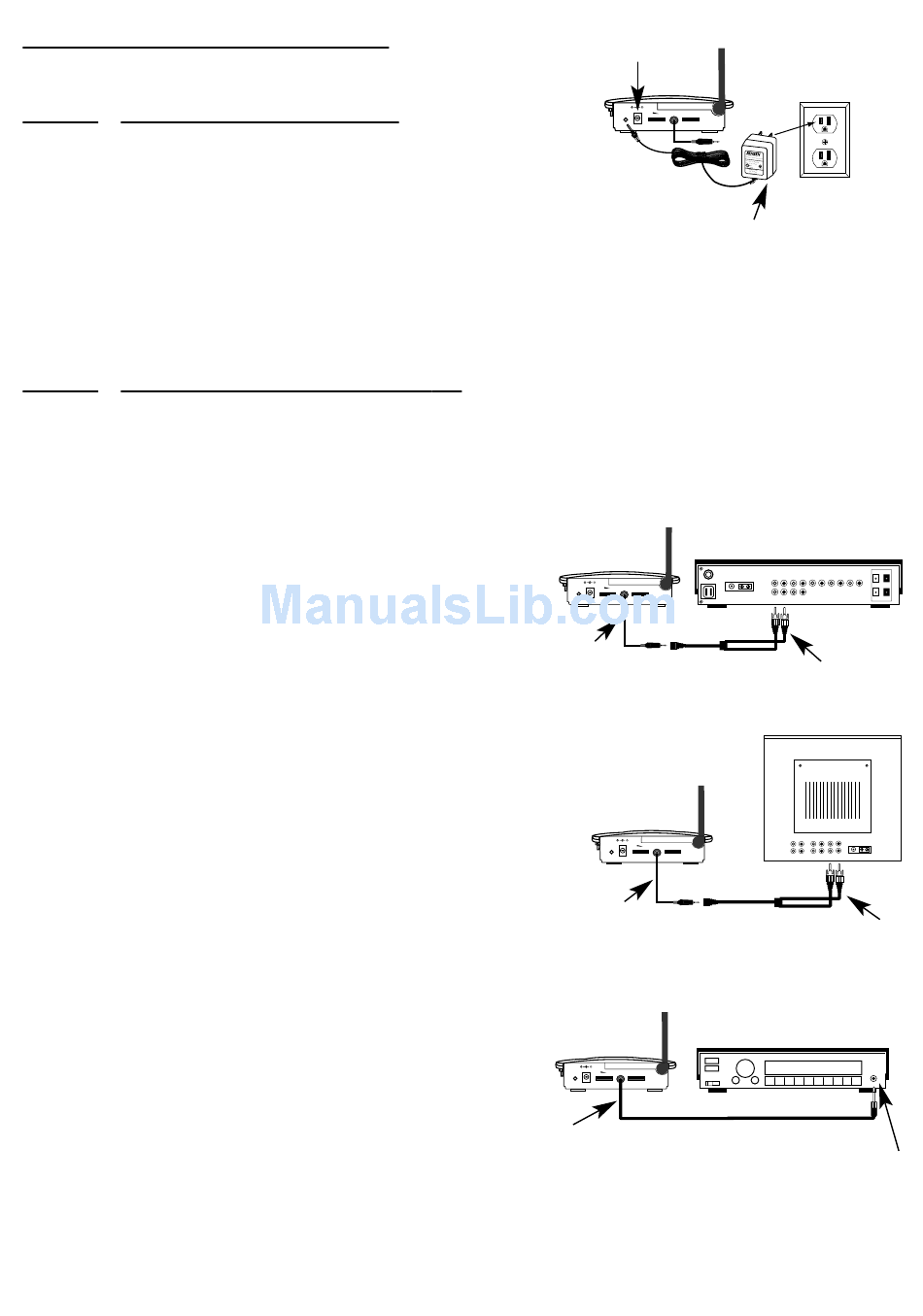

CONNECT THE TRANSMITTER

Connect the transmitter as follows:
Step 1 Power the Transmitter
1. Insert the power cord from AC Adapter (P)
into the Transmitter Power Input Jack (K).
2. Plug the AC Adapter (P) into any standard
wall outlet.
Note: There is no transmitter ON/OFF switch. The transmitter is designed to be left
plugged in and powered at all times. If you will not be using the AW770 for an extended
period of time, you may wish to unplug the AC Adapter.
Step 2 Connect to an Audio Source
O 1 – C
PTION ONNECTING TO A
1. Connect the mini plug on the end of the Audio Input
Cable (M) to the mini jack on the "Y" Cable Adapter (Q).
2. Connect the dual RCA plugs on the other end
of the "Y" Cable Adapter (Q) to the RCA-type
audio outputs of a stereo receiver/amp or
other audio source.
O 2 – C
PTION ONNECTING TO A
1. Connect the mini plug on the end of the
Audio Input Cable (M) to the mini jack on
the "Y" Cable Adapter (Q).
2. Connect the dual RCA plugs on the other end of
the "Y" Cable Adapter (Q) to the RCA-type audio
outputs of a TV.
O 3 – C
PTION ONNECTING TO A
1. Plug the mini plug on the end of the Audio Input
Cable (M) into the headphone jack. As needed
use the Headphone Adapter Plug (R) to convert
the (3.5mm) mini plug to a full-size 1/4" headphone plug.
WARNING: DO NOT connect the RCA plugs of
the "Y" Cable Adapter to a speaker output on
the audio source. If you use the speaker output
of an audio source to connect the transmitter,
you will permanently damage the transmitter. It
is designed to work with RCA-type line/variable
outputs or headphone outputs only.
Note: For more information on hooking up and using the transmitter with various
ouputs, please see MORE HELPFUL INFORMATION beginning on Page 7.
S R
TEREO ECEIVER
T
ELEVISION
H J
EADPHONE ACK
4
Transmitter Power
Input Jack (K)
DC 12V
FREQ.
CHARGE LEVEL ADJUST
AC Adapter (P)
Transmitter
Fuse
DC 12V
FREQ.
CHARGE LEVEL ADJUST
300
Audio
Output Jack
Audio
Input Cable (M)
Transmitter
DC 12V
FREQ.
CHARGE LEVEL ADJUST
Output Jack
Audio
Input Cable (M)
Transmitter
DC 12V
FREQ.
CHARGE LEVEL ADJUST
ON OFF
Audio
Input Cable (M)
LR 98553
Stereo Receiver
Tape Tape Spkr
Phono CD Aux
Mon 1 Mon 2 A
Antenna
IN
Spkr
L R L R L R B
OUT
75
L
L R L R
Y Adapter Cable (Q)
TV
Video 1 Video 2 Stereo
Antenna
IN
OUT
L R L R L R
Audio
Y Adapter Cable (Q)
Stereo Receiver
Headphone
Headphone
Output Jack
Headphone
Adapter Plug (R)
