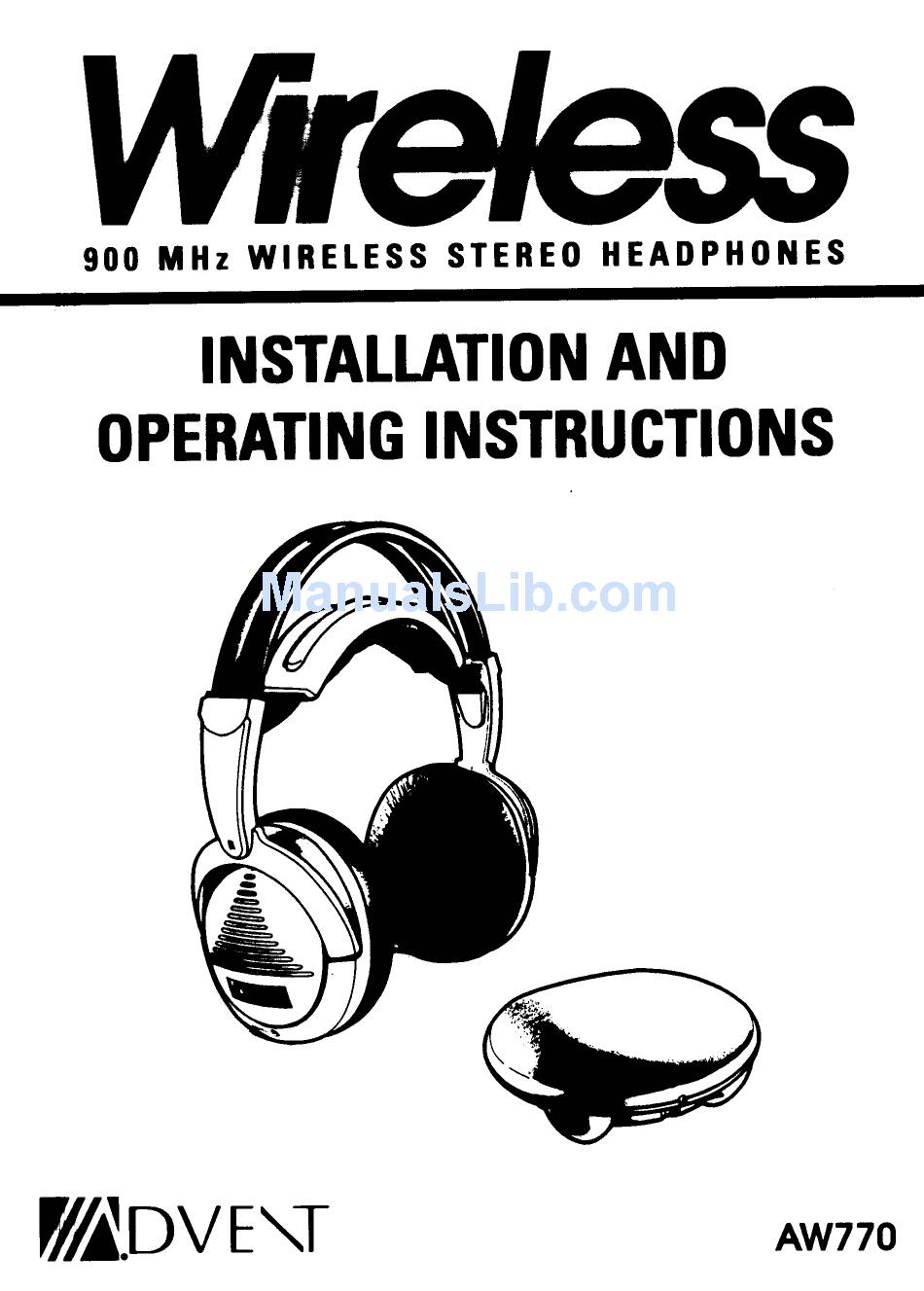

- Page 14 Wireless W I R E L E S S S T E R E O H E A D P H O N E S INSTALLATION AND OPERATING INSTRUCTIONS AW770...
-
Page 15: Table Of Contents
INTRODUCTION Advent Wireless Headphones expand and enhance your enjoyment of the audio sources (TV, stereo, etc.) in your home. Like FM radio, the Advent Wireless Headphone System’s 900 MHz signals travel with ease through walls, floors, ceil- ings and other obstacles, delivering high-quality stereo sound to virtually anywhere in or about the home. - Page 16 A. Self-Adjusting Headband B. Battery Compartment Cover C. Power Indicator Light D. Charge Input Jack E. Power ON/OFF Button F. Volume Control Wheel G. Tuning Control Wheel H. Tuning Indicator Light POWER STEREO I. Audio Level Indicator Light J. Charge Output Jack K.
-
Page 17: Connect The Transmitter
Note: There is no transmitter ON/OFF switch. The transmitter is designed to be left plugged in and powered at all times. If you will not be using the AW770 for an extended period of time, you may wish to unplug the AC Adapter. -
Page 18: Power The Headphones
POWER THE HEADPHONES Battery Compartment The AW770 headphones are powered by 3 AAA Cover (B) Nickel Cadmium (Ni-Cd) batteries. Insert the Batteries 1. Make sure the headphone Power ON/OFF Button (E) is “OFF” or in the “out” position. 2. Remove Battery Compartment Cover (B) by... -
Page 19: Adjust The Transmitter
Service Department at 1-800-732-6866. Using Optional Alkaline Batteries The AW770 headphones can also be powered by 3 AAA alkaline batteries. You may experience slightly longer play time with alkaline batteries but you will not be able to recharge them, as you can with Ni-Cds. -
Page 20: Tune The Headphones
Note: If the light does not flicker, confirm secure connection of the AC Adapter. If the light still does not flicker, confirm secure connection to the audio source output. If, there is still no response, leave the Output Level Control Wheel completely to the left (as shown) and see the following Note. - Page 21 AW770 system. For more information on how to use the AW770 with vari- able outputs, see the following section, “About Using the Headphones with a TV”.
-
Page 22: Troubleshooting
In another variation, there are those who wish to listen to TV in such a way that no sound comes from the TV speakers. Hint: If you wish to use the headphones in such a way that you are the only person who can hear the audio from the TV (e.g. - Page 23 Trouble Checks and Adjustments No Sound/ • Check the batteries – they may be weakening. Distortion/ Static • Confirm the batteries are “good.” When batteries begin to weaken, there can be static breakup. If necessary, replace/recharge the batteries. • Check that the antenna is in the upright position •...
-
Page 24: Specifications & Features
SPECIFICATIONS & FEATURES Transmitter Omnidirectional Effective Transmitting Range: Up to 300 feet* Adjustable Audio Level Input Variable Frequency Adjustment between 912.5 and 914.5 MHz Line Audio Input with 3.5mm Stereo Mini Plug plus 1/4" and Composite “Y” Cable Adapter UL-Listed AC Adapter Headphones Power ON/OFF Button (left headphone) Volume Control (right headphone) - Page 25 WARRANTY ONE YEAR LIMITED WARRANTY Recoton Corporation (the Company) warrants to the original retail purchaser of this product that should the product or any part thereof be proven defective in material or workmanship within One Year from the date of original purchase, such defects will be replaced without charge for parts or labor. This warranty does not apply to any incidental or consequential damages.
