SAND FILTER PUMP HOSE CONNECTION SETUP
• Keep this product more than 2m away from the pool.
• Keep this product more than 3.5m away from the pool (for France only).
• Keep the plug of this product more than 3.5m away from the pool.
• Position this product away from the pool, so as to prevent children from
climbing on it and accessing the pool.

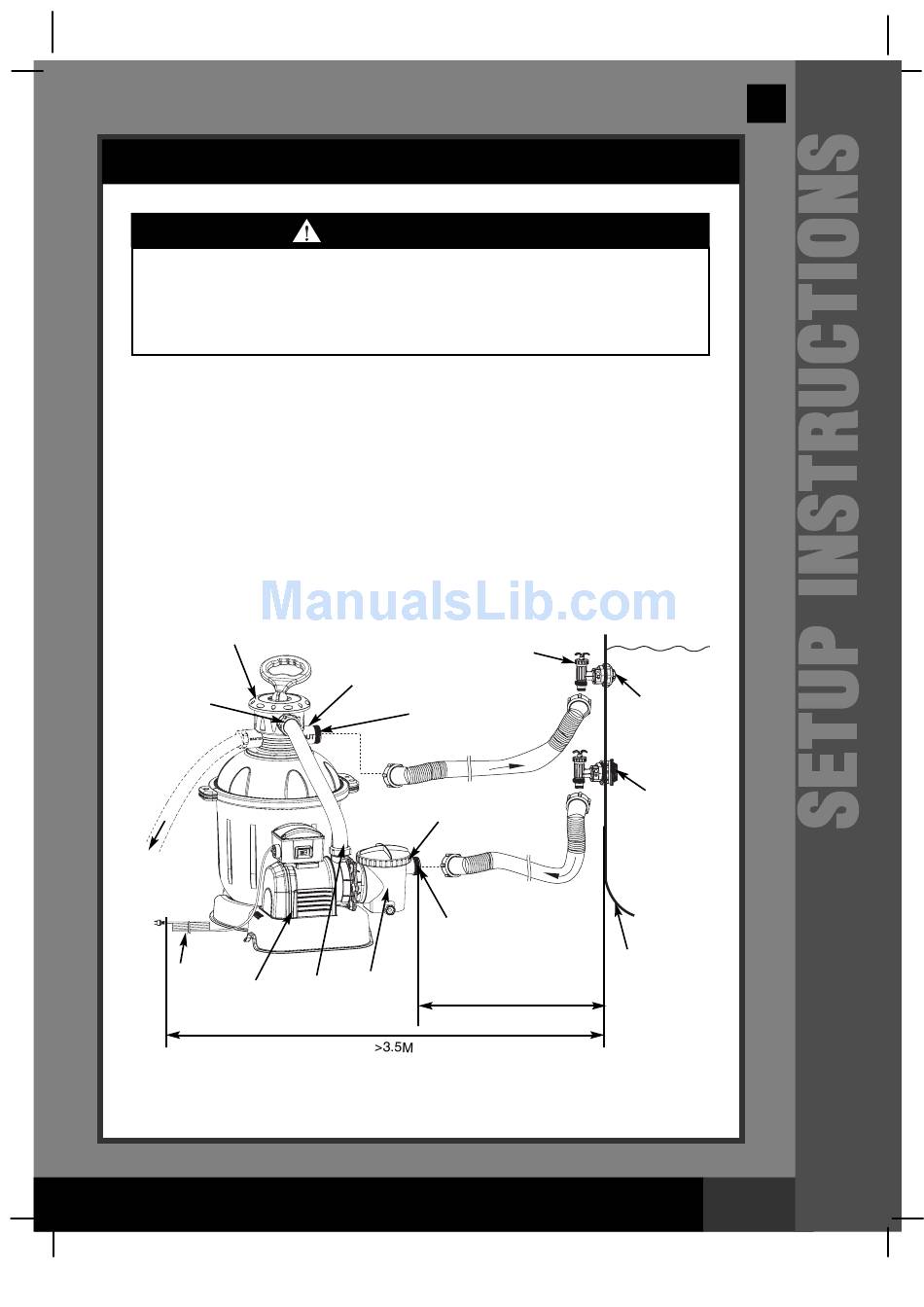

The 6-way valve has three hose connection ports.

1. Connect one hose (10) end to the pre-filter inlet and the other end of the hose
to the lower plunger valve with the strainer. Ensure the hose nuts are securely
tighten.
2. Connect the second hose (10) between the 6-way valve water outlet and the
upper plunger valve with the inlet-nozzle. Ensure the hose nuts are securely
tighten.
3. The third hose connection port (drain/waste outlet) on the 6-way valve shall be
directed to a proper draining receptacle using a hose or pipe (not provided).
Remove the drain cap before attaching the drain/waste hose or pipe.
4. The sand filter pump is now ready to filter the pool.
6-WAY VALVE
WATER
INLET
TO
DRAIN
POWER
CORD
MOTOR
SAVE THESE INSTRUCTIONS
(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5" X 10.3" PANTONE 295U 09/08/2009
WARNING
PLUNGER VALVE
WATER OUTLET
L-SHAPE
O-RING
WATER INLET
L-SHAPE
O-RING
PRE-
MOTOR
FILTER
WATER
OUTLET
English
WATER LEVEL
ADJUSTABLE
POOL INLET
NOZZLE
THREADED
STRAINER
CONNECTOR
OUTSIDE
LINER WALL
>2M
(ILLUSTRATION NOT TO SCALE)
