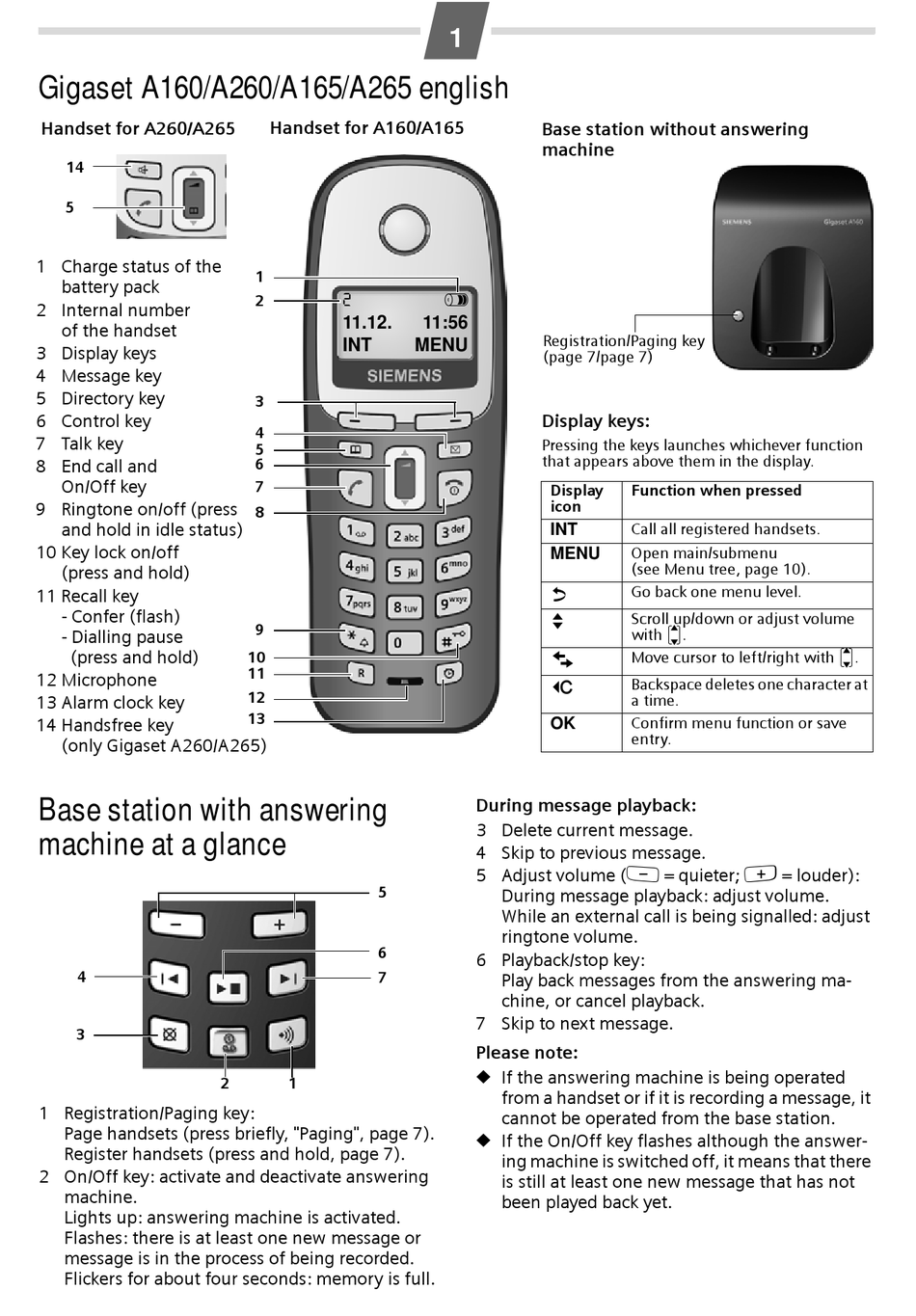

Gigaset A160/A260/A165/A265 english
Handset for A260/A265
14
5
1 Charge status of the
battery pack
2 Internal number
of the handset
3 Display keys
4 Message key
5 Directory key
6 Control key
7 Talk key
8 End call and
On/Off key
9 Ringtone on/off (press
and hold in idle status)
10 Key lock on/off
(press and hold)
11 Recall key
- Confer (flash)
- Dialling pause
(press and hold)
12 Microphone
13 Alarm clock key
14 Handsfree key
(only Gigaset A260/A265)
Base station with answering
machine at a glance
4
3
1 Registration/Paging key:
Page handsets (press briefly, "Paging", page 7).
Register handsets (press and hold, page 7).
2 On/Off key: activate and deactivate answering
machine.
Lights up: answering machine is activated.
Flashes: there is at least one new message or
message is in the process of being recorded.
Flickers for about four seconds: memory is full.
Handset for A160/A165
1
2
2
11.12.
INT
3
4
5
6
7
8
9
10
11
12
13
5
6
7
2
1
1
Base station without answering
machine
V
11:56
Registration/Paging key
MENU
(page 7/page 7)
Display keys:
Pressing the keys launches whichever function
that appears above them in the display.
Display
icon
INT
MENU
"
U
T
˜
OK
During message playback:
3 Delete current message.
4 Skip to previous message.
5 Adjust volume (
During message playback: adjust volume.
While an external call is being signalled: adjust
ringtone volume.
6 Playback/stop key:
Play back messages from the answering ma-
chine, or cancel playback.
7 Skip to next message.
Please note:
If the answering machine is being operated
from a handset or if it is recording a message, it
cannot be operated from the base station.
If the On/Off key flashes although the answer-
ing machine is switched off, it means that there
is still at least one new message that has not
been played back yet.
Function when pressed
Call all registered handsets.
Open main/submenu
(see Menu tree, page 10).
Go back one menu level.
Scroll up/down or adjust volume
u
with
.
Move cursor to left/right with
Backspace deletes one character at
a time.
Confirm menu function or save
entry.
ð
ñ
= quieter;
= louder):
u
.
