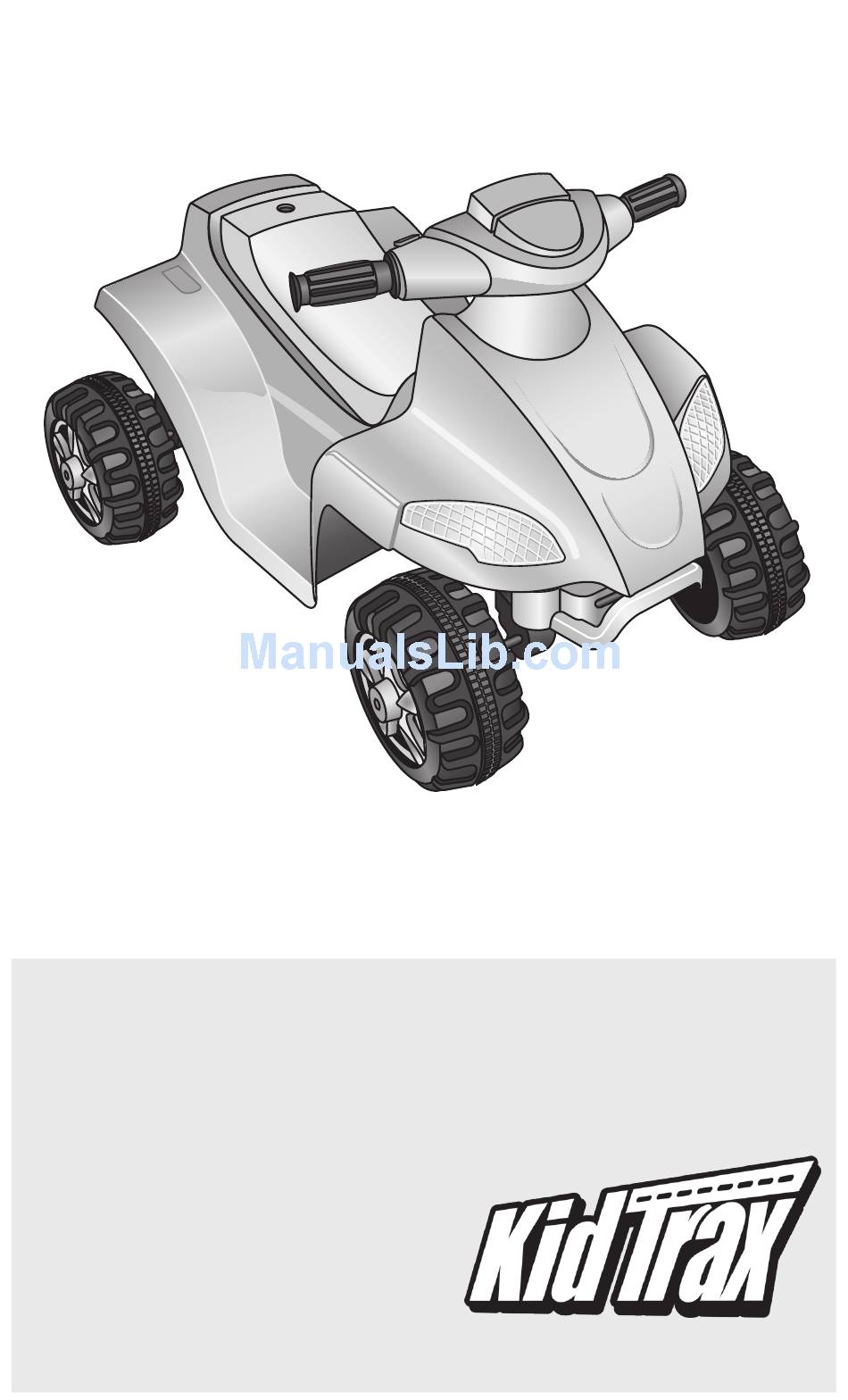

Kid Trax Quad
Owner's Manual
Model Number: KT1010TG / KT1014TG
The owner's manual contains assembly, use and maintenance
instructions. The Kid Trax Quad must be assembled by an adult who
has read and understands the instructions in this manual. Keep the
packaging away from children and dispose all packaging before use.
©2010 Pacific Cycle Inc.
4902 Hammersley Rd.
Madison, WI 53711
United States of America
Phone: (877) 741-6154
www.kidtraxtoys.com
Styles and Colors may vary
Made in China
Keep instructions for future reference.
Advertisement
Table of Contents
Related Manuals for Kid Trax Toys KT1010TG
Summary of Contents for Kid Trax Toys KT1010TG
- Page 1 Model Number: KT1010TG / KT1014TG The owner’s manual contains assembly, use and maintenance instructions. The Kid Trax Quad must be assembled by an adult who has read and understands the instructions in this manual. Keep the packaging away from children and dispose all packaging before use.
-
Page 2: Thank You
Thank You For purchasing the Kid Trax Quad. With the Kid Trax Quad your child will have fun and enjoyment for years to come. Features on the toy include a rechargeable battery and fixed speed. Please call us at Kid Trax Toys Consumer Relations at... -
Page 3: Table Of Contents
Contents Safety........1 User Requirements ......2 Parts . -
Page 4: Safety
Safety WARNING! The following safety hazards may result in serious injury or death to the user of the Quad: • This product contains small parts that are for adult assembly only. Keep small children away when assembling. Remove and dispose of all protective material and poly bags before assembly. -
Page 5: User Requirements
User Requirements The suitable age range for a child using the Quad is 18 months +. The maximum weight of the child is 33 lbs (15kg). Before using the Quad the child must understand the vehicle controls and safety issues. They must also demonstrate the capability to handle the vehicle and operate its controls. -
Page 6: Parts
Parts seat (1) handlebar/steering column (1) Open Close charger (1) Quad body (1) drive wheel 6V 4AH battery (1) wear pad (1) rear axle (1) small wheels (4) washers (4) wheel spanner (1) covers (4) locknuts (4) hubcaps (4) -
Page 7: Assembly
Assembly Attaching the Front Wheels 1. Remove the locknut and the small washer from the axle. Leave the large washer on the axle. 2. Line up the posts on the hubcap with the holes in the wheel. Place and press the hubcap onto the wheel. -
Page 8: Inserting The Rear Axle
Inserting the Rear Axle drive wheel wear pad large washer rear axle Note: The left side of the axle is the end that has the wielded spacer. 1. Remove the locknut and small washer from the right hand side of the rear axle. - Page 9 Attaching the Left Rear Wheel wheel hubcap left rear large axle washer locknut small wheel washer cover Note: All the wheels are identical and can be placed on either axle. 1. Remove the locknut and the small washer from the left rear axle. Leave the large washer on the axle.
-
Page 10: Attaching The Drive Wheel
Attaching the Drive Wheel drive wheel drive wheel hubcap wear pad right rear axle locknut small wheel washer cover Note: All the wheels are identical and can be placed on either axle. 1. Place the drive wheel wear pad on the right rear axle and press it onto the gear box. - Page 11 Attach the Handlebar/ Steering Column handlebar post handlebar tab connector steering column handlebar post opening 1. Place the steering column and connector through he opening on the body. 2. Align the tabs on the handlebar post with the slot in the opening. 3.
-
Page 12: Connecting The Wires
Connecting the Wires gear box Connect the Battery connector fuse 1. Remove the seat 2. Connect the connector from the battery to the connector from the gear box. battery connector Gear box / battery connector Connect the Handlebar 1. Turn the Quad over. 2. Route the connector from the gearbox / battery through the hole in the body. -
Page 13: Attaching The Seat
Attaching the Seat seat slots seat tabs Open Close Open locking Close screw 1. Insert the seat tabs into the seat slots, located at the top of the seat opening. 2. Lower the seat into the Quad body. Be sure the seat is properly in place. - Page 14 WARNING! The following safety hazards may result in serious injury or death to the user of the Quad: • Use of a battery or charger other than the supplied Kid Trax Toys 6V rechargeable battery and charger may cause a fire or explosion. Only use the supplied Kid Trax Toys 6V rechargeable battery and charger with the vehicle.
-
Page 15: Charging The Battery
Charging the Battery battery seat charger red battery connector Open Close Important! Before using the Quad for the first time the battery needs to be charged for a full twelve hours. Only an adult who has read and understands the following safety warnings should handle, charge or recharge of the battery. -
Page 16: Battery Storage
Re-Charge Interval and Time Important! • Damage to the battery may occur if it is allowed to drain completely. Do not allow the battery to drain completely. • Check the battery and charger (supply chord, connector) for wear and damage before charging. Do not charge the battery if damage has occurred. -
Page 17: Battery Replacement And Disposal
Battery Replacement and Disposal charger charge connector charging socket plastic battery bracket Kid Trax Toys 6v 4AH battery seat battery connectors Open Close The Kids Trax Toys 6V 4AH battery will eventually lose the ability to hold a charge. Depending on the amount of use, and varying conditions, the battery should operate for one to three years. -
Page 18: Use
Important! Recycle the dead battery responsibly. The battery contains lead acid (electrolyte) and must be disposed of properly and legally It is illegal in most areas to incinerate lead acid batteries or dispose of them in landfills. Take it to a federal or state-approved lead acid battery recycler, such as a Kid Trax Toys authorized service center or your local automotive battery retailer. -
Page 19: Maintenance
Maintenance The Quad should be checked for damage, missing or badly worn parts before use. • Check the tightness of the fasteners before each use. • Check the tightness of the wheel locknuts. Note: If the wheel locknuts are not tight the drive wheel will not engage and the vehicle will not run. -
Page 20: Troubleshooting Guide
Troubleshooting Guide The following are examples of potential problems. Completely read through this manual and the troubleshooting guide table before calling Kid Trax Toys Consumer Relations. If you still need help resolving the problem please call 877-741-6154. Kid Trax Toys recommends that you take the vehicle to an authorized service center for periodic maintenance and service. - Page 21 Problem Possible Cause Remedy Vehicle does not Battery is old Replace battery (see run very long Battery: Replacement and Disposal Vehicle runs Battery low on power Recharge battery (see sluggishly or Battery: Recharge beeping occurs Interval and Time) Battery is old Replace battery (see Battery: Replacement and Disposal...
-
Page 22: Services, Repairs And Parts
Problem Possible Cause Remedy 6V Battery will not Battery connector or Check that battery recharge connectors are firmly adapter connector is plugged into each other loose Check that battery charger Charger not plugged in is plugged into a working wall outlet Call Consumer Relations Charger is not at 877-741-6154 for an... -
Page 23: Warranty
Warranty One-Year Limited Warranty Six-Month Limited Warranty on Battery Pacific Cycle, Inc. (PC) warrants this product to the original retail purchaser as follows: The vehicle (except for the 6-volt battery) is warranted against defective materials or workmanship for one year from the date of original purchase. - Page 24 Limitation of Warranties and Warranty Terms Any implied warranties, including implied warranties of the merchantability and fitness for a particular purpose, shall be limited to the duration and terms of the express written warranty. Some states do not allow limitations as the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.
-
Page 25: Contact Information
Contact Information If you have any questions or comments please contact us at: In U.S.A. ©2010 Pacific-Cycle Inc. 4902 Hammersly Rd. Madison, WI 53711 Customer Service: 877-741-6154 customerservice@kidtraxtoys.com www.kidtraxtoys.com...
