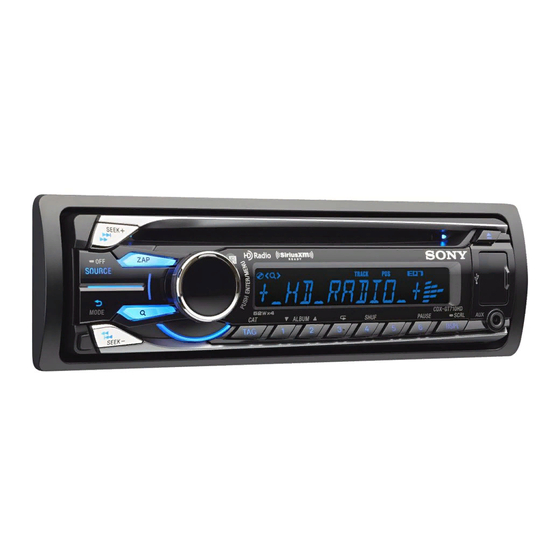

Sony CDX-GT710HD Operating Instructions Manual

Fm/am digital radio cd player
Hide thumbs Also See for CDX-GT710HD:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions Manual
FM/AM
Digital Radio
CD Player
Owner's Record
The model and serial numbers are located on the bottom of the unit.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer
regarding this product.
Model No. CDX-GT710HD Serial No.
To cancel the demonstration (DEMO) display, see page 5.
Pour annuler l'affichage de démonstration (DEMO), reportez-
vous à la page 5.
CDX-GT710HD
4-431-759-11(1)
Operating Instructions GB
Mode d'emploi
This HD Radio receiver enables:
FR

Advertisement

Table of Contents
loading

Related Manuals for Sony CDX-GT710HD

Summary of Contents for Sony CDX-GT710HD

  • Page 1 The model and serial numbers are located on the bottom of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. CDX-GT710HD Serial No.
  • Page 2 ZAPPIN and Quick-BrowZer are interference by one or more of the trademarks of Sony Corporation. following measures: – Reorient or relocate the receiving Windows Media is either a registered antenna.
  • Page 3 iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson. Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.

  • Page 4: Table Of Contents

    Table of contents Getting Started ........... . . 5 Canceling the DEMO mode .

  • Page 5: Getting Started

    Detaching the front panel Getting Started You can detach the front panel of this unit to prevent theft. Canceling the DEMO Press and hold  . mode The unit is turned off. Press the front panel release button , You can cancel the demonstration display which appears while this unit is turned off.

  • Page 6: Location Of Controls

    Location of controls Main unit  ZAP button page 18 This section contains instructions on the location of controls and basic operations. To enter ZAPPIN™ mode.  SOURCE/OFF button*  Control dial Press to turn on the power; select the ENTER/MENU button page 18, 23 source (Radio/CD/USB/Pandora®...

  • Page 7: Number Buttons

     (BROWSE) button page 15, 17, 26 Note To enter the Quick-BrowZer™ mode If the unit is turned off and the display (CD/USB); list the station (Pandora® via disappears, the unit cannot be operated with the USB); list the channels (SiriusXM). remote commander unless ...

  • Page 8: Rm-X151 Remote Commander

     SEL (Select) button RM-X151 Remote To enter the SOUND menu directly commander (press); to enter setup mode (press and hold). To exit the SOUND menu/setup mode (press). SOURCE MODE  MODE button* Press to select the radio band (FM/AM). Press and hold to enter/cancel the passenger control (iPod);...

  • Page 9: Radio

    HD Radio information is available on the display. Radio Program Service Data: Contributes to the  Station name superior user experience of HD Radio  FM/AM: Receiving analog FM/AM Technology. broadcast (if digital broadcast has been Presents song name, artist, station IDs, received before)* HD: Receiving digital FM/AM HD2/HD3 Channel Guide, and other...

  • Page 10: Itunes Tagging

    Rotate the control dial until “BTM” iTunes Tagging appears, then press it. The unit stores stations in order of The iTunes Tag button on this unit allows frequency on the number buttons. you to tag songs you like that are broadcast by HD Radio stations.
  • Page 11 The TAG indicator starts blinking and the Notes unit starts retrieving song information. • Do not remove the iPod or detach the front After retrieving the song information, the panel while “TRANSFER” is blinking in the unit starts saving the data, and “STORE” display.

  • Page 12: Playing A Disc

    USB devices • MSC (Mass Storage Class)-type USB Playing a disc devices (such as a USB flash drive, digital media player, Android™ phone) compliant This unit can play CD-DA (also containing with the USB standard can be used. CD TEXT) and CD-R/CD-RW (MP3/ Depending on the digital media player or WMA/AAC files (page 27)).

  • Page 13: Ipod

    Notes • Do not use USB devices so large or heavy that iPod they may fall down due to vibration, or cause a loose connection. • Do not detach the front panel during playback In these Operating Instructions, “iPod” is of the USB device, otherwise USB data may be used as a general reference for the iPod damaged.

  • Page 14: Operating An Ipod Directly - Passenger Control

    Caution for iPhone Operating an iPod directly When you connect iPhone via USB, phone call — Passenger control volume is controlled by iPhone, not the unit. Do not inadvertently increase the volume on the unit during a call, as sudden loud sound may result You can operate an iPod directly even when when the call ends.

  • Page 15: Pandora® Via Usb (Iphone)

    Adjust the volume on this unit. To pause playback, press  (PAUSE). To Pandora® via USB resume playback, press again. (iPhone) To skip a track, press  +. Pandora® is available to stream music Notes through your iPhone. You can control Pandora®...

  • Page 16: Searching And Playing Tracks

    Shuffle Shuffle allows you to listen to tracks played Searching and on one or more Pandora® stations in your station list randomly. playing tracks Edit your Shuffle station selections on the device before connection. Playing tracks in various modes Bookmarking You can listen to tracks repeatedly (repeat The track or artist currently being played play) or in random order (shuffle play).

  • Page 17: Searching A Track By Name - Quick-Browzer

    SHUF GENRE* genre in random order. Searching by skip items — Jump mode device in random SHUF DEVICE* order. When many items are in a category, you can SHUF OFF track in normal order search for a desired item quickly. (Normal play).

  • Page 18: Searching A Track By Listening To Track Passages - Zappin

    To cancel Alphabet search, press (BACK) or  –. Changing the illumination Notes • In Alphabet search, a symbol or article (a/an/ the) before the selected letter of the item is Changing the color of excluded. display and buttons — •...

  • Page 19: Advanced Color Setting

    Select “DAY” or “NIGHT.” Customizing the display and Customize the preset color from step 3 to 5 button color — Custom Color of “Customizing the display and button color — Custom Color.” You can register a customized color for the display and buttons.

  • Page 20: Sound Settings And Setup Menu

    Press (BACK) to return to the previous display. Sound Settings and To cancel White Menu, select “OFF” in step Setup Menu Enjoying sophisticated Start up effect sound functions — — Start White Advanced Sound Engine In the Start White setting, when you press , the display and buttons Advanced Sound Engine creates an ideal in- on the main unit turn white once, then...
  • Page 21 After selecting a source, press , The options for “POSITION” are indicated rotate the control dial until “SOUND” below. appears, then press it. FRONT L (): Front left FRONT R (): Front right Rotate the control dial until “EQ7 FRONT (): Center front SETTING”...
  • Page 22 Adjusting the listening Using rear speakers as position subwoofer — Rear Bass Enhancer You can fine-tune the listening position setting. Rear Bass Enhancer enhances the bass sound by applying a low pass filter setting During reception/playback, press (page 24) to the rear speakers. This function , rotate the control dial until allows the rear speakers to work as a “SOUND”...

  • Page 23: Adjusting Setup Items

    Rotate the control dial to select “1,” “2” AUX-A* (AUX Audio) or “3,” then press it. Activates the AUX source display: “ON,” “OFF” (page 25). Press (BACK) to return to the previous display. BTM* (page 9) For details on the settings for the subwoofer TAG DEL* (Tag Delete) phase, position, low pass filter frequency...
  • Page 24 FADER S.WOOFER (Subwoofer) Adjusts the relative level: “FRONT-15” – SW LEVEL (Subwoofer Level) “CENTER” – “REAR-15.” Adjusts the subwoofer volume level: “+10 dB” – “0 dB” – “–10 dB.” DM+* (page 22) (“ATT” is displayed at the lowest setting.) LOUDNESS (Dynamic Loudness) SW PHASE (Subwoofer Phase) Reinforces bass and treble for clear Selects the subwoofer phase: “NORM,”...

  • Page 25: Using Optional Equipment

    DISPLAY: Using optional DEMO (Demonstration) Activates the demonstration: “ON,” equipment “OFF.” DIMMER Auxiliary audio Changes the display brightness. equipment – “AT”: to dim the display automatically when you turn lights on. (Available only when the illumination control lead is By connecting an optional portable audio connected.) device to the AUX input jack (stereo mini –...

  • Page 26: Siriusxm Vehicle Tuner

    To receive the stored channel, select “SX1,” SiriusXM Vehicle Tuner “SX2” or “SX3” by pressing , then press a number button ( to ). Everything worth listening to is on SiriusXM, getting over 130 channels, Parental control including the most commercial-free music, Some SiriusXM channels contain content plus the best sports, news, talk and that is not suitable for children.

  • Page 27: Additional Information

    • Discs that this unit CANNOT play – Discs with labels, stickers, or sticky tape or Additional paper attached. Doing so may cause a malfunction, or may ruin the disc. Information – Discs with non-standard shapes (e.g., heart, square, star). Attempting to do so may damage the unit.

  • Page 28: Maintenance

    In order to prevent this, this manual, consult your nearest Sony dealer. detach the front panel (page 5) and clean the connectors with a cotton swab. Do not apply too much force.

  • Page 29: Specifications

    CD Player section Notes Signal-to-noise ratio: 120 dB • For safety, turn off the ignition before cleaning Frequency response: 10 – 20,000 Hz the connectors, and remove the key from the Wow and flutter: Below measurable limit ignition switch. • Never touch the connectors directly with your USB Player section fingers or with any metal device.

  • Page 30: Troubleshooting

    During playback or reception, Troubleshooting demonstration mode starts.  If no operation is performed for 5 minutes The following checklist will help you remedy with “DEMO-ON” set, demonstration mode problems you may encounter with your unit. starts. Before going through the checklist below, –...

  • Page 31: Usb Playback

    – Perform manual tuning. USB playback The sound skips or repeats. You cannot play back items via a USB hub.  This may happen while this unit switches from  This unit cannot recognize USB devices via a analog signal to digital signal or vice versa, USB hub.
  • Page 32 Some radio stations do not provide – Check the connection. If the error indication this information. remains on in the display, consult your nearest Sony dealer. NO NAME  When this unit receive analog broadcasting (if OVERLOAD digital broadcasting has never been received), ...
  • Page 33 If these solutions do not help improve the PAN NO SUPRT (Pandora® Not Supported)  The connected device is not supported. situation, consult your nearest Sony dealer. If you take the unit to be repaired because of – For details on the compatibility of the CD playback trouble, bring the disc that was device, visit the support site.
  • Page 34 ©2012 Sony Corporation Printed in Thailand...
  • Page 35 4-431-760-11(1) FM/AM Digital Radio CD Player Installation/Connections Installation/Connexions CDX-GT710HD...

  • Page 36: Connection Diagram

    Notes on speaker connection English Connection diagram (  Before connecting the speakers, turn the unit off.  Use speakers with an impedance of 4 to 8 ohms, and with adequate power handling capacities to avoid its damage.   Do not connect the speaker terminals to the car chassis, or connect the Cautions To a metal surface of the car terminals of the right speakers with those of the left speaker.
  • Page 37     × 2  × 4 Satellite radio tuner (SiriusXM)* Syntoniseur radio satellite (SiriusXM)*...
  • Page 38 Equipment used in illustrations (not supplied) Appareils utilisés dans les illustrations (non fournis) Front speaker Subwoofer Power amplifier Rear speaker Haut-parleur avant Caisson de graves Amplificateur de puissance Haut-parleur arrière Satellite radio tuner (SiriusXM)* Syntoniseur radio satellite (SiriusXM)* FRONT Fuse (10 A) Fusible (10 A) AUDIO OUT from car antenna (aerial)
  • Page 39 Remarques sur le raccordement des haut-parleurs Français Schéma de raccordement (  Avant de raccorder les haut-parleurs, éteignez l'appareil.  Utilisez des haut-parleurs ayant une impédance de 4 à 8 ohms avec une capacité électrique adéquate pour éviter de les endommager. ...

  • Page 40: Fuse Replacement

    If  Choose the installation location carefully so that the unit Japanese cars. In such a case, consult your Sony dealer. the fuse blows again after replacement, there may be an will not interfere with normal driving operations.

  • Page 41: Remplacement Du Fusible

     Évitez d’installer l’appareil dans un endroit exposé à la Pour éviter tout problème de fonctionnement, utilisez uniquement les vis détaillant Sony le plus proche.  fournies pour le montage. poussière, à la saleté, à des vibrations excessives ou à des températures élevées comme en plein soleil ou à...
