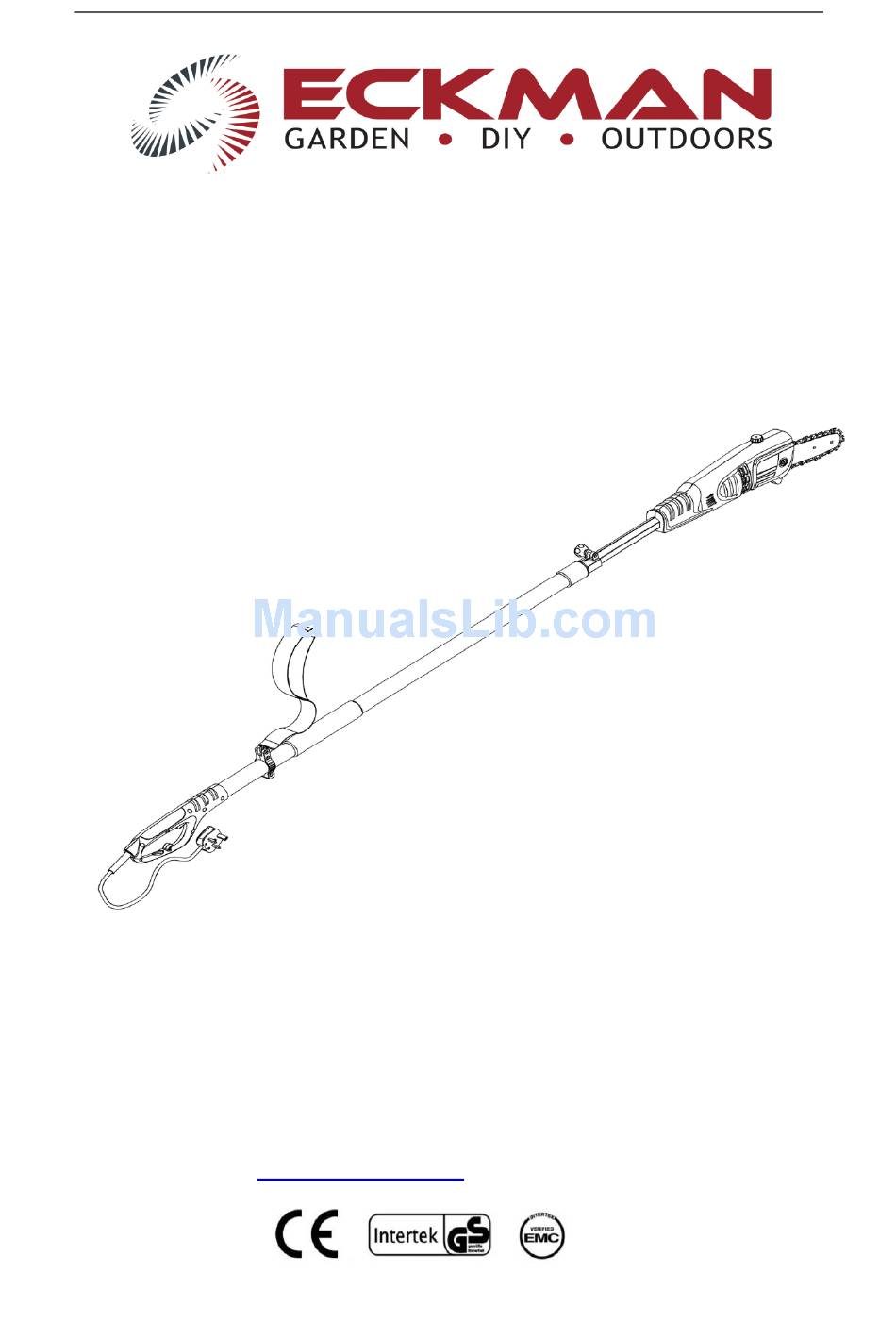

TELESCOPIC POLE CHAIN SAW
MODEL:CS015
USER MANUAL
IMPORTANT: Read and understand this manual before assembling
or operating this appliance. Improper use of this appliance can cause
severe injury or death. Keep this manual in a safe place for future
reference.
Any questions or problems-please call the Eckman Helpline on 0845
555 4440 or visit
www.eckman.co.uk

Advertisement

Table of Contents
loading

Related Manuals for Eckman CS015

Summary of Contents for Eckman CS015

  • Page 1 Improper use of this appliance can cause severe injury or death. Keep this manual in a safe place for future reference. Any questions or problems-please call the Eckman Helpline on 0845 555 4440 or visit www.eckman.co.uk...
  • Page 2 Contents: Page 2……………………………………………….Safety symbols explanation Page 2……………………………………………….Technical data Page 3-6…………………………………………….Safety instructions Page 7……………………………………………. Assembly Page 8……………………………………………….Saw chain tension Page 9……………………………………………….Saw chain tension adjustment Page 10…………………………………………..….Pole length adjustment Page 10-11………………………………………..…Using the machine Page 11-12………………………………………..Cleaning and maintenance Page 12-14……………..…………………..………. Sharpening / Replacement Page 15………………………………………..…….

  • Page 3: Explanation Of Symbols On Your Product

    Explanation of Symbols on your product Do not use in the rain. Read the user manual before using the machine. Always wear a helmet, goggles and ear protection. Risk of fatal electric shock. Work at least 10m distance from overhead power lines..

  • Page 4: Product Identification

    PRODUCT IDENTIFICAT ION CONTENTS: 1. Guard 2.Saw Chain 3. Guide Bar 4. Power Head 5. Inner adjustable 6. Locking knob 7.Collet. 8.Under pole 9.Grip 10.Strap 11. Buckle 12.Handle 13.Switch Lockout 14.ON/OFF Trigger 15.Mains Power Cable 16.Oil Filler Cap. SAFETY INSTRUCTIONS WARNING Read all safety warnings and all instructions.
  • Page 5 your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

  • Page 6: Pole Saw Trimming Precautions

    unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation.
  • Page 7 Never stand on a ladder or other type of unstable support while using the Pole saw. Always use both hands to operate pole saw. Keep a firm, steady pressure on the pole saw while cutting but do not try to force the saw through the wood.

  • Page 8: Pole Saw Information

    POLE SAW INFORMATION POLE SAW ASSEMBLY (WARNING: Cutting edges on chain are sharp. Use protective gloves when handling chain.) 1. Lay chain out flat. 2. Turn adjusting screw counterclockwise (see Figure 1). Continue to turn adjusting screw until adjusting block is to rear of adjusting plate. 3.

  • Page 9: Saw Chain Tension Adjustment

    6. Fill with chain oil before use. Always check oil level before use. A full tank of oil will last approximately 30 minutes. (See Figure 2) Pole Saw Information SAW CHAIN TENSION WARNING:Unplug chain saw from power source before adjusting saw chain tension.
  • Page 10 Figure 4 2. Turn adjusting screw on front of power head clockwise until slack is out of chain. ( See Figure 5) Figure 5 3. Wearing protective gloves, pull down on chain to check chain tension. 4. Do not over-tension chain. Over-tensioning will cause excessive wear and will reduce the life of the guide bar and chain.

  • Page 11: Adjusting Pole Length

    Adjusting Pole Length The Pole Saw has a telescoping pole assembly that will extend from 1.8 meters (fully retracted) to 2.7 meters (fully extended). The collet with a locking knob is used to hold the pole in position at any extended length. 1.

  • Page 12: Cleaning And Maintenance

    5. When ready to make a cut, press in trigger lockout and squeeze trigger(See Figure 9). This will turn pole saw on. Releasing trigger will turn pole saw off. Make sure saw is running before starting a cut. Figure 9 6.

  • Page 13: Normal Guide Bar Maintenance

    Normal Guide Bar Maintenance 1. Remove guide bar from chain saw. 2. Remove sawdust from guide bar groove periodically. Use putty knife or wire (See Figure 11). 3. Clean oil slots after each day of use. 4. Remove burrs from sides of guide bar. Use flat file to make side edges square. Replace guide bar when •...
  • Page 14 Figure 12). (Note: File at midpoint of guide bar.) Figure 12 Note: This illustration shows file guide placement and filing direction for sharpening cutters on left side of chain. 4. Hold file guide level. Make sure 30° mark on file guide is parallel to center of guide bar (see Figure 13).

  • Page 15: Replacing Saw Chain

    Figure.14 Figure.15 REPLACING SAW CHAIN Replace chain when cutters are too worn to sharpen or when chain breaks. Only use replacement chain noted in this manual. Check drive sprocket for wear when replacing chain. This will maintain proper driving of chain. (Note: For proper chain and drive sprocket, see Parts List.) Refer to Figure 1 while completing the following steps.
  • Page 16 Figure 16 CAUTION: Do not place chain on saw backwards. If chain is backwards, saw will vibrate badly and will not cut. STORAGE If storing saw for more than 30 days, follow steps below.1. Drain oil tank after each use. 2.
