Quick Start Guide — MVC 121, cont'd

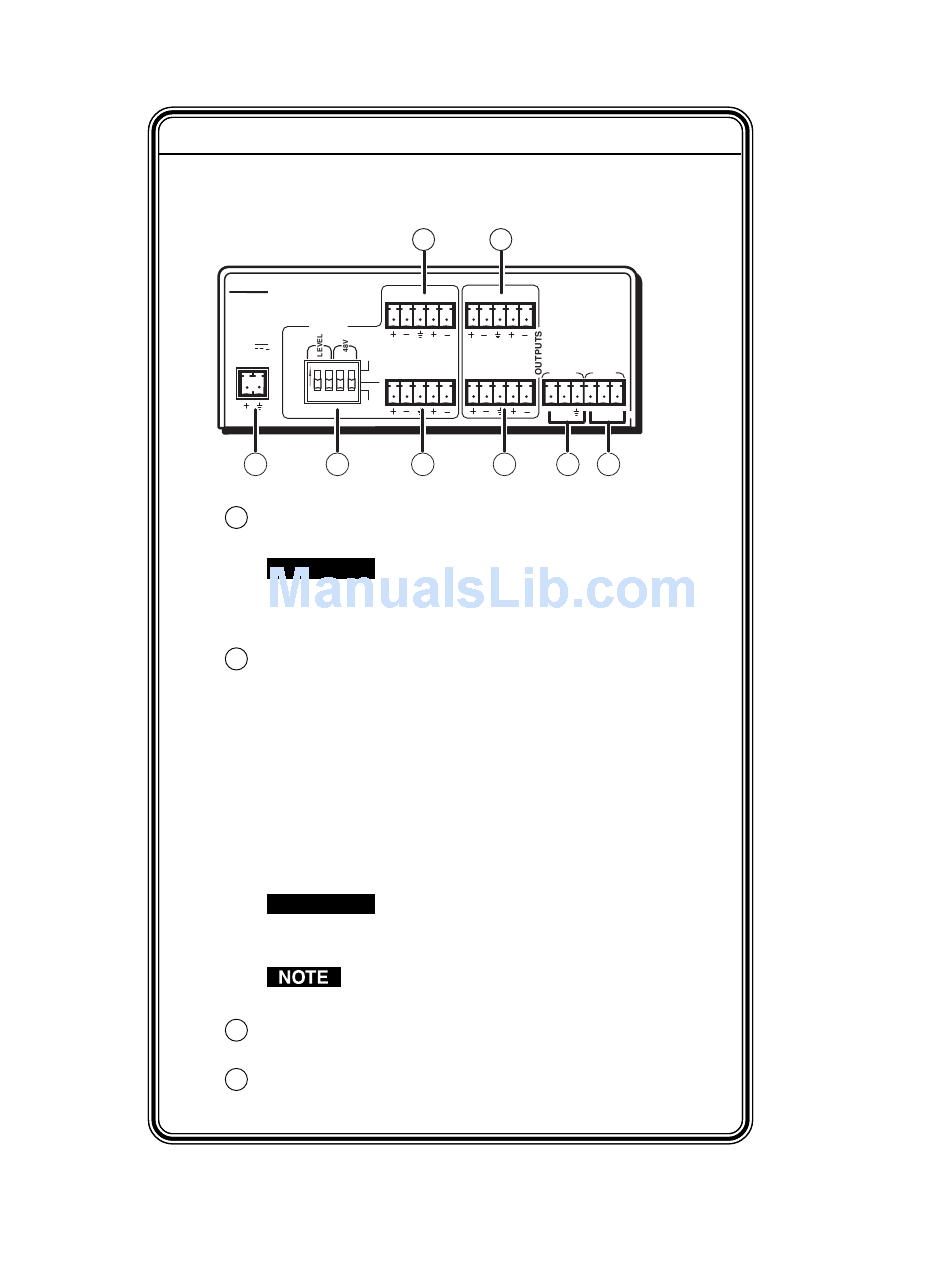

Step 3
Attach the cables and set the DIP switches.
MVC 121
MIXER/VOLUME
CONTROLLER
INPUTS
POWER
12V
0.5A MAX
ON
LINE
MIC
1 2 3 4
1 2 1 2
1 2
Power connector — Connect the 12 VDC external power
1
supply.
CAUTION
2
Mic input DIP switch — Mic 1 and Mic 2 inputs are controlled
via the DIP switch.
1. Set the mic input Level according to the mic type:
a.
b.
2. Set the 48V phantom power according to the mic type:
a.
b.
CAUTION
Mic 1 and Mic 2 input connector — Up to two mono
3
microphones, balanced and/or unbalanced, may be connected.
Main 3 line level input connector — Connect a line level audio
4
source.
QS-2 MVC 121 • Quick Start Guide
4 6
MAIN 3 FIXED
R
L L R
ON
L R
MIC 2
MIC 1 VARIABLE
OFF
3 5
When connecting the power supply, voltage
polarity is extremely important. Applying power
with incorrect voltage polarity could damage the
power supply and the MVC 121.
Wireless mic: Set the mic's DIP switch to Line (On).
Wired mic: Set the mic's DIP switch to Mic (Off).
Condenser mic: Set the mic's DIP switch to On.
Dynamic mic: Set the mic's DIP switch to Off.
Never set a dynamic microphone to 48V, doing so
may damage the microphone. For condenser mics,
verify that the mic will safely operate at 48VDC.
When the DIP switch is set to line level, 48V phantom
power is disabled regardless of its DIP switch position.
RS-232 MUTE
1 2 3
Tx Rx
7 8
