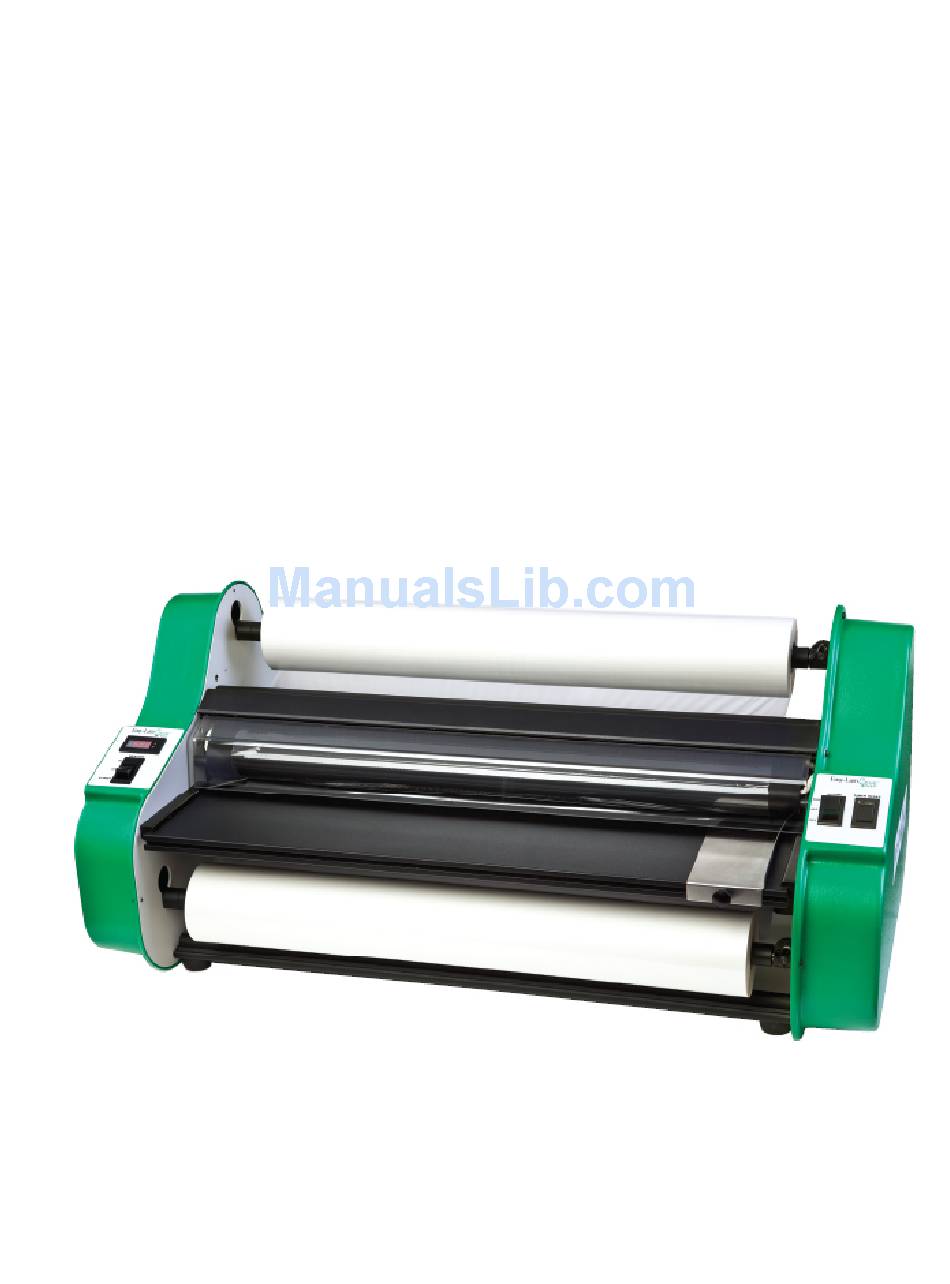

- Page 1 Easy-Lam green™ BA-EZ27g Roll Laminator...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Messages and Electrical Safeguards……………..3-4 Introduction ............... 4 Laminator Features............4 Specifications..............5 Initial Set-up……………………………………………………5-7 Components…………………………………………………..6-7 Heat Control………………………………………………..7 Operation……………………………………………………….7-10 Loading Laminating Film..........7 Threading Laminating Film………………………………..7-8 Adjusting Mandrel/Film Tension........9 Heat Shoe Temperature……………………………………..9-10 Laminating............... 10 Troubleshooting……………………………………………..10-12 Maintenance…………………………………………………..12-13 Cleaning Heat Shoes &... -
Page 3: Safety Messages And Electrical Safeguards
IMPORTANT SAFETY MESSAGES AND ELECTRICAL SAFEGUARDS For your protection, do not connect the laminator to electrical power or attempt to operate it until you read these instructions completely. Keep these instructions in a convenient location for future reference. This instruction manual and labels affixed to the laminator are important safety messages. -
Page 4: Introduction
This unit is designed to provide years of trouble-free service. The Easy-Lam green™ will accept rolls of laminating film up to 27” wide in both 1.5 and 3 mil thicknesses. Paper and card stock up to 80mm thick may be laminated without adjusting the feed rollers. -
Page 5: Specifications
SPECIFICATIONS Plastic Width 27” (68.6cm) Plastic Thickness 1.5 mil and 3 mil Maximum Roll Length 1.5 mil - 1,000 feet (304.8 meters) 3 mil - 500 feet (152.4 meters) Dimensions 20” (50.8cm) L x 35” (88.9) W x 16” (40.6cm) H Speed 4.5’... -
Page 6: Components
The figure below shows the location of the major components and controls of the EZ green. You should become familiar with these before operating the laminator. The Easy-Lam green™ laminator is designed specifically to provide energy savings to your organization. Easy-Lam green™ saves energy in two important ways: •... -
Page 7: Heat Control
Standby Mode: Lowers temperature to 150° cutting energy use in half. Heat Control Your new Easy-Lam green™ has a digital heat controller. Users can easily adjust the set temperature for the heat shoes to achieve the best quality lamination. The controller has been calibrated to accurately display the heat shoe temperature in the laminating range. - Page 8 2. Pull 6"-12" of film from the top roll. Pass the film under the idler bar and over the heat shoes. Make sure the shiny side of the film is against the shoes. 3. For the bottom supply roll, remove the run-off table. From the back of the laminator, place the mandrel ends into position in the lower mandrel holder slots.
-
Page 9: Adjusting Mandrel/Film Tension
5. Turn the Motor switch to ON to start the Laminating and Pull Rollers. 6. Feed a piece of thin cardboard about 10” x 25” against the film so that it is centered between the two Heat Shoes. Push the cardboard and film into the Laminating Rollers. See figure 5. 7. -
Page 10: Laminating
Material Temperature Range 1.5 mil (.0015”) 300°F - 320°F 3 mil (.003”) 250°F - 265°F Table 1 LAMINATING 1. Be sure the heaters have been turned on and are at the proper temperature. Be sure the film has been properly threaded. Caution: Do not allow the temperature to exceed 350°F as this could cause the laminating film to melt on the Heat Shoes and will void your warranty. - Page 11 Make sure to press “Timer Reset” if the machine has been unattended for an hour or more. Ensure that the circuit breaker has not tripped Fuse may have blown. Replace fuse (rear next to power cord) with 15 amp BUSS (MDA-15) for standard units, or 12 amp (MDA-12) for CSA units.
-
Page 12: Maintenance
PROBLEM: Laminated material curls after leaving pull rollers. ACTION: Adjust tension. If laminated item curls upwards, reduce top roller tension. If item curls downward, reduce bottom roller tension. Clean heat shoes of residual adhesive as it may be causing “drag” on one side. Refer to MAINTENANCE section for cleaning instructions. -
Page 13: Removing Wrap Arounds
Removing Wrap-arounds... When laminating with thinner gauges of film, there is the possibility of the film wrapping around the Pull Rollers. Use the same procedure for Cleaning the Heat Shoes and Laminating Rollers in order to remove a wrap-around. You should remove any wrap-arounds that occur as soon as possible. -
Page 14: Parts List
PARTS LISTS Item Part # Description 1441 Roller, EZ Bottom 1445 Roller, EZ Top (crown) 3001 Core Gripper, EZ Mandrel 11327 Fuse, 15A Fast Blow 11625 Fuse Holder, 30A Power 1210 Heat Show EZ 1242 Heater, Tubular, EZ 645044 Motor, EZ 1395 Cord, Power 14-3 11592...
