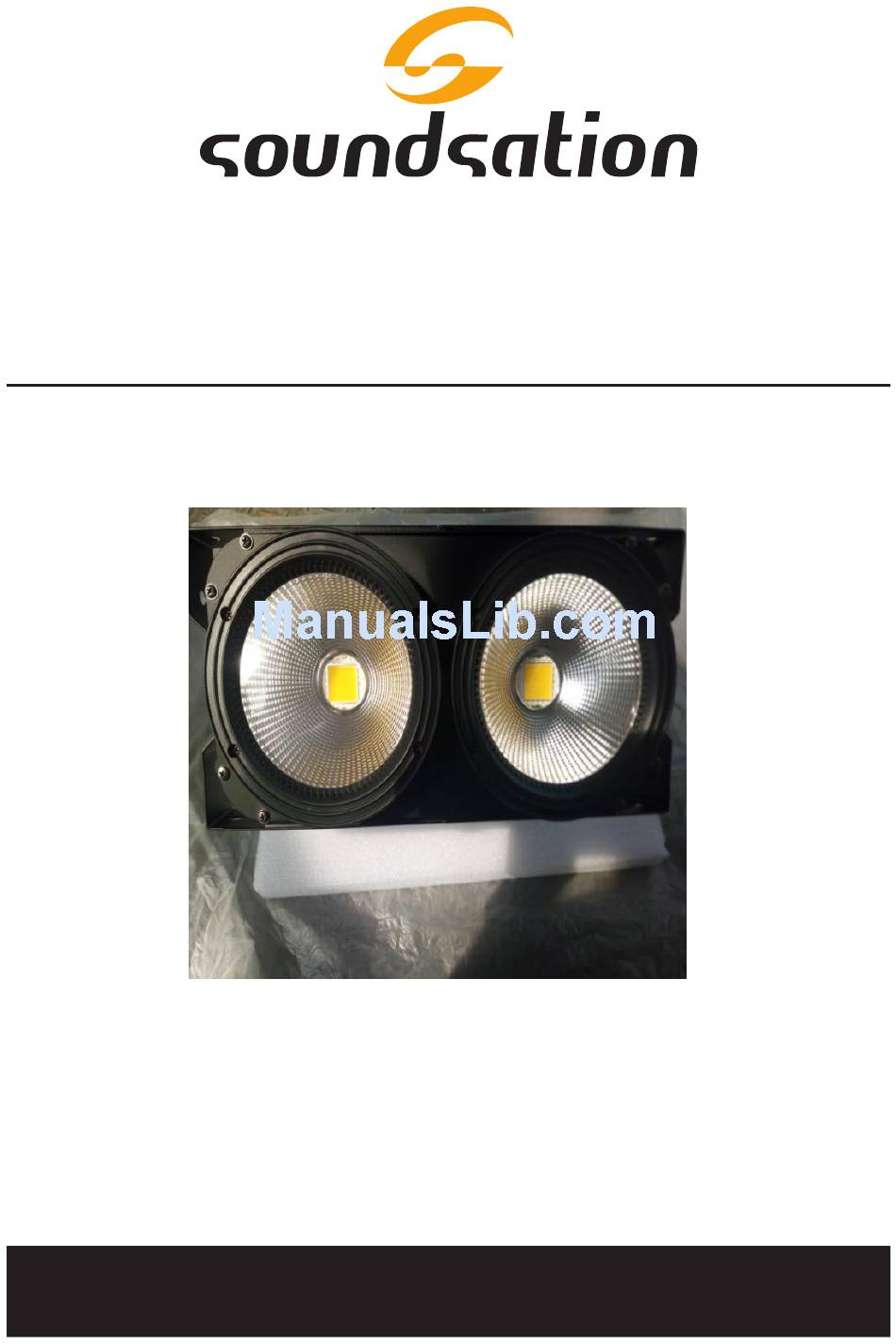

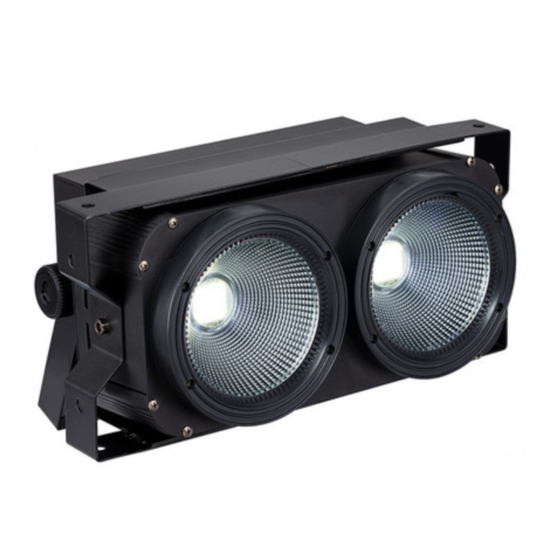

- Page 1 LIGHTBLASTER 102 COB LED BLINDER USER MANUAL Please read this manual carefully and properly take care of it...
- Page 2 ENGLISH Dear customer, First of all thanks far purchasing a SOUNDSATION® product. Our mission is to satisfy all possible needs of musical instrument and professional audio users offering a wide range of products using the latest technologies. We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and possible improvements to introduce in the next future.
-
Page 3: Table Of Contents
ENGLISH LIGHTBLASTER 102 COB User manual TABLE OF CONTENTS 1. INTRODUCTION ......................6 1.1. UNPACKING ................................6 1.2. Accessories ................................7 2. OVERVIEW ........................7 3. PRODUCT SPECIFICATION ..................7 4. MAINS CONNECTIONS .....................7 5. DMX CONNECTION ....................8 5.1. DMX Terminator ..............................8 5.2. 3-Pin vs 5-Pin DMX cables ..........................9 6. - Page 4 ENGLISH LIGHTBLASTER 102 COB User manual IMPORTANT SAFETY SYMBOLS The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating con- ditions, which may be sufficient to constitute the risk of electric shock or death.
- Page 5 ENGLISH LIGHTBLASTER 102 COB User manual f Follow all instructions Water / Moisture The apparatus should be protected from moisture and rain and can not be used near water; for example near a bathtub, a kitchen sink, a swimming pool, etc.
-
Page 6: Introduction
INTRODUCTION Thank you for purchasing our LIGHTBLASTER 102 COB. Enjoy your new equipment and make sure to read this manual carefully before operation. This user manual is made to provide both an overview of controls, as well as informa- tion on how to use them. -
Page 7: Accessories
ENGLISH LIGHTBLASTER 102 COB User manual 1.2. Accessories SOUNDSATION can supply a wide range of quality accessories that you can use with your SPIRE Series moving head, like Cables, Splitters, DMX controllers, and a wide range of other fixtures. All products in our catalogue has been long tested with this device, so we recommend you to use Genuine SOUNDSATION Accessories and Parts. -
Page 8: Dmx Connection
ENGLISH LIGHTBLASTER 102 COB User manual when connecting power. Wire correspondence is as follows: Cable (EU) International Brown Live Blue Neutral Yellow/Green Earth The earth must to be connected! Pay attention to the safety! Before taking into operation for the first time, the installation has to be approved by an expert. -
Page 9: 3-Pin Vs 5-Pin Dmx Cables
ENGLISH LIGHTBLASTER 102 COB User manual plugged into the output socket on last projector in the chain. The connections are illustrated below. DMX Terminator 120ohm, 1/4 W resistor Complimentary signal cable can transmits signals to 20 unit fixtures at most. -
Page 10: Rear Panel
ENGLISH LIGHTBLASTER 102 COB User manual 6. REAR PANEL DMX OUT POWER OUT DMX IN POWER IN MENU DOWN ENTER FUSE RoHS LIGHTBLASTER 102 COB Fuse 2) POWER IN 3) POWER OUT 4) DMX Output 3 PINs 5) DMX INPUT 3 PINS (For further details see “6.1 Control Panel”... -
Page 11: Function Chart
ENGLISH LIGHTBLASTER 102 COB User manual 2) UP Button Using this button, it is possible to increase the function’s value 3) DOWN Button Using this button, it is possible to decrease the function’s value 4) ENTER Button This button allows to save a new function’s value and it shows also the operative tem-... -
Page 12: Channel Chart
ENGLISH LIGHTBLASTER 102 COB User manual 8. CHANNEL CHART FUNCTION DIMMER W - From dark to bright (0% ≤ value ≤ 100%) Strobe: from slow to fast Function select: 0-51 no use, 51-100 jump change, 101-160 jump change,161-240 gradual change, 241-255 voice control... -
Page 13: Specifications
ENGLISH LIGHTBLASTER 102 COB User manual 9. SPECIFICATIONS Voltage 110V ~ 240V 50-60HZ Electrical Power consumption 200W Fuse 5A 250V fast blow 20mm glass 100WX2PCS Light Source Color 3200-6500K DMX512 8/4CH OPTIONAL Master/slave Control Mode Manual control Sound Active Auto... -
Page 14: Warranty And Service
SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a warranty claim shall become the property of SOUNDSATION. - Page 15 This product is imported in EU by FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy www.soundsa tionmusic.com Soundsation® is a registered trademark of FRENEXPORT SPA - Italy...
- Page 16 www.soundsa tionmusic.com Ver 1.1 - Mar. 2018...
