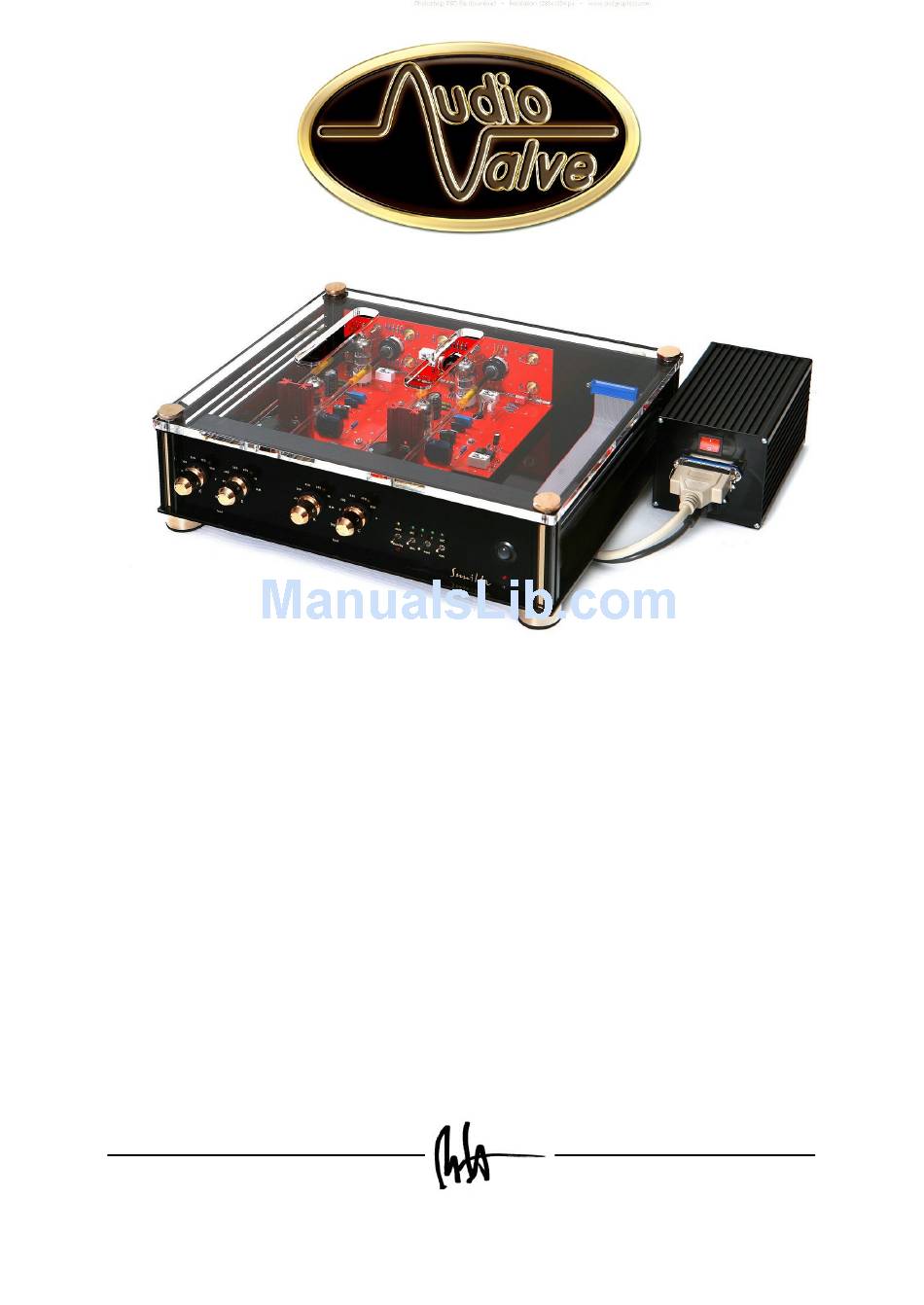

SUNILDA
Instruction Manual
model – 2013

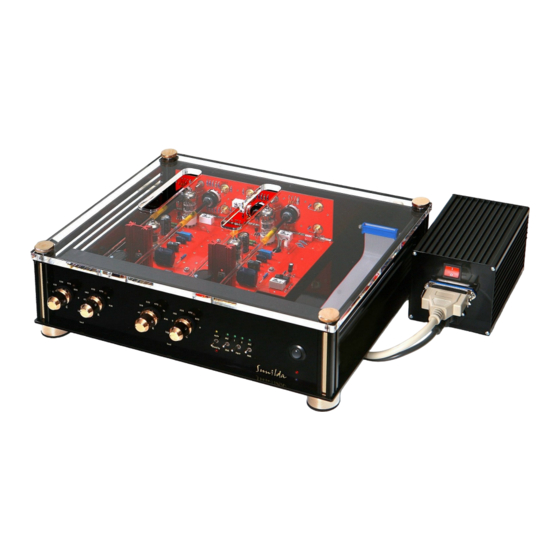

RIAA MC and MM phono amp
ultra highend
We congratulate you with the purchase of this superb AUDIOVALVE - HiFi component.
This handcrafted product has been manufactured with only your most demanding
requirements in mind. It was made to allow you many years of musical joy.
AUDIOVALVE guarantees that this amplifier has been produced under the strictest of guidelines and
with respect for procedures acquired through decades of tube amplifier design. Your SUNILDA Pre-
amplifier has been thoroughly tried and tested in all detail.
I personally guarantee the quality of this product
Helmut Becker, Design & Production
Advertisement
Related Manuals for Audiovalve SUNILDA
Summary of Contents for Audiovalve SUNILDA
- Page 1 It was made to allow you many years of musical joy. AUDIOVALVE guarantees that this amplifier has been produced under the strictest of guidelines and with respect for procedures acquired through decades of tube amplifier design. Your SUNILDA Pre- amplifier has been thoroughly tried and tested in all detail.
- Page 2 - Warranty I n t r o du c t i o n Dear client, we congratulate you on your purchase of this superb AUDIOVALVE HiFi component. To safeguard maximum functionality and to avoid operating problems, it is important that you carefully study this owners manual and that you follow all instructions therein...
- Page 3 Usage of other than ORIGINAL and approved spare parts. The SUNILDA Pre-Amplifier is subject to and complies with German security class 1 for devices with metal housing. The device is grounded, and may not – by manipulation or otherwise -...
- Page 4 Sunilda comes in an laser cuted 3 mm thick steel, chassis in black or silver finish and has a case similar to the Eklipse line amplifier.
- Page 5 SUNILDA ultra highend phono tube amplifier____________________________ Switches are found for: MM/MC mode for each input; input 1 or 2; selectors are used to select different R and C loads. Two selector knobs for each input capacitive and resistor load Frontpanel f r o m S U N I LD A In MM mode the gain will be 20 dB lower than MC and at a fixed input- impedance of 47K.
- Page 6 I n t e nd e d u s e / A p p l i c at i o n AUDIOVALVE Hi-Fi Amplifiers are intended for use under the following circumstances only: To play and transfer music of any make and fashion when this occurs in private dwellings or studios.
- Page 7 The SUNILDA Pre-Amplifier needs at least a 1.6 Ampere slow blow circuit breaker in the fuse holder for 230 VAC main voltage and 3,15 ampere slow blow by 115 VAC. Make sure your wall socket is equiped...
- Page 8 The SUNILDA Concept The SUNILDA boasts a huge amount of innovative solutions that are hard to find in tube - amplifiers in this price range. To balance currents in the tubes and to make sure they operate at peak efficiency within their tolerances, semiconductors are used.
- Page 9 SUNILDA ultra highend phono tube amplifier____________________________ Technical Specifications: MM mode gain: dB - 1Khz MC mode gain: dB - 1Khz MM / MC mode input impedance: resistors: 1> 47R, 2> 100R, 3> 220R, 4-> 470R, 5> 1K, 6> 47 K capacitors: 1>...
- Page 10 Ensure that the power supply is switched OFF with no LED shining at the appliance. Now start to install the signal lines between the pick—up and SUNILDA. Fix the earth conductor of the record player to the earth terminal assigned to each input at the back of the pre- amplifier next to the cinch inputs.
- Page 11 (yellow LED) or can change into STAND - BY mode (red LED) with the switch pointing downwards. In this case SUNILDA is heated up without anode supply voltage. With the switch in neutral position none of these two functions are active. This switch position is neutral and usually the prefered position.
- Page 12 When switching from MM to MC, because the amplification increases by 20dB. A view of the compact and absolute wireless electronic - riaa modul from SUNILDA. There is no hum, bee or any noise - only music. The design on a double side pc board is constructed in double mono technology, use best and selected components and guarantee high stable and highend vinyl re - productions.
- Page 13 In the event of a failure of your amplifier, AUDIOVALVE will repair or readjust this unit or, should the occasion arise, will replace it provided that all conditions stipulated in this warranty are met.
-
Page 14: Declaration Of Conformity
Product Type: Audio Amplifier Complies with Standards: LVD: 92/31/EEC, 93/68/EEC, & 73/23/EWG Safety: EN60065 EMC: EN55013, EN55020, EN55022, EN55103, EN61000-3-2, & EN61000-3-3 The official Declaration of Conformity for this product is kept on file at: AudioValve, 34123 Kassel,Umbachsweg 70, Tel. 05617013360...
