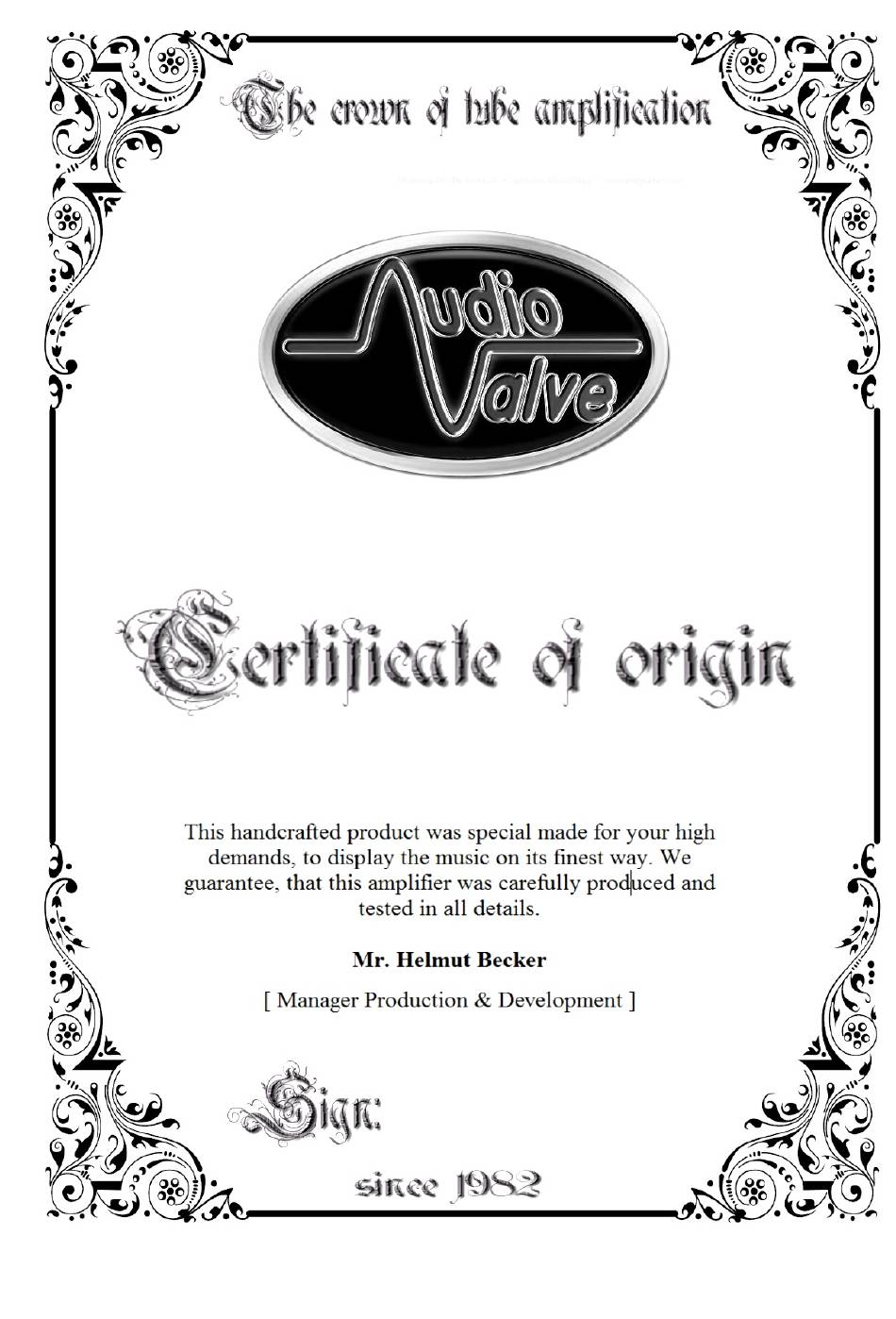

- Page 2 Assistent 100 – Mark 2 integrated tube amplifier_ ___________ ASSISTENT 100 - Mark 2 Integrated stereo triode tube amplifier owner manual This handcrafted product was special made for your high demands, to display the music in its finest way. We guarantee, that this amplifier was carefully produced and tested in all details.
- Page 3 Assistent 100 – Mark 2 integrated tube amplifier_ ___________ Congratulations on your decision to become the proud owner of the AUDIO-VALVE Prometheus power amplifier. This manual has been prepared to help you understand the operation of your amplifier and to provide some information about its design and the variety of ways it may be used.
- Page 4 Assistent 100 – Mark 2 integrated tube amplifier_ ___________ WARNING This amplifier Prometheus operates in class - A and is therefore capable of generating a moderately high temperatue which requires careful placing to aviod any effect this heat may have on other equipment, furniture and fittings etc. Do not remove the top cover from this ampllifier.
- Page 5 Now it is no longer necessary to sacrifice one to get the other. Combining the finest in modern valve technology with sophisticated smartbias circuitry, AudioValve brings you the best of both worlds - and more. With contemporarily-styled chassis built from 4 & 5 mm laser-cut steel, every...
- Page 6 The advantage of this approach is a consistency and reliability of performance and the certainty that all production examples of any AudioValve model will be exactly like its reference sample! This is in stark contrast to amplifiers that employ hardwired components, where the sonic...
- Page 7 Assistent 100 – Mark 2 integrated tube amplifier_ ___________ therefore capable of generating a moderately high temperature which requires care full placing to aviod any effect this heat may have on other equipment, furniture and fittings etc. Do not remove the top cover from this amplifier. Hazardous voltages are present.
- Page 8 The amplifier is now ready for connecting into your audio system. Experience has shown that these amplifiers benefit from resting on a solid surface rather than carpet. Your AudioValve dealer will be able to recommend a suitable support that ensures adequate airflow around and through the amplifier. Do not place this amplifier in a position where liquids or any hard objects may accidentally enter it.
- Page 9 On the right you see the VOLUME pot and 2 relative level meters. n the middle is a clear acryl window which shows the blue shining AudioValve logo when the amp is in operate mode, and a red one, when the amp is in the sleep mode (power –...
- Page 10 ASSISTENT 100 uses for all fage XLR inputs female jackets and for the TAPE output one pair of RCA jackets. OUTPUT TERMINALS The ASSISTENT 100 Mark 2 has two pair of output terminals in vertical direction for 8 ohm loads, you can internal switch to 4 ohm speakers PLACEMENT AND VENTILATION This AudioValve ASSISTENT 100 amplifier is designed to operate at a moderately high temperature.
- Page 11 Assistent 100 – Mark 2 integrated tube amplifier_ ___________ INSTALLATION AND OPERATION MAIN VOLTAGE and Main Power Plug ( fuse ) and Main Switch MAIN POWER connection is via supplied plug-in lead. The standard IEC socket connects the mains power at the amplifier end while a local mains plug is required at the wall end. In the event where a "local"...
- Page 12 Assistent 100 – Mark 2 integrated tube amplifier_ ___________ REMOTE CONTROL In case the remote doesn`t work or you replace the battery, please follow the instructions: - Make sure that the batteries are fitting tight at their place. - On the back side of the remote through a little hole you can see a blue LED .Located on the PC board of the remote.
- Page 13 Once you have changed the faulty power valve the LEDs should go out. If this or any other of the LEDs remains lit, turn the amp off at the POWER switch and contact your AudioValve dealer. Under normal operating conditions none of the LEDs are lit, athough:...
-
Page 14: Specifications
Assistent 100 – Mark 2 integrated tube amplifier_ ___________ TUBE PLACING the 4 big valves are russia models named GU50 – and you no can replace them by an other models. SPECIFICATIONS Inputs: 5 pair RCA – 47Kohm, 2 pair fage XLR ( Input 1+2 ) Outputs: one pair RCA TAPE OUT, 2 pairs 8 ohm speaker terminals Efficiency: 0dBm for max. - Page 15 90-day period on the tubes from the purchase date. In the event of a failure of your amplifier , AUDIOVALVE will repair or readjust this unit or , should the occasion arise , will replace it provided that all conditions stipulated in this warranty are met.
-
Page 16: Warranty Registration
___________ WARRANTY REGISTRATION Please fill out and return this warranty form to the US distributor within 15 days of the purchase date or use our online warranty register form by: www.audiovalve.de MODEL : _______________________________________________ SERIAL NUMBER : _______________________________________ PURCHASE DATE : ______________________________________... - Page 17 ___________ CE – Confirmity Declaration Of Conformity declare under our sole responsibility that the product(s) Manufacturer: AudioValve, Germany, 34123 KASSEL, Umbachsweg 70, info@audiovalve.info to which this declaration relates is/are in conformi y with the requirements of the following directive(s) Product Name: Asistent 100 Mark 2 –...
