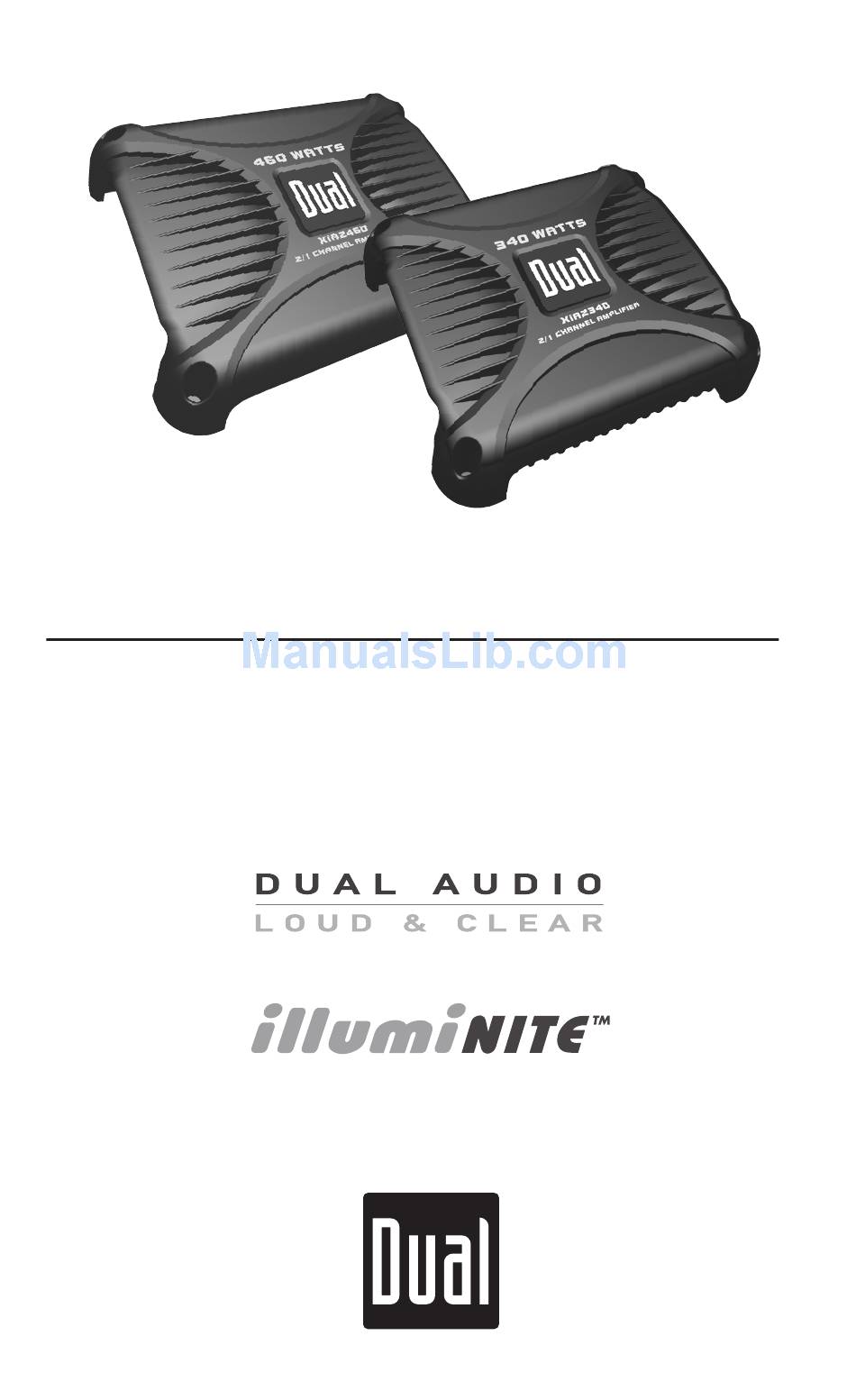

- Page 1 XIA2340 XIA2460 XIA SERIES INSTALLATION/OWNERS MANUAL Mobile Power Amplifiers...
-
Page 2: Installation
INSTALLATION Preparation Please read entire manual before installation. Due to the technical nature of amplifiers, it is highly recommended that your DUAL amplifier is installed by a professional installer or an authorized dealer. Before You Start • Disconnect negative battery terminal. (consult a qualified technician for instructions) •... -
Page 3: Connection Descriptions
• Use 18-gauge or larger wire for making the connections to the illuminite terminals of DUAL illuminite speakers ONLY. Be sure to observe polarity when connecting. • Do not ground any illuminite output wires or connect any illuminite wires together. - Page 4 XIA SERIES INSTALLATION Features and Control Locations Low Level Inputs LED Indicator High Level Inputs Power Connections Input Level Control Main Fuse Crossover Frequency illuminite Fuse Crossover Mode Switch illuminite Outputs Bass Boost Speaker Connections...
-
Page 5: Typical Wire Routing
Using an incorrect fuse could damage the amplifier. XIA2340 10 gauge XIA2460 8 gauge XIA2340 30 amp & 2 amp ATO x 1 each illuminite Circuitry 18 gauge XIA2460 40 amp & 2 amp ATO x 1 each... -
Page 6: Output Connections
INSTALLATION Output Connections The illuminite lighting elements of DUAL XiN series speakers provide you with a unique custom touch to your vehicle. Dual’s patent pending illuminite bulb system and control circuitry provides an extraordinary Blue-Hue illumination which allows great creative opportunities for the beginner and seasoned custom installer alike. -
Page 7: Amplifier Connections
Speaker Connections Connect speaker wires observing 2 Speakers Subwoofer polarity. The minimum impedance load for the XIA2340 and XIA2460 is 2 ohms (stereo) and 4 ohms (bridged). Use of loads lower than these is not recommended and may cause amplifier damage. -
Page 8: Configuration/Setup
XIA SERIES OPERATION Configuration/Setup The input level control (gain) is used to obtain the best Input level Control possible match between the head unit audio output and the amplifier input. Begin by turning the input level control fully counter clockwise. Next, turn up the head unit volume control around 3/4 of the way up. -
Page 9: Limited One-Year Warranty
(whichever is deemed necessary) if it becomes defective or inoperative. This is done without charge 4. DUAL will pay the return shipping charges if to you. Replacement products are warranted for the the product is returned to an address within the balance of the original warranty period. -
Page 10: Specifications
XIA SERIES OPERATION Specifications CEA-2006 Power Standard Specifications XIA2340 (reference: 14.4VDC, 20Hz~20kHz) 70 Watts RMS x 2 channels at 4 ohms and < 1% THD+N Power Output: Signal to noise ratio: 70dBA (reference: 1 watt into 4 ohms) Additional power output: 90 Watts RMS x 2 channels at 2 ohms and <... - Page 11 XIA SERIES OPERATION Specifications CEA-2006 Power Standard Specifications XIA2460 (reference: 14.4VDC, 20Hz~20kHz) 100 Watts RMS x 2 channels at 4 ohms and < 1% THD+N Power Output: 76dBA (reference: 1 watt into 4 ohms) Signal to noise ratio: Additional power output: 145 Watts RMS x 2 channels at 2 ohms and <...
-
Page 12: Troubleshooting
XIA SERIES OPERATION Troubleshooting Problem Cause Action +12V wire not connected or incorrect voltage Check connections for proper voltage Unit will not turn on REM wire not connected or incorrect voltage (11~16VDC) (no power) GND wire not connected Check connection to ground Fuse(s) blown Replace fuse(s) Speaker wires not connected...
