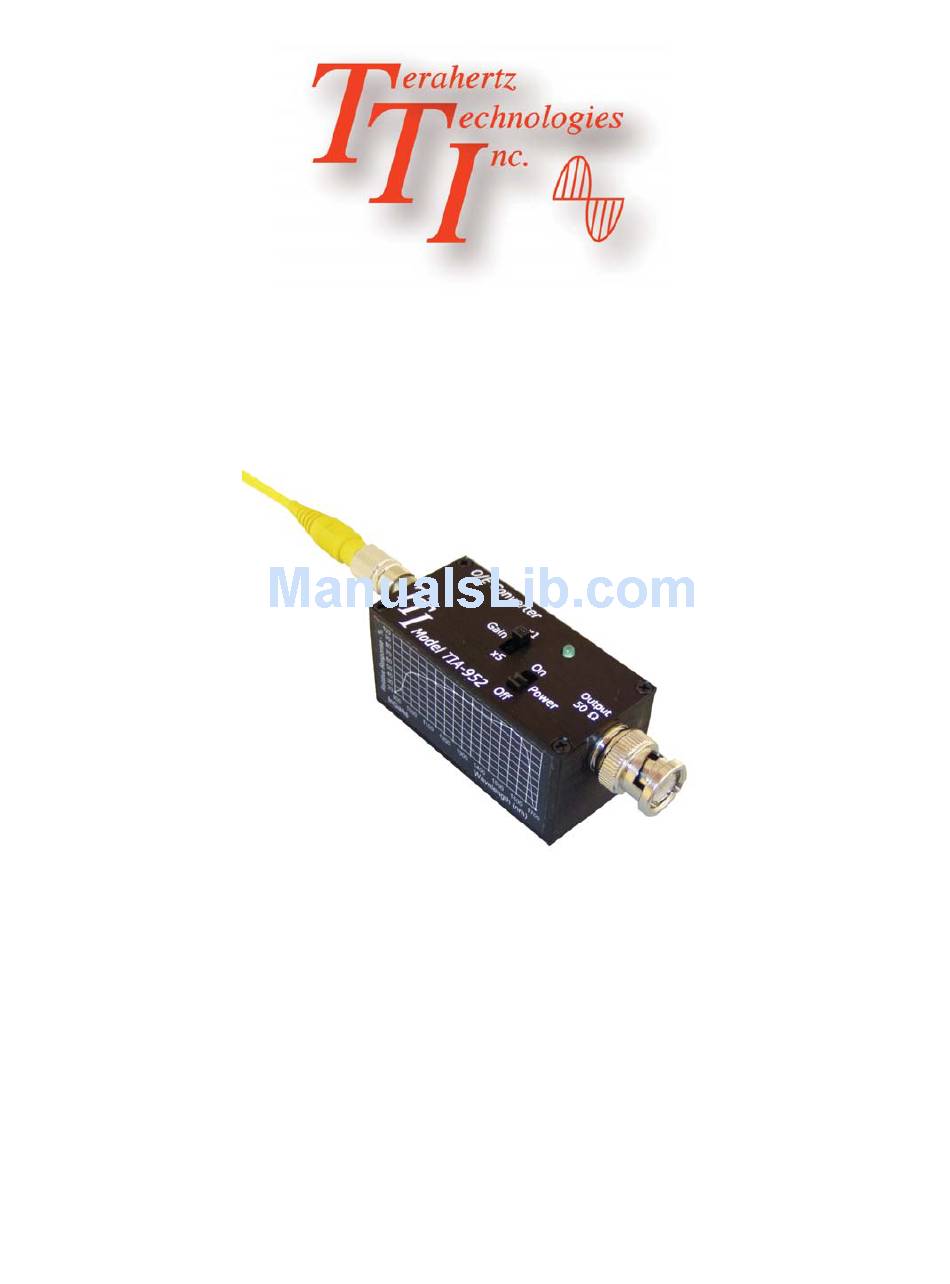

Page 1: Operating Instructions
TIA-952 Optical/Electrical Converter Operating Instructions Terahertz Technologies Inc.169 Clear Road Oriskany NY 13424 (315) 736-3642 FAX (315) 736-4078 E-mail sales@terahertztechnologies.com 2/2012... -
Page 2: Table Of Contents
Contents Introduction ........................1 Unpacking and Inspection ....................1 Powering the Unit ......................2 Controls .......................... 2 Operating Considerations ....................3 Spectral Response ......................3 Specifi cations ......................... 4 Limited Warranty ......................5 Repair Information ......................5... -
Page 3: Introduction
50 ohm cable terminated in its characteristic load. The InGaAs version of the TIA-952 has a transimpedance of 500 Ω plus a post amplifi er with select- able gains of 1 or 5. Thus the overall responsivity ranges from approximately 450 V/W to 2250 V/W at the peak of the detector response curve and when terminated in a 50 ohm load. -
Page 4: Powering The Unit
Powering the Unit The TIA-952 is equipped with a universal 12 volt regulated power supply that operates from 95 to 260 VAC, 47-60 Hz. Each unit is supplied with four interchangeable power plugs that equip the unit for use in North America, Europe, Great Britain or Australia. Simply snap on the appropriate mains connector and plug the 2.1 mm coaxial plug into the receptacle located just under the optical input... -
Page 5: Operating Considerations
Operating Considerations The TIA-952 is comprised of a fi ber coupled detector and two amplifi er stages. The fi rst amplifi er is a transimpedance stage which converts the detector output current to a voltage by passing it through a resistor of 500 ohms. -
Page 6: Specifi Cations
TIA-952 Specifications Detector Type Large area InGaAs Analog Signal Bandwidth (-3 dB) 30 KHz to 800 MHz, Low gain, 30 KHz to 300 MHz High Gain Selectable Responsivity Settings 500 V/W or 2500 V/W @ 1550 nm when terminated in a 50 Ohm Load... -
Page 7: Limited Warranty
LIMITED WARRANTY TERAHERTZ TECHNOLOGIES INC. ( TTI ) WARRANTS THAT TO THE FIRST PURCHASER, FOR A PERIOD OF TWO YEARS FROM THE DATE OF RECEIPT, THAT THIS PRODUCT (THE PRODUCT) WILL BE FREE FROM DE- FECTS IN MATERIALS AND MANUFACTURING. THE FOREGOING WARRANTY IS THE ONLY WARRANTY, EX- PRESS OR IMPLIED, GIVEN BY TTI, I.E., THERE IS NO WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
