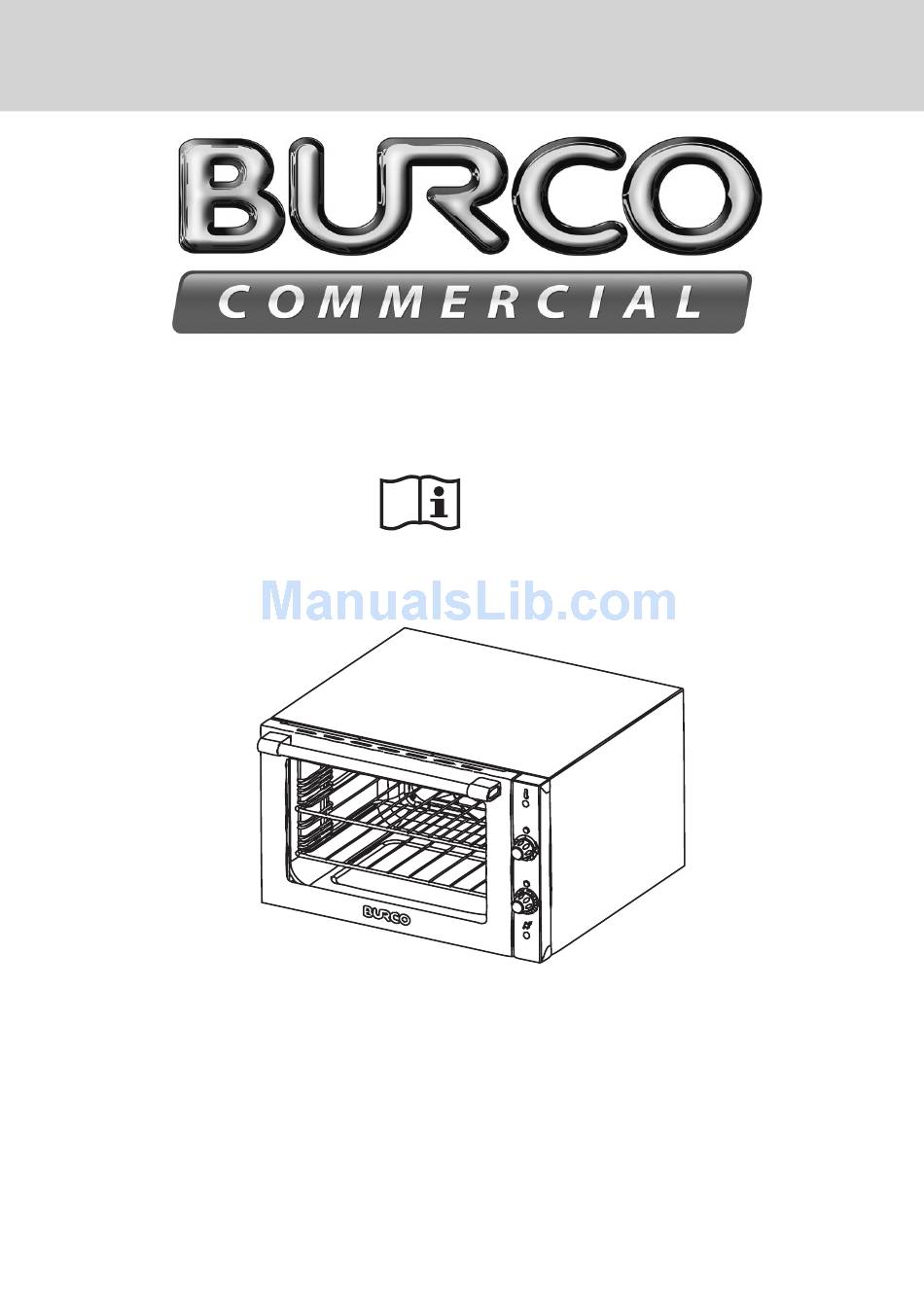

User Instruction Manual
Counter Top Convection Oven
Please read and
keep these
instructions
These instructions cover the Burco counter top convection oven model CTCO02, SKU 444441151
CTCO02
SKU 444441151
Glen Dimplex Professional Appliances
Stoney Lane, Prescot, Merseyside, L35 2XW
Tel: 0844 815 3755
www.burco.co.uk
Advertisement
Table of Contents
Related Manuals for Burco CTCO02
Summary of Contents for Burco CTCO02
- Page 1 User Instruction Manual Counter Top Convection Oven Please read and keep these instructions These instructions cover the Burco counter top convection oven model CTCO02, SKU 444441151 CTCO02 SKU 444441151 Glen Dimplex Professional Appliances Stoney Lane, Prescot, Merseyside, L35 2XW Tel: 0844 815 3755...
-
Page 2: Specifications
Please read this instruction booklet carefully, and follow all instructions. • If you are unsure of any aspect of the installation, use or performance of your oven, please contact the after sales number shown on the back page. SPECIFICATIONS Model CTCO02 SKU Number 444441151 Dimensions Height 395mm... -
Page 3: Electrical Connection
The oven should be positioned such that it can be loaded and unloaded easily, and the controls can be operated conveniently. Important: DO NOT OBSTRUCT THE VENTILATION SLOTS IN THE BASE AND REAR OF THE OVEN. Electrical Connection: Fitting a plug The mains lead of this oven will already be fitted with a BS1363 13A plug. - Page 4 USER GUIDE DO NOT COVER THE OVEN ELEMENT OR OVEN SHELVES WITH METAL FOIL. DURING USE THE OVEN BECOMES HOT. BE CAREFUL NOT TO TOUCH HOT SURFACES. TURN OFF THE POWER SUPPLY AND REMOVE THE PLUG WHEN NOT IN USE, BEFORE CLEANING, AND BEFORE REPLACING ANY PARTS.
- Page 5 Oven shelves To remove, slide out to the stop position, raise the front edge up, and lift out. Clean with hot water and detergent. Oven door glass To remove, slide out of slots in door. Clean with a good quality glass cleaner. Trouble-shooting: Fault Possible Cause...
-
Page 6: Wiring Diagram
WIRING DIAGRAM COUNTER TOP CONVECTION OVEN HEATING POWER INDICATOR INDICATOR AMBER GREEN OVEN THERMOSTAT Gn/Y OVEN SWITCH THERMAL CUTOUT L150C OVEN Gn/Y ELEMENT OVEN LIGHT Gn/Y OVEN Wiring colour code: Bk - Black Bn - Brown Bu - Blue Gn/Y Gn/Y - Green/Yellow Gn/Y Or - Orange... - Page 7 SPARES LIST ALWAYS TURN OFF THE POWER SUPPLY AND REMOVE THE PLUG BEFORE REPLACING ANY PARTS Part Number Description 081545403 Thermal cutout 150C 082971300 Element 083083400 Fan oven circulation 082956100 Switch main oven 082558001 Thermostat 926016900 Lamp assembly 081797200 Seal main oven 082896101 Timer minute minder 082930601...
- Page 8 Customer helpline For spares and after-sales service please contact Burco on: T: 0844 815 3755 F: 0844 815 3748 info@gdha.com Glen Dimplex Professional Appliances (A Division of Glen Dimplex Home Appliances) Stoney Lane, Prescot, Merseyside L35 2XW www.burco.co.uk 082756502 © 07.2011...
