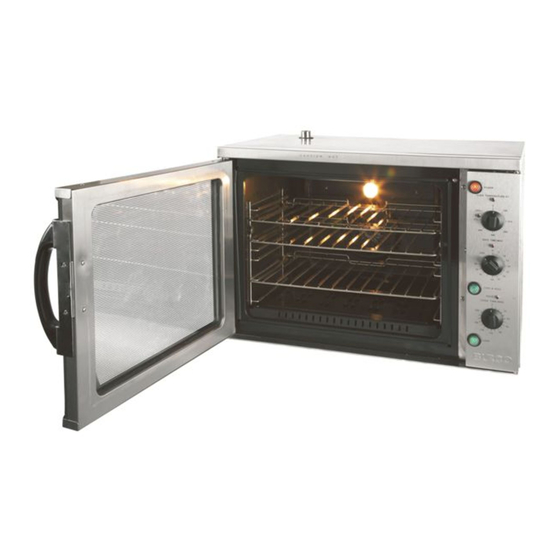

Counter top convection oven

Advertisement

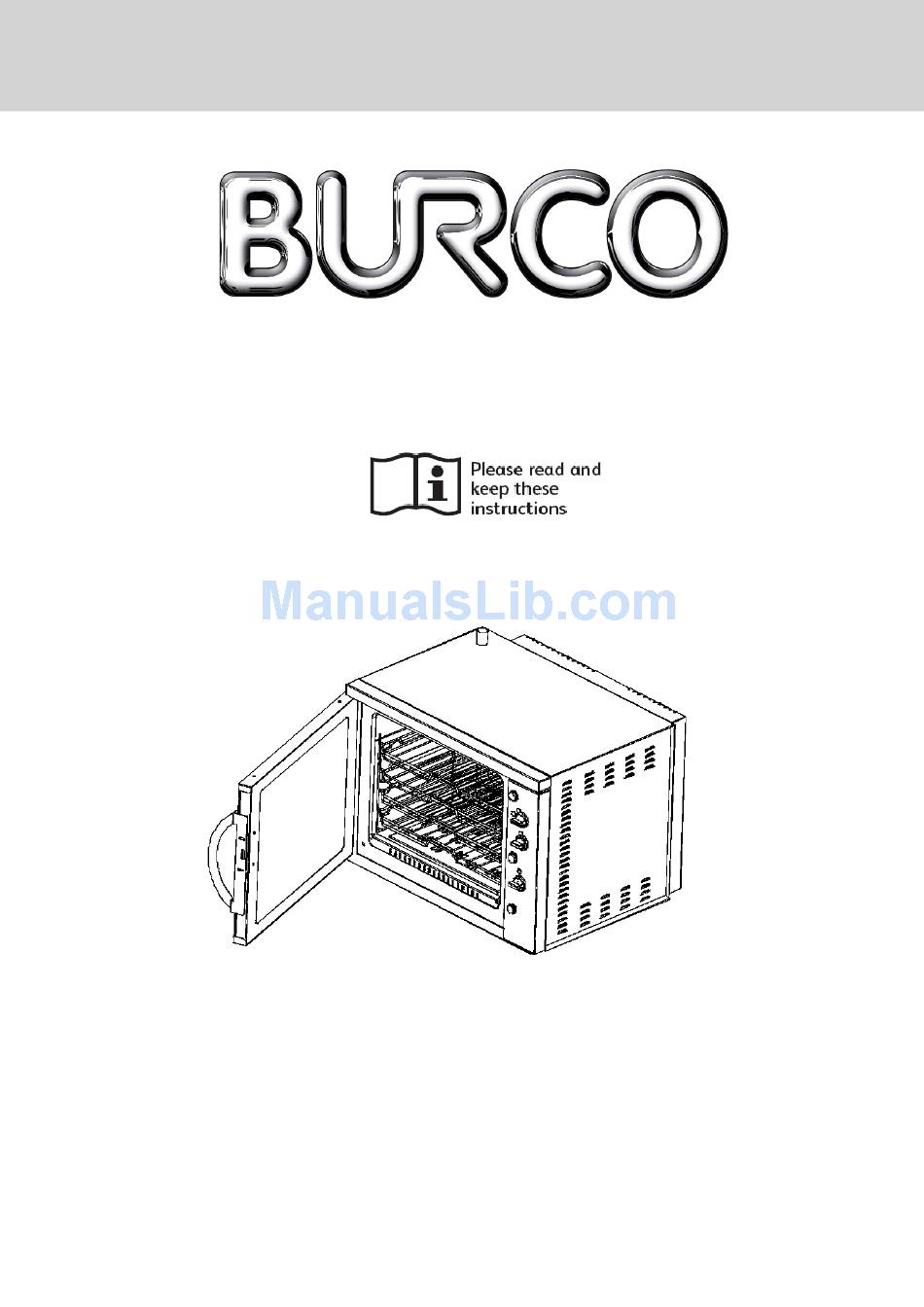

User Instruction Manual
Counter Top Convection Oven
These instructions cover the Burco counter top convection oven model CTCO01, SKU 444440542
CTCO01
SKU 444440542
Glen Dimplex Professional Appliances
Stoney Lane, Prescot, Merseyside, L35 2XW
Tel: 0844 815 3755
www.burco.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTCO01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Burco CTCO01

  • Page 1 User Instruction Manual Counter Top Convection Oven These instructions cover the Burco counter top convection oven model CTCO01, SKU 444440542 CTCO01 SKU 444440542 Glen Dimplex Professional Appliances Stoney Lane, Prescot, Merseyside, L35 2XW Tel: 0844 815 3755 www.burco.co.uk...
  • Page 2: Specifications

    Please read this instruction booklet carefully, and follow all instructions. • If you are unsure of any aspect of the installation, use or performance of your oven, please contact the after sales number shown on the back page. SPECIFICATIONS Model CTCO01 SKU Number 444440542 Dimensions Height 580 mm...
  • Page 3: Electrical Connection

    Electrical Connection: Fitting a plug The mains lead of this oven will already be fitted with a BS1363 13A plug. If the fuse has to be replaced, use a 13 amp fuse complying with BS 1362. If the plug is not suitable for your socket then the plug must be cut off and disposed of safely. An appropriate plug should be fitted as follows: IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:...
  • Page 4: Description Of Controls

    USER GUIDE Description of controls: Power Press to switch power on or off. Switch illuminates when power is on. Thermostat Temperature range 50-250°C - both elements are on. ‘Oven temperature’ indicator illuminates when the elements are cycling on to maintain set temperature. Grill/Broil position - bottom element only is on.
  • Page 5 Do not cover the element or shelves with metal foil. During use the oven becomes hot. Be careful not to touch hot surfaces. TURN OFF THE POWER SUPPLY AND REMOVE THE PLUG WHEN NOT IN USE, BEFORE CLEANING, AND BEFORE REPLACING ANY PARTS. This convection oven will cook food faster, at a lower temperature and more evenly than a conventional oven.
  • Page 6: Cook & Hold

    Cook & Hold: This system will automatically cook food for a set time, then hold the oven at a preset temperature indefinitely to maintain food at a serving temperature. 1. Turn power on The power switch illuminates when it is pressed and latched in the on position.
  • Page 7: Grilling / Broiling

    Grilling / Broiling: 1. Turn power on The power switch illuminates when it is pressed and latched in the on position. 2. Set thermostat fully clockwise to the GRILL position The GRILL indicator will illuminate to show the GRILL function has been set, the OVEN TEMPERATURE indicator will also illuminate whenever the element is on.
  • Page 8: Troubleshooting

    CLEANING ALWAYS TURN OFF THE POWER SUPPLY AND REMOVE THE PLUG BEFORE CLEANING THIS APPLIANCE IS NOT WATERPROOF DO NOT USE A WATER JET SPRAY TO CLEAN THE INTERIOR OR EXTERIOR OF THE APPLIANCE, OR USE A WATER JET IN THE VICINITY OF THE APPLIANCE Exterior Clean with a good quality stainless steel cleaning compound.
  • Page 9 GUARANTEE This convection oven is guaranteed against defective materials or faulty workmanship, for a period of 12 months on labour and 36 months on parts. This guarantee is given subject to the appliance being used in accordance with the instructions supplied, and on the supply voltage marked on the rating label. The guarantee is subject to fair wear and tear conditions.
  • Page 10: Wiring Schematic

    WIRING SCHEMATIC...
  • Page 11: Spares List

    SPARES LIST ALWAYS TURN OFF THE POWER SUPPLY AND REMOVE THE PLUG BEFORE REPLACING ANY PARTS Part Number Description 082640651 RELAY 301090039 082640652 MICRO SWITCH 30108006 082640653 TIMER 60 min 301120009 082640654 THERMOSTAT 320°C 301030081 082640655 FAN blade 20207027042 082640656 LAMP holder 301130038 082640657 DOOR inner glass 302100198...
  • Page 12: Customer Helpline

    Customer helpline For spares and after-sales service please contact Burco on: T: 0844 815 3755 F: 0844 815 3748 info@gdha.com Glen Dimplex Professional Appliances (A Division of Glen Dimplex Home Appliances) Stoney Lane, Prescot, Merseyside L35 2XW www.burco.co.uk...
