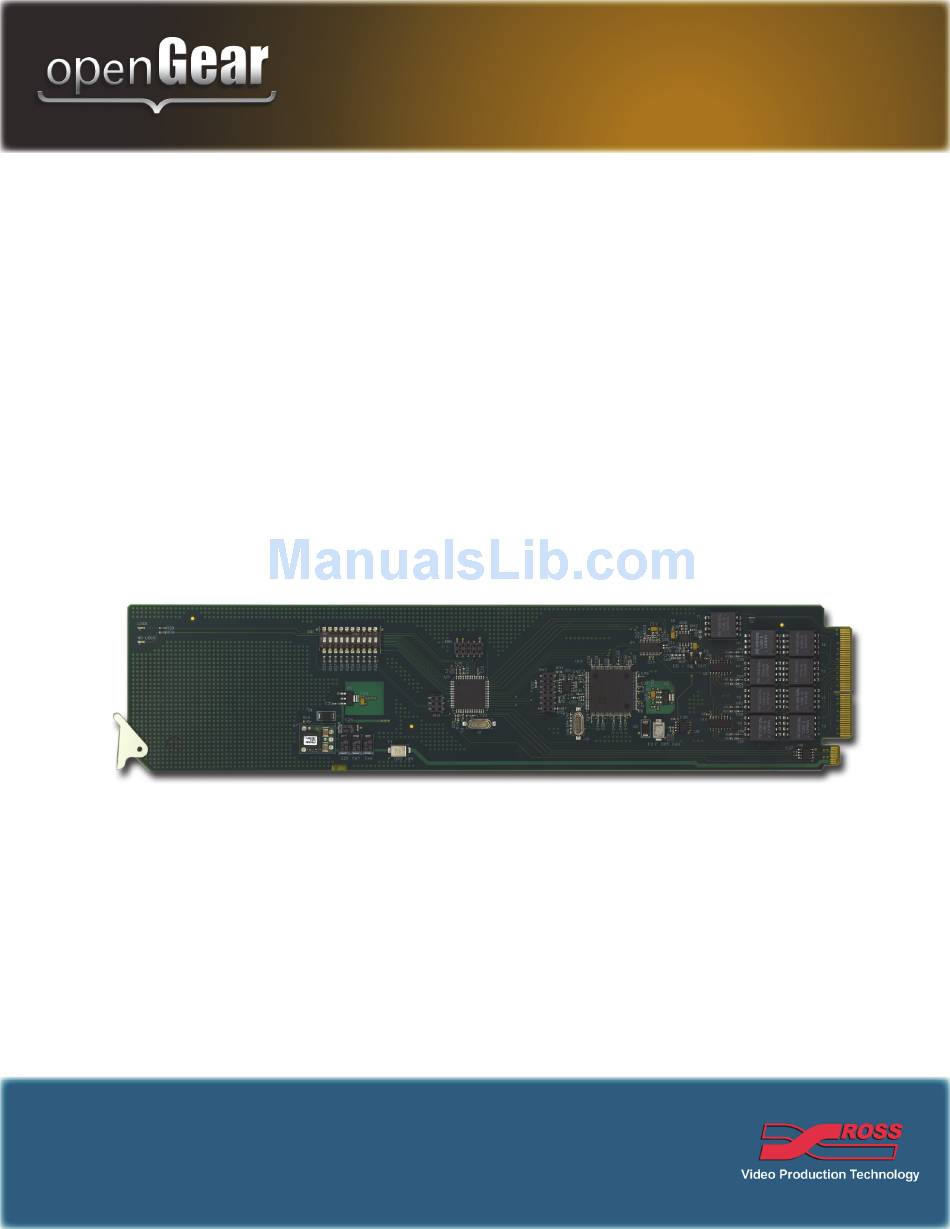

- Page 1 ADA-8402-B AES/EBU Distribution Amplifier (110ohm) User Manual...
- Page 2 Ross Video Limited. • Ross, ROSS, ROSS®, and MLE are registered trademarks of Ross Video Limited. • openGear® is a registered trademark of Ross Video Limited. • DashBoard Control System™ is a trademark of Ross Video Limited. •...
-
Page 3: Important Safety Instructions
Important Regulatory and Safety Notices to Service Personnel Before using this product and nay associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Product may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements. - Page 4 Support using the numbers listed under the “Contact Us” section on the last page of this manual. All openGear products are covered by a generous 5-year warranty and will be repaired without charge for materials or labor within this period. See the “Warranty and Repair Policy” section in...
- Page 5 Environmental Information The equipment that you purchased required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment. To avoid the potential release of those substances into the environment and to diminsh the need for the extraction of natural resources, Ross Video encourages you to use the appropriate take-back systems.
- Page 6 Company Address Ross Video Limited Ross Video Incorporated 8 John Street P.O. Box 880 Iroquois, Ontario, K0E 1K0 Ogdensburg, New York Canada USA 13669-0880 General Business Office: (+1) 613 • 652 • 4886 Fax: (+1) 613 • 652 • 4425 Technical Support: (+1) 613 •...
-
Page 7: Table Of Contents
Using the DIP Switches ....................... 3-3 Overview ....................... 3-3 Configuring the DIP Switches................3-3 Control and Monitoring Features..................3-6 Status and Selection LEDs on the ADA-8402-B ..........3-6 DashBoard Menus Status Tabs ........................... 4-2 Status Tab ......................4-2 Product Tab ......................4-2 Settings Tab ......................... - Page 8 • Contents ADA-8402-B User Manual (Iss. 02)
-
Page 9: Introduction
A Word of Thanks Congratulations on choosing an openGear ADA-8402-B AES/EBU Distribution Amplifier (110ohm). Your ADA-8402-B is part of a full line of products within the openGear Terminal Equipment family of products, backed by Ross Video’s experience in engineering and design expertise since 1974. -
Page 10: Overview
ITU1770 LKFS Audio Measurements and displaying the measurement in DashBoard. The 8320AR-043 high density split rear module can accommodate up to 2x ADA-8402-B cards, each configured as a 1x4 DA, accommodating up to 20 channels of distribution per 2RU frame. -
Page 11: Functional Block Diagrams
This section provides the functional block diagrams that outline the workflow of the ADA-8402-B. Figure 1.1 Simplified Block Diagram — 8310AR-042 and 8320AR-042 Full Rear Modules Figure 1.2 Simplified Block Diagram — 8320AR-043 Split Rear Module ADA-8402-B User Manual (Iss. 02) Introduction • 1–3... -
Page 12: User Interfaces
• using DashBoard, refer to the DashBoard User Manual. Card-edge Controls The ADA-8402-B provides LEDs on the card-edge that display the status of the input signals. For More Information on... • adjusting the output levels, refer to the section “Card Overview” on page 3-2. -
Page 13: Documentation Terms And Conventions
• “OG3-FR series” refers to the OG3-FR series frames and • “openGear frame” refers to all versions of the DFR-8300 series and OG3-FR series frames and any available options unless otherwise noted. • “Operator” and “User” refer to the person who uses ADA-8402-B. - Page 14 1–6 • Introduction ADA-8402-B User Manual (Iss. 02)
-
Page 15: Installation
Installation In This Chapter This chapter provides instructions for installing the rear module(s) for the ADA-8402-B, installing the card into the frame, cabling details, and updating the card software. The following topics are discussed: • Before You Begin • Installing the ADA-8402-B •... -
Page 16: Before You Begin
Unpacking Unpack each ADA-8402-B you received from the shipping container and ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly. -
Page 17: Installing The Ada-8402-B
Installing the ADA-8402-B This section outlines how to install a rear module and card in an openGear frame. The same procedure applies regardless of the frame or card type. However, the specific rear module you need to install depends on the frame you are using. -
Page 18: Installing The Ada-8402-B
1. Locate the rear module you installed in the procedure “Installing a Rear Module” on page 2-3. 2. Hold the ADA-8402-B by the edges and carefully align the card-edges with the slots in the frame. 3. Fully insert the card into the frame until the rear connection plus is properly seated in the rear module. -
Page 19: Cabling For The Ada-8402-B
This section provides information for connecting cables to the installed rear modules on the openGear frames. Connect the input and output cables according to the following sections. The input is internally terminated in 110ohm and it is not necessary to terminate unused outputs. -
Page 20: Software Upgrades
The card(s) automatically re-boot and are temporarily taken offline during the re-boot process. The process is complete once the status indicators for the Card State and Connection fields return to their previous status. 2–6 • Installation ADA-8402-B User Manual (Iss. 02) -
Page 21: User Controls
User Controls In This Chapter This chapter provides a general overview of the user controls available on the ADA-8402-B. The following topics are discussed: • Card Overview • Control and Monitoring Features ADA-8402-B User Manual (Iss. 02) User Controls • 3–1... -
Page 22: Card Overview
Card Overview This section provides a general overview of the card-edge controls for the ADA-8402-B. Figure 3.1 ADA-8402-B — Components 1) DIP Switches 2) EQ Adjustment (J3) 1. DIP Switches This is a block of ten DIP Switches that can be used to specify the card control, selecting the output mode, and applying a gain to the output from the card-edge. -
Page 23: Using The Dip Switches
SW3, SW4 - Output Mode Selection SW3 and SW4 are used in conjunction to set the output mode of the ADA-8402-B. Refer to the section“Setting the Output Mode” on page 3-4 for details. This DIP Switch is not implemented. - Page 24 Switches to change settings on the card. You can still monitor the card status in DashBoard. Setting the Output Mode SW3 and SW4, are used in conjunction to set the output mode of the ADA-8402-B. Table 3.1 lists the combinations of DIP Switch settings for SW3 and SW4.
- Page 25 Table 3.2 Specifying the Gain SW10 Gain (dB) ADA-8402-B User Manual (Iss. 02) User Controls • 3–5...
-
Page 26: Control And Monitoring Features
Control and Monitoring Features This section provides information on the LEDs for the ADA-8402-B. Refer to Figure 3.5 for the location of the LEDs. Figure 3.5 ADA-8402-B Card-edge Controls Status and Selection LEDs on the ADA-8402-B Basic LED displays and descriptions are provided in Table 3.3. -
Page 27: Dashboard Menus
DashBoard Menus In This Chapter This chapter provides a summary of the DashBoard menus available for the ADA-8402-B. Parameters noted with an asterisk (*) are the default values. The following topic is discussed: • Status Tabs • Settings Tab ADA-8402-B User Manual (Iss. 02) -
Page 28: Status Tabs
Parameters Description Card Name AES/EBU Distribution Amplifier (110ohm) Product ADA-8402-B Supplier Ross Video Ltd. Product Serial Number Indicates the serial number of the board Software Rev #.## Indicates the software version 4–2 • DashBoard Menus ADA-8402-B User Manual (Iss. 02) -
Page 29: Settings Tab
Alters the input gain for the specified channel. CH# Trim Control -15 to +15 (dB) How the Mode is set determines what channel(s) the Trim Control alters. ADA-8402-B User Manual (Iss. 02) DashBoard Menus • 4–3... - Page 30 4–4 • DashBoard Menus ADA-8402-B User Manual (Iss. 02)
-
Page 31: Specifications
Specifications In This Chapter This chapter provides the technical specification information for the ADA-8402-B. Note that specifications are subject to change without notice. The following topics are discussed: • Technical Specifications ADA-8402-B User Manual (Iss. 02) Specifications • 5–1... -
Page 32: Technical Specifications
Technical Specifications This section provides the technical specifications for the ADA-8402-B. Table 5.1 ADA-8402-B Technical Specifications Category Parameter Specification Number of Inputs Standards AES-3 (SMPTE 276M) Sampling Rates All rates from 32kHz to 96kHz Impedance (transformer balanced) 110ohm AES Input... -
Page 33: Service Information
Service Information In This Chapter This chapter contains the following sections: • Troubleshooting Checklist • Warranty and Repair Policy ADA-8402-B User Manual (Iss. 02) Service Information • 6–1... -
Page 34: Troubleshooting Checklist
Troubleshooting Checklist Routine maintenance to this openGear product is not required. In the event of problems with your ADA-8402-B, the following basic troubleshooting checklist may help identify the source of the problem. If the frame still does not appear to be working properly after checking all possible causes, please contact your openGear products distributor, or the Technical Support department at the numbers listed under the “Contact Us”... -
Page 35: Warranty And Repair Policy
FIVE (5) years from the date of shipment from our factory. In the event that your ADA-8402-B proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics. - Page 36 Contact Us Contact our friendly and professional support representatives for the following: • Name and address of your local dealer • Product information and pricing • Technical support • Upcoming trade show information Telephone: +1 613 • 652 • 4886 Technical After Hours Emergency: +1 613 •...
