Carrier AQUAZONE 50PEC09-18 Product Data

Carrier AQUAZONE 50PEC09-18 Product Data

Water source heat pumps console unit with puron refrigerant (r-410a) 3/4 to 1 1/2 nominal tons
Hide thumbs Also See for AQUAZONE 50PEC09-18:
Table of Contents

Advertisement

Quick Links

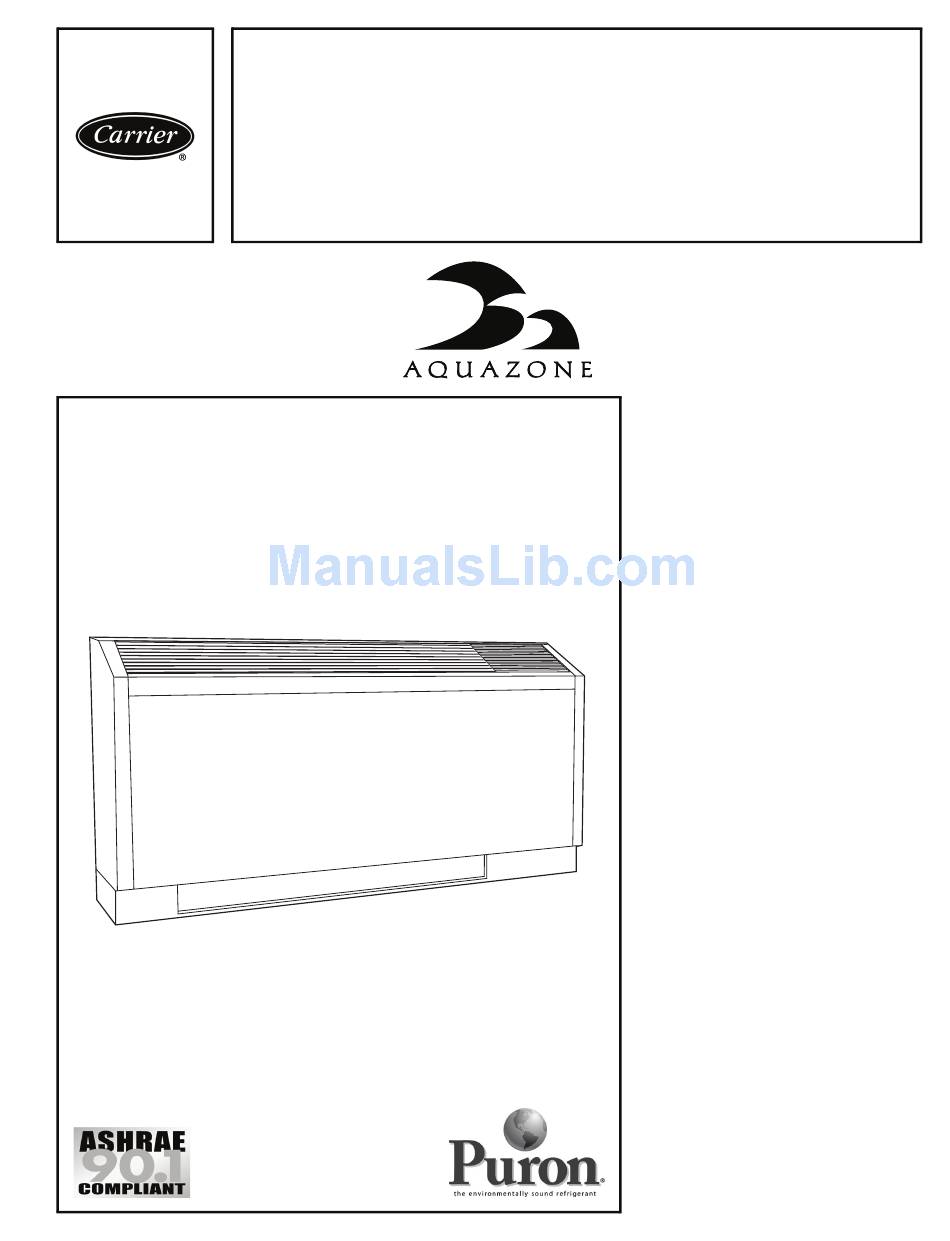

Copyright 2009 Carrier Corporation
Product
Data
Water Source Heat Pumps
®
with PURON
Refrigerant (R-410A)
TM
Single-package console water source
heat pump with self-contained line
voltage thermostats.
• Non-ozone depleting Puron
• Suitable for either geothermal or
• Thermostatic expansion valve (TXV)
• Rubber grommet mounted
• Sloped top cabinet
• Right or left hand piping connection
• Multiple unit-mounted and remote
• Adaptable cabinet and subbase
• Factory-mounted flow regulators and
• Flexible and reliable multiple
Features/Benefits
Carrier's Aquazone console
water source heat pumps are
a flexible, attractive
alternative for all finished
interior space, under-window
style installations.
Operating efficiency
Aquazone water source heat pump
(WSHP) units are designed for quality
and performance excellence over their
lifetime. Units offer standard cooling
EERs (energy efficiency ratios) up to
13.5 for boiler/tower systems and as
high as 21.3 for geothermal applica-
tions. Heating COPs (coefficients of
performance) are as high as 5.1,
among the highest in the industry.
AQUAZONE™
50PEC09-18
Console Unit
3
1
/
to 1
/
Nominal Tons
4
2
refrigerant (R-410A)
boiler/tower applications with
operating temperature range from
20 F to 110 F.
compressors for quiet operation
thermostat options
configurations
control valves for easy installation
protocol WSHP Open controller can
™
®
use BACnet
, Modbus
, N2, and
LON (with a separate card)
protocols for integrating energy
efficiency and precise unit control
Form 50PEC-3PD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUAZONE 50PEC09-18 and is the answer not in the manual?

Questions and answers

Related Manuals for Carrier AQUAZONE 50PEC09-18

Summary of Contents for Carrier AQUAZONE 50PEC09-18

  • Page 1 EERs (energy efficiency ratios) up to 13.5 for boiler/tower systems and as high as 21.3 for geothermal applica- tions. Heating COPs (coefficients of performance) are as high as 5.1, among the highest in the industry. Copyright 2009 Carrier Corporation Form 50PEC-3PD...

  • Page 2: Table Of Contents

    Features/Benefits (cont) Quiet operation Installation ease No-fuss maintenance and serviceability The Carrier console WSHP provides The unit is packaged for simple, low exceptionally quiet operation for maxi- cost handling, with minimal time re- Regular maintenance or service to the mum comfort.
  • Page 3 Carrier provided troubleshooting tables mation system controls and CCN con- refrigerant from leaking. provide easy reference to typical trols. The addition of the Carrier CO problems. Condensate overflow sensor — sensor in the conditioned space pro- Electronic sensor mounted to the drain LED visual output —...

  • Page 4: Features/Benefits

    Puron re- improve a units moisture removal ca- Carrier’s 50PEC units are available frigerant characteristics, compared to pability resulting in a more comfortable with an optional e-coated air coil. This R-22, have: indoor environment.

  • Page 5: Model Number Nomenclature

    1. Standard 60 Hz unit controls are ETL listed. As an ENERGY STAR Partner, 2. Complete C controllers take 50-va transformers. Deluxe D controllers take Carrier Corporation has deter- 75-va transformers. All DDC controllers take 75-va transformers. mined that this product meets the ENERGY STAR guidelines 3.

  • Page 6: Ari/Iso Capacity Ratings

    ARI/ISO capacity ratings WATER LOOP HEAT PUMP GROUND WATER HEAT PUMP GROUND LOOP HEAT PUMP 50PEC Cooling 86 F Heating 68 F Cooling 59 F Heating 50 F Cooling 77 F Heating 32 F UNIT Capacity Capacity Capacity Capacity Capacity Capacity SIZE (Btuh)

  • Page 7: Options And Accessories

    Options and accessories Piping connections can be provided on either the right or left hand side of the unit, for easy installation. Orienta- FACTORY- FIELD- DESCRIPTION INSTALLED INSTALLED tion is determined by facing the unit from the front side. OPTIONS ACCESSORIES Automatic flow regulators include internally mounted Cupronickel Heat Exchangers...
  • Page 8 Aquazone system control panel includes a pre- mode of operation to continue for a period of two hours. programmed, easy to use, Carrier Comfort Controller set up for a WSHP system. The units with the remote wall-mounted thermostat require a digital thermostat with the override function.
  • Page 9 Solenoid valves (brass body) offer 3.5 watt coil, SPT Pro offers space temperature sensor with LCD dis- 24 volt, 50/60 Hz, 740 amps inrush, .312 amps holding. play, set point adjust, local override, alarm icon, outside Slow operation for quiet system application. Five sizes are air, and unit status with heating and cooling set points.

  • Page 10: Options And Accessories

    Options and accessories (cont) AQUAZONE™ THERMOSTATS Carrier ® COOL COOL AUTO HEAT AUTO HEAT 5-DAY PROGRAMMABLE/ 7-DAY PROGRAMMABLE/ 7-DAY PROGRAMMABLE NON-PROGRAMMABLE LIGHT-ACTIVATED PROGRAMMABLE FLUSH MOUNT WSHP OPEN SENSORS a33- WARMER MANUAL ON WARMER MANUAL ON WARMER a33- a33- INFO COOLER...

  • Page 11: Dimensions

    Dimensions 50PEC09-15 BOTTOM RETURN CABINET DIMENSIONS — RIGHT HAND PIPING 16.0 DISCHARGE (89) (406) (127) ˚ Filter located inside and at top of air inlet area. Rotate CONTROL ACCESS DOOR filter latch forward, filter rack SIDE can be pulled forward 3” to 4” VIEW FRONT VIEW 25.9...
  • Page 12 Dimensions (cont) 50PEC18 BOTTOM RETURN CABINET DIMENSIONS — RIGHT HAND PIPING 3.50 16.00 5.00 DISCHARGE (89) (406) (127) 30˚ Filter located inside and at CONTROL ACCESS DOOR top of air inlet area. Push SIDE tabs up and back to release VIEW FRONT VIEW 25.90...
  • Page 13 50PEC09-15 BOTTOM RETURN CABINET DIMENSIONS — LEFT HAND PIPING 12.6 DISCHARGE (89) (320) (38) 30° Filter located inside and at top of air inlet area. Rotate CONTROL ACCESS DOOR filter latch forward, filter rack SIDE can be pulled forward 3” to 4” VIEW FRONT VIEW 25.9...
  • Page 14 Dimensions (cont) 50PEC18 BOTTOM RETURN CABINET DIMENSIONS — LEFT HAND PIPING 3.50 12.60 DISCHARGE 1.50 (89) (320) (38) 30˚ Filter located inside and at top of air inlet area. Rotate CONTROL ACCESS DOOR filter latch forward, filter rack SIDE can be pulled forward 3” to 4” VIEW FRONT VIEW 25.90...
  • Page 15 50PEC09-15 FRONT RETURN CABINET DIMENSIONS — RIGHT HAND PIPING 16.0 DISCHARGE (89) (406) (127) ˚ CONTROL ACCESS DOOR FRONT VIEW SIDE 21.0 VIEW 21.0 (533) (533) (201) INLET 43.7 (1110) 12.0 48.0 (305) (1219) Filter located behind return air grille and requires removal of cabinet front for access.
  • Page 16 Dimensions (cont) 50PEC18 FRONT RETURN CABINET DIMENSIONS — RIGHT HAND PIPING 3.50 16.00 5.00 DISCHARGE (89) (406) (127) 30˚ CONTROL ACCESS DOOR FRONT VIEW SIDE 21.00 VIEW 21.00 (533) (533) 7.90 (201) INLET 48.00 12.00 (1219) 54.00 (305) (1372) Filter located behind return air grille and requires removal of cabinet front for access.
  • Page 17 50PEC09-15 FRONT RETURN CABINET DIMENSIONS — LEFT HAND PIPING (89) ° .50 (13) 11.50 (Note 2) (292) (19) 4.12 (105) L.H. (NOTE 2) a50-8345 NOTES: 1. Dimensions are shown in inches. Dimensions in parentheses are in millimeters. 2. Access is reduced if optional disconnect box is selected. 3.
  • Page 18 Dimensions (cont) 50PEC18 FRONT RETURN CABINET DIMENSIONS — LEFT HAND PIPING 12.60 DISCHARGE 1.50 (320) 3.50 (38.1) (89) 30˚ CONTROL ACCESS DOOR FRONT VIEW SIDE 21.00 21.00 VIEW (533) (533) 7.90 (201) INLET 48.00 12.00 (1219) 54.00 (305) (1372) Filter located behind return air grille and requires removal of cabinet front for access.
  • Page 19 a50-8347...
  • Page 20 Dimensions (cont) a50-8348...

  • Page 22: Dimensions

    Dimensions (cont)

  • Page 23: Selection Procedure

    Selection procedure (with 50PEC12 example) I Determine the actual cooling and heating Using the following formulas to determine the cor- loads at the desired dry bulb and wet bulb rection factors of dry bulb and wet bulb: conditions. a) Corrected Total Cooling = tabulated total cooling Given: x wet bulb correction x airflow correction.
  • Page 24 Selection procedure (cont) VII ARI/ISO 13256-1 Conversion c) Perform Fan Power Correction Adjustment Performance standard ARI/ISO 13256-1 became Use the following formula to calculate Fan Power effective on January 1, 2000 and replaced the exist- Correction: ing ARI Standards 320 Water-Loop Heat Pumps Fan Power (WLHP), 325 Ground-Water Heat Pumps (GWHP), Correction = (Cfm x 0.472) x (External Static...

  • Page 25: Performance Data

    Performance data 50PEC09 — NOMINAL AIRFLOW 350 CFM WPD* COOLING - EAT 80/67 F HEATING - EAT 70 F Sensible/ EWT (F) Total Ratio 11.6 Operation Not Recommended 0.67 86.6 2.72 0.73 0.44 10.7 20.6 0.69 88.2 2.94 0.74 0.43 10.4 20.7 0.69...
  • Page 26 Performance data (cont) 50PEC12 — NOMINAL AIRFLOW 450 CFM WPD* COOLING - EAT 80/67 F HEATING - EAT 70 F Sensible/ EWT (F) Total Ratio 18.0 Operation Not Recommended 0.79 85.1 2.71 12.6 0.65 0.56 14.5 22.4 0.81 86.7 2.96 10.4 12.4 0.65...
  • Page 27 50PEC15 — NOMINAL AIRFLOW 520 CFM WPD* COOLING - EAT 80/67 F HEATING - EAT 70 F Sensible/ EWT (F) Total Ratio 11.8 Operation Not Recommended 0.92 85.9 2.86 16.9 11.0 0.65 0.62 19.0 27.1 10.0 0.94 87.8 3.11 16.5 10.4 0.63 0.58...
  • Page 28 Performance data (cont) 50PEC18 — NOMINAL AIRFLOW 620 CFM WPD* COOLING - EAT 80/67 F HEATING - EAT 70 F Sensible/ EWT (F) Total Ratio 17.3 Operation Not Recommended 13.9 1.24 90.8 3.29 18.6 12.3 0.66 0.72 21.0 25.7 15.3 1.28 11.0 92.8...
  • Page 29 CORRECTION FACTORS — ENTERING AIR — HEATING HEATING Entering Air Heating Heat of Power Dry Bulb (F) Capacity Extraction 1.036 0.910 1.068 1.019 0.955 1.035 1.008 0.982 1.014 1.000 1.000 1.000 0.98 1.046 0.964 0.96 1.091 0.927 CORRECTION FACTORS — ENTERING AIR — COOLING COOLING Sensible Cooling Capacity Multiplier - Entering Dry Bulb (F) Entering Air...

  • Page 30: Application Data

    Horizontal ground loop — Use this system when ade- Refer to the Carrier Water Source Heat Pump Sys- quate space is available and trenching can be easily accom- tem Design Guide for assistance designing water loop plished.

  • Page 31: Condensate Drainage

    pipe inserted into a hole. The hole is back-filled and NOTE: In most commercial water loop applications, Aqua- grouted after the pipe is inserted. The completed loop is zone™ WSHP units use copper water-to-refrigerant heat concealed below ground. The number of loops required de- exchanger.
  • Page 32 Application data (cont) Some of the factors that affect conversion of sound NOTE: These are not normal or continuous operating power to sound pressure and consequent NC level include: conditions. Such a start-up should be used to bring the building space up to occupancy temperature. •...
  • Page 33 COMPLETE C AND DELUXE D ELECTRONIC CONTROL FEATURES COMPARISON COMPLETE C OR COMPLETE C DELUXE D BASIC FEATURES COMPLETE C DELUXE D DELUXE D WITH WSHP WITH LON WITH LON OPEN CONTROLLER High and Low Refrigerant Pressure Protection Water Coil Freeze Protection True 24 VA Thermostat Signals Thermostat Inputs Compatible with Triacs Condensate Overflow Sensor...

  • Page 34: Electrical Data

    Application data (cont) ANTIFREEZE CORRECTION TABLE COOLING HEATING ANTIFREEZE EWT 90 F EWT 30 F CORRECTION ANTIFREEZE % TYPE FACTOR Sensible Total Capacity Power Heating Capcity Power EWT 30 F Capacity Water 1.000 1.000 1.000 1.000 1.000 1.000 0.995 0.995 1.003 0.989 0.997...

  • Page 35: Controls

    Controls WSHP Open sequence of operation Indoor fan — The indoor fan will operate in any one of three modes depending on the user configuration selected. The WSHP Open multi-protocol controller will control me- chanical cooling, heating and waterside economizer out- Fan mode can be selected as Auto, Continuous, or Al- puts based on its own space temperature input and set ways On.
  • Page 36 Controls (cont) • Condensate overflow input is normal. • If occupied, the SPT is less than the occupied heating • If occupied, the SPT is greater than the occupied cool- set point. ing set point. • Space temperature reading is valid. •...
  • Page 37 connected to a coil on the discharge side of the unit and The control has four user adjustable set points: DCV supplied by a boiler in order to maintain the desired heat- start control set point, DCV maximum control set point, ing set point should the compressor capacity be insufficient minimum damper position, and DCV maximum damper or a compressor failure occurs.
  • Page 38 Controls (cont) the entering water loop temperature is suitable (at least Condenser water linkage — The control provides opti- ° 5 F below space temperature). If the optional coil is pro- mized water loop operation using an universal controller vided and the water loop conditions are suitable, then the (UC) open loop controller.

  • Page 39: Typical Control Wiring Schematics

    Typical control wiring schematics 50PEC UNIT MANUAL OR AUTO CHANGEOVER WITH COMPLETE C CONTROLLER WIRING Complete C Complete C BLOWER MOTOR WIRING UNIT SIZE POLE A POLE B 09-18 LEGEND NOTES: 1. Compressor and blower motor thermally pro- — Alarm Relay Contacts Relay/Contactor Coil tected internally.
  • Page 40 Typical control wiring schematics (cont) 50PEC UNIT WITH COMPLETE C AND LON CONTROLLERS COMPLETE C a50-8327.eps COMPLETE C PEC12-18 LEGEND NOTES: 1. Compressor and blower motor thermally pro- — Alarm Relay Contacts tected internally. Relay/Contactor Coil — Blower Motor 2. All wiring to the unit must comply with local —...
  • Page 41 50PEC UNIT WITH DELUXE D AND LON CONTROLLERS DELUXE D a50-8328 DELUXE D LEGEND NOTES: 1. Compressor and blower motor thermally pro- — Alarm Relay Contacts tected internally. Relay/Contactor Coil — Blower Motor 2. All wiring to the unit must comply with local —...
  • Page 42 Typical control wiring schematics (cont) 50PEC UNIT WITH MANUAL OR AUTO CHANGEOVER AND DELUXE D CONTROLLER DELUXE D a50-8329 DELUXE D PEC09-18 LEGEND NOTES: 1. Compressor and blower motor thermally pro- — Alarm Relay Contacts tected internally. Relay/Contactor Coil — Blower Motor 2.
  • Page 43 50PEC UNIT REMOTE-MOUNTED THERMOSTAT WITH COMPLETE C CONTROLLER WIRING GROUND COMPRESSOR NEUTRAL ON 265V POWER SUPPLY SYSTEMS REFER TO DATA PLATE USE COPPER CONDUCTORS ONLY. SEE NOTE 2 REFER TO DISCONNECT BOX FOR OPTIONAL POWER SUPPLY CONNECTION L2 (ribbed) OPTIONAL B (HIGH) GROUND CORD...
  • Page 44 Typical control wiring schematics (cont) 50PEC UNIT REMOTE-MOUNTED THERMOSTAT WITH DELUXE D CONTROLLER WIRING GROUND COMPRESSOR NEUTRAL ON 265V POWER SUPPLY SYSTEMS REFER TO DATA PLATE USE COPPER CONDUCTORS ONLY. SEE NOTE 2 REFER TO DISCONNECT BOX FOR OPTIONAL POWER SUPPLY CONNECTION L2 (ribbed) OPTIONAL B (HIGH)
  • Page 45 WSHP OPEN CONTROL + 24vac Condensate (DI-3/Dry Contact) Overflow Switch - Gnd Fan (DO-1) (Fan On or Low Speed) PINK Aux Heat (DO-2) Reversing Valve (DO-3) Comp #2 (DO-4) SPACE RH SPACE CO2 SENSOR SENSOR Comp #1 (DO-5) +24vac +24vac Comp Status (DI-5) (If not installed, it must be connected to DO-5) LWT (Input 6)

  • Page 46: Typical Control Wiring Schematics

    Typical control wiring schematics (cont) PREMIERLINK™ CONTROLLER APPLICATIONS WITH COMPLETE C CONTROL COMPLETE PREMIER LINK CONTROL HS1/EXH/RVS LEGEND — Control Relay LWT — Leaving Water Temperature Sensor SAT — Supply Air Temperature Sensor SPT — Space Temperature Sensor NOTE: Reversing valve is on in Cooling mode. CMP1 PREMIERLINK CONTROLLER APPLICATIONS WITH DELUXE D CONTROL PREMIER...

  • Page 47: Typical Piping

    Typical piping 50PEC09-15 PIPING DIMENSIONS RIGHT HAND CONFIGURATION OPTIONAL FLOW REGULATOR OPTIONAL 1.62 (41) MOTORIZED 2.00 WATER VALVE (51) CONTROL BOX WATER OUT OPT I AUT O VAL V WATER CONNECTIONS 2.25 5/8” (15.9) OD (57) COMPRESSOR COPPER, 1/2” IPT, OR ACCESS WATER IN 1/2”...

  • Page 48: Typical Piping

    Typical piping (cont) 50PEC18 PIPING DIMENSIONS RIGHT HAND CONFIGURATION OPTIONAL AUTO FLOW VALVE OPTIONAL 1.75 (44) MOTORIZED 1.50 WATER VALVE (38) CONTROL BOX WATER CONNECTIONS VAL V 7/8” (22.2) OD COPPER, 3/4” IPT, OR 3/4” EPT WATER 2.12 (54) COMPRESSOR WATER ACCESS PANEL...

  • Page 49: Guide Specifications

    Insulation shall meet Heating Capacity NFPA 90A requirements. Carrier Model Number: 50PEC C. Fan and Motor Assembly: Part 1 — General The fan motors shall be multi-speed permanently 1.01 SYSTEM DESCRIPTION lubricated, PSC (permanent split capacitor) type with thermal overload protection. To facilitate field A.
  • Page 50 Guide specifications (cont) 1. Electrical: p. Selectable 24-v or pilot duty dry contact alarm output. A control box shall be located within the unit and shall contain controls for compressor, q. 24-v output to cycle a motorized water valve reversing valve and fan motor operation. with compressor contactor.
  • Page 51 The con- 7. PremierLink™ Controller: trol scheme shall accommodate MCO or ACO heat pump thermostats with Y, G, and This control will function with CCN (Carrier O outputs. An alternate controller shall be ® Comfort Network ComfortVIEW™...
  • Page 52 Aquazone flush-mount thermostats and DDC control options. Only delay fuses or HACR circuit breakers. Carrier sensors can be used with the WSHP 3. Unit controls shall be 24-volt and provide heat- Open controller. Sensors are available as...
