Bryant 677E-A Owner's Information Manual

Bryant 677E-A Owner's Information Manual

Preferred 15 seer 2-stage packaged hybrid heat dual fuel system with puron (r-410a) refrigerant single and three phase 2-5 nominal tons (sizes 24-60)
Hide thumbs Also See for 677E-A:

Advertisement

Table of Contents

677E- -- -A
PREFERRED 15 SEER
2- -STAGE PACKAGED HYBRID HEATr DUAL FUEL SYSTEM
WITH PURONr (R- -410A) REFRIGERANT
SINGLE AND THREE PHASE
2- -5 NOMINAL TONS (SIZES 24- -60)
Owner's Information Manual
For your convenience, please record the model and serial numbers of your new equipment in the spaces
provided. This information, along with the installation data and dealer contact information, will be helpful
should your system require maintenance or service.
UNIT INFORMATION
Model # _____________________________________
Serial # ______________________________________
ACCESSORIES (List type of model #)
_____________________________________________
_____________________________________________
_____________________________________________

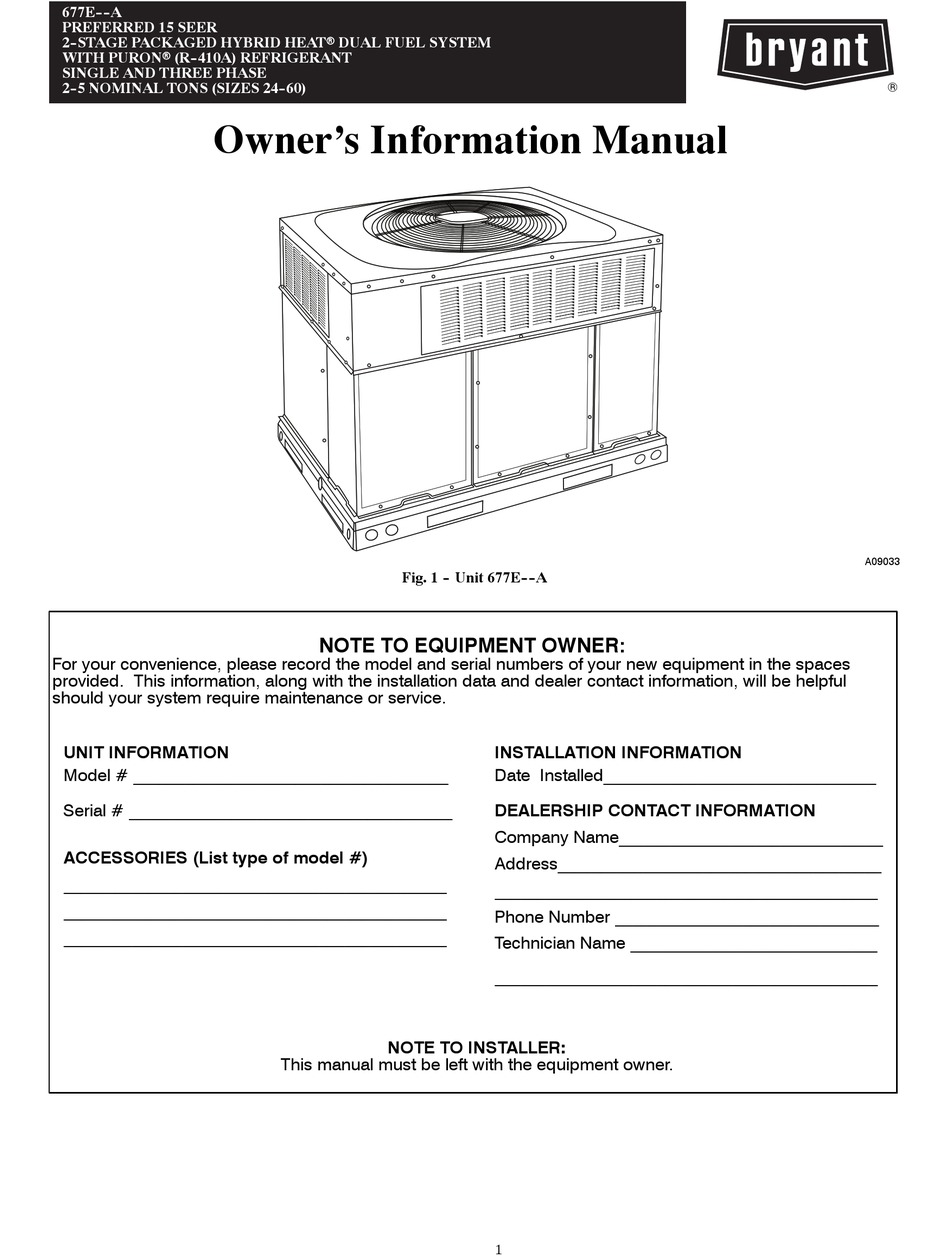

Fig. 1 - - Unit 677E- -- -A
NOTE TO EQUIPMENT OWNER:
NOTE TO INSTALLER:
This manual must be left with the equipment owner.
INSTALLATION INFORMATION
Date Installed________________________________
DEALERSHIP CONTACT INFORMATION
Company Name_______________________________
Address______________________________________
_____________________________________________
Phone Number _______________________________
Technician Name _____________________________
_____________________________________________
1
A09033
