Summary of Contents for HaiLin Controls Elegance SMT-700

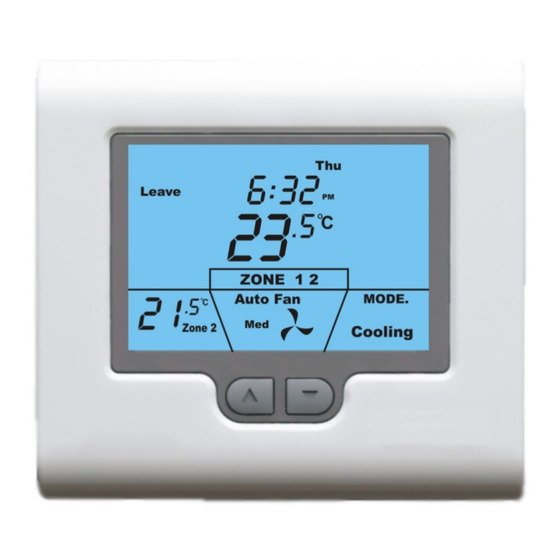

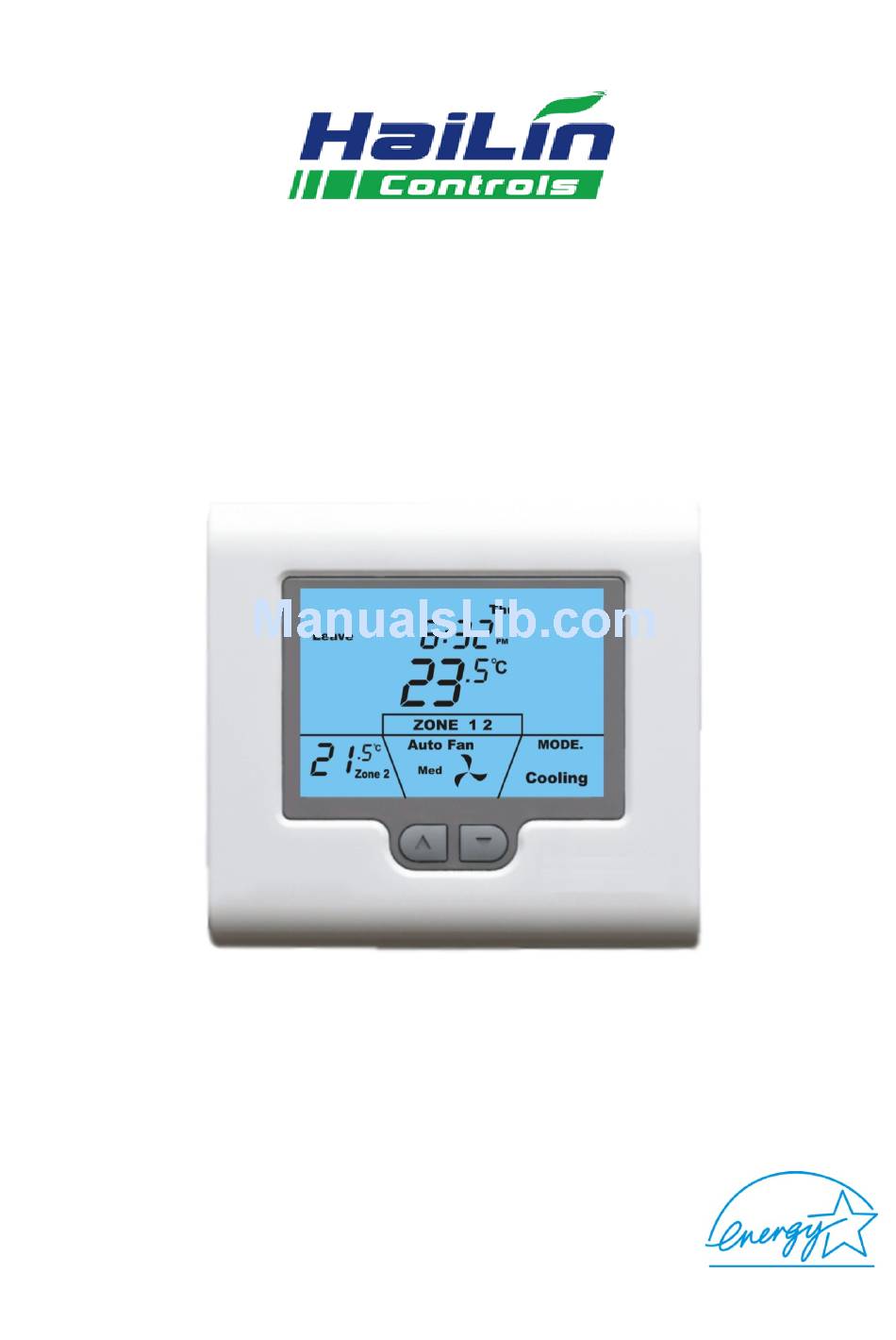

- Page 1 Elegance SMT-700 User manual Ver 3.0. 0807...
- Page 2 Congratulations on the purchase of your new Thermostat! Your new air conditioning system thermostat has been built using the best components and design philosophy currently available. As a result, if properly installed your Smart Temp SMT-700 thermostat will provide you with many years of trouble free comfort.
-
Page 3: Table Of Contents
Smart Temp SMT-700 User Manual Index Contents Introduction ....................................4 Residential Programmable Mode .............................. 4 The Buttons Explained ................................4 Setting The Clock ..................................5 Programming Your 4 Daily Events ............................5 Programming the Zones (If Enabled) ............................ 6 ... -
Page 4: Introduction
Introduction Your air conditioning system has been fitted with an advanced and energy efficient thermostat controller. The Smart Temp thermostat model SMT-700 is able to manage your comfort levels in a number of ways. Your installer will have programmed your SMT-700 thermostat to specifically fit your needs, the requirements of the building and the air conditioning equipment connected to it. -
Page 5: Setting The Clock
Smart Temp SMT-700 User Manual Mode Tap this button to cycle the SMT-700 thermostat through the available modes, Heat only, Cool only, Fan Only (ventilation mode) or Auto season change over mode. See page 12 for more information on Modes. Up ( ) Use this button to increase the desired room temperature for the heating or cooling modes, or increase a “value”... -
Page 6: Programming The Zones (If Enabled)
To enter the program mode, press and hold the Clock button for 5 seconds. The display will change to show the Day “Monday” flashing. Using the up ( ) or down ( ) buttons adjust the day to the day you wish to start programming an event or to the day you wish to edit an existing event. -
Page 7: Temporary Temperature Override
Smart Temp SMT-700 User Manual Temporary Temperature Override To make your SMT-700 thermostat even more capable and flexible, it has been provided with a temporary program override function. This permits you to temporarily change your event temperatures, just for today and only until the next programmed event starts. -
Page 8: Setting The Clock
Mode Tap this button to cycle the SMT-700 thermostat through the available modes, Heat only, Cool only, Fan Only (ventilation mode) or Auto season change over mode. See page 12 of this manual for more information on Modes. Up ( ) Use this button to increase the desired room temperature for the heating or cooling modes, or increase a “value”... -
Page 9: After Hours Run Timer
Smart Temp SMT-700 User Manual Tap the Clock button again, now the minute’s digits flashes. Using the up ( ) or down ( ) buttons set the minute to the time you wish the “Start” event to commence. Tap the Clock button again. If the SMT-700 thermostat has been set by the installer to control the optional climate zoning AND if the option to program the zones has been set by the installer, you will now have the ability to set which zones you require to be ON during the “Start”... -
Page 10: Temporary Temperature Override
Tip. To take advantage of the after hour timer function on days when the office is normally not open, program the “Start” program at 8:00am (for example) with your normal office occupied heating and cooling set temperatures and set the “Stop” program for the exact same time, 8:00 am in this example and the set temperatures to your normal “Stop”... -
Page 11: The Buttons Explained
Smart Temp SMT-700 User Manual The Buttons Explained On/Off (or Zone Select if function is installed) Quickly press the On/Off button to turn the SMT-700 thermostat On. To turn the SMT-700 thermostat OFF, press & hold this button for 2 seconds until the word “OFF” is displayed in the LCD. Tap the On/Off button to cycle between Zone 1 only, Zone 2 only then both zones if zoning is enabled. -
Page 12: Common Functions
To provide warning of the pending shutting down of the A/C system, one hour before the A/C system is about to turn off, the words “TIMER” will flash in the LCD to provide you with ample warning. Once the time period has expired the SMT-700 thermostat automatically turns the air conditioning system off. -
Page 13: Fan Speeds
Smart Temp SMT-700 User Manual Please Note – Your installer may have activated some of the many advanced indoor fan management capabilities of the SMT- 700 thermostat that work in partnership with the Fan On Mode. This may result in the fan operating differently than described above. -
Page 14: Changing Active Zones
Zone Control (if fitted) If zoning is enabled the word “Zone” and either “1”, “2,” or “1 2” (indicating both zones) will be shown. To select which zone(s) you wish to be controlled, simply tap the On/Off button to toggle between zone 1, Zone 2 or both zones If the optional Zone 2 Temperature sensor has been installed the second zone temperature will also be shown in the LCD. -
Page 15: Glossary
Smart Temp SMT-700 User Manual Glossary The LCD Explained Program Event Indicator. If “Wake”, “Leave”, “Return” or “Sleep” are shown, your SMT-700 thermostat is set as a programmable thermostat. This mode of operation is perfect for those that live a structured lifestyle. This is fully automatic mode where the residence occupier can pre program the home temperatures for 24 hours per day, 7 days per week. - Page 16 Outdoor / Zone Temperature. This part of the display requires optional sensors to be installed to enable this function. Both the second control zone temperature and or outdoor temperature can be displayed. Information on zoning can be found on page 14, information on the outdoor temperature display can be found on page 13 of this manual.
- Page 17 Smart Temp SMT-700 User Manual Current Program Overridden. The SMT-700 thermostat LCD will display this word when the SMT-700 thermostat pre set program has been temporarily overridden. See page 7 & 10 for more details of this function. A/C Fault Indicator. The SMT-700 thermostat is capable of monitoring the safety of your air conditioning system, or an external device critical to the safe and correct operation of your air conditioner.
-
Page 18: Troubleshooting
Troubleshooting Symptom Suspected Fault Suggested remedy Spanner symbol on in LCD Internal SMT-700 thermostat Fault detected. Re-boot Elegance by turning the MAIN PCB Communication loss between main PCB and off (not the wall controller) – if fault persists wall controller should be strongly suspected. Call Smart Temp service Word “FAULT”... -
Page 19: Warranty Information
Smart Temp SMT-700 User Manual Specifications Input Voltage ..........24VAC / 240VAC (fused) selectable Operating Temperature ........ 0-50C (32 to 122F) Operating RH ..........0-95% (non condensing) Size ............... 113 x 103 x 23mm Display Size ..........74 x 55mm Temp Sensors ..........
