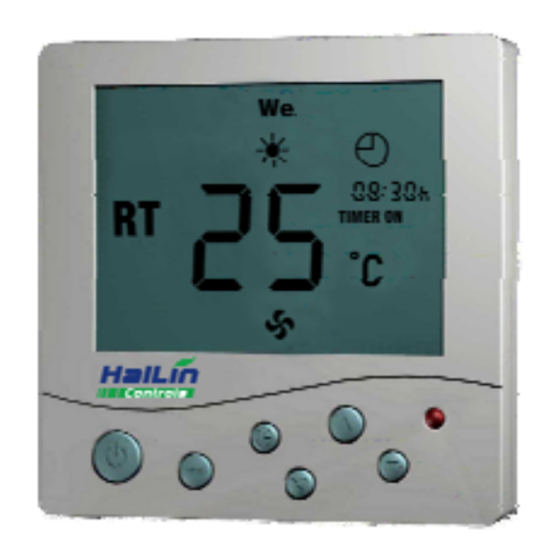

HL8002-MD Series Network Thermostat User Manual
HL8002-MD Series Network thermostats are available for individual room temperature control
in reside ntial, industrial an d busin ess premis es. Suita ble for 2-pip e F an Coil configur ation.
Network control is available (MODBUS).
HL8002-MD a dopts dig ital control techn ology with lar ge L CD displ ay, It shows the follo wing
items: working states (cool, heat or ventilation), the speed of fan coil, room temperature, set-point.
There are following keys on the panel: On/Off "
timer " ", Select fan speed (high, medium, low or auto) " ", set-point temperature " " and " ".

MODEL DENOMINATIONS

HL8002
– –MD
Control damper to open or close.
Y:
DA: Co ntrol Motorized Va lve for 2- wire N.C. F CU va lve and 3-sp eed fan; W hen t he temperatur e reaches t he
set-point, it will close the Motorized Valve with the fan still running.
DB: Co ntrol Motorized Va lve for 2- wire N.C. F CU va lve and 3-sp eed fan; W hen t he temperatur e reaches t he
set-point, it will close both of the Motorized Valve and Fan.

BASIC FEATURES

Room temperature setting
Manual or Auto 3-speed changeover
Defrost (Low Temperature Protection)
Auto Restart (Option)
Clock, Sleep and Timer (Option)
IR remote control (Option)
Blue Backlight (Option)
RS485 Interface (MODBUS)

SPECIFICATIONS

Sensing element:
Accuracy :
Set-point range:
Display range:
Operation environment: 0～45℃
Operating Humidity:
Power supply:
Switch current rating: Resistive: 2A, Inductive: 1A

OPERATION

On/Off: Press " " to turn on, press "
Setting temperature: Press " " to reduce set-point, press " " to raise set-point, and 1℃ cha nged once.
Mode Selection: Press " " to change system working in cooling " ", heating "
icon will flash, and it will be confirmed automatically after 5 seconds. The ventilation function is invalid for HL8002Y-MD.
F an Spe ed Selecti on (H L8002DA-MD/DB-MD): Press "
(Low)" or " (Auto)".
Under auto fan speed " ", the fan-speed will be changed automatically. Auto LOW-speed When the difference between
room-temperature and set-point exceed 1℃, Auto MED-speed When exceed 2℃, Auto HI-speed When exceed 3℃.
Control Da mper (HL8 002Y-MD): The damper will be open when (1) room temperature is hig her than set-point in
cooling; (2) room temperature is lower than set-point in heating, Otherwise the damper will be closed.
Control Motorize d Valve under 2-p ipe configurati on (HL8002DA-MD/DB-MD): If the differenc
temperature and set-poi nt exceed 1 ℃, FCU valve will be o pen; if room temper ature and set-point are equal, HL 8002DA-MD
will close the FCU valve with the fan still running, HL8002DB-MD will close the FCU valve and Fan both.
", Exchange mode (cool, heat or ventilation) " ",
T: Clock, Sleep and timing on/off. Blank is invalid.
R: IR remote function. Blank is invalid. (Remote controller should be ordered additionally)
L: Backlight available. Blank is invalid.
E: Auto Restart. Blank is invalid.
NT C
± 1℃
5 to 35
℃ ℃
0～50℃
5 ～90%RH (non-condensing)
AC 85～260V, 50/60Hz
" again to turn off thermostat and its output.
STATUS DISPLAY
Working Status: Cool
Fan Speeds: Low
Auto
Room temperature display
Temperature setting display
Clock week display
Rated Power: < 2 W
Wirings: Screw-in terminals, each terminal capable of
accepting 2 x 1.5 mm
Housing: ABS + PC Flame Retardant
Dimensions: 86 × 86 × 13 mm ( W × H × D )
Hole pitch: 60 mm ( Standard )
Protection Class: IP30
Display: LCD
" to chan ge f an sp eed among "
P age 1 of 2
HaiLin Controls
, Heat , Ventilation
, Medium , High and
2 2
or 1 x 2.5 mm
" or ventilation " " mode, the related
(Hi)", " (Med)", "
e bet ween ro om
wires
