4 Using Your Remote Transmitter
Press to LOCK the
Doors
Press both buttons
for Start/Stop
Operation
Locking the Vehicle Doors
To lock the doors, press * the LOCK button. The parking lights will
flash, indicating the system has locked the doors.
Unlocking the Vehicle Driver's Door
To unlock the doors,only the vehicle driver's door (if this option is
selected), press * UNLOCK button. The the parking lights will flash,
indicating the system has unlocked the doors.
Activating the Trunk Release Feature
Press and hold TRUNK to open the vehicle trunk or hatch (if equipped
and connected). If this button is used to operate another accessory,
the accessory will stay active for as long as the button is held.
Remote Start / Stop Feature
Press BOTH buttons on the remote control. If all safety parameters are
correct, the engine will start within 5 seconds (diesel engines will take
longer.) Press and hold BOTH buttons again to turn off the vehicle. (Turn
to page 6 for more on remote start features.)
* Throughout this manual, 'press' refers to pressing for less than 1 second; 'press and hold' refers to pressing
for more than 1 second.
† If you have chosen the Silent Arming Option, the parking lights will not flash when locking or unlocking until
the appropriate button is pressed a second time.

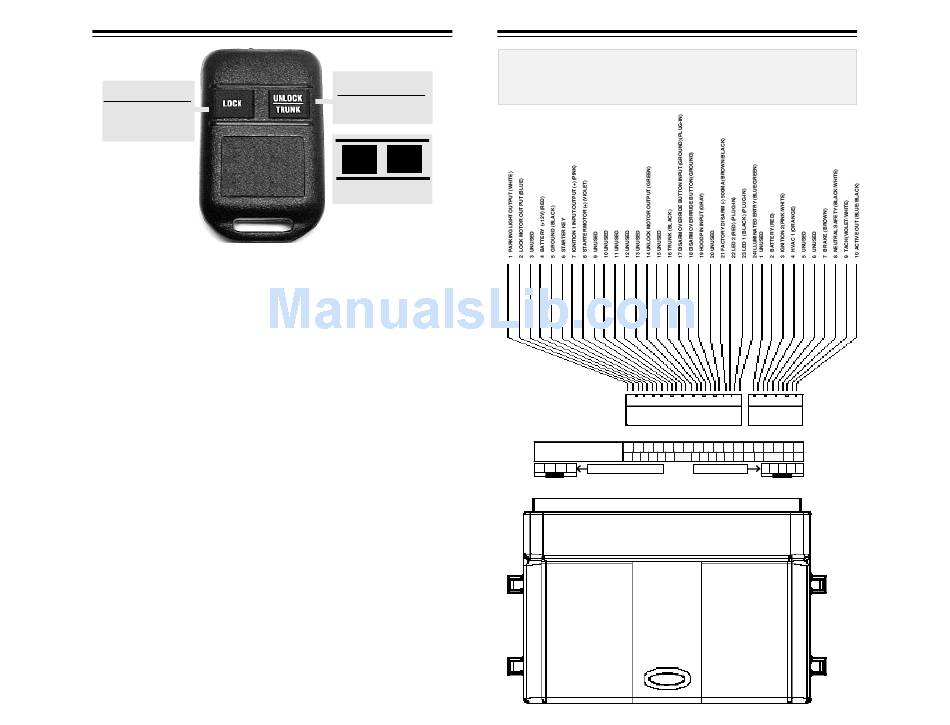

System Layout
The module MUST be programmed before it will operate.
Press to UNLOCK
the Doors
Press and Hold for
Trunk
START START
Note: Buttons are
Interchangeable.
* Used for Blind Crank Mode.
IMPORTANT!!!
Refer to the programming instructions on pages 10-12.
Basic Harness
1 2 3 4 5 6 7
Not Used.
1 3 1 4 1 5 1 6 1 7 1 8 1 9
1 2 3 4
EXTENDED RANGE
Wire End View
9
Car Start
8 9 1 0 1 1 1 2 1 2 3 4 5 6
2 0 2 1 2 2 2 3 2 4 7 8 9 1 0
PATS/VATS 1 2 3 4 5
