Advent ADV350B Operation Manual

Dvd player with drop-down video monitor
Hide thumbs Also See for ADV350B:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

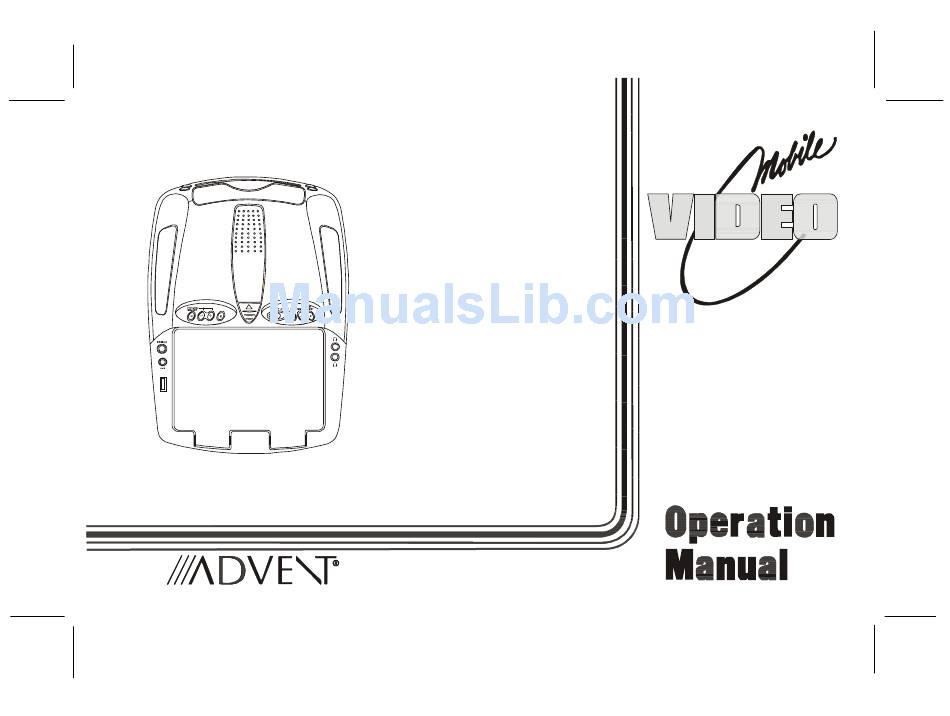

ADV350B /
ADV350S /
ADV350P
DVD PLAYER
SOURCE
WITH
DROP-DOWN
VIDEO
MONITOR
128-7248A
128-7248A
1 of 37

Advertisement

Table of Contents
loading

Related Manuals for Advent ADV350B

Summary of Contents for Advent ADV350B

  • Page 1 ADV350B / ADV350S / ADV350P DVD PLAYER SOURCE WITH DROP-DOWN VIDEO MONITOR 128-7248A 128-7248A 1 of 37...

  • Page 2: Important Notice

    Important Notice An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”...

  • Page 3: Safety Precaution

    Features • • • • • 10.2 Inch TFT (Thin Film Transistor) Active Matrix LCD Congratulations on your purchase of the Audiovox ADV350 DVD Player with Drop-Down Video /Monitor. The ADV350 has been (Liquid Crystal Display) Monitor designed to give you and your family many years of video •...

  • Page 4: Controls And Indicators Diagram

    Controls and Indicators Diagram SOURCE 128-7248A 4 of 37...

  • Page 5: Control Function Descriptions

    Control Function Descriptions 12. ( + ) Button – Used to increase levels in the picture adjust 1. Disc insertion slot – For loading Disc. mode. 2. POWER Button – Used to turn the system ON/OFF. Bright 13. Side Remote Sensor Eye – Allows the remote control to red when system is on, dim when off.
  • Page 6 19. FM Select Button – When this button is pressed it will turn on the wireless FM Modulator and then cycle through the available FM frequencies (Channel 1, 88.3MHz; Channel 2, 88.7MHz; Channel 3, 89.1MHz; Channel 4, 89.5MHz; Channel 5, 89.9MHz and OFF). 20.

  • Page 7: Remote Control Operation

    Remote Control Operation 146) 146* B AT TE RY C O V ER Battery Installation Before attempting to operate your Remote Control, install the batteries as described below. 1)Turn the Remote Control face down. Using a fingernail, lift the battery cover off. 2)Install two “AAA”...
  • Page 8 Remote Control Function Descriptions Function control is available on the unit and the remote control. Not used in this model *** The TV Option will only be displayed and the TV control functions are only available if the optional TV Tuner (P/N PODTVT) is installed.
  • Page 9 7. MUTE Button Press this button to mute the audio. Pressing the button again restores the sound to the previously set level. 8. ENTER Button Used to implement a selected setting or menu option. 9. LEFT ( ) Button Allows the user to shift left in the menu options. 10.
  • Page 10 14. DISPLAY Button Press to display DVD Disc current information. Press DISPLAY button DVD Player Perform Once Display current TITLE , CHAPTER & elapsed time Twice Display current SUBTITLE 3 times Display current AUDIO language & channel 4 times Display current surround mode 5 times Display current ANGLE 6 times...
  • Page 11 17. ZOOM Button – Press this button to zoom the picture Press ZOOM button DVD Player Perform Once ZOOM picture 2 times Twice ZOOM picture 3 times 3 times ZOOM picture 4 times 4 times Reduces picture to 1/2 normal size 5 times Reduces picture to 1/3 normal size 6 times...
  • Page 12 23. FWD ( ) Button Allows the user to search in a forward direction at 2,4,8, 16 and 32 times the normal speed. 24. PLAY ( )Button* Press this button to activate the play mode when a disc is loaded into the disc compartment. 25.
  • Page 13 31. A-B Button Allows the user to repeat playback of a DVD or CD from point A to point B. 32. REPEAT Button Allows the user to repeat a chapter, title, track, or all of a DVD, CD or MP3. 33.
  • Page 14 38. VOLUME UP (+) Button* Use this button to raise the volume level of the wired headphone jacks. It is also used to make picture adjustments in picture select mode. Note: The volume buttons will not affect the volume of wireless headphones or the wireless FM Mmodulator. When using these devices the volume must be adjusted with the wireless headphone volume control or with your radio’s volume control (see page 16, Headphones, or page 17, Wireless FM Modulator).

  • Page 15: Overhead Dome Lights

    Turning the ADV350 On or Off 1. Sliding the screen release lock forward will unlock the LCD screen and it will drop down slightly. Pivot the screen downward until a comfortable viewing angle is reached. The internal hinge friction will hold the screen in position while the system is in use. 2.

  • Page 16: Remote Sensor

    Remote Sensor The ADV350 incorporates two Infrared sensors which relay signals from the R e m o te remote control to allow the unit to be controlled simply by pointing its remote S en so r E ye control at the remote sensor eye. The repeater function allows control of auxiliary equipment such as an Audiovox Video Cassette Player.

  • Page 17: Wired Headphones

    Wired Headphones There are two 1/8” headphone jacks on the ADV350 that can be used with any standard wired stereo headphones. These jacks are controlled by the volume up / down buttons on the ADV350 or on the remote control. Wireless FM Modulator The ADV350 is equipped with built-in wireless FM Modulator*, that allows you to listen to the ADV350 audio signal by tuning your vehicle’s radio to the selected frequency, (88.3, 88.7, 89.1, 89.5, 89.9MHz).

  • Page 18: Audio/Video Out

    AUX/Game A/V Input The ADV350 will accept an audio/video input through the 1/8 jack located on the side of the unit. The audio / video device could be a video game system, video camera, or other input device.To use this input use the supplied AV adaptor cable Audio/Video Out The ADV350 provides an AV output for an optional video monitor(s).
  • Page 19 Types of Discs your DVD will play • DVD discs – DVDs discs which contain video. • Audio discs – Audio CDs that contain music or sound content only. MP3 discs – A disc that contains audio files (for example, a CD-R/CD-RW with downloaded MP3 files). •...
  • Page 20 Settings and Adjustments The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on-screen display, limit playback for children, load default settings for the picture quality etc. Using the Setup Menu 1.
  • Page 21 MAIN PAGE TV DISPLAY The TV DISPLAY setup allows you to adjust screen aspect ratio. 4:3 PS This displays a wide picture on the screen with a portion of the left & right side removed. 4:3 LB This displays a wide picture with black bands on the upper and lower portions of the screen.
  • Page 22 ANGLE MARK The ANGLE MARK setup allows you to turn on/off the angle mark display on the screen. ON - The screen shows angle mark if an angle option is available on a DVD OFF - There is no angle mark display on the screen even though there is an angle option available on a DVD.
  • Page 23 AUDIO SETUP PAGE EQ TYPE The equalizer allows you to choose from a variety of preset equalizer settings. The options are : OFF, ROCK, POP, LIVE, DANCE, TECHNO, CLASSIC and SOFT. V SURRUOUND (Virtual Surround) The Virtual Surround allows you to add a surround sound effect to the audio.

  • Page 24: Password Setup Page

    PASSWORD SETUP PAGE PASSWORD CHANGE This item allows you to change the password. After you have selected the password change, the figure below is shown: OLD PASSWORD Input the old password or the default password ( 4 digits ) NEW PASSWORD Input a new password ( 4 digits ) using the numbers buttons (0~9) CONFIRM PWD Confirm the new password by entering the same password again.
  • Page 25 PREFERENCE PAGE The setting in this page can only be made when the player is in the Stop mode or when there is no disc in the player. PARENTAL CONTROL This item allows you to limit movie playback from G to Adult. The lower the value, the more strict the control.

  • Page 26: Playing Dvds

    Playing DVDs Press the DISPLAY button on the remote control to display the status banner. Pressing the DISPLAY button consecutively changes the options as below. Press DISPLAY button Information display on the screen Once Current title, chapter and elasped time Twice Current subtitle information 3 times...

  • Page 27: Playing Audio Cds

    Playing Audio CDs When playing an audio CD, the DISPLAY banner appears automatically. It displays the current track playing, the total number of tracks and the elapsed time for the track playing. Pressing the DISPLAY button on the remote consecutively changes the options of the display. Press DISPLAY x 1 SINGLE ELAPSED appears along with the current track playing, the total number of tracks and the time playing on that track...

  • Page 28: Program Play

    Program Play You can play the tracks on a disc in the desired order using the PROGRAM function. Press ZOOM until the PROGRAM table is displayed on the screen as shown in diagram to the right. 2. Input the desired tracks using numbers buttons ( 0~9 ) on the remote as shown in diagram.

  • Page 29: Playing Mp3 Discs

    Playing MP3 Discs MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R/CD-RW discs that have been encoded in MP3 format can be played on your DVD player. The DVD player plays the songs in the order they were burned on to the disc.
  • Page 30 Skipping Songs Use the Next ( ) button on the remote control to move to the next song. Use the Previous ( ) button to move to the previous song. Selecting a Play Mode You can choose what order the songs will play on a disc temporarily. The default play mode is FOLDER. Press REPEAT consecutively to choose the desired play mode.

  • Page 31: Troubleshooting

    Troubleshooting PROBLEM SOLUTION PROBLEM SOLUTION • Poor in vehicle Check the condition of the vehicle’s Play starts, but • The disc is dirty. Clean it. radio reception radio antenna. then stops • Condensation has formed. Allow • Verify that the antenna is fully raised. immediately player to dry out.
  • Page 32 SOLUTION PROBLEM The icon ( The feature or action cannot be appears on completed at this time because: screen 1. The disc’s software restricts it. 2. The disc’s software doesn’t support the feature (e.g., angles) 3. The feature is not available at the moment.

  • Page 33: Game Controller Function Description

    Game Controller Function Description Connecting the Game Controller SOURCE 1) Plug the game controller into the game port. 2) Press the source button until AUX is displayed. 1. Power Switch – Use this switch to turn the game controller on and off. 2.
  • Page 34 Game Button Functions Shinobi III : Return of the Ninja Master Shadow Dancer Button A : Ninjitsu (Special weapon) Direction Pad : To move up, down, left and right Button B : Attack Direction Pad “Up” + Button C : Jump to the higher level Button C : Jump Direction Pad “Down”...

  • Page 35: Replacement Parts

    Specifications Replacement Parts Remote Control 136-3855 LCD Backlighting Edge Light Tube Resolution 2400 x 480 Pixels 1,152,000 Operation Temperature 32 -140º F (0 - 60º C) Storage Temperature -4 - 176º F (-20 - 80º C) Backlight life 30,000 Hours Video Display System NTSC/PAL Headphone Audio Output...
  • Page 36 If your new vehicle’s radio, CD/DVD player is covered by the manufacturer’s warranty for a period of 48 months as set forth in the OEM Warranty Booklet, the company will extend the Advent Mobile Video product warranty for the same period of time. This is not applicable to extended warranty purchases beyond the original manufacturer’s warranty.
  • Page 37 © 2005 ADVENT, 150 Marcus Blvd., Hauppauge, NY 11788 128-7248A 128-7248A 37 of 37...

This manual is also suitable for:

Adv350sAdv350p
