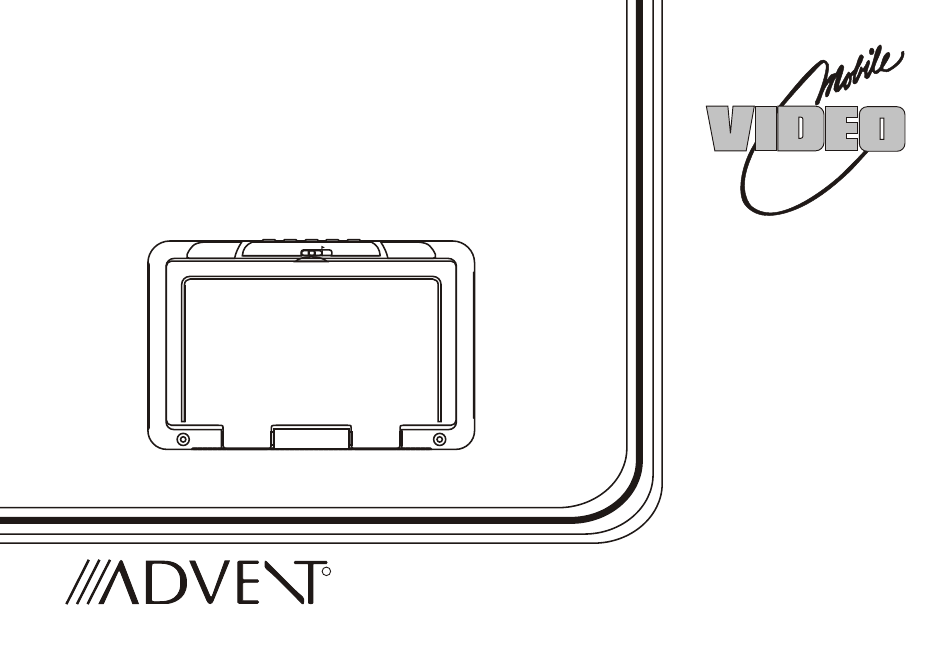

ADV8SF
8.5" OVERHEAD LCD
MONITOR WITH
DVD PLAYER
OPEN
OPERATION
MANUAL
R
XXX-XXXX

Advertisement

Table of Contents
loading

Related Manuals for Advent ADV8SF

Summary of Contents for Advent ADV8SF

  • Page 1 ADV8SF 8.5" OVERHEAD LCD MONITOR WITH DVD PLAYER OPEN OPERATION MANUAL XXX-XXXX...
  • Page 2 Important Notice An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in "park"...

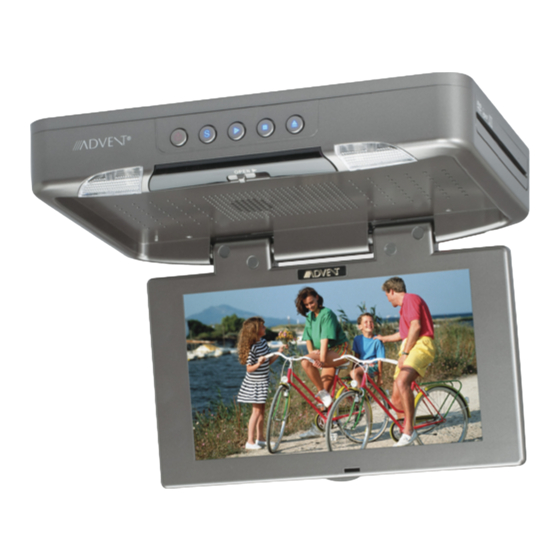

  • Page 3 Congratulations on your purchase of the ADVENT ADV8SF • 8.5” TFT (Thin Film Transistor) Active Matrix LCD (Liquid Crystal Display) Monitor DVD Player with drop-down video / monitor. The ADV8SF has been designed to give you and your family many years of • Built-in DVD Player video entertainment in the mobile environment.

  • Page 4: Controls And Indicators Diagram (Front View)

    6. Dome Lights Provide additional interior illumination. 7. Infrared Transmitter and Sensor Transmits audio to wireless headphones, allows the remote control to operate the ADV8SF and to control other accessories in the system. 8. Screen Release Press to release the screen.
  • Page 5 CONTROL FUNCTION DESCRIPTION CONTROL FUNCTION DESCRIPTION (FRONT VIEW) SIDE VIEW 9. Ventilation holes 10. LCD Cut Off Switch Used to turn off the LCD panel monitor backlit when in the closed position. 11. LCD Panel 2 3 4 AUTO DOME LIGHT 1.

  • Page 6: Remote Control Operation

    REMOTE CONTROL OPERATION MAIN FUNCTION OPERATION POWER EJECT SOURCE MUTE DVD SOURCE VOLUME CR2025 SYSTEM MENU DISC MENU ZOOM REPEAT ENTER DISPLAY SETUP SUBTITLE Initial Use When purchased the remote control has a battery installed with a AUDIO Pull Tab to prevent battery discharge. Remove the Pull Tab before attempting to use the remote.
  • Page 7 Function control is available on the unit and the Remote Control. ** Function not available in this model. 1. POWER* Press this button to turn the unit ON and OFF. MONITOR SELECT M1 Button – Set the remote control code to allow control of the unit in M1 mode. M2 Button** –...
  • Page 8 9. ENTER Used to implement a selected setting or menu option. 10. DISPLAY Press to display the current disc information while the disc is playing. Press the cursor ( ) buttons to select the Title or Chapter. For Title/Chapter selection use the numeric buttons to enter the desired Title /Chapter selection. 11.
  • Page 9 19. STOP ( )* Press to stop playback.(It can be resumed playback). Press twice at once to stop playback fully. 20. SCAN FORWARD ( ) Press to search in a forward direction. Press repeatedly to change the search speed from 2, 4, 8, 16 times and normal speed. 21.
  • Page 10 26. ZOOM Press this button to enlarge the picture when playing a DVD disc. Press ZOOM button DVD player perform Once Q1- Enlarge the picture 2 times of the original size Second Q2- Enlarge the picture 3 times of the original size Third Q3- Enlarge the picture 4 times of the original size Forth...

  • Page 11: Menu Adjustment

    MENU ADJUSTMENT The System Menu contains features and options that let you customize your system to change the screen mode display, OSD language and source default. 1) Press the SYSTEM MENU button on the remote, the main page of the system menu will appear on screen. 2) Use the cursor buttons to select the desired item in the main page and press the ENTER button to select.

  • Page 12: Osd Language

    OSD LANGUAGE This allows the user to select the language for the on-screen display. The user can either select English, Spanish, French or German for the OSD language. SYSTEM MENU OSD LANGUAGE SCREEN MODE ENGLISH OSD LANGUAGE SPANISH SOURCE DEFAULT DVD FRENCH GERMAN SOURCE DEFAULT DVD...

  • Page 13: Settings And Adjustments

    SETTINGS AND ADJUSTMENTS The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on- screen display or prevent DVD playback for children. Using the Setup Menu 1. Press the SETUP button on the remote. The setup menu appears on the screen as shown per diagram. Language OSD Language : English...

  • Page 14: Subtitle Setup

    SUBTITLE SETUP Language OSD Language English French Video Subtitle Spanish Select "SUBTITLE" using button, then press button to enter the Sub menu. Select the subtitle you German Rating Audio desire using button, then press “ENTER” to confirm the setting. Press button to return.

  • Page 15: Rating Setup

    RATING SETUP Language Parental : 6.Adult Rating Video Change Password This item allows you to limit the content of movie playback from G to Adult. The lower the value, the more strict Rating the control. Misc 1. G 2. PG 3.
  • Page 16 Load Factory Language Load Factory Load Factory allows you to reset all options to factory settings. Load Factory Video Screen Saver * This function will not affect the rating control settings. Rating Misc Screen Saver ON -Screen saver will appear Language Load Factory OFF -Screen saver will not appear...
  • Page 17 Playing MP3 Discs MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on your DVD player. The DVD player plays the songs in the order they were burned on to the disc.
  • Page 18 Repeat: play repetitively Repeat function has 4 options : Off, Single, Folder, All. Move cursor to Repeat function and press ENTER, Off/ 00:00:01 1/12 Single/Folder/All are displayed in that order. Repeat default is Off; Flat Mode Repeat : Off Mode : Normal Turn off repeat function Music Playing...
  • Page 19 00:00:01 Clear program 1/12 Method: To clear the selected songs program file, double press stop button to the playback mode, move Edit mode Broser view cursor to Edit mode function and press ENTER. After Edit mode is selected, move cursor to selected songs list Clear program and select the songs which you want to delete;...
  • Page 20 Region 1- USA, Canada Region 2- Japan, Europe, South Africa, Middle East, Greenland Region 3- S. Korea, Taiwan, Hong Kong, Parts of South East Asia Region 4- Australia, New Zealand, Latin America (including Mexico) Region 5- Eastern Europe, Russia, India, Africa Region 6- China DVD Area Code The DVD player is preset to a region code at the factory depending on where the DVD player is sold.

  • Page 21: Wireless Headphones

    WIRELESS HEADPHONES The ADV8SF includes a built-in infrared transmitter for use with the supplied wireless headphones. The headphone volume is adjusted using the controls on each headset. Any number of wireless headphones may be used but they must be used within a line of sight from the transmitter, as infrared transmissions, like visible light travel only in a straight line.

  • Page 22: Source Feature

    SOURCE FEATURE The AV1 input may be connected to a external video source, video game system, or other audio / video devices. To access the audio / video inputs, turn the unit on and press the S (source) button or the Source button on the remote control until "AV1" is displayed on the screen.
  • Page 23 USING THE WIRELESS GAME CONTROLLER The Game Controller transmits to the unit with two infrared transmitters located on the front of the Game Controller. The Game Controller must be pointed toward the unit for correct operation. Press the source button on the remote control or the unit until “GAME”...

  • Page 24: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION Verify that the batteries in the remote are fresh. IR sensor inoperative Verify that the remote sensor eye is not obstructed. Disc won't play Insert a disc with the label side facing upwards. Check the type of disc you put into disc tray. This DVD only plays DVD, audio CD and Mp3.
  • Page 25 PROBLEM SOLUTION Not allowed at the moment The feature or action cannot be completed at this time because: 1. The disc’s software restricts it. 2. The disc’s software doesn’t support the feature (e.g., angles) 3. The feature is not available at the moment. 4.

  • Page 26: Replacement Parts

    REPLACEMENT PARTS SPECIFICATIONS Remote Control 136-4840 LCD Backlighting Edge Light Tube Resolution 1440 x 234 Pixels 336, 960 Operation Temperature 32 ~131º F (0 ~ 55º C) Storage Temperature -4 ~ 158º F (-20 ~ 70º C) Backlit life 10,000 Hours Video Display System NTSC / PAL Headphone Audio Output...
  • Page 27 If your new vehicle’s radio, CD/DVD player is covered by the manufacturer’s warranty for a period of 48 months as set forth in the OEM Warranty Booklet, the company will extend the Advent Mobile Video product warranty for the same period of time. This is not applicable to extended warranty purchases beyond the original manufacturer’s warranty.
  • Page 28 Notice : The changes or modifications not expressly approved by the party responsible • for compliance could void the user’s authority to operate the equipment. © 2009 ADVENT,150 Marcus Blvd. Hauppauge, NY 11788 XXX-XXXX...
