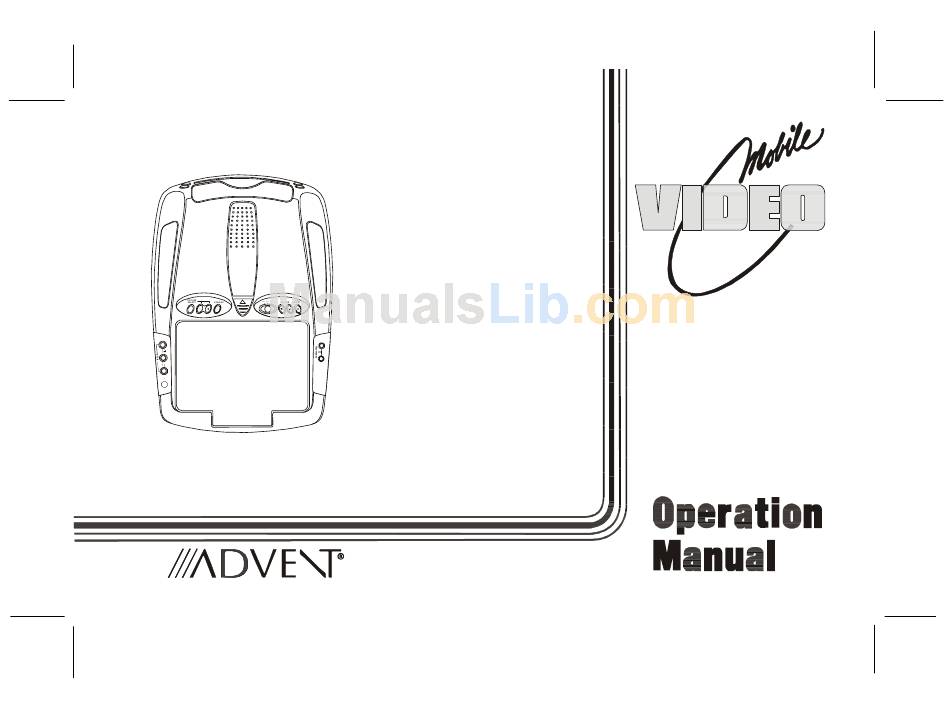

- Page 1 ADV200B / ADV200S / ADV200P DVD PLAYER WITH DROP-DOWN VIDEO MONITOR 128-7252A 128-7252A 1 of 35...
-
Page 2: Important Notice
Important Notice An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”... -
Page 3: Safety Precaution
System adjustments can be accomplished using the remote control, while seat- belts remain fastened. Enjoy your Audiovox entertainment system but remember the safety of all passengers remains the number one priority. -
Page 4: Controls And Indicators Diagram
Controls and Indicators Diagram 128-7252A 4 of 35... -
Page 5: Control Function Descriptions
Control Function Descriptions 1. DVD Disc insertion slot – For loading Disc. 2. POWER Button – Used to turn the system ON/OFF. Bright red when system is on, dim when off. 3. EJECT ( ) Button – For ejecting discs from the disc compartment. - Page 6 • Off – The dome lights will not turn on in this position. • On – Turns on the dome lights. Note : Audiovox recommends the use of the Audiovox HP 275 Headphones when using wired headphones. 128-7252A...
-
Page 7: Remote Control Operation
3) Align the cover tabs with the remote control and press down until the cover clicks. The remote control will operate the ADV200 and most Audiovox VCP’s. It is not a universal remote control and will not control equipment from other manufacturers. - Page 8 Remote Control Function Descriptions *Function control is available on the unit and the remote control. ** Not used in this model *** The TV Option will only be displayed and the TV control functions are only available if the optional TV Tuner (P/N PODTVT) is installed.
- Page 9 7. MUTE Button Press this button to mute the audio. Pressing the button again restores the sound to the previously set level. 8. ENTER Button Used to implement a selected setting or menu option. 9. LEFT ( ) Button Allows the user to shift left in the menu options. 10.
- Page 10 14. DISPLAY Button Press to display DVD Disc current information. Press DISPLAY button DVD Player Perform Once Display current TITLE , CHAPTER & elapsed time Twice Display current SUBTITLE 3 times Display current AUDIO language & channel 4 times Display current surround mode...
- Page 11 22. REV ( ) Button Allows the user to search in a backward direction at 2, 4, 8, 16 and 32 times the normal speed. DVD Player Perform ZOOM picture 2 times ZOOM picture 3 times ZOOM picture 4 times...
- Page 12 23. FWD ( ) Button Allows the user to search in a forward direction at 2,4,8, 16 and 32 times the normal speed. 24. PLAY ( )Button* Press this button to activate the play mode when a disc is loaded into the disc compartment. 25.
- Page 13 31. A-B Button Allows the user to repeat playback of a DVD or CD from point A to point B. 32. REPEAT Button Allows the user to repeat a chapter, title, track, or all of a DVD, CD or MP3. 33.
- Page 14 38. VOLUME UP (+) Button* Use this button to raise the volume level of the wired headphone jacks. It is also used to make picture adjustments in picture select mode. Note: The volume buttons will not affect the volume of wireless headphones or the wireless FM Mmodulator. When using these devices the volume must be adjusted with the wireless headphone volume control or with your radio’s volume control (see page 16, Headphones, or page 17, Wireless FM Modulator).
-
Page 15: Overhead Dome Lights
Turning the ADV200 On or Off 1. Sliding the screen release lock forward will unlock the LCD screen and it will drop down slightly. Pivot the screen downward until a comfortable viewing angle is reached. The internal hinge friction will hold the screen in position while the system is in use. 2. -
Page 16: Remote Sensor
The repeater function allows control of auxiliary equipment such as an Audiovox Video Cassette Player. The infrared sensor can relay signals from most manufacturer’s remote controls to its respective component connected to the AV 1 input. - Page 17 This is not a defect in the product, but the result of a stronger local radio station overpowering the wireless FM transmitter in your overhead pod. If wireless reception is unsatisfactory, an optional wired relay box (Audiovox P/N SIRSWB) can be installed which will improve audio quality. Please contact the installer if this is the case with your product.
- Page 18 Regional Coding Both the DVD player and disc are coded by region. These regional codes must match in order for the disc to play. If the codes don’t match, the disc won’t play. This unit’s code is region 1. Other regional codes cannot be played in this unit. The unit will display “WRONG REGION.”...
- Page 19 Types of Discs your DVD will play • DVD discs – DVDs discs which contain video. • Audio discs – Audio CDs that contain music or sound content only. MP3 discs – A disc that contains audio files (for example, a CD-R/CD-RW with downloaded MP3 files). •...
- Page 20 Settings and Adjustments The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on-screen display, limit playback for children, load default settings for the picture quality etc.
- Page 21 MAIN PAGE TV DISPLAY The TV DISPLAY setup allows you to adjust screen aspect ratio. 4:3 PS This displays a wide picture on the screen with a portion of the left & right side removed. 4:3 LB This displays a wide picture with black bands on the upper and lower portions of the screen.
-
Page 22: Angle Mark
ANGLE MARK The ANGLE MARK setup allows you to turn on/off the angle mark display on the screen. ON - The screen shows angle mark if an angle option is available on a DVD OFF - There is no angle mark display on the screen even though there is an angle option available on a DVD. -
Page 23: Audio Setup Page
AUDIO SETUP PAGE EQ TYPE The equalizer allows you to choose from a variety of preset equalizer settings. The options are : OFF, ROCK, POP, LIVE, DANCE, TECHNO, CLASSIC and SOFT. V SURRUOUND (Virtual Surround) The Virtual Surround allows you to add a surround sound effect to the audio. -
Page 24: Password Setup Page
PASSWORD SETUP PAGE PASSWORD CHANGE This item allows you to change the password. After you have selected the password change, the figure below is shown: OLD PASSWORD Input the old password or the default password ( 4 digits ) NEW PASSWORD Input a new password ( 4 digits ) using the numbers buttons (0~9) CONFIRM PWD Confirm the new password by entering the same password again. -
Page 25: Preference Page
PREFERENCE PAGE The setting in this page can only be made when the player is in the Stop mode or when there is no disc in the player. PARENTAL CONTROL This item allows you to limit movie playback from G to Adult. The lower the value, the more strict the control. -
Page 26: Playing Dvds
Playing DVDs Press the DISPLAY button on the remote control to display the status banner. Pressing the DISPLAY button consecutively changes the options as below. Press DISPLAY button Information display on the screen Once Current title, chapter and elasped time Twice Current subtitle information 3 times... -
Page 27: Playing Audio Cds
Playing Audio CDs When playing an audio CD, the DISPLAY banner appears automatically. It displays the current track playing, the total number of tracks and the elapsed time for the track playing. Pressing the DISPLAY button on the remote consecutively changes the options of the display. Press DISPLAY x 1 SINGLE ELAPSED appears along with the current track playing, the total number of tracks and the time playing on that track... -
Page 28: Program Play
ENTER to start playback of the programmed songs. When the playback of the programmed songs has finished, the DVD player stops and the program list is deleted. To repeat playing the program list, use the Repeat feature during the program playback. -
Page 29: Playing Mp3 Discs
MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R/CD-RW discs that have been encoded in MP3 format can be played on your DVD player. The DVD player plays the songs in the order they were burned on to the disc. - Page 30 Skipping Songs Use the Next ( ) button on the remote control to move to the next song. Use the Previous ( Selecting a Play Mode You can choose what order the songs will play on a disc temporarily. The default play mode is FOLDER. Press REPEAT consecutively to choose the desired play mode.
-
Page 31: Troubleshooting
Disc won’t play • Insert a disc with the label side facing • Check the type of disc you put into disc tray. This DVD player only plays DVD’s, audio CDs and MP3s. • Both the unit and the disc are coded by region. - Page 32 SOLUTION PROBLEM The icon ( The feature or action cannot be appears on completed at this time because: screen 1. The disc’s software restricts it. 2. The disc’s software doesn’t support the feature (e.g., angles) 3. The feature is not available at the moment.
-
Page 33: Replacement Parts
Replacement Parts Remote Control 136-3855 Specifications LCD Backlighting Edge Light Tube Resolution 1440 x 234 Pixels 336,960 Operation Temperature 32 -140º F (0 - 60º C) Storage Temperature -4 - 176º F (-20 - 80º C) Backlight life 15,000 Hours Video Display System NTSC/PAL Headphone Audio Output... - Page 34 ADVENT LIMITED WARRANTY AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that, should this product or any part thereof (except game controllers), under normal use and conditions, be proven defective in material or workmanship within 36 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
- Page 35 128-7252B © 2004 ADVENT, 150 Marcus Blvd., Hauppauge, NY 11788 128-7252A 35 of 35...
