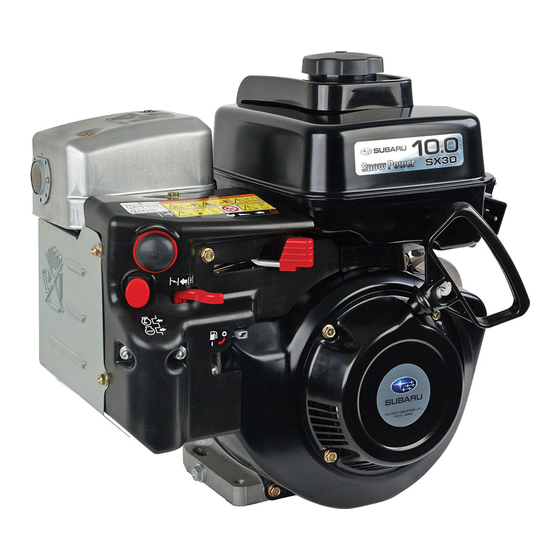

PARTS
MANUAL
Models
SX30
ENGINES
PUB-EP6694
Rev. 03/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX30 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robin America SX30 Series

Summary of Contents for Robin America SX30 Series

  • Page 1 PARTS MANUAL Models SX30 ENGINES PUB-EP6694 Rev. 03/10...
  • Page 2 Robin America, Inc. 905 Telser Road, Lake Zurich, IL 60047 • Phone: 847-540-7300 • Fax:847-438-5012 e-mail: sales@robinamerica.com • www.subarupower.com © Copyright 2010 Robin America, Inc.

  • Page 3: How To Use This Manual

    HOW TO USE THIS MANUAL Robin engines are identifi ed by MODEL, SPECIFICATION, and CODE NUMBER. For each model there may be many different versions called specifi cations. Each specifi cation will be unique in some way. The difference may only be the paint color or it may have a different type of PTO or some other signifi...

  • Page 4: Manual Layout

    MANUAL LAYOUT 1. SECTION NAME Parts are broadly classifi ed according to their functions. Refer to the Group Index (table of contents) for respective section name. 2. FIG. No. The FIG. number indexes the reference and part numbers to the illustration. Figure numbers that vary only in the tens place (i.e..: 700 and 710) are in a group of the same section (i.e..:Electrical Device Group).

  • Page 5: Table Of Contents

    GROUP INDEX Group Name Page CRANKCASE GROUP ................6 CRANKSHAFT GROUP ................8 INTAKE and EXHAUST GROUP .............. 10 GOVERNOR GROUP ................14 COOLING and STARTING GROUP ............16 FUEL, LUBRICANT GROUP ..............18 CARBURETOR GROUP ................20 ELECTRIC DEVICE GROUP ..............22 ACCESSORY GROUP ................

  • Page 6: Crankcase Group

    SECTION 1 CRANKCASE GROUP FIG. 100 SX30 - 6 - 03-10...
  • Page 7 Gasket, head 011-00802-40 Flange Bolt 011-00803-10 Flange Bolt 277-15503-01 Rocker Cover Cp 277-16001-13 Gasket, rocker cover 277-15011-03 Pipe Knock 011-00600-20 Flange Bolt 050-21000-30 Union 040-11000-11 Plug 021-81000-10 Seal Washer 021-81400-10 Seal Washer 279-99001-37 Gasket Set SX30 - 7 - 03-10...

  • Page 8: Crankshaft Group

    SECTION 2 CRANKSHAFT GROUP FIG. 200 SX30 - 8 - 03-10...
  • Page 9 CRANKSHAFT GROUP Ref. Part Number Description Qty Remarks To-From Fig. 291-20901-01 Crankshaft Cp 032-30300-10 Woodruff Key 291-22501-00 Connecting Rod Ay 279-23001-03 Connecting Rod Bolt 279-23301-13 Piston Pin 291-23401-H3 Piston 291-23501-17 Piston Ring Set 056-51800-10 Clip SX30 - 9 - 03-10...

  • Page 10: Intake And Exhaust Group

    SECTION 3 INTAKE and EXHAUST GROUP FIG. 300 SX30 - 10 - 03-10...
  • Page 11 017-00500-30 017-00500-30 011-00600-10 Flange Bolt 279-30101-L1 Muffl er Cp 279-34206-03 Muffl er Cover 277-35201-13 Gasket, muffl er 002-38080-00 Flange Nut 015-20600-90 Tapping Bolt 011-00600-10 Flange Bolt 011-00803-20 Flange Bolt 277-37203-H1 Screen Cp 015-00400-60 Tapping Screw SX30 - 11 - 03-10...
  • Page 12 SECTION 3 INTAKE and EXHAUST GROUP FIG. 330 SX30 - 12 - 03-10...
  • Page 13 Hose Clamp 279-38101-03 Cover, front 002-38060-00 Flange Nut 277-72601-A0 Switch Ay 277-72652-A3 277-62211-A0 Primer Pump 073-20056-70 Label, warning 073-20056-80 Label, fuel cock 073-20056-90 Label, choke 073-20057-00 Label, key switch 246-10803-03 Rubber Pipe 001-04062-00 Flange Bolt SX30 - 13 - 03-10...

  • Page 14: Governor Group

    SECTION 4 GOVERNOR GROUP FIG. 400 SX30 - 14 - 03-10...
  • Page 15 Friction Washer 004-31062-50 Screw 237-45004-23 Spring, adjust 226-72706-11 Stop Switch 004-36041-20 Screw and Washer Ay 277-46080-02 Speed Control Bracket Un 002-35060-00 Self Lock Nut 011-00600-20 Flange Bolt 277-43601-H3 Knob, speed control lever 279-48101-H3 Governor Cover SX30 - 15 - 03-10...

  • Page 16: Cooling And Starting Group

    SECTION 5 COOLING and STARTING GROUP FIG. 500 SX30 - 16 - 03-10...
  • Page 17 073-20057-30 Label, trademark 279-59610-03 Sponge 10 011-00600-30 Flange Bolt 279-52702-13 Baffl e 2, head 011-00600-20 Flange Bolt 279-52801-03 Baffl e 4, snow 011-00804-20 Flange Bolt 011-00600-20 Flange Bolt 279-50611-00 Recoil Starter Ay 011-00600-10 Flange Bolt SX30 - 17 - 03-10...

  • Page 18: Fuel, Lubricant Group

    SECTION 5 COOLING and STARTING GROUP FIG. 520 SX30 - 18 - 03-10...
  • Page 19 Qty Remarks To-From Fig. 279-50611-00 Recoil Starter Ay 580-50040-20 Spiral Spring 279-50120-08 Reel 226-50752-08 Ratchet Spring 279-50125-08 Ratchet 226-50731-08 Friction Spring 226-50753-18 Center Screw 226-50741-08 Friction Plate 279-50112-08 Starter Rope 279-50101-08 Starter Knob 279-50150-08 Pulley Ay SX30 - 19 - 03-10...

  • Page 20: Carburetor Group

    SECTION 6 FUEL, LUBRICATION GROUP FIG. 600 SX30 - 20 - 03-10...
  • Page 21 Fuel Guide 002-38080-00 Flange Nut 011-00802-50 Flange Bolt 279-62602-11 Fuel Pipe Cp X85-10615-81 Rubber Pipe X56-11100-60 Hose Clamp 279-62392-00 Carburetor Ay 277-43803-H1 Choke Lever Cp 279-32902-J1 Insulator Cp 279-35902-J3 Gasket 1, insulator 279-35903-J3 Gasket 2, insulator SX30 - 21 - 03-10...
  • Page 22 SECTION 6 FUEL, LUBRICATION GROUP FIG. 640 SX30 - 22 - 03-10...
  • Page 23 206-62540-08 Packing 234-62506-08 Float A 279-62506-08 Float Body A 279-62408-08 Main Jet #92.5 207-62345-08 Insert Washer 150-62358-08 Bolt 279-62541-08 Washer 279-62361-08 Bolt 277-62552-08 O ring 214-62515-08 226-62701-18 Clip 224-62305-08 Needle Valve 209-62351-08 Screw 236-62680-08 Seal SX30 - 23 - 03-10...

  • Page 24: Electric Device Group

    SECTION 7 ELECTRIC DEVICE GROUP FIG. 700 SX30 - 24 - 03-10...

  • Page 25: Fig

    Wire 11 Cp 065-01407-40 Spark Plug 065-50002-70 Spark Plug Cap 279-70503-H0 Starting Motor Ay 214-79007-01 Bolt, starter 279-76001-02 Bracket Un, control box 003-10080-00 Washer 013-10401-20 Screw and Washer Ay 279-75501-13 Wire Clamp 015-20600-50 Tapping Bolt SX30 - 25 - 03-10...
  • Page 26 PRINTED IN THE USA...
