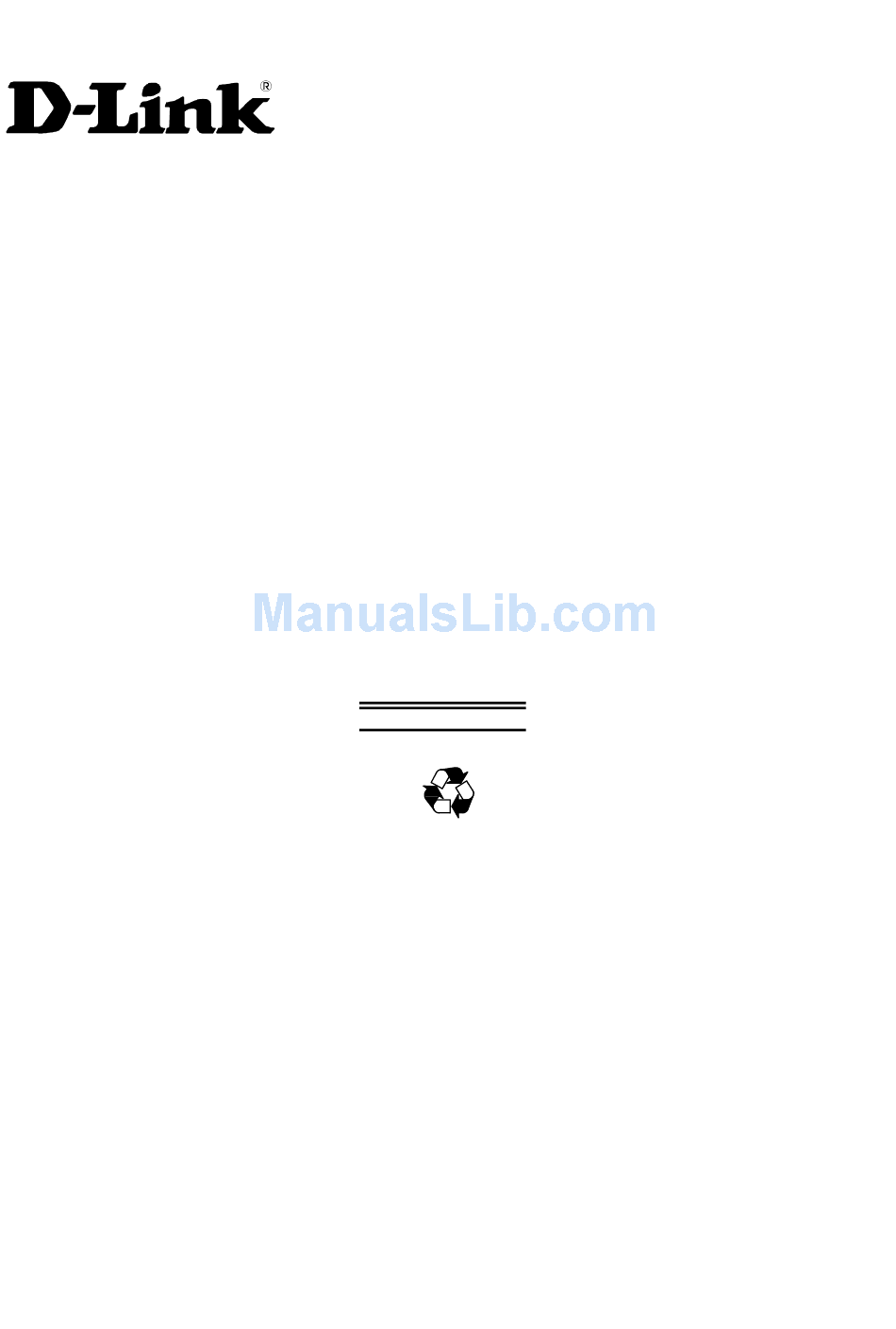

Page 1 DES-6000 Modular Ethernet Switch User’s Guide First Edition (June 2000) 6DES6000..01 Printed In Taiwan RECYCLABLE...
Page 3: Wichtige Sicherheitshinweise
Wichtige Sicherheitshinweise Bitte lesen Sie sich diese Hinweise sorgfältig durch. Heben Sie diese Anleitung für den spätern Gebrauch auf. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Vervenden Sie keine Flüssig- oder Aerosolreiniger. Am besten dient ein angefeuchtetes Tuch zur Reinigung.
Page 4: Copyright Statement
Trademarks Copyright 2000. Contents subject to change without prior notice. All trademarks belong to their respective proprietors. Copyright Statement No part of this publication may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from the manufacturer, as stipulated by the United States Copyright Act of 1976.
Page 5: Table Of Contents
ABLE OF ONTENTS ABOUT THIS GUIDE................................V ..................................... ONVENTIONS ’ .............................. VERVIEW OF THIS UIDE INTRODUCTION ..................................1 ..............................1 THERNET ECHNOLOGY .............................. 1 IGABIT THERNET ECHNOLOGY ................................2 WITCHING ECHNOLOGY ....................................2 EATURES Chassis ....................................2 Modules ....................................3 CPU Module......................................
Page 6 ....................................... 19 RAPS ......................................20 ................................21 ACKET ORWARDING Aging Time .................................... 21 Filtering Database ................................21 ..............................21 PANNING LGORITHM STA Operation Levels................................22 On the Bridge Level ....................................22 On the Port Level ....................................22 User-Changeable STA Parameters ............................23 Illustration of STA .................................
Page 7 Factory Reset..................................73 Logout ....................................73 WEB-BASED NETWORK MANAGEMENT ........................74 ..................................74 NTRODUCTION ..................................74 ETTING TARTED ..................................74 ANAGEMENT Configuration ..................................75 IP Address ......................................76 Switch Module ....................................... 76 Port ......................................... 79 Trunk Groups ......................................80 Port Mirroring ......................................81 Spanning Tree Protocol ..................................
Page 9: About This Guide
Web-based management. Conventions References in this manual to the DES-6000 are frequently written simply as “Switch” or “Switches” where the text applies to both models. Model numbers are normally used only to differentiate between specific Switches where necessary.
Page 11: Introduction
Modular Ethernet Switch User’s Guide NTRODUCTION This section describes the features of the Switch, as well as giving some background information about Ethernet/Fast Ethernet, Gigabit Ethernet, and switching technology. Fast Ethernet Technology The growing importance of LANs and the increasing complexity of desktop computing applications are fueling the need for high performance networks.
Page 12: Switching Technology
Features The DES-6000 Modular switch is designed for easy installation and high performance in an environment where traffic on the network and the number of users increases continuously.
Page 13: Modules
Modular Ethernet Switch User’s Guide Modules The following describes the optional plug-in modules available for the switch. CPU Module ♦ A single CPU module must be present and must be installed in first (uppermost) slot. ♦ Layer 2 switching based on MAC address & VLAN ID. ♦...
Page 14: 100Base-Fx (Mt-Rj) Module
Modular Ethernet Switch User’s Guide 100BASE-FX (MT-RJ) Module ♦ 12 100BASE-FX (MT-RJ) Fast Ethernet ports ♦ Fully compliant with IEEE 802.3u 100BASE-FX ♦ Back pressure Flow Control support for Half-duplex mode ♦ IEEE 802.3x compliant Flow Control support for Full-duplex ♦...
Page 15: Unpacking And Setup
Modular Ethernet Switch User’s Guide NPACKING AND ETUP This chapter provides unpacking and setup information for the Switch. Unpacking Open the shipping carton of the Switch and carefully unpack its contents. The carton should contain the following items: ♦ One switch chassis ♦...
Page 16: Desktop Or Shelf Installation
Modular Ethernet Switch User’s Guide Desktop or Shelf Installation When installing the Switch on a desktop or shelf, the rubber feet included with the device must be first attached. Attach these cushioning feet on the bottom at each corner of the device. Allow enough ventilation space between the device and the objects around it.
Page 17: Installing Modules
Modular Ethernet Switch User’s Guide Installing Modules The DES-6000 supports up to 9 modules which can be installed into the module bays. Networking modules are warm-swappable, meaning they can be added and removed while power to the switch is ON. After warm- swapping a networking module, the switch will automatically be rebooted.
Page 18: Connecting A Terminal
Power up the DES-6000 as follows: 1. Make sure the power module is properly installed in the device. 2. Plug the device end of the supplied power cord firmly into the power inlet on the DES-6000’s front panel of the redundant power supply.
Page 19: Power Failure
Modular Ethernet Switch User’s Guide ♦ All indicators blink momentarily to indicate a system reset. ♦ The Power indicator flashes for about 20 seconds while the switch prepares its run-time software and performs a self-test. ♦ The Power indicator begins shining steadily, and the remaining indicators begin reflecting port and system status.
Page 20: Identifying External Components
Modular Ethernet Switch User’s Guide DENTIFYING XTERNAL OMPONENTS This chapter describes the front panel, side panels, optional plug-in modules, and LED indicators of the Switch Front Panel The front panel of the Switch consists nine slide-in module slots for networking modules, two slide-in module slots for power supply modules, an RS-232 communication port, and LED indicators.
Page 21: Optional Plug-In Modules
Modular Ethernet Switch User’s Guide Optional Plug-in Modules The DES-6000 Modular Ethernet Switch is able to accommodate a range of plug-in modules in order to increase functionality and performance. 10BASE-T/100BASE-TX Module Figure 3-2. 16-port, 10/100BASE-TX module ♦ 16-port, front-panel module.
Page 22: 1000Base-Sx (Mt-Rj) Gigabit Module
Modular Ethernet Switch User’s Guide ♦ Fully compliant with IEEE 802.3u 100BASE-FX ♦ Back pressure Flow Control support for Half-duplex mode ♦ IEEE 802.3x compliant Flow Control support for Full duplex ♦ Per port packet buffer: 0.5 Mbytes ♦ Supports multi-mode fiber-optic cable connections of up to 412 meters in half-duplex or 2 km in full-duplex mode.
Page 23: 1000Base-Lx (Sc) Gigabit Module
Modular Ethernet Switch User’s Guide ♦ Per port packet buffer: 2 Mbytes 1000BASE-LX (SC) Gigabit Module Figure 3-6. Two-port, 1000BASE-LX gigabit module ♦ Two-port, front-panel module. ♦ Connects to 1000BASE-LX devices at full duplex. ♦ 2 1000BASE-LX (SC) Gigabit Ethernet ports ♦...
Page 24 Modular Ethernet Switch User’s Guide ♦ CPU Status This leftmost indicator on the front panel displays the current status of the switch. The LED will blink while the Power-On Self-Test (POST) is running during startup. It will light a steady green after the POST test to indicate the switch is powered on and operating properly.
Page 25: Connecting The Switch
Modular Ethernet Switch User’s Guide ONNECTING WITCH This chapter describes how to connect the Switch to your Ethernet network as well as providing an informational cable length table. Switch to End Node End nodes include PCs outfitted with a Network Interface Card (NIC) and most routers. For twisted-pair (copper) connections, the RJ-45 UTP ports on NICs and most routers are MDI-II.
Page 26: 10Base-T Device
Modular Ethernet Switch User’s Guide 10BASE-T Device For a 10BASE-T device, the Switch’s LED indicators should display the following: ♦ 100M speed indicator is OFF. ♦ Link/Act indicator is ON. 100BASE-TX Device For a 100BASE-TX device, the Switch’s LED indicators should display the following: ♦...
Page 27: Cable Lengths
Modular Ethernet Switch User’s Guide Cable Lengths MHz/km Maximum Standard Media Type Rating Distance 1000BASE-SX 50/125µm Multimode Fiber 500 Meters 50/125µm Multimode Fiber 550 Meters 62.5/125µm Multimode Fiber 220 Meters 62.5/125µm Multimode Fiber 275 Meters 1000BASE-LX 50/125µm Multimode Fiber 500 Meters 50/125µm Multimode Fiber 550 Meters 62.5/125µm Multimode Fiber...
Page 28: Switch Management Concepts
Modular Ethernet Switch User’s Guide WITCH ANAGEMENT ONCEPTS This chapter discusses many of the features used to manage the switch, and explains many concepts and important points regarding these features. Configuring the Switch to implement these concepts is discussed in detail in the next chapters.
Page 29: Ip Addresses And Snmp Community Names
Modular Ethernet Switch User’s Guide IP Addresses and SNMP Community Names Each Switch has its own IP Address, which is used for communication with an SNMP network manager or other TCP/IP application (for example BOOTP, TFTP, etc.). You must provide the switch with an IP Address to meet the specification of your networking address scheme.
Page 30: Mibs
Modular Ethernet Switch User’s Guide ♦ Link Change Event This trap is sent whenever the link of a port changes from link up to link down or from link down to link up. ♦ Port Partition This trap is sent whenever a port is partitioned as a result of more than sixty-two collisions on the port (i.e., is automatically partitioned).
Page 31: Packet Forwarding
Modular Ethernet Switch User’s Guide Packet Forwarding The Switch learns the network configuration and uses this information to forward packets. This reduces the traffic congestion on the network, because packets, instead of being transmitted to all segments, are transmitted to the destination only. Example: if Port 1 receives a packet destined for a station on Port 2, the Switch transmits that packet through Port 2 only, and transmits nothing through the other ports.
Page 32: Sta Operation Levels
Modular Ethernet Switch User’s Guide complicated and complex subject and must be fully researched and understood. Please read the following before making any changes. ♦ Network loop detection and prevention With STA, there will be only one path between any two LANs.
Page 33: User-Changeable Sta Parameters
Modular Ethernet Switch User’s Guide User-Changeable STA Parameters The factory default setting should cover the majority of installations. However, it is advisable to keep the default settings as set at the factory, unless it is absolutely necessary. The user changeable parameters in the Switch are as follows: ♦...
Page 34 Modular Ethernet Switch User’s Guide Figure 5-1. Before Applying the STA Rules Figure 5-2. After Applying the STA Rules STA parameters Settings Effects Comment Bridge Priority lower the #, Increases chance of Avoid, if the switch is higher the becoming the Root used in workgroup level priority Bridge...
Page 35: Port Trunking
Modular Ethernet Switch User’s Guide Port Trunking Port trunking is used to combine a number of ports together to make a single high-bandwidth data pipeline. The participating parts are called members of a trunk group, with one port designated as the anchor of the group.
Page 36: Mac-Based Broadcast Domains
Modular Ethernet Switch User’s Guide MAC-based Broadcast Domains The Switch supports up to 12 MAC-based broadcast domains, which are by their nature, limited to the switch itself and the devices connected directly to it. Since MAC addresses are hard-wired into a station’s network interface card (NIC), MAC-based broadcast domains enable network managers to move a station to a different physical location on the network and have that station automatically retain its broadcast domain membership.
Page 37: Sharing Resources Across 802.1Q Vlans
Modular Ethernet Switch User’s Guide Sharing Resources Across 802.1Q VLANs Network resources such as printers and servers however, can be shared across 802.1Q VLANs. This is achieved by setting up overlapping VLANs as shown in the diagram below. Figure 5-3. Example of typical VLAN configuration In the above example, there are three different 802.1Q VLANs and each port can transmit packets on one of them according to their Port VLAN ID (PVID).
Page 38 Modular Ethernet Switch User’s Guide ♦ Tagging The act of putting 802.1Q VLAN information into the header of a packet. Tagging ports will put the VID number, priority, and other VLAN information into all packets that flow into and out it. If a packet has previously been tagged, the port will not alter the packet, thus keeping the VLAN information intact.
Page 39: Port-Based Vlans
Modular Ethernet Switch User’s Guide Figure 5-4. Data transmissions between 802.1Q-compliant switches In the above example, step 4 is the key element. Because the packet has 802.1Q VLAN data encoded in its header, the ingress port can make VLAN-based decisions about its delivery: whether server #2 is attached to a port that is a member of VLAN 2 and thus, should the packet be delivered;...
Page 40: Broadcast Storms
In the DES-6000 switch, the default rising threshold is met when more than 500 broadcast packets per second are being detected on a specified port. Once the rising threshold is surpassed for a duration of more than 5 seconds, it will trigger the broadcast storm rising action configured by the user.
Page 41: Using The Console Interface
Modular Ethernet Switch User’s Guide SING THE ONSOLE NTERFACE Your Modular Ethernet Switch supports a console management interface that allows you to set up and control your Switch, either with an ordinary terminal (or terminal emulator), or over the network using the TCP/IP Telnet protocol.
Page 42: Connecting To The Switch Using Telnet
Modular Ethernet Switch User’s Guide Figure 6-1. Example of a console connection Connecting to the Switch Using Telnet Once you have set an IP address for your Switch, you can use a Telnet program (in a VT-100 compatible terminal mode) to access and control the Switch. Most of the screens are identical, whether accessed from the console port or from a Telnet interface.
Page 43: User Accounts Management
Modular Ethernet Switch User’s Guide Figure 6-2. Initial Screen, first time connecting to the Switch Press <Enter > or <Return> in the username and password fields. You will be given access to the main menu shown below: Figure 6-3. Main Menu The first user automatically gets Administrator privileges (See Table 6-1).
Page 44: Save Changes
Modular Ethernet Switch User’s Guide 4. Press Esc. to return to the previous screen or Ctrl+T to go to the root screen. 5. To see a listing of all user accounts and access levels, press Esc. Then choose View/Delete User Accounts.
Page 45: Login On The Switch Console By Registered Users
Modular Ethernet Switch User’s Guide Figure 6-4. Save Changes screen After the settings have been saved to NV-RAM, they will become the default settings for the Switch, and they will be used every time it is powered on, reset or rebooted. The only exception to this is a factory reset, which will clear all settings and restore them to their initial values listed in the Appendix, which were present when the Switch was purchased.
Page 46: User Accounts Control Table
Modular Ethernet Switch User’s Guide Figure 6-5. User Accounts Management menu 2. Choose Create/Modify User Accounts. The following screen appears: Figure 6-6. Add/Modify User Accounts screen 3. Type in your Username and press <Enter>. 4. If you are an old user, type in the Old Password and press <Enter>. 5.
Page 47: Setting Up The Switch
Modular Ethernet Switch User’s Guide To view a user account: Choose User Accounts Control Table from the User Accounts Management menu. The following screen appears: Figure 6-7. User Accounts Control Table This screen is used to configure a users access level and delete user accounts. To change a users access level, place the cursor on the access level field for the user and press the <space bar>...
Page 48: Configure Ip Address
Modular Ethernet Switch User’s Guide Figure 6-8. System Configuration menu You will need to change some settings to allow you to be able to manage the Switch from an SNMP-based Network Management System or to be able to access the Switch using the Telnet protocol. See the next chapter for Web-based network management information.
Page 49: Configure Console
Modular Ethernet Switch User’s Guide BootP – Sends out a BOOTP broadcast request when it is powered up. The BOOTP protocol allows IP addresses, network masks, and default gateways to be assigned on a central BOOTP server; if this option is set the Switch will first look for a BOOTP server to provide it with this information before using the supplied settings.
Page 50: Configure Switch Modules
Modular Ethernet Switch User’s Guide Console. Available speeds are 2400, 9600, 19,200 and 38,400 bits per second. The default setting in this Switch version is 9600. The top of the screen displays the current settings for Console Timeout and Serial Port as well as the Baud Rate, Data Bits, and Stop Bit for Out of Band and Console settings, respectively.
Page 51: Configure Ports
Modular Ethernet Switch User’s Guide Figure 6-12. Switch Module Information screen Advanced Settings The Configure Advanced Switch Features screen allows you to set Head Of Line Blocking Prevention as well as to enable or disable auto-partitioning on all ports. Press ADVANCED SETTINGS on the Switch Module Configuration screen to access the Configure Advanced Switch Features screen: Figure 6-13.
Page 52 Modular Ethernet Switch User’s Guide Figure 6-14. Port Configuration screen Items in the above window are defined as follows: ♦ Module Specify the module containing the port you wish to configure. ♦ Port Specify the port you wish to configure. ♦...
Page 53: Configure Trunk Groups
Modular Ethernet Switch User’s Guide ♦ Broadcast Storm Rising Threshold This setting defines a ceiling for the number of broadcast packets per second on this port. Once met, the Broadcast Storm Rising Action (above) will be triggered. The assigned number should be high enough to allow normal broadcast packets (which comprise significant traffic) to be let through, while being low enough so that broadcast storms can be detected early.
Page 54: Configure Port Mirroring
Modular Ethernet Switch User’s Guide The fields you can set are: ♦ Anchor The anchor port is the master port of the trunk group. Since all ports in a trunk group must have the same settings, any changes made to the settings of the anchor port will automatically be applied to all ports in the group.
Page 55: Configure Spanning Tree Protocol
Modular Ethernet Switch User’s Guide Configure Spanning Tree Protocol The Spanning Tree Algorithm Parameters can be used for creating alternative paths in your network. The Protocol Parameters allow you to change the behind the scene parameters of the Spanning Tree Algorithm at the bridge level.
Page 56 Modular Ethernet Switch User’s Guide ♦ Topology Change Count Read-only object displays the number of times (since the current management session with the device was started) changes were made to the network topology. Changes usually occur on the network when backup paths are activated. ♦...
Page 57: Configure Filtering And Forwarding Table
Modular Ethernet Switch User’s Guide Figure 6-19. STP Port Settings screen Items in the above window are described as follows: ♦ Module Choose a module on the switch on which to configure the Spanning Tree Port settings. ♦ STP Status Sets the Spanning Tree Protocol on a particular port to Enabled or Disabled. ♦...
Page 58 Modular Ethernet Switch User’s Guide Figure 6-20. Configure Filtering and Forwarding Table screen The following fields at the top of the screen can be set: ♦ Lock Address Table Mostly used for security purposes, when the forwarding table is locked the Switch will no longer learn the MAC addresses for new hosts.
Page 59 Modular Ethernet Switch User’s Guide Figure 6-21. Static Forwarding Table Configuration screen By mapping a MAC address to a destination port, the switch can permanently forward traffic for a specified device through a specific port, even after long periods of network inactivity or during times of network congestion.
Page 60 Modular Ethernet Switch User’s Guide Figure 6-22. Static Filtering Table screen To make a change to the Static Filtering Table, choose Add or Remove in the Action field. Then enter the MAC Address and VID (if Port-based or 802.1Q VLANs are enabled) and then press APPLY. Configure Static Multicast Filtering Multicast filtering allows you to block or forward traffic over each port for one multicast group.
Page 61 Modular Ethernet Switch User’s Guide IGMP packets being forwarded through the switch in order to obtain forwarding information from them (dynamically learn which ports contain Multicast members), and forward multicast packets only to the members. Basically, in these submenus you define whether the Switch can intelligently forward IGMP packets, and you must also define which 802.1Q VLANs (if present) can send and receive IGMP and Multicast packets.
Page 62 Modular Ethernet Switch User’s Guide 802.1Q IGMP Figure 6-25. IEEE 802.1Q IGMP Configuration screen Choose Add/Remove IGMP Entry from the screen above to define up to 24 VLANs on the Switch which can send and receive IGMP packets: Figure 6-26. Add/Remove IGMP Entry screen The above window is used to specify an agent to interface between IGMP and VLAN.
Page 63: Configure Vlans & Mac-Based Broadcast Domains
Modular Ethernet Switch User’s Guide Figure 6-27. IEEE 802.1Q IGMP Configuration screen This allows you to enable/disable these agents and set aging timers for them. Items in the above window are defined as follows: ♦ VLAN ID This is the VID number for the VLAN that has an agent attached to it which enables IGMP packets to be sent and received.
Page 64 Modular Ethernet Switch User’s Guide The VLANs & MAC-based Broadcast Domains Configuration menu displays the status of the current VLAN mode and allows a user to restart the switch in a particular VLAN mode--either Port-based, 802.1Q, MAC-based (broadcast domains) or disable VLANs on the Switch. Please note that the Switch can only support one mode at any given time.
Page 65 Modular Ethernet Switch User’s Guide Figure 6-30. MAC-Based Broadcast Domain Configuration menu Choose Add/Remove MAC-based Broadcast Domain to access the following screen: Figure 6-31. Add/Remove a MAC-based Broadcast Domain screen The fields you can set are: ♦ Action Select the desired action by toggling between Add and Remove. ♦...
Page 66 Modular Ethernet Switch User’s Guide Figure 6-32. Add/Remove MAC-based Broadcast Domain Members screen To configure a broadcast domain, highlight the desired entry on the screen and press ENTER. The following Add/Remove MAC-based Broadcast Domain Members screen appears: Figure 6-33. Add/Remove MAC-based Broadcast Domain Members screen The fields you can set are: ♦...
Page 67 Modular Ethernet Switch User’s Guide 1. Decide if you want to enable Ingress Filtering and enable it on the chosen ports. Ingress filtering applied on a port causes the port to examine all incoming packets and check whether the port itself is a member of the VLAN on which the packet is destined.
Page 68 Modular Ethernet Switch User’s Guide packet, and its own VID. If there is a match, the port will receive the packet for forwarding. If the packet doesn’t have a VLAN tag or the port is not a member of the VLAN (doesn’t have the same VID) as the packet, the packet will be discarded.
Page 69 Modular Ethernet Switch User’s Guide ♦ VID Enter a VLAN ID from 1 to 4094. This is the VLAN that will be defined on this screen. VID 1 is the default VLAN. All ports are designated members of VID 1 when VLANs are enabled. ♦...
Page 70 Modular Ethernet Switch User’s Guide Figure 6-39. Port-based VLAN Configuration screen The fields you can set are: ♦ VLAN ID (VID) Enter a VLAN ID from 1 to 24. This is the VLAN that will be defined on this screen. VID 1 is the default VLAN.
Page 71: Update Firmware And Configuration Files
Modular Ethernet Switch User’s Guide Update Firmware and Configuration Files The Switch is capable of obtaining its configuration settings (the same settings defined in this console program), as well as updated versions of its internal switching software (the console program itself), using TFTP (Trivial File Transfer Protocol).
Page 72: System Utilities
Modular Ethernet Switch User’s Guide Special Notes Concerning Firmware Updates 1. Never download new firmware through a trunked port. Doing so may result in a failed download, broadcast storm, or other network problems. 2. Avoid changing active links and do not make new loops on the network when downloading new firmware.
Page 73: Save Settings To Tftp Server
Modular Ethernet Switch User’s Guide Figure 6-43. Ping Test screen After filling in the fields above, press START to initiate the Ping test. The fields you can set are: ♦ Destination IP Address The IP address of the device to be Pinged. ♦...
Page 74: Save Switch History To Tftp Server
Modular Ethernet Switch User’s Guide ♦ Configuration File Name The complete path and filename for the file. Save Switch History to TFTP Server Choose Save Switch History to TFTP Server from the Utilities menu (under System Utilities on the main menu) to access the following screen: Figure 6-45.
Page 75: Switch Monitoring
Modular Ethernet Switch User’s Guide The SNMP allows up to four different community names to be defined. The community name public is defined by default; you can change this name in addition to adding others. You will need to coordinate these names with the community name settings you use in your network management system.
Page 76: Traffic Statistics
Modular Ethernet Switch User’s Guide Figure 6-47. Network Monitoring and Device Information menu The first item on this menu permits you to access four different tables that observe the condition of each individual port. Traffic Statistics To display the Traffic Statistics menu, choose the first item on the Network Monitoring menu. The following menu appears: Figure 6-48.
Page 77 Modular Ethernet Switch User’s Guide Figure 6-49. Port Utilization screen Select the desired device in the Switch field and the desired increment setting in the Update Interval field: 5 sec, 15 sec, 30 sec, 1 min, or Suspend. The statistic counters displayed are defined as follows: ♦...
Page 78 Modular Ethernet Switch User’s Guide The statistic counters displayed are defined as follows: ♦ Speed If the link is up, the speed and duplex status will be displayed; if the link is down “-” will be displayed. ♦ % Utilization This shows the percentage of available bandwidth each port is using during a single second at the time specified by the update interval.
Page 79 Modular Ethernet Switch User’s Guide ♦ Bad Fragment The number of packets less than 64 bytes with either bad framing or an invalid CRC. These are normally the result of collisions. ♦ Jabber The number of frames with length more than 1536 bytes and with CRC error or misalignment (bad framing).
Page 80: Browse Address Table
Modular Ethernet Switch User’s Guide ♦ Broadcast RX/Broadcast TX The number of good broadcast frames received and sent. This includes dropped broadcast packets. Browse Address Table The Browse Address Table allows the user to view which Switch port(s) a specific network device uses to communicate on the network.
Page 81: Device Status
Modular Ethernet Switch User’s Guide Figure 6-54. Switch History screen The switch history entries are listed chronologically from the last time the Switch was rebooted. Device Status Selecting Device Status will display power supply and fan status. From this screen you can activate or deactivate the buzzer.
Page 82: Resetting The Switch
Modular Ethernet Switch User’s Guide Figure 6-56. IP Multicast & IGMP Information screen This screen displays the number of IGMP queries and reports for each active IP multicast group detected by the Switch. You can also view which Switch ports support each multicast group. The fields displayed are defined as follows: ♦...
Page 83: Factory Reset
Modular Ethernet Switch User’s Guide A Factory Reset will set all of the Switch’s parameters to their original settings as they were when the Switch was delivered from the factory. Please read the following section concerning Factory Reset. Factory Reset IMPORTANT: BEFORE PERFORMING A FACTORY RESET, BE ABSOLUTELY CERTAIN THAT THIS IS WHAT YOU WANT TO DO! Once the reset is done, all of the Switch’s settings, even those stored in NV-RAM (including TCP/IP...
Page 84: Web-Based Network Management
IP address you have defined for the device. The URL in the address bar should read something like: http://123.123.123.123, where the numbers 123 represent the IP address of the switch. In the page that opens, click on the Login to DES-6000 Manager button: This opens the main page in the management module.
Page 85: Configuration
Modular Ethernet Switch User’s Guide Clicking on one of the modules causes an interactive view of the front-panel of the chose module at the top of the browser. The default module displayed when you first open the page is the CPU module shown below: Clicking on one of the ports in a networking module opens a configuration window for that particular port.
Page 86: Ip Address
Modular Ethernet Switch User’s Guide IP Address Figure 7-1. IP Address window You can change the IP Address, Subnet Mask, and Default Gateway on the Switch. If your are not using BOOTP, enter the IP Address, Subnet Mask, and Default Gateway of the Switch. If you enable BOOTP Service, you do not need to configure any IP parameters because a BOOTP server automatically assigns IP configuration parameters to the Switch.
Page 87 Modular Ethernet Switch User’s Guide Figure 7-2. Switch Module window The fields you can set are: ♦ System Name Corresponds to the SNMP MIB II variable , and is used to give a system.sysName name to the Switch for administrative purposes. The Switch’s fully qualified domain name is often used, provided a name has been assigned.
Page 88 Modular Ethernet Switch User’s Guide Advanced Settings Figure 7-4. Advanced Settings window The first setting allows you to enable or disable port auto-partitioning by the Auto-Partition Capability on All Ports function. If you enable auto-partitioning on all ports, when more than 62 collisions occur while a port is transmitting data, the port automatically stops transmissions.
Page 89: Port
Modular Ethernet Switch User’s Guide Port Figure 7-5. Configure Port window Select the port you want to configure by clicking on the port in the module front panel display at the top of the screen (click on specific modules on the representation of the entire Switch to the left to make them appear at the top of the window).
Page 90: Trunk Groups
Modular Ethernet Switch User’s Guide 5. Configure the Locked setting to prevent the port from learning the MAC addresses of new hosts. This will help keep intruders off your network since any packet coming from an unknown source address will be dropped by the Switch, that is, not added to your MAC Address Forwarding Table. Select Enable or Disable.
Page 91: Port Mirroring
Modular Ethernet Switch User’s Guide Port Mirroring Figure 7-7. Port Mirroring window The Switch allows you to copy frames transmitted and received on a port and redirect the copies to another port. You can attach a monitoring device to the mirrored port, such as a sniffer or an RMON probe, to view details about the packets passing through the first port.
Page 92 Modular Ethernet Switch User’s Guide STP Switch Settings Figure 7-8. STP Switch Settings window To configure Spanning Tree Protocol functions for the Switch, enter the desired information in the fields on this screen (see the descriptions below for assistance) and then click Apply. The items you can change include: ♦...
Page 93: Forwarding And Filtering
Modular Ethernet Switch User’s Guide STP Port Settings Figure 7-9. STP Port Settings window Enter the desired Spanning Tree custom settings on this screen and then click Apply. The information above is described as follows: ♦ STP Status The Spanning Tree Protocol state for a selected port can either be Enabled or Disabled. ♦...
Page 94 Modular Ethernet Switch User’s Guide Figure 7-10. Configure Forwarding Table And Filtering Table window This window allows you to stop or start address learning, designate an address look-up mode, and select an age-out time for MAC addresses. Click Apply to let your changes take effect. The following fields above can be set: ♦...
Page 95 Modular Ethernet Switch User’s Guide Click New to access the Static Forwarding Table --- Edit window: Figure 7-12. Static Forwarding Table --- Edit window To use the MAC forwarding function, enter the MAC Address of the device to which the specified port permanently forwards traffic in the MAC address field.
Page 96 Modular Ethernet Switch User’s Guide Figure 7-14. Static MAC Address Filtering --- Edit window To add or modify a Static MAC Filtering table entry, enter the desired MAC address and VLAN ID in the two fields offered. Click Apply to let your changes take effect. Static Multicast Filtering Figure 7-15.
Page 97: Igmp
Modular Ethernet Switch User’s Guide Figure 7-16. Static Multicast Filtering --- Edit window To edit or create a new filter, enter the multicast MAC address in the Multicast MAC Address field, and select the desired VID (if VLANs are enabled) and ports which will receive the multicast packets. Click Apply to activate the filter.
Page 98 Modular Ethernet Switch User’s Guide IGMP Settings Figure 7-17. Configure IGMP window To configure the IGMP, enter a value between 30 and 9999 seconds in the IP Multicast Filtering Age-out Timer field and then change the IP Multicast Filtering (IGMP Snooping) setting from Disabled to Enabled. Click the Apply button to let the changes take effect.
Page 99 Modular Ethernet Switch User’s Guide Figure 7-19. Add/Remove IGMP Entries --- Edit window To edit an 802.1Q IGMP entry, enter a value from 1 to 4094 in the VLAN ID field and then click Apply. Figure 7-20. Configure IGMP Entries window Web-Based Network Management...
Page 100 Modular Ethernet Switch User’s Guide This window displays the VLAN ID, Age-out Timer setting, and IGMP status for IGMP entries. To edit an IGMP entry, click the pointer icon on the window above. The Configure IGMP Entries --- Edit window appears: Figure 7-21.
Page 101: Vlans & Mac-Based Broadcast Domains
Modular Ethernet Switch User’s Guide VLANs & MAC-based Broadcast Domains IEEE 802.1Q VLANs allow you to construct a port group as well as to reduce traffic. All packets are limited to members of the VLAN. MAC-based Broadcast Domains limit broadcast, multicast and unknown packets to members of the broadcast domain(s) defined here.
Page 102 Modular Ethernet Switch User’s Guide Figure 7-24. Create/Remove MAC-based Broadcast Domains window ♦ Description Lists all MAC-based broadcast domains. ♦ Number of MAC address members The number of MAC addresses belonging each MAC-based broadcast domain. Click the X in the Delete column next to an entry to remove it from the table. Click New to access the Create/Remove MAC-based Broadcast Domains --- Edit window: Figure 7-25.
Page 103 Modular Ethernet Switch User’s Guide Figure 7-26. Configure MAC-based Broadcast Domain Member window Items in this window are defined as follows: ♦ MAC Address The MAC Address of the broadcast domain member. ♦ Description The broadcast domain the member belongs to. ♦...
Page 104 Modular Ethernet Switch User’s Guide 802.1Q VLANs Figure 7-28. Port Ingress Filter window Use this window to enable or disable the ingress filtering check for each desired port. Ingress filtering means that a receiving port will check to see if it is a member of the VLAN ID in the packet before forwarding the packet.
Page 105 Modular Ethernet Switch User’s Guide Click the X in the Delete column next to an entry to remove it from the table. Click the pointer icon to access the 802.1Q Static VLANs --- Edit window: Figure 7-31. 802.1Q Static VLANs --- Edit window To configure an 802.1Q VLAN entry, enter a VLAN ID (VID) number and VLAN Name in the first two fields.
Page 106: Management
Modular Ethernet Switch User’s Guide Figure 7-33. Port Based VLAN Entry window The above window lists all ports in all modules currently installed in the Switch. To create a VLAN, type in a VLAN Name and then choose ports to belong to the VLAN. All computers connected to the chosen Switch ports will belong to the VLAN.
Page 107: User Accounts Management
Modular Ethernet Switch User’s Guide The SNMP Access Policy Setting section allows you to define SNMP communities on your network. This section is described as follows: ♦ Community String A user-defined SNMP community name. ♦ Access Right The permitted access of Read-Only or Read-Write using the SNMP community name. ♦...
Page 108: Console
Modular Ethernet Switch User’s Guide Figure 7-36. User Accounts Control Table - Edit window To add or change a User Account, fill in the appropriate information in the User Name, Old Password, New Password, and Confirm New Password fields. Then select the desired access, Normal User or Administrator in the Access Level control and click Apply.
Page 109: Monitoring
Modular Ethernet Switch User’s Guide ♦ Data Bits=8 ♦ Flow Control=X on/X off ♦ Parity=None ♦ Stop Bits=1 Monitoring This third main category of the Switch Web-based management program includes: Switch Overview, Port Utilization, Port Traffic Statistics, Port Error Packet Statistics, Port Packet Analysis, Browse Address Table, IP Multicast &...
Page 110: Port Utilization
Modular Ethernet Switch User’s Guide Port Utilization Figure 7-39. Port Utilization window The information is described as follows: ♦ Update Interval Choose the desired setting: 5 seconds, 15 seconds, 30 seconds, 60 seconds or Suspend. ♦ Last Detected Source Address The MAC address of the last device that sent packets over this port.
Page 111: Port Error Packet Statistics
Modular Ethernet Switch User’s Guide The information is described as follows: ♦ Update Interval Choose the desired setting: 5 seconds, 15 seconds, 30 seconds, 60 seconds or Suspend. ♦ Clear button Clicking on this button resets all counters in the tables on this page to the value zero. ♦...
Page 112: Port Packet Analysis
Modular Ethernet Switch User’s Guide ♦ Clear button Clicking on this button resets all counters in the tables on this page to the value zero. ♦ Link Status Indicates the current link status. Other errors: ♦ CRC Error Counts otherwise valid frames that did not end on a byte (octet) boundary. ♦...
Page 113 Modular Ethernet Switch User’s Guide The information is described as follows: ♦ Update Interval Choose the desired setting: 5 seconds, 15 seconds, 30 seconds, 60 seconds or Suspend. ♦ Clear button Clicking on this button resets all counters in the tables on this page to the value zero. ♦...
Page 114: Browse Address Table
Modular Ethernet Switch User’s Guide Browse Address Table Figure 7-43. Browse Address Table window The Switch allows you to display a table containing Switch ports, MAC addresses, and respective learned statuses. If the table doesn’t display the information you want, fill in the requested information in the Search Table by VID, Search Table by MAC Address or Search Table by Port sections above and then click the Find button on the right side of the section used.
Page 115: Switch History
Modular Ethernet Switch User’s Guide Switch History This screen allows you to view the switch logs. Figure 7-45. Switch History window This window allows you to view the Switch history. This works like a trap and event receiver except it only captures trap/events generated by the Switch itself.
Page 116: Firmware And Configuration Update
Modular Ethernet Switch User’s Guide Firmware and Configuration Update Figure 7-47. Firmware and Configuration Update window To update the switching software (firmware) or load settings from a configuration file, fill in the requested information above and then click the Apply button. The information is described as follows: Software Update Mode &...
Page 117: Save Settings To Tftp Server
Modular Ethernet Switch User’s Guide Save Settings to TFTP Server Figure 7-48. Save Settings to TFTP Server window To save your current settings to a configuration file, enter the TFTP Server IP Address where the configuration file is to be located and the complete path and File Name. Then click the Apply button. Please note that the settings will be saved from the NV-RAM.
Page 118: Clear Address Table
Modular Ethernet Switch User’s Guide The information is described as follows: ♦ Server IP Address The IP address of the TFTP server where the log file will be saved. ♦ File Name The path and file name for the file to be saved on the TFTP server. ♦...
Page 119: Factory Reset
Modular Ethernet Switch User’s Guide Factory Reset Figure 7-52. Factory Reset to Default Value window Doing a factory reset will return all settings to their original values at the time of purchase. After performing a factory reset, the Switch will need to be entirely reconfigured from scratch. Click the Reset to Factory Default button to initiate the reset.
Page 120: Technical Specifications
Modular Ethernet Switch User’s Guide ECHNICAL PECIFICATIONS General Standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z 1000BASE-SX/LX Gigabit Ethernet IEEE 802.1p/q IEEE 802.3x Protocol CSMA/CD Data Transfer Rate Half-duplex Full-Duplex Ethernet 10 Mbps 20 Mbps Fast Ethernet: 100 Mbps 200 Mbps Gigabit Ethernet:...
Page 121 Modular Ethernet Switch User’s Guide Physical and Environmental AC Input 90 to 264 VAC, 47-63 Hz (auto-adjusting internal power supply) DC Fans Two built-in 60 x 60 mm fans per power supply unit Operating: 0° to 40° C (32° to 104° F) Temperature Storage: -25°...
Page 122: Pin Specification
Modular Ethernet Switch User’s Guide RJ-45 P PECIFICATION When connecting the Switch to another switch, a bridge or a hub, a modified crossover cable is necessary. Please review these products for matching cable pin assignment. The following diagram and table show the standard RJ-45 receptacle/connector and their pin assignments for the switch-to-network adapter card connection, and the straight/crossover cable for the Switch-to-switch/hub/bridge connection.
Page 123 Modular Ethernet Switch User’s Guide RJ-45 Connector pin assignment Contact Media Direct Interface Signal Tx + (transmit) Tx - (transmit) Rx + (receive) Not used Not used Rx - (receive) Not used Not used Table B-1. The standard Category 3 cable, RJ-45 pin assignment The following shows straight cable and crossover cable connection: Figure B-2.
Page 124: Sample Configuration File
Modular Ethernet Switch User’s Guide AMPLE ONFIGURATION This appendix provides a sample configuration file that can be used with the Update Firmware and Configuration Files screen in the console program. The configuration file is a simple text file that you create. It has two functions: to point to the location of a file on a TFTP server, and to set the IP address, subnet mask and default gateway for the Switch.
Page 125 Modular Ethernet Switch User’s Guide Each command can only appear once in the configuration file. If both the Firmware Update and Use Config File options are enabled, the Firmware Update command will take precedence and only the firmware file will be uploaded to the switch. The Config image file, which contains all configuration settings and was created by the switch is prefixed with the version number of the runtime software to help with file management.
Page 126: Runtime Software Default Settings
Modular Ethernet Switch User’s Guide UNTIME OFTWARE EFAULT ETTINGS Load Mode Network Ethernet Configuration update Disable Firmware update Disable Out-of-band baud rate 9600 Rs232 mode Console Ip address 0.0.0.0 Subnet mask 0.0.0.0 Default router 0.0.0.0 Bootp service Enable TFTP server IP address 0.0.0.0 IGMP time out 300 secs...
Page 127: Index
Modular Ethernet Switch User’s Guide NDEX 64 Octs........122 Community name, definition of113 65-127 Octs ......122 Community names 100BASE-TX networks..... 3 Private .........113 100Mbps Fast Ethernet ....1 Public ........113 128-255 Octs ......122 Connecting The Switch ....24 256-511 Octs ......122 Console LED indicator .....23 512-1023 Octs .......
Page 128 Modular Ethernet Switch User’s Guide Setting up the Switch....64 IP address......66, 114 IP Addresses and SNMP Community Names 29 Setup...........9 Sharing Resources Across VLANs 45 SLIP interface LED Indicators ......22 out-of-band communication ..65 SLIP management ....68 Local console management..28 Logging In on the Console Screen56 SNMP Management Settings113–14 Logging In on the Switch Console56...
Page 129 Modular Ethernet Switch User’s Guide Traps, definition of ....30 Port Priority......39 User-Changeblel Parameters ..38 Using the Console Interface53–129 Unpacking........8 utilization......73, 74 Unpacking and Setup ... 8–15 Untagging ........ 47 User-Changeblel Parameters ventilation........9 Bridge Forward Delay ..38 VLAN........42 Bridge Hello Time....
Page 130 2F, No. 119 Pao-Chung Road, Hsin-Tien, Taipei, Taiwan, R.O.C. TEL: 886-2-2910-2626 FAX: 886-2-2910-1515 URL: www.dlinktw.com.tw E-MAIL: dssqa@tsc.dlinktw.com.tw U.K. D-LINK EUROPE D-Link House, 6 Garland Road, Stanmore, London HA7 1DP U.K. TEL: 44-20-8235-5555 FAX: 44-20-8235-5500 BBS: 44-20-8235-5511 URL: www.dlink.co.uk E-MAIL: info@dlink.co.uk U.S.A. D-LINK U.S.A.
Page 131: Registration Card
3. What network protocol(s) does your organization use ? "XNS/IPX "TCP/IP "DECnet "Others_____________________________ 4. What network operating system(s) does your organization use ? "D-Link LANsmart "Novell NetWare "NetWare Lite "SCO Unix/Xenix "PC NFS "3Com 3+Open "Banyan Vines "DECnet Pathwork "Windows NT "Windows NTAS "Windows '95 "Others__________________________________________ 5.
