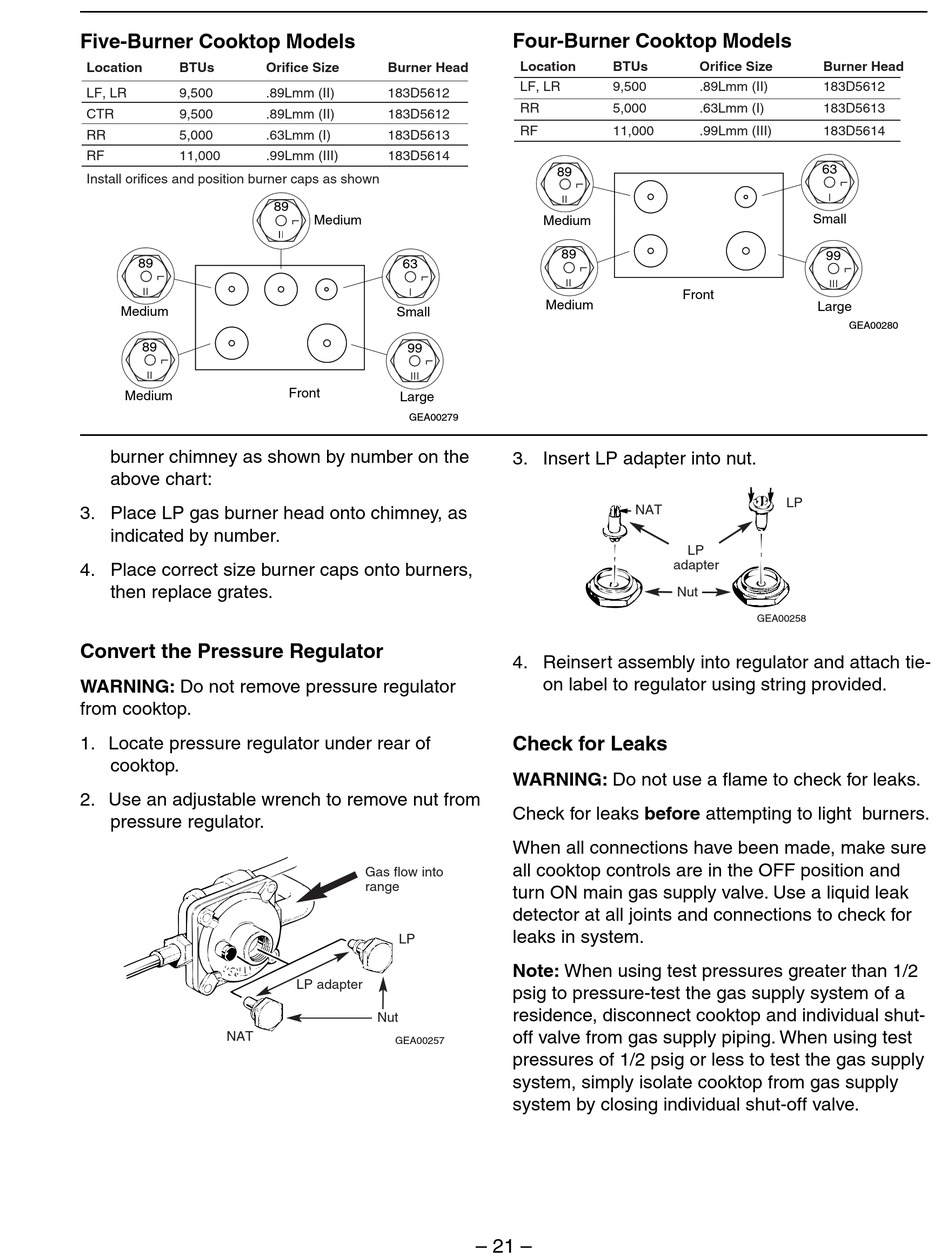

GE Profile JGP656 Series Technical Service Manual page 23

Five-Burner Cooktop Models
5 Burner Cooktop Models
Location BTUs
LF, LR 9,500
CTR 9,500
RR 5,000
RF 11,000
Install orifices and position burner caps as shown
89
Medium
89
Medium
burner chimney as shown by number on the
above chart:
3. Place LP gas burner head onto chimney, as
indicated by number.
4. Place correct size burner caps onto burners,
then replace grates.
Convert the Pressure Regulator
WARNING: Do not remove pressure regulator
from cooktop.
1. Locate pressure regulator under rear of
cooktop.
2. Use an adjustable wrench to remove nut from
pressure regulator.
NAT
Orifice Size Burner Head
.89Lmm (II) 183D5612
.89Lmm (II) 183D5612
.63Lmm (I) 183D5613
.99Lmm (III) 183D5614
89
Medium
63
Small
99
Front
Large
GEA00279
Gas flow into
range
LP
LP adapter
Nut
GEA00257
Four-Burner Cooktop Models
4 Burner Cooktop Models
Location BTUs
LF, LR 9,500
RR 5,000
RF 11,000
89
Medium
89
Medium
3. Insert LP adapter into nut.
NAT
4. Reinsert assembly into regulator and attach tie-
on label to regulator using string provided.
Check for Leaks
WARNING: Do not use a flame to check for leaks.
Check for leaks before attempting to light burners.
When all connections have been made, make sure
all cooktop controls are in the OFF position and
turn ON main gas supply valve. Use a liquid leak
detector at all joints and connections to check for
leaks in system.
Note: When using test pressures greater than 1/2
psig to pressure-test the gas supply system of a
residence, disconnect cooktop and individual shut-
off valve from gas supply piping. When using test
pressures of 1/2 psig or less to test the gas supply
system, simply isolate cooktop from gas supply
system by closing individual shut-off valve.
– 21 –
Orifice Size Burner Head
.89Lmm (II) 183D5612
.63Lmm (I) 183D5613
.99Lmm (III) 183D5614
63
Small
99
Front
Large
GEA00280
LP
LP
adapter
Nut
GEA00258
