Onkyo TX-NR414 Specifications

2012 NEW PRODUCT RELEASE

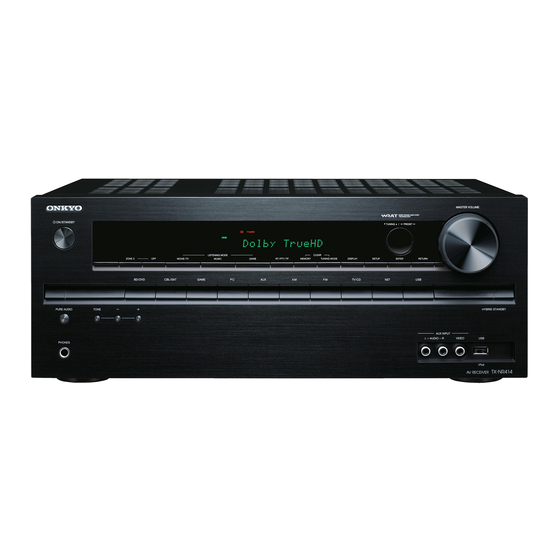

TX-NR414
Top-End Features at a Realistic Price
Home networking for PC- and cloud-based audio. Six HDMI
5.1 surround. High-Definition audio decoding and 3D video support. If all this sounds like an AVR that's beyond your budget, get ready
to be pleasantly surprised. Onkyo's TX-NR414 Network A/V Receiver boasts all this and more. For a start, the receiver incorporates
InstaPrevue technology, a new picture-in-picture HDMI input source preview system that greatly simplifies the operation of your home
™
cinema. Or try the HDMI-linked overlaid on-screen display, making mid-program setting adjustments quick and easy. There's also a USB
port for direct-digital iPod/iPhone connection, Zone 2 line-outs for playback of a different stereo source in another room, digital music
file enhancement, top-shelf build quality, and the purity of sound for which our brand is famous. And the price tag? Let's just say HD
playback isn't the only realistic thing about this potent AVR.
ADVANCED FEATURES
• HDMI Support for 3D, Audio Return Channel,
®
DeepColor , x.v.Color , LipSync, Dolby TrueHD,
™ ™ ®
DTS-HD Master Audio , DVD-Audio, Super Audio
™
CD, Multichannel PCM, and CEC
• Dolby TrueHD and DTS-HD Master Audio
®
Decoding
• Direct Digital Connection of iPod/iPhone via
Front-Panel USB Port
• Internet Radio and Cloud Music Streaming Service
Connectivity (Last.fm, MP3tunes, Spotify, AUPEO!,
vTuner)*
1
• Picture-in-Picture Input Source Preview with
InstaPrevue Technology
™
• Playback of Audio Files Through Local Network
(MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis,
AAC, LPCM)
• Supports Onkyo Remote Apps for iPod touch/
iPhone* and Android Phone*
2 3
• WRAT (Wide Range Amplifier Technology)
• Overlaid On-Screen Display (OSD) with Quick
Set-Up and Home Menu
• Zone 2 Line-Out for Distributed Audio Playback in
Another Room
• Hybrid Standby Function to Reduce Power
Consumption
*1 Availability of services depends on region. Some services may require a
firmware update. *2 Compatible with iPod touch (3rd generation or later)
and iPhone 3GS or later. All models require iOS 4.2 or later. *3 Requires
Android OS 2.1 or later.
5.1-Channel Network A/V Receiver
inputs. WRAT noise-reduction suite. Powerful and immersive
®
AMPLIFIER FEATURES
• 130 W/Ch
(6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC);
160 W/Ch (6 Ω, 1 kHz, 1 Channel Driven, JEITA)
• H.C.P.S. (High Current Power Supply) Massive High
Power Transformer
™
• Discrete Output Stage Circuitry
• Optimum Gain Volume Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit
Technology for S/PDIF Audio
PROCESSING FEATURES
• TI Burr-Brown 192 kHz/24-Bit DACs for All Channels
• Advanced 32-Bit Processing DSP Chip
• 4 DSP Modes for Gaming: Rock, Sports,Action,
and RPG
• Advanced Music Optimizer for Compressed Digital
Music Files
• Theater-Dimensional Virtual Surround Function
• CinemaFILTER
™
• Direct Mode and Pure Audio Mode
• Double Bass Function
• Non-Scaling Configuration
• A-Form Listening Mode Memory
CONNECTION FEATURES
• 6 HDMI Inputs and 1 Output
• Front-Panel USB Port
BLACK
• Mass Storage Class USB Memory Playback Capability
• Compatible with Optional UWF-1 Wireless LAN
Adapter via USB
• HDTV-Capable (720p/1080i) Component Video
Switching (2 Inputs and 1 Output)
• 5 Composite Video Inputs (1 Front/4 Rear) and
1 Output
• 4 Digital Audio Inputs (2 Optical and 2 Coaxial)
• 6 Analog Audio Inputs (1 Front/5 Rear)
• Subwoofer Pre-Out
• Color-Coded, Banana Plug-Compatible Speaker Posts
• Headphone Jack
OTHER FEATURES
• Crossover Adjustment (40/50/60/70/80/90/100/120/
150/200 Hz)
• A/V Sync Control (Up to 400 ms at 48 kHz)
• Tone Control (Bass/Treble) for Front L/R Channels
• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• RDS (PS/RT/PTY/TP) (European Model Only)
• 40 FM/AM Random Presets
• Certified with Windows 7 and DLNA Version 1.5
®
• Firmware Updates via Ethernet and USB
• RIHD (Remote Interactive over HDMI) for System
Control
• Preprogrammed RI (Remote Interactive) Remote
Control
SILVER
