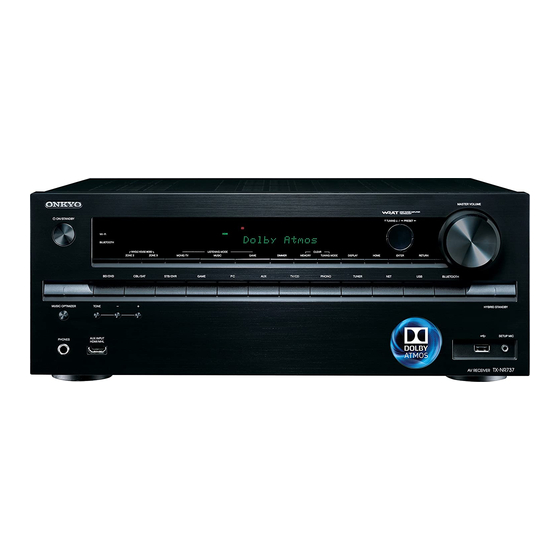

TX-NR737
AV RECEIVER
Basic Manual
„ Advanced Manual found here
http://www.onkyo.com/manual/txnr737upg/adv/en.html
E
n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-NR737 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onkyo TX-NR737

Summary of Contents for Onkyo TX-NR737

  • Page 1 TX-NR737 AV RECEIVER Basic Manual „ Advanced Manual found here http://www.onkyo.com/manual/txnr737upg/adv/en.html...
  • Page 2 Multi-zone function which allows you to play a different r Advanced speaker connections source in another room from the main room r Connecting and Operating Onkyo RI Components r 32 bit DSP (Digital Signal Processor) with excellent r Firmware Update...
  • Page 3 Step 1: Connections Personal computer HDMI HDMI HDMI cable To use the ARC function, connect to the ARC compatible HDMI jack of the TV and make an appropriate setting on the unit. See the section 2 "2nd Step : Source Connection" of "Step 2: Setting Up". HDMI HDMI HDMI...
  • Page 4 Step 1: Connections „ Audio signal connection "Setup" - "1. Input/Output Assign" - "Monitor Out" and set Use a composite video cable to connect a TV with the default value of "MAIN" to "SUB" or "MAIN+SUB". composite video input jack or a player with composite Digital connection: Use a digital optical cable The unit supports the HDMI Through function that allows video output jack.
  • Page 5 Step 1: Connections Connecting speakers " Surround back R/ Surround back L/ Height R Front R Front L Height L If there is only one Speaker layout surround back Center speaker, connect it to the BACK or HEIGHT L terminal. "...
  • Page 6 Step 1: Connections Characteristics of speaker types r The speaker setting is 7.2 ch at the time of purchase. You Height speakers arrangements can change it manually or by using automatic speaker " # output front stereo sound. $ outputs center sounds setting.
  • Page 7 Step 1: Connections Using Dolby Enabled Speakers Network connection Other connections You can enjoy Internet radio and DLNA by connecting the unit to LAN. The unit can be connected to the router with an AM/FM antenna connections Ethernet cable or to the wireless LAN router with Wi-Fi connection.
  • Page 8 Step 2: Setting Up „ Important: When the unit is turned on for the first time, the 1st Step : AccuEQ Room Calibration Making the Initial Setup with the Setup setup wizard of the section 2 will automatically be launched. If you use the setup wizard to make the initial setup, The test tone coming from each speaker will be measured to Wizard...
  • Page 9 Step 2: Setting Up After placing the microphone at the measurement When the measurement is completed, the After checking the connection, select "Yes" with the position, select "Do it Now" with the cursors and measurement result is displayed. cursors and press ENTER. press ENTER.
  • Page 10 The "Enter Password" screen, instead of the following on the left of the unit's display starts flashing. When you are going to program (e.g., "ONK" for ONKYO) and screen, may be displayed automatically if the wireless connection has been established, the Wi-Fi indicator search for the remote control code.
  • Page 11 Step 3: Playing Back Remote controller parts name Playing the player and TV zRECEIVER button: Turns the unit on or into standby mode. RCV button: Switches the remote controller to the mode for operating this unit. REMOTE MODE/INPUT SELECTOR button: Switches the input to be played.
  • Page 12 Step 3: Playing Back Listening modes "Bass": Allows you to enhance or moderate the low Listening to AM/FM Radio pitched range. "Treble": Allows you to enhance or moderate the high You can select a listening mode from various options such pitched range.

  • Page 13: Using Home Menu

    Step 3: Playing Back r It may take about a minute until connection is established r 1080p or higher resolution is not supported. Connecting and playing the Bluetooth- when the unit is on since the Bluetooth function takes „ Setup: You can change the assignment of input terminals some time to start up.

  • Page 14: Using Quick Setup Menu

    Step 3: Playing Back „ Video: Subwoofer Level, Center Level: Adjust the speaker Using Quick Setup menu level while listening to the sound. The adjustment you Monitor Out: The video input signals input to the unit made will be reset to the previous status when you turn will be converted by the unit when they are output from the unit to standby mode.
  • Page 15 Step 3: Playing Back „ Connecting speakers in another room Making multi-zone connection Using the multi-zone function It is possible to directly connect the speakers in another „ Connecting an Integrated Amplifier in a room without an amplifier. Connect the speakers in another room to the SPEAKERS ZONE2 terminals of the unit using Separate Room You can multi-zone connect the unit with an integrated...
  • Page 16 Direct. (European, Australian and Asian models) r While Zone 2 or Zone 3 is on, the RI linked system function (interlink between Onkyo components) is disabled. r Pressing INPUT SELECTOR on the remote controller while you are using the remote controller for Zone 2 or Zone 3 will switch the controlled target to the main room.
  • Page 17 (European, Australian (European, Australian and Asian models) and Asian models) Front Panel z ON/STANDBY button: Turns the unit on or into MEMORY button: Registers or deletes a station. PHONES jack: Stereo headphones with a standard plug TUNING MODE button: Switches the tuning mode. standby mode.
  • Page 18 Lights according to the type of input digital signals and MONITOR OUT V jack: Video signals are output to the RI REMOTE CONTROL jack: An Onkyo product with RI the listening mode. jack can be connected and synchronized with this unit.
  • Page 19 Troubleshooting „ Resetting the unit HDMI control does not function correctly. Before starting the procedure r Set the CEC link function of the unit to on. It is also Problems may be solved by simply turning the power Resetting the unit to the status at the time of shipment may necessary to make the HDMI linked system setting on on/off or disconnecting/connecting the power cord, solve the problem.

  • Page 20: Specifications

    Specifications z HDMI Amplifier Section Network Section Input Rated Output Power Ethernet LAN IN1 (BD/DVD, 4K), IN2 (CBL/SAT, 4K), IN3 (STB/DVR, 4K, HDCP2.2), IN4 All channels: 10BASE-T/100BASE-TX (GAME, 4K), IN5 (PC), IN6, AUX INPUT (HDMI/MHL) (Front) 110 watts minimum continuous power per channel, 8 ohm loads, Wireless LAN Output 2 channels driven from 20 Hz to 20 kHz, with a maximum total...

  • Page 21: License And Trademark Information

    The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Onkyo is under license. personal, noncommercial use only. Any information, content or services may For DTS patents, see http://patents.dts.com. Manufactured under license from Other trademarks and trade names are those of their respective owners.
  • Page 22 *ÀTOGF HÒTMNCTCT 1PM[Q %QTRQTCVKQP CVV FGPPC 6:04 HÒNLGT FG väsentliga kraven och andra relevanta stadgar i Direktiv 1999/5/EC. We declare, under our sole responsibility, that – Hér með lýsir Onkyo Corporation því yfir að varan TX-NR737 er í samræmi this product complies with the standards: – Safety XKÌ...
  • Page 23 (Hong Kong) For Product Support Team Only: without prior notice. Unit 1033, 10/F, Star House, No 3, Salisbury Road, 1-800-229-1687 Visit the Onkyo web site for the latest update. Tsim Sha Tsui Kowloon, Hong Kong. Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.hk.onkyo.com/ D1409-0 SN 29401929 (C) Copyright 2014 Onkyo Corporation Japan.

  • Page 24: Table Of Contents

    SiriusXM Internet Radio (North American only) Slacker Personal Radio (North American only) 2.Speaker Setup Connecting and Operating Registering Other Internet Radios 3.Audio Adjust Onkyo RI Components 4.Source Setup About RI Function DLNA Music Streaming 5.Listening Mode Preset RI Connection and Setting...

  • Page 25: Am/Fm Radio Receiving Function

    AM/FM Radio Receiving Function Press D.TUN. Tuning into stations manually Press TUNER on the main unit several times to select AM/FM Radio Receiving Function either "AM" or "FM". Tuning into a Radio Station Using the number buttons, enter the frequency of the Press TUNING MODE so that the "AUTO"...

  • Page 26: Using Rds (European, Australian And Asian Models)

    AM/FM Radio Receiving Function Press MEMORY again to register the station. Using RDS (European, Australian and Asian When registering, the preset number stops flashing. models) Repeat this procedure for all of your favorite AM/FM radio stations. RDS stands for Radio Data System and is a method of Press PRESET to select the type of program to...

  • Page 27: Playing Content From A Usb Storage Device

    AM/FM Radio Receiving Function / Playing Content from a USB Storage Device Press ENTER to search the radio stations of the Do not unplug the USB storage device while selected type. "Connecting..." is appeared on the display. This may Playing Content from a USB cause data corruption or malfunction.

  • Page 28: Listening To Internet Radio

    Listening to Internet Radio With the cursors, select a radio station or program and TuneIn press ENTER to start playing. Listening to Internet Radio With more than 70,000 radio stations and 2 million on- demand programs registered, TuneIn is a service where Regarding the TuneIn Menu you can enjoy music, sports and news from all over the world.

  • Page 29: Pandora -Getting Started (U.s., Australia And New Zealand Only)

    After you have created your account return to the previous screen, press RETURN. and stations you can return to your Onkyo receiver and Rename this station: Lets you rename the current radio press ENTER to begin listening to your personalized station.

  • Page 30: Siriusxm Internet Radio (North American Only)

    Listening to Internet Radio SiriusXM Internet Radio (North American only) Playing Back Add to My Favorites: Adds a channel to My Favorites list. Press NET on the remote controller to display NET TOP If you want to listen to the service, you must subscribe. To Add to Presets: Adds the currently playing station to screen.

  • Page 31: Slacker Personal Radio (North American Only)

    Listening to Internet Radio If you do not have an account, create one on the Slacker Slacker Personal Radio (North American only) Using Multiple Accounts: The AV receiver supports website (www.slacker.com) with your computer. If you multiple user accounts, which means you can freely switch already have a Slacker account, select "Sign in to your between several logins.

  • Page 32: Registering Other Internet Radios

    Listening to Internet Radio Registering Other Internet Radios Registering a Station Registering a Station with PC Before operation: The name and URL of the additional Before operation: The name and URL of the additional To listen to other Internet radio program, register the radio station will be needed for this procedure.
  • Page 33 Using the Listening Modes To rename the registered radio station: While the radio Deleting a Registered Radio Station station is being played or when it is selected from the "My Press NET on the remote controller to display NET TOP Favorites"...

  • Page 34: Dlna Music Streaming

    DLNA Music Streaming Configuring the Windows Media ® Player DLNA Music Streaming Windows Media ® Player 11 ® Turn on your PC and start Windows Media Player 11. In the "Library" menu, select "Media Sharing" to open a dialog box. Select the "Share my media"...

  • Page 35: Controlling Remote Playback From A Pc

    DLNA Music Streaming With the cursors, select the music file to play, and then Remote playback press ENTER or to start playback. Turn on the power of the unit. If "No Item" is displayed, check whether the network ® Turn on your PC and start Windows Media Player 12.

  • Page 36: Music Streaming From A Shared Folder

    Music Streaming from a Shared Folder Setting PC Playing from a Shared Folder Music Streaming from a Shared Configuring the Sharing Options Operation: You can set up by viewing the guidance Folder displayed on the TV screen. To display the guidance, you Select "Choose Home group and Sharing Options"...
  • Page 37 Using Remote Controller for Playing Music Files With the cursors, select "Home Media", and then press ENTER. With the cursors, select the target server, and then press ENTER. You can check the server name of your PC from the PC properties. With the cursors, select the target shared folder, and then press ENTER.

  • Page 38: Using Remote Controller For Playing Music Files

    Using the Listening Modes Operate the remote controller by referring to the name SEARCH: This button toggles between the playback and function of each of the buttons below. screen and list screen during playback. Using Remote Controller for : This button stops the playback. Playing Music Files RANDOM: This button performs random playback.

  • Page 39: Using The Listening Modes

    Using the Listening Modes MOVIE/TV button DTS 96/24 DTS Express You can select a mode suitable for movies and TV DTS-HD HR (DTS-HD High Resolution Audio) Using the Listening Modes programs. DTS-HD MSTR (DTS-HD Master Audio) Selectable listening modes: DTS Neo:6 Music + THX Music All Ch Stereo DTS Neo:6 + THX Music Direct...

  • Page 40: Contents Of Listening Modes

    Using the Listening Modes Multichannel Contents of Listening Modes This listening mode can be selected only if your Blu-ray T-D (Theater-Dimensional) Disc/DVD player is digitally connected to the unit or the THX Games player's output setting is bitstream. Selectable listening modes will differ depending on the THX S2 Games (THX Select2 Games) number of input source channels and the actual speaker Dolby D+...
  • Page 41 Using the Listening Modes This listening mode can be selected only if your Blu-ray DTS-HD MSTR ES Matrix Disc/DVD player's output setting is DSD. This mode is for use with DTS-HD Master Audio sources. This mode is for use with DTS-ES Matrix soundtrack and The audio from the input source is output as-is, without enables 6.1 ch or 7.1 ch playback using matrix-encoded surround sound processing.
  • Page 42 Using the Listening Modes Mono Studio-Mix Input source: Stereo Surround speakers need to be installed. Use this mode when watching an old movie with a mono Suitable for rock or pop music, Listening to music in this – DTS Neo:6 + THX Cinema: The combination mode soundtrack, or use it to separately reproduce soundtracks mode creates a lively sound field with a powerful acoustic of DTS Neo:6 and THX Cinema mode can be used.
  • Page 43 Using the Listening Modes – THX S2 Cinema: THX Select2 Cinema mode plays 5.1 Unplugged the sound from the movie theater environment into the movie using 8 speakers giving you the best possible home, correcting the tonal and spatial errors that occur. Suitable for acoustic instruments, vocals and jazz, This movie watching experience.

  • Page 44: Checking The Input Format

    Using the Listening Modes Checking the Input Format You can check the audio format of the input signals. While audio from the player is being input, press DISPLAY on the remote controller several times to switch the information shown on the main unit display. If "Dolby D 5.1" is displayed in Signal format, the Dolby Digital 5.1 ch signals are being input.

  • Page 45: Advanced Settings

    Advanced Settings Press / to select the desired menu, and then press Operation ENTER. Press RCV on the remote controller. Advanced Settings Always press RCV first to change the remote SETUP 1. Input/Output Assign controller to RECEIVER mode (the mode to operate this unit) since its mode may be changed to operate 1.

  • Page 46: Input/Output Assign

    Advanced Settings 1.Input/Output Assign Setting item Default Value Setting Details Resolution Through Specify the output resolution of the HDMI OUT Monitor Out jacks. The image resolution of the unit will be converted so that it can match the resolution The video input signals input to the unit will be converted when they are output from the supported by the TV used.
  • Page 47 Advanced Settings HDMI Input Component Video Input It is possible to change assignment of input selector buttons and the HDMI IN jacks. CBL/SAT button is assigned to COMPONENT VIDEO IN jack as factory default setting. This assignment can be changed if necessary. If you do not assign a jack, select "-----". Setting item Default Value Setting Details...
  • Page 48 Advanced Settings Composite Video Input Digital Audio Input It is possible to change assignment of input selector buttons and the COMPOSITE VIDEO It is possible to change assignment of input selector buttons and the DIGITAL IN COAXIAL IN V1 to 3 jacks. 1 to 2/OPTICAL jacks.

  • Page 49: Speaker Setup

    Advanced Settings 2.Speaker Setup Setting item Default Value Setting Details Powered Zone 2 Set presence of speaker terminal connection of Allows you to change the speaker configuration such as existence of subwoofer, crossover Zone 2. frequency, and so on. Settings are automatically configured if you use the Automatic "Yes": When speakers are connected to ZONE2 Speaker Setup.
  • Page 50 Advanced Settings Speaker Configuration Setting item Default Value Setting Details Allows you to change the speaker configuration such as presence or not of each speaker, Back 80Hz (THX) Select the frequency to start outputting crossover frequency, and so on. Settings are automatically configured if you use the frequencies (crossover frequency) for each Automatic Speaker Setup.
  • Page 51 Advanced Settings Speaker Distance Setting item Default Value Setting Details LPF of LFE 120Hz Set the low-pass filter for LFE (low-frequency Set the distance from each speaker to the listening position. Settings are automatically effect) signals in order to pass lower frequency configured if you use the automatic speaker setup.
  • Page 52 Advanced Settings Level Calibration Setting item Default Value Setting Details Back 7.0ft/2.10m Specify the distance between each speaker and Adjust the level of each speaker with the built-in test tone. Settings are automatically the listening position. configured if you use the Automatic Speaker Setup. The setting is displayed if "Speaker Configuration"...
  • Page 53 Advanced Settings THX Audio Setup Setting item Default Value Setting Details Back Select a value between "-12dB" to "+12dB". A Setting item Default Value Setting Details test tone will be output each time you change Surr Back Speaker >4ft or >1.2m Select the distance between the surround back the value.

  • Page 54: Audio Adjust

    Advanced Settings 3.Audio Adjust Setting item Default Value Setting Details Loudness Plus When the setting is set to "On", it is possible to Configure various settings related to sound, such as settings for listening to multiplex audio enjoy even subtle nuances of audio expression or multilingual TV broadcasts and sound field settings for listening modes.
  • Page 55 Advanced Settings Dolby Make the settings for Dolby listening mode. Make the settings for DTS Neo:6 Music listening mode. Setting item Default Value Setting Details Setting item Default Value Setting Details Loudness Enable the Late Night function that allows you to Neo:6 Music Adjust the width of the sound field of the front Management...

  • Page 56: Source Setup

    Advanced Settings LFE Level 4.Source Setup Set the low-frequency effect (LFE) level of the Dolby Digital, DTS, Multichannel PCM, Dolby Adjust the volume level difference among the multiple devices connected to this unit, TrueHD, DTS-HD Master Audio and DSD signals. rename an input selector, or adjust the image quality.
  • Page 57 Advanced Settings Name Edit Picture Adjust Set an easy name to each input. The set name will be shown on the main unit display. Adjust the image quality. (Possible only when the video player is connected to the HDMI OUT MAIN jack) If you adjust it by checking the video, press ENTER. Press RETURN to Setting item Default Value Setting Details...
  • Page 58 Advanced Settings Setting item Default Value Setting Details Setting item Default Value Setting Details Picture Mode Custom An appropriate image quality setting for cinema Brightness Adjust brightness of the screen. Select a value or game will be selected. You can also adjust between "-50"...

  • Page 59: Listening Mode Preset

    Advanced Settings Audio Selector The setting cannot be changed when "PHONO", "TUNER", "NET", "USB" or "BLUETOOTH" input is selected or the WHOLE HOUSE MODE function is on. Make the audio input setting. The setting can be separately set to each input selector button.

  • Page 60: Miscellaneous

    Advanced Settings 6.Miscellaneous OSD Setup Make the setting of on-screen display function that can display the setting menu screen, Volume Setup volume operation screen and the like on the TV. Make the detailed volume setting of the unit. Setting item Default Value Setting Details Setting item...
  • Page 61 Advanced Settings HDMI Setting item Default Value Setting Details HDMI Through You can display the video of an HDMI Setting item Default Value Setting Details connected player on the TV even if the unit is HDMI CEC (RIHD) Setting to "On" enables the input selection link in standby mode.
  • Page 62 Advanced Settings Setting item Default Value Setting Details Setting item Default Value Setting Details Audio TV Out (MAIN) Off You can enjoy audio through the speakers of Audio TV Out (SUB) You can enjoy audio through the speakers of the HDMI connected TV while this unit is on. the HDMI connected TV while this unit is on.
  • Page 63 Advanced Settings Auto Standby Setting item Default Value Setting Details InstaPrevue Multi Change the preview display of the video input Setting item Default Value Setting Details Sub Window through HDMI, which will be displayed using Auto Standby On/Off This setting places the unit on standby "InstaPrevue"...
  • Page 64 Default Value Setting Details Gateway – Displays/Sets the gateway. Network Standby You can turn on the power of the unit via network using an application such as Onkyo DNS Server – Displays/Sets the primary DNS server. Remote. Proxy URL –...
  • Page 65 Advanced Settings Bluetooth Setting item Default Value Setting Details Pairing Information – When paring is performed, the information of Setting item Default Value Setting Details the previous pairing stored in this unit will be Bluetooth Select whether or not to use the Bluetooth initialized.

  • Page 66: Remote Controller Setup

    Select an ID for the unit's remote controller from via network. "1", "2", and "3" to prevent interference between "Enable": Notify updates the unit and other Onkyo components that are "Disable": Do not notify updates installed in the same room. After changing Version –...

  • Page 67: Operating Other Components Using Remote Controller

    For information on the configuration and operation of displayed, select "Not Listed" with the cursors and Onkyo components with RI jack, refer to "Connecting Press DISPLAY for 3 or more seconds while holding press ENTER to return to the brand name input and Operating Onkyo RI Components".
  • Page 68 Operating Other Components Using Remote Controller With the number buttons, enter the 5-digit remote control Remapping the Colored Buttons Resetting the REMOTE MODE Buttons code within 30 seconds. The colored button assignment on the AV receiver's remote You can reset the remote control code registered in the The registration is complete when the remote controller can be remapped to match that on the remote REMOTE MODE button to its default status.

  • Page 69: Tv Operation

    Operating Other Components Using Remote Controller TV operation Press the REMOTE MODE button programmed with the remote control code for the relevant AV component to switch the remote controller mode to that for the AV component. Then, operate by using the corresponding buttons.

  • Page 70: Vcr/Pvr Operation

    Operating Other Components Using Remote Controller VCR/PVR operation Press the REMOTE MODE button programmed with the remote control code for the relevant AV component to switch the remote controller mode to that for the AV component. Then, operate by using the corresponding buttons.

  • Page 71: Cd Player Operation

    Operating Other Components Using Remote Controller CD player operation To operate CEC-compatible components Press the REMOTE MODE button programmed with The TV and BD/DVD buttons on the remote controller the remote control code for the relevant AV component are preprogrammed with remote control codes for linked to switch the remote controller mode to that for the AV operation of some CEC(Consumer Electronics Control)- component.

  • Page 72: Advanced Speaker Connection

    Advanced Speaker Connection With the cursors, select the order of "2. Speaker Setup" – "Speaker Settings" – "Front Speakers Type". Select "Bi-Amp" with the cursors and press ENTER. Advanced Speaker Connection Before bi-amping, be sure to remove the short- circuit connector that connects the tweeter (high pitched tone) terminal and the woofer (low pitched tone) terminal.

  • Page 73: Connecting And Operating Onkyo Ri Components

    Programming is complete when the remote indicator flashes twice. The remote indicator flashes once Connect an Onkyo component with RI jack to this unit using Direct Change: When playback is started on a component slowly when programming the remote control code an RI cable and an analog audio (RCA) cable.

  • Page 74: Ipod/Iphone Operation

    Connecting and Operating Onkyo RI Components iPod/iPhone Operation The RI Dock allows you to use the AV receiver's remote controller to operate and play music on your iPod/iPhone. Moreover, it also allows you to view videos on your iPod/ iPhone on the screen of your TV, as well as perform RI operations if connected via RI.

  • Page 75: Firmware Update

    In no event will Onkyo be liable to you or any third party for any special, indirect, incidental, or consequential damages of any kind, including, but not limited to, compensation,...

  • Page 76: Updating The Firmware Via Usb

    Onkyo will not be liable whatsoever for any loss or damage of data, or storage failure arising from the use of the USB storage device with this AV receiver. Thank you for your understanding.
  • Page 77 Firmware Update After pressing RCV, press HOME on the remote Press ON/STANDBY on the main unit to turn the controller. unit into standby mode. This is the end of the firmware update and you have now the latest firmware installed. Do not use RECEIVER on the remote controller.

  • Page 78: Troubleshooting

    WARNING: If smoke, smell or abnormal noise is produced Make sure the speakers are configured correctly. by the unit, unplug the power cord from the wall outlet immediately and contact the dealer or Onkyo Support.
  • Page 79 Troubleshooting ■ Only the center speaker produces sound Make sure the input signal is the Dolby Atmos format. usually because the DTS bitstream has been processed If you use the Dolby Surround listening mode with a (e.g., output level, sampling rate, or frequency response ■...
  • Page 80 Some versions of the iPod/iPhone do not output video. Set "On Screen Display" to "On" in "OSD Setup". remote controller. ■ The AV receiver’s remote controller does not control ■ Operating other Onkyo component by using a RI my iPod/iPhone Tuner remote control code is not available...
  • Page 81 Troubleshooting When you use the AV receiver’s remote controller, point Connection to an SSID that includes multi-byte Bluetooth it toward this unit. characters is not supported. Name the SSID of the Before operating with the remote controller, you may wireless LAN router using single-byte alphanumeric ■...
  • Page 82 Troubleshooting Bluetooth", execute "Clear" in "Pairing Information", turn If a specific radio station is unavailable for listening, Others off and then on again your Bluetooth-enabled device to make sure the registered URL is correct, or whether the clear the device name, and build the connection again. format distributed from the radio station is supported by ■...
  • Page 83 Troubleshooting ■ When performing Automatic Speaker Setup, the Onkyo is not responsible for damages (such as CD rental measurement fails and the message "Ambient noise is fees) due to unsuccessful recordings caused by the unit’s too high." is displayed. malfunction.

  • Page 84: Reference Information

    DVI input can be connected by using an HDMI-to- Onkyo and Integra RIHD-compatible players the TV, and not from the speakers connected to the AV DVI adapter cable. (This may not work with some TVs and Toshiba players and recorders receiver.
  • Page 85 Reference Information About Copyright Protection: Supported Video Resolution of HDMI OUT MAIN/ 1 Supported resolutions for HDMI OUT SUB. The unit supports Revision 1.4 and Revision 2.2 (HDMI 2 Supported resolution: [3840 × 2160 24/30/60 Hz] [4096 × 2160 SUB Jacks 24/30/60 Hz] OUT MAIN and HDMI IN3 only) of the HDCP (High- 3 Supported resolution: [3840 ×...
  • Page 86 Reference Information Service Providers (ISP) require you to use specific Server Requirements 1 Supported resolutions for HDMI OUT SUB. 2 Supported resolution: [3840 × 2160 24/25/30/50/60 Hz] [4096 × 2160 routers. 24/25/30/50/60 Hz] Please consult your ISP or PC dealer if you are unsure. ■...
  • Page 87 Supported bitrates: Between 5 kbps and 320 kbps and possible. ■ LPCM (Linear PCM) VBR. Onkyo accepts no responsibility whatsoever for the loss or Supported sampling rates: 44.1 kHz, 48 kHz WMA Pro/Voice formats are not supported. damage to data stored on a USB storage device when that Quantization bit: 16 bit device is used with this unit.
  • Page 88 Reference Information Microwave ovens communication equipment using the same frequency Do not use this apparatus in use prohibited location Wireless LAN devices (IEEE802.11b/g/n) band (2.4 GHz) as the AV receiver, such as a 2.4 GHz such as an aircraft equipment or a hospital. Doing so Wireless AV equipment wireless LAN device (IEEE802.11b/g/n) or microwave may cause an accident due to a malfunction of an...
  • Page 89 Reference Information Remote Control Code List Asberg 10037 Byd:sign 12209 Daytron 10037 Astra 10037 Camper 10037 De Graaf 10208 Television (A to E) 10698 Carad 11037 Decca 10037 A.R. Systems 10037, 10556 Atlantic 10037 Carena 10037 Denver 10037 Accent 10037 Audiosonic 10714, 10037 Carrefour...
  • Page 90 Reference Information 10171 Genesis 10037 Hisawa 10714 10000 Euroman 10037 Genexxa 10037 Hisense 10556, 10508, Jinfeng 10208 10208 Europa 10037 10171, 11864 Jinxing 10037, 10556, Hitachi 11643, 12676, 10698 Europhon 10037 Gibralter 10017 11576, 11585, 12676, 10556 Evesham Technology 11667 Gibson 11826 11691, 11037,...
  • Page 91 Reference Information 11840, 11860, Matsushita 10650 Naiko 10037 Onix 10698 11423, 12731, Maxent 11755 Nakimura 10037 Onkyo 11807, 13100, 12182, 12358, 13500 Maxess 12493 National 10208, 10508 12362, 10178, 11667 Meck 10698 12461, 10178, 12424, 10037, 10508, 10653, Opera 10037, 10714...
  • Page 92 Reference Information Philips 10037, 12800, RadioShack 10037, 10178 Schaub Lorenz 10714, 12676, Sonolor 10208 10556, 11887, 11667 Radiotone 10037, 11037 Sontec 10037 11867, 11506, Schneider 10037, 10556, 11447, 12746, Sony 12778, 11825, 12372, 12680, 10714, 11037, 10625, 12434, 10810, 10000, 11454, 10171, 11585, 12676 12932, 12187,...
  • Page 93 Reference Information Television (T to Z) Tennessee 10037 Vexa 10037 Yamishi 10037 Tacico 10178, 11150 Tensai 10037, 11037 Victor 11428, 10650, Yokan 10037 10653 Tai Yi 11150 Terris 11667 Yoko 10037 Videocon 10508, 10037 Talent 10178 Tesla 11037, 10037, YU-MA-TU 10037 10556, 10714 VideoSystem...
  • Page 94 Reference Information Matsui 11037, 12676, Cineral 30730 Elite 32854 30713 3D LAB 30539 Cinetec 30713, 30872 Elta 30770, 31233 Medion 12676, 32966 Accurian 30675 Classic 30730 Eltax 31233 Mitsubishi 34004 Acoustic Solutions 30730, 30713 Clatronic 30675, 31233 Emerson 30675, 32213 13434 30675, 30770, Clayton...
  • Page 95 Loewe 30741, 30539 32966 Radiotone 30713 Sonashi 30831 Logik 30713 32966 30522, 32213, Soniq 30831 Lumatron 30713, 30741 Onkyo 30627, 32147, 30571, 31769 Sony 31633, 31516, Lunatron 30741 31612, 31769, 30490 30533, 31033, Luxman 30573 30503, 30571, 32213 31070, 30864,...
  • Page 96 Reference Information Supratech 32139 Voxson 30831, 30730 Onkyo 32147, 32900, 30646 33101, 33501, Sylvania 30675, 30630 Waitec 30730, 31233 30522 32910, 33100, Symphonic 30675 Walker 32966 Samsung 31635, 30490, 33500 32489 Sytech 30831 Waltham 30713 Oppo 32545 Schneider 30646 Tandberg...
  • Page 97 Reference Information 02586, 01920, Amino 01615, 01481, Baja Broadband 01376 Bellaire Cable 01376, 01877, 01481, 01998, 01898, 01998, Baldwin County 01376, 01877, 01982 02437, 03028 03028 Internet 01982 Bellevue Cable 01376, 01877, Advanced Broadband 01376, 01877, Anne Arundel 01376 01982 Baldwin Telecom 01877 01982...
  • Page 98 Reference Information Branch Cable 01376, 01877, C & W Cable 01376, 01877, Cableview 01376, 01877, 01376, 01877, 01982 01982 Communications 01982 01982 Brandenburg Telecom 01481, 01998, C.L. Davis Cable 01376, 01877, Cablevision 01877, 01376 CBPU Cable 01376, 01877, 03028 Services 01982 01982 Cablevision du Nord...
  • Page 99 Reference Information Chester Telephone 01376 City Of Salisaw 01376 Colfax Highline Cable 01376, 01877, Comstar Cable TV 01376, 01877, Chinook Progressive 01376, 01877, City of Sumas TV 01376, 01877, 01982 01982 Club TV 01982 Cable System 01982 Collinsville Cable 01376, 01877, Consolidated Cable 01376, 01877, 01982...
  • Page 100 Reference Information Cable Set Top Box (F to J) Crow Cable TV 01376, 01877, Decca Cable 01376, 01877, Eagle Cablevision 01376, 01877, 01982 01982 01982 F & B Telephone 02586 CRRS-TV 01376 Deffner Cable TV 01376, 01877, Eagle Communications 01376, 02187 FairPoint 01376, 01877, 01982...
  • Page 101 Reference Information Fort Jennings 02586 Giles-Craig 01376, 01877, Gridley Cable 01376, 01877, HBL Communications 01376, 01877, Communications Communications 01982 01982 01982 Fort Towson Cable 01376, 01877, Gilmer Cable 01376, 01877, Griswold Cooperative 01481, 01998, 01376, 01877, 01982 Television 01982 Telephone 03028 01982 Foster...
  • Page 102 Reference Information Hooper Telephone 01376, 01877, Innovative Cable TV 01376 Johnston County 01376, 01877, KM Telecom 01481 01982 Innovative Systems 01898 Cable 01982 Knology 01877, 01376 Horizon Cable TV 01376, 02586 Journeyvision Cable 01376, 01877, Inotel 02437 KoolConnect 01481 01982 Horizon Telecom 02586 Inside Connect Cable...
  • Page 103 Reference Information Lexcom Cable 01376, 01877, Madison 01376, 01982 McNabb Cable 01376, 01877, Midstate 01376, 01877, Services 01982 Communications 01982 Communications 01982 Liberty Cablevision 01376 Madison County Cable 01376, 01877, MCV Broadband 01877 Midtel Cable TV 01376, 01877, 01982 01982 Liberty 01481, 02586 Media One...
  • Page 104 Reference Information Motorola 01376, 02437, Nelsonville TV Cable 01376, 01877, North American 01376, 01877, NTC Cable Services 01376, 01877, 02378, 01998, 01982 Communications 01982 01982 00858, 02952, Nemont 01376, 01877 North Central 02345 nTelos 01998 01562, 01982, Communications Telephone 01060 02401 01883 North Crossroads...
  • Page 105 Reference Information OTEC 02586 PC One Cable 01376, 01877, Plantation Cable 01376, 01877, Quinter Cable 01376, 01877, Communications 01982 System 01982 01982 Our Cable 01376, 01877, PDQ Cable TV 01376, 01877, Pleasant Vision 01376, 01877, Qwerty.TV 01898 01982 01982 01982 R &...
  • Page 106 Reference Information Reveille Broadband 01376, 01877, Runestone Telcom 01376, 01877, Savage 01376, 01877, Shenandoah Cable 01376, 01877, 01982 01982 Communications 01982 01982 Reynolds Cable 01376, 01877, Rural Route Video 01376, 01877, Sayward Valley 01376, 01877, Shenandoah 01376, 01877, 01982 01982 Communications 01982 Telecommunications...
  • Page 107 Reference Information South Benton 01376, 01877, St. George Island 01376, 01877, Supervision Cable TV 01376, 01877, Telepak Networks 01376, 01877, Cablevision 01982 Cable 01982 01982 01982 South Central 01376, 01877, St. John Cable 01376, 01877, SureWest 01481, 01998, TelePartners 01376, 01877, Communications 01982 01982...
  • Page 108 Reference Information Touchet Valley 01376, 01877, Twin Valley 02586 Uwharrie 02586 Wadsworth Cable TV 01376 Television 01982 Communications Communications Waits eld Cable 01376 02407 Two Creeks Cable 01376, 01877, Valley Cable & Satellite 01376, 01877, Walnut 01376, 01982 01982 Communications 01982 Trans-Video 01376, 01877,...
  • Page 109 Reference Information Western Telephone 01376, 01877, WTC Communications 01376, 01877, Austar 00879 Cyfrowy Polsat 00253, 0853, Company 01982 01982 01409 Auvisio 02738, 02813 Western Wisconsin 01376, 02586 WTCI Cable 01376, 01877, D-box 01114 Avanit 01631 Communications 01982 DASAN 03321 Axil 02738 Westman 01376, 02187...
  • Page 110 01652, 01237 Morgan's 02026 01197 Frontier 00775 Innova 00099 Motorola 00869, 00856, Primacom 01176, 01195, Communications 03469 02813 01197 Fuji Onkyo 01631 Movistar 01409 ISkyB 00887 Pro Basic 00853 Galaxis 00853, 00879 Multichoice 00879, 02059, 00775, 01284 Proline 01284 02060...
  • Page 111 Reference Information Shinelco 02738 TATA Sky 03575 United Satellite 00775 CyberPower 01272 America Sigmatek 02738, 02813 TDS Telecom 00775 D-Link 03693 United States Wireless 00775 SilverCrest 02026 Teac 02813 Daily Media 01272 Unitymedia 01915 00856, 00847, Technicolor 03469 Dell 01272 01662, 00887, Unixbox 01652...
  • Page 112 Apple 81115 Victor 70072 Mission 70157 Aiwa 70157 Jamo 82228 Wards 70032, 70000, Myryad 70157 Arcam 70157 Onkyo 81993, 82351, 70157 70721, 70000 82990 Atoll Electronique 70157 Yamaha 70036, 70032, Naim 70157 Polk Audio 82228 Audio Research 70157 70490 70157...
  • Page 113 Reference Information Cincinnati Bell 01877, 01376 Samsung 03477, 01877, Arkwest 01481, 01998 Diverse 01898 01987, 02589, Communications Cisco 01877, 02589, Arvig Communication 01998, 02345 03265 01982, 01582, Systems 02401 01883, 02401, Scienti c Atlanta 01877, 01982, AT&T 00858 Eagle Broadband 01481, 01998 03265 01987, 02436,...
  • Page 114 Reference Information Manti Telecom 01481, 01998 Portugal Telecom 02401 Twin Valley 02586 Freebox 01976 Communications Matanuska Telephone 01481, 02586 Price County 01481, 01998 i-CAN 02437 Association Telephone United Telephone 02586 Innovative Systems 01898 02401 Project Mutual 01481, 01998 Venture 01998 InviTV 02437 Telephone...
  • Page 115 Reference Information 20739 ReplayTV 20616 Sonic Blue 20616 Sony 20636 TiVo 20739, 20636...
  • Page 116 Tel: 86-21-52131366 Fax: 86-21-52130396 http://www.cn.onkyo.com/ Asia, Oceania, Middle East, Africa Please contact an Onkyo distributor referring to Onkyo SUPPORT site. http://www.intl.onkyo.com/support/ The above-mentioned information is subject to change without prior notice. Visit the Onkyo web site for the latest update.
