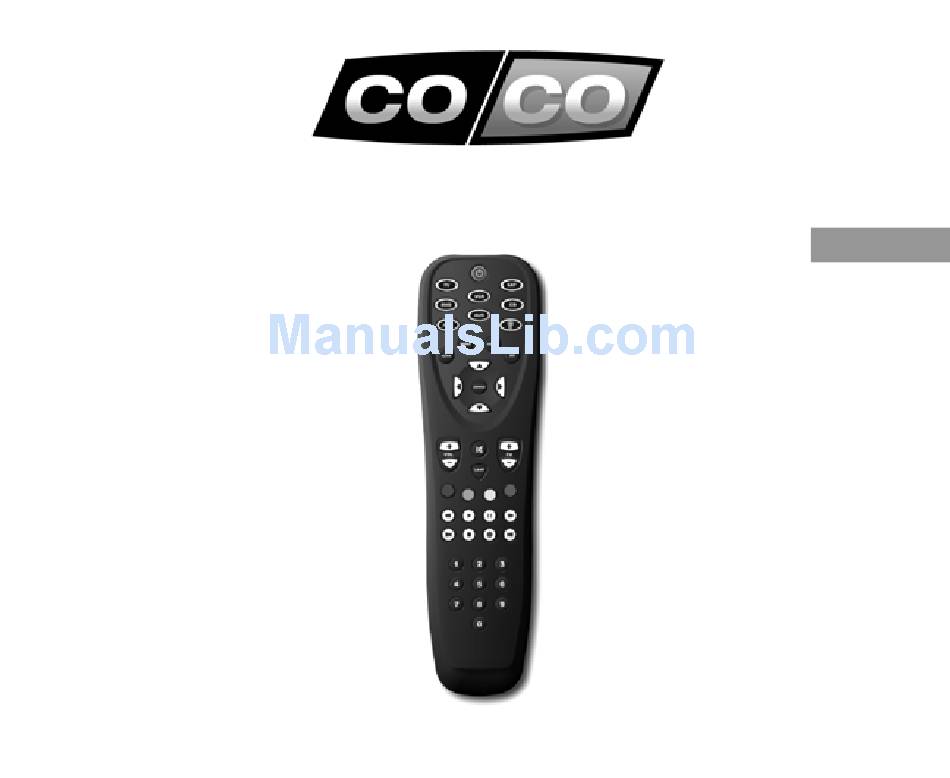

- Page 1 USER’S MANUAL version 1.1 English UCR-4285 UNIVERSAL REMOTE CONTROL...
- Page 2 UCR-4285 UNIVERSAL REMOTE CONTROL Description of buttons Power: On/Off/Stand-by Indicator Device selection Menu Guide Two-digit number entry AV channel selection Enter/OK Navigation/direction buttons 10. Volume higher/lower 11. Mute 12. Return to previous selection 13. Channel higher/lower 14. Teletext shortcut keys 15.
- Page 3 UCR-4285 UNIVERSAL REMOTE CONTROL [1] Press the latch and remove the battery cover. [2] Install 4 batteries. The poles must match the + and - symbols on the inside of the battery compartment. Close the cover. Do not use rechargeable batteries!
- Page 4 UCR-4285 UNIVERSAL REMOTE CONTROL CONFIGURATION USING THE CODE LIST [3] Switch on your device manually (or with the [4] Find the 5-digit code in the code list that original remote control). matches the brand of your device. The TV in the picture is only used as an The codes shown first are the codes used most example.
- Page 5 UCR-4285 UNIVERSAL REMOTE CONTROL 3 seconds [5] Press the device button that you want to [6] Press simultaneously. Do not configure (set your television under ‘TV’, your release them until the indicator has flashed several stereo system under ‘audio’ etc.).
- Page 6 UCR-4285 UNIVERSAL REMOTE CONTROL [7] Set the code you found in [4]. [8] Point the UCR-4285 at your device. Press the power button (device should switch off or go to stand-by). Now check all the other functions. The indicator flashes to confirm!
- Page 7 UCR-4285 UNIVERSAL REMOTE CONTROL CONFIGURATION USING THE SEARCH FUNCTION [9] Switch on your device manually (or with the [10] Press the device button you want to configure original remote control). (set your television under the ‘TV’ button). The TV in the picture is only used as an The buttons are not device specific.
- Page 8 UCR-4285 UNIVERSAL REMOTE CONTROL 3 seconds [11] Press simultaneously. Do not [12] Enter code ‘9 9 1’. The indicator flashes release them until the indicator has flashed several several times to confirm. times to confirm.
- Page 9 UCR-4285 UNIVERSAL REMOTE CONTROL [13] (1) Press the applicable button: [14] (1) Point the UCR-4285 at the device and press the direction button . Repeat this until the device TV (CRT/CD/Plasma): Press ‘1’. switches off (or goes to stand-by). Video (DVD/VCR): Press ‘2’.
- Page 10 UCR-4285 UNIVERSAL REMOTE CONTROL CONNECTING TO A COCO RECEIVER [15] Activate the search mode of the receiver. [16] (1) Press the device selection button with the light bulb. (2) Select the button you wish to assign to the The device shown is the AC-300 with...
- Page 11 UCR-4285 UNIVERSAL REMOTE CONTROL SWITCHING LIGHTS ON/OFF [17] (1) Press the device selection button with the [17] (1) Press the device selection button with the [18] Control your lighting: [18] Control your lighting: light bulb. light bulb. On: Press ‘CH+’. Off: Press ‘CH-’. Dimming: Press...
- Page 12 Volume ‘push-through’ • With this function you can adjust the volume of a device (such as your TV) while the UCR-4285 is set to control another device (e.g. ‘SAT’ mode). • Activating the push-through function (example: adjusting the TV volume in ‘SAT’ mode): 1- Press ‘SAT’...
- Page 13 UCR-4285 UNIVERSAL REMOTE CONTROL • Programming a macro (example: Using the ‘Last’ button to switch from ‘TV’ mode to ‘SAT’ mode and select channel 801): 1- Press ‘TV’ to select the mode in which you want to execute the macro.
- Page 14 I below. • In table II below, you can see which buttons on the UCR-4285 match the number codes of your COCO receivers. The UCR-4285 can use a maximum of 14 different number codes.
- Page 15 - First press the correct device selection button before you operate the desired device. - To control lighting: Make sure the house code set on the UCR-4285 is the same as the house code on the COCO receiver you want to control (see [15] and table I). The number code of the receiver must match the correct button on the UCR-4285 (see table II).
- Page 16 • This product works with infrared signals (control of multimedia devices) and with radio signals (control of COCO receivers). The latter signals go through walls, windows and doors. The range is maximum 75 metres in the open air. The range indoors is strongly influenced by local conditions such as concrete, glass and metals.
- Page 17 UCR-4285 UNIVERSAL REMOTE CONTROL Warranty and copyright This device is covered by a 2-year warranty that begins on the day of purchase. Visit www.coco- technology.com/warranty for additional information. Reprinting of (portions of) this manual without permission from Pan-Trade International B.V. is expressly prohibited.
- Page 18 P.O. BOX 126 4760 AC ZEVENBERGEN THE NETHERLANDS www.coco-technology.com Declaration of Conformity Pan-Trade International BV declares that the COCO product, model: type designation UCR-4285 UNIVERSAL REMOTE CONTROL item number 74030 is in compliance with the essential requirements and other relevant provisions of directives R&TTE 1999/5/EC, EMC 2004/108/EC and LVD 2006/95/EC and is compatible with the standards EN 300 220- 1/3, EN 55015 and EN 301 489-1/3.
