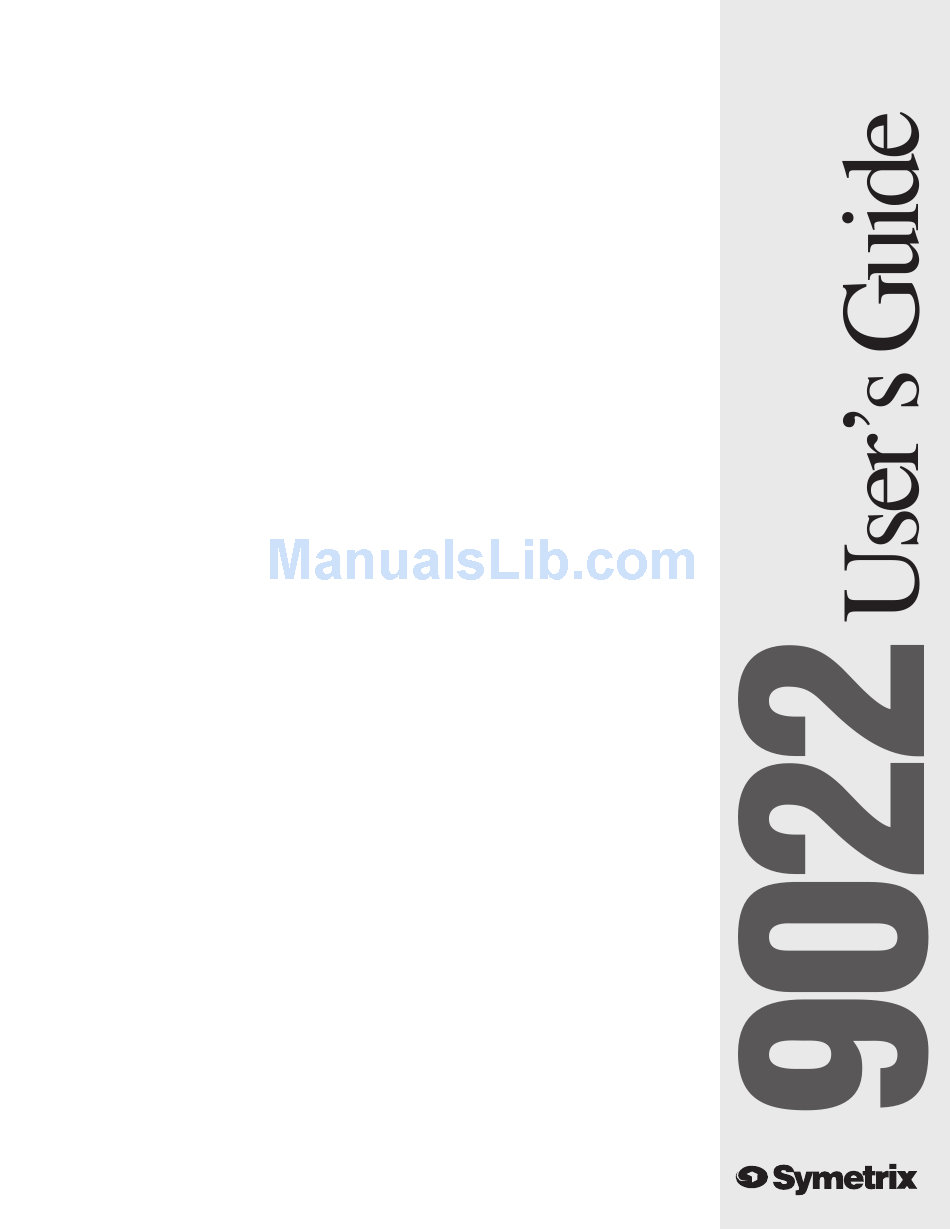

  • Page 1 9022 2x2 DSP Engine...

  • Page 2: Table Of Contents

    Symetrix part number 5390220A03 Subject to change without notice. ©2000, Symetrix, Inc. All right reserved. Symetrix is a registered trademark of Symetrix, Inc. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Symetrix assumes no responsibility with regard to the performance or use of these products.

  • Page 3: Chapter 1 Introduction

    Audio Workplace allows you to configure, program presets, adjust parameters, or download new DSP code in the field. The 9022 has a minimal front panel; Audio Workplace provides a virtual front panel via your computer. After setup and configuration, the settings remain stored inside the 9022’s non-volatile memory.

  • Page 4: Chapter 2 Operator Safety Summary

    9022. In case of failure, refer all servicing to the factory. Servic- ing is required when the 9022 has been damaged in any way, such as when a power supply cord or plug is damaged, liquid has been spilled or...

  • Page 5: Chapter 3 Hardware Installation

    The Host and Slave port connectors are male to female connectors, like numbered pins wired together. For a 9022-only system, only pins 2, 3, 4, and 5 are needed. If there are other non-Symetrix devices in the chain of devices, then you may need to wire the remaining pins together.

  • Page 6: Chapter 4 Front & Rear Panel Controls

    2X2 DSP ENGINE PS3E POWER MANUFACTURED IN SUPPLY ONLY. LYNNWOOD, WA, USA THIS UNIT CONTAINS NO FABRIQUÉ AUX E.-U. PAR SYMETRIX INC., LYNNWOOD, WASHINGTON. DOWNSTREAM UPSTREAM RÉFÉREZ TOUTE RÉPARATION À UN TECHNICIEN QUALIFIÉ. USER SERVICEABLE PARTS FRONT PANEL i t n...
  • Page 7 REAR PANEL . t u r t e XTERNAL OWER . y l a l i l - r NPUT “ r e t ” s r h t . r o b i t y t i h t i r t e LAVE r t s...
  • Page 8 t a l t - r UTPUT . t o l l ’ . s l f f i a i t i f i . r e l i k NPUT i t c t i u l e l t i u l e l f f i...
  • Page 9 Host Port Connections The Host (upstream) port uses a DB-9 female connector with the following connections: r h t t i u r h t r h t r h t r h t Slave Port Connections The Slave (downstream) port uses a DB-9 male connector with the following connections: r h t t i u r h t...

  • Page 10: Chapter 5 Audio Workplace Installation

    COM3, COM4). 2. Double click on “s9022.exe” to run it. 3. When the program fails to detect a 9022 on its serial port, it opens a dialog box and asks if you want to work offline. Click on the Yes button.
  • Page 11 4, locate the Modems icon, and doubleclick it to see its COM port assignment. Sometimes your mouse may also use a serial port. Remember the port number of an unassigned serial port for use with the 9022.

  • Page 12: Chapter 6 Using Audio Workplace

    Chapter 6 SYMETRIX AUDIO WORKPLACE SOFTWARE The Symetrix Audio Workplace is a Windows 95/98 application designed to configure and control the 9022. Most of the software is self-explanatory, especially if you have any experience with other Windows applications. Device Configuration Screen This screen allows you to configure the signal path within the 9022.
  • Page 13 i f n o i t t f e i l c i l ( z i l . h t i l c s t i n i t . n i . s t ONFIGURATION o t t DITOR s t i i t t...
  • Page 14 Graphic Equalizer Screen The equalizer block can be either a 31-band graphic equalizer or a 10-band parametric equalizer. The high- and low-pass filters are also integral to these processing blocks. The two different equalizer types are mutually exclusive: you can’t use the graphic EQ and then switch to the parametric EQ to notch something as well.
  • Page 15 Parametric Equalizer Screen The equalizer block can be either a 31-band graphic equalizer or a 10-band parametric equalizer. The high- and low-pass filters are also integral to these processing blocks. The two different equalizer types are mutually exclusive: you can’t use the graphic EQ and then switch to the parametric EQ to notch something as well.
  • Page 16 Delay Screen The delay implements a single-input, single-output digital delay. You can enter the delay time in seconds, feet, or meters. i l n i t l NLINE i t a i t c FFLINE i t c . e l ELAY YPASS i l s...
  • Page 17 Compressor/Limiter Screen The compressor/limiter implements a single- or dual-band gain reduction processor. If the Master button has been pressed in the Device Configuration Screen block diagram, the sidechains (gain reduction signal) of the two compressors operate using a signal representing the sum of the two inputs.
  • Page 18 a t t a t t TTACK . t n LIDER i n i ELEASE LIDER r h t HRESHOLD LIDER i t a e l i i t a ATIO LIDER...

  • Page 19: Chapter 7 Specifications

    All audio connections shall be balanced and accessible via XLR connectors and bare wires. RS- 232 connections shall utilize DB-9 female connectors. There shall be no batteries within the Processor. The digital signal processor shall be the Symetrix 9022 2x2 DSP Engine.

  • Page 20: Chapter 8 Block Diagram

    Block Diagram Chapter 8...

  • Page 21: Chapter 9 Warranty & Service

    Now for a little light reading ... LEGALESE Symetrix, Inc. expressly warrants that the product will be free from defects in material and work- manship for one (1) year. An additional four (4) years will be added to this warranty period if Buyer registers the product.
  • Page 22 In no event will Symetrix be liable for any incidental or consequential damages including but not limited to damage for loss of...

  • Page 23: Appendix A Hexadecimal Conversion Tables

    Appendix A Hexadecimal Conversion Tables TABLE A-1 Decimal/Binary/Hexadecimal Conversions for Numbers 1-16 DECIMAL BINARY HEXADECIMAL 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111 TABLE A-2 Decimal to Hex Conversions 10: 16 20: 32 30: 48 40: 64 50: 80...
  • Page 24 TABLE A-3 Hex to Decimal Conversions 100: 110: 120: 130: 140: 150: 160: 170: 180: 190: 200: 210: 220: 230: 240: 250:...

  • Page 25: Appendix B Declaration Of Conformity

    Appendix B Declaration of Conformity Declaration of Conformity We, Symetrix Incorporated, 6408 216th St. SW, Mountlake Terrace, Washington, USA, declare under our sole responsibility that the product: 9022 2x2 DSP Engine to which this declaration relates, is in conformity with the following standards:...
  • Page 26 Symetrix, Inc. 6408 216th St. SW Mountlake Terrace, WA, 98043 Tel: (425) 778-7728 Fax: (425) 778-7727 Web site: http://www.symetrixaudio.com Email: symetrix@symetrixaudio.com...
