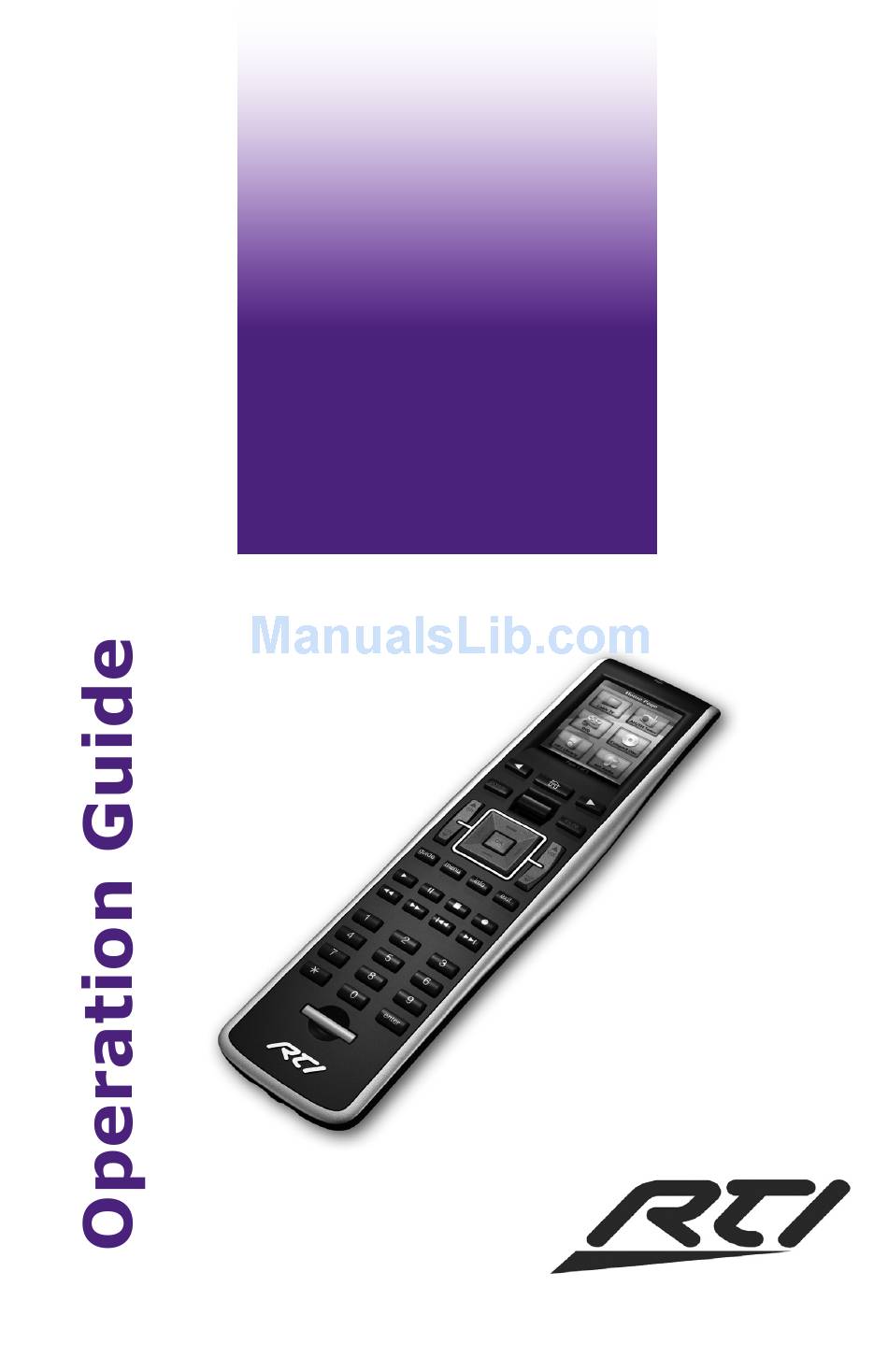

- Page 1 It’s Under Control It’s Under Control ® ® T2-Cs+ Universal System Controller 70-210091-20 V1.0...
- Page 2 T2-Cs+ Universal System Controller Copyright © 2011 Remote Technologies Incorporated All rights reserved.
-
Page 3: Federal Communications Commission Notice
It’s Under Control ® FEDERAL COMMUNICATIONS COMMISSION NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Safety Suggestions
T2-Cs+ Universal System Controller SAFETY SUGGESTIONS Read and Follow Instructions. Read all safety and operating instructions before operating the unit. Retain Instructions. Keep the safety and operating instructions for future reference. Heed Warnings. Adhere to all warnings on the unit and in the operating instructions. -
Page 5: Batteries
It’s Under Control ® BATTERIES GENERAL BATTERY WARNING: Rechargeable Lithium batteries can explode, catch fire, and/or cause burns if disassembled, punctured, cut, crushed, short circuited, incinerated, recharged, or exposed to water, fire, or high temperatures. DO NOT place loose batteries in a pocket, purse, or other receptacle containing metal objects, mix with used or other battery types, or store with hazardous or combustible materials. -
Page 6: Limited Warranty
Being altered or which the serial number has been defaced, modified or removed. Remote Technologies Incorporated is not liable for any damages caused by its products or for its failure of its products to perform, including any lost profits, lost savings, incidental damages, or consequential damages. -
Page 7: Disclaimer
Technologies Incorporated. The information contained in this document is subject to change without notice. Remote Technologies Incorporated shall not be liable for errors or omissions contained herein or for consequential damages in connection with the furnishing, performance, or use of this guide. - Page 8 T2-Cs+ Universal System Controller...
-
Page 9: Table Of Contents
It’s Under Control ® TABLE OF CONTENTS Federal Communications Commission Notice ....3 Safety Suggestions ............. 4 Batteries ..............5 Limited Warranty ............6 Disclaimer ..............7 Table of Contents ............9 Chapter 1 - Welcome ..........11 Features ..............11 IR Compatibility ............ - Page 10 T2-Cs+ Universal System Controller...
-
Page 11: Chapter 1 - Welcome
It’s Under Control ® CHAPTER 1 | WELCOME Thank you for purchasing the T2-Cs+ Universal System Controller. The T2-Cs+ takes command of the media room and eliminates the clutter of unnecessary remote controls on the coffee table. The 2.4” color LCD can display custom text and graphics to provide customized, intuitive control. -
Page 12: Ir Compatibility
Thoroughly inspect the T2-Cs+ and packing materials for signs of damage. Report any damage to the carrier immediately. Report any equipment malfunctions to Remote Technologies Incorporated or an authorized Remote Technologies Incorporated distributor. PRODUCT CONTENTS... -
Page 13: Chapter 2 - Introduction
It’s Under Control ® CHAPTER 2 | INTRODUCTION IMPORTANT NOTES Please read these important notes about the T2-Cs+: The T2-Cs+ should be placed in an area where it is around normal room temperature (between 60° F to 90° F). Do not use sharp objects on the touchscreen. It is designed to operate with a touch of your finger. -
Page 14: Battery And Docking Station
T2-Cs+ Universal System Controller CHAPTER 2 | INTRODUCTION BATTERY AND DOCKING STATION The T2-Cs+ uses a Lithium-Ion rechargeable battery. This battery does not exhibit any type of “Memory Effect” from being charged too often. Since the T2-Cs+ can safely be charged after each use, a docking station is included for convenience. -
Page 15: Getting Started
It’s Under Control ® CHAPTER 2 | INTRODUCTION GETTING STARTED NOTE: The following steps for initial installation including removing the battery door should be performed by an authorized service center or trained installer only. Start by insuring the battery connector is inserted into the mating plug on the T2-Cs+. -
Page 16: Remote Reference
T2-Cs+ Universal System Controller CHAPTER 2 | INTRODUCTION REMOTE REFERENCE FRONT IR TRANSMISSION WINDOW LIGHT SENSOR HOME PAGE BUTTON TOUCHSCREEN DISPLAY FRAME SCROLL BUTTONS 3-WAY ROCKER SWITCH KEYPAD BUTTONS BACKLIGHT BUTTON... - Page 17 It’s Under Control ® CHAPTER 2 | INTRODUCTION BACK AUDIO SPEAKER LITHIUM-ION BATTERY PACK PROGRAMMING POWER PORT SWITCH DOCKING STATION CONTACTS...
-
Page 18: Docking Station Reference
T2-Cs+ Universal System Controller CHAPTER 2 | INTRODUCTION DOCKING STATION REFERENCE CHARGE CONTACTS CHARGE LED BACK 2-3/8 in. (60 mm) WALL MOUNT HOLES WIRE GUIDE POWER JACK... -
Page 19: Chapter 3 - Operation
It’s Under Control ® CHAPTER 3 | OPERATION PROGRAMMING THE T2-Cs+ The T2-Cs+ is programmed using RTI’s Integration Designer software. ® RTI dealers can download the software from: www.rticorp.com/dealers A PC running Windows XP , Windows Vista , Windows 7 or later Microsoft ®... -
Page 20: The Control Panel Page
T2-Cs+ Universal System Controller CHAPTER 3 | OPERATION THE CONTROL PANEL PAGE The Control Panel page can be displayed by holding down the backlight button for three seconds -or- by first setting the T2-Cs+ power switch to the off position, and then pressing and holding the Home button while sliding the power switch to the On position. -
Page 21: Backlight Level
It’s Under Control ® CHAPTER 3 | OPERATION BACKLIGHT LEVEL This button displays a window that allows you to adjust the backlight brightness and enable/disable the Ambient Light Sensor. If the light sensor is disabled, there is only one backlight level to adjust. Press the left arrow or right arrow buttons to adjust. -
Page 22: Tilt Switch
T2-Cs+ Universal System Controller CHAPTER 3 | OPERATION TILT SWITCH This button displays a window that allows you to adjust the settings for the built-in tilt sensor. The tilt switch is a motion detector that turns the remote on when activated. Press the OK button when finished. On means the tilt switch is active and will wake-up the T2-Cs+ when it is moved. -
Page 23: Battery
It’s Under Control ® CHAPTER 3 | OPERATION BATTERY This button displays a window that allows you to adjust the relative amount of time that the low battery icon appears on the display. This setting will determine how much time you have between the appearance of the low battery warning and the battery becoming completely depleted. -
Page 24: Calibrate Touchscreen
T2-Cs+ Universal System Controller CHAPTER 3 | OPERATION CALIBRATE TOUCHSCREEN This button runs a routine that allows you to calibrate the touchscreen. Since it normally should not be necessary to calibrate the touchscreen, this routine is included as a precaution only. Press the Calibrate button to continue. -
Page 25: Chapter 4 - Specifications
It’s Under Control ® CHAPTER 4 | SPECIFICATIONS Power 3.6 VDC, 1200mAh Lithium-Ion Battery Pack Power Management Automatic On/Off (tilt switch) Infrared Control 30 feet (9.1 meters) @ 60 degrees Range Infrared Frequency 15 kHz - 460 kHz Transmission Range Radio Frequency Up to 100 feet (30.5 meters) Control Range... - Page 26 T2-Cs+ Universal System Controller...
-
Page 27: Chapter 5 - Troubleshooting
It’s Under Control ® CHAPTER 5 | TROUBLESHOOTING If you are having problems with your T2-Cs+ Universal System Controller, please read the information below before contacting technical support. If you continue to have problems, see Chapter 6 for more information on contacting RTI technical support. - Page 28 T2-Cs+ Universal System Controller...
-
Page 29: Chapter 6 - Service And Support
It’s Under Control ® CHAPTER 6 SERVICE AND SUPPORT For news about the latest updates, new product information, and new accessories, please visit our web site at: www.rticorp.com CONTACTING RTI For general info, you can contact RTI at: Tel. (952) 253-3100 Fax (952) 253-3131 info@rticorp.com RTI TECHNICAL SUPPORT... - Page 30 T2-Cs+ Universal System Controller CHAPTER 6 SERVICE AND SUPPORT Shipment of T2-Cs+ for Service RTI will pay all labor and material expenses for all repairs covered by this product’s warranty. If necessary repairs are not covered by warranty, or if a unit is examined which is not in need of repair, you may be charged for the repairs or examination.
-
Page 31: Index
It’s Under Control ® INDEX Contents ................9 Disclaimer ................. 7 Features ................11 Federal Communications Commission Notice ......3 Introduction ..............13 Battery ................ 14 Cleaning ..............13 Docking Station............. 14 Getting Started ............. 15 Remote Reference ............16 Limited Warranty .............. - Page 32 T2-Cs+ Universal System Controller It’s Under Control ® Remote Technologies Incorporated 5775 12th Avenue East, Suite 180 Shakopee, MN 55379 Tel: 952-253-3100 Fax: 952-253-3131 www.rticorp.com © 2011 Remote Technologies Inc. All rights reserved. Printed in Taiwan.
