Summary of Contents for RTI rk2

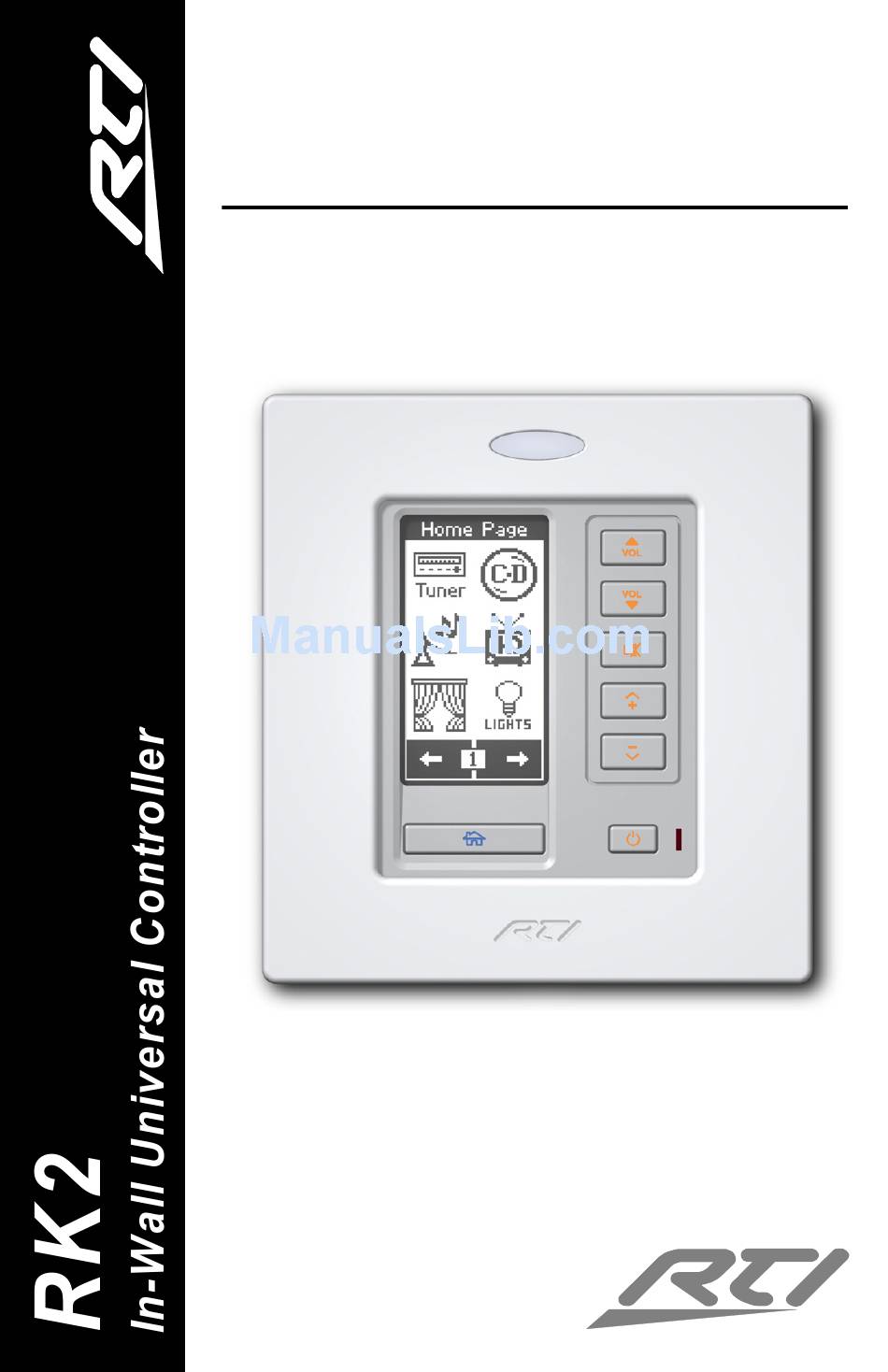

- Page 1 Operation & Installation Guide v1.0...
- Page 2 FEDERAL COMMUNICATIONS COMMISSION NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,...
- Page 3 Heat. Keep the unit away from heat sources such as radiators, heat registers, stoves, etc., including amplifiers that produce heat. Power Sources. Connect the unit only to an RTI approved power supply. Power Cord Protection. Route power supply cords so that they...
-
Page 4: Limited Warranty
LIMITED WARRANTY Remote Technologies Incorporated warrants its products for a period of one (1) year from the date of purchase from Remote Technologies Incorporated or an authorized Remote Technologies Incorporated distributor. This warranty may be enforced by the original purchaser and subsequent owners during the warranty period, so long as the original dated sales receipt or other proof of warranty coverage is presented when warranty service is required. - Page 5 Microsoft and Windows are registered trademarks of Microsoft Corporation. Other brands and their products are trademarks or registered trademarks of their respective holders. RK2, It’s Under Control, TheaterTouch, and the RTI logo are trademarks of Remote Technologies Incorporated.
-
Page 6: Table Of Contents
Contents Federal Communications Commission Notice ---------------------- i Safety Suggestions -------------------------------------------------------- ii Limited Warranty -------------------------------------------------------- iii Disclaimer-------------------------------------------------------------------iv Contents------------------------------------------------------------------------ v Chapter 1. Welcome ----------------------------------------------------------1 Compatibility Note---------------------------------------------------------1 Unpacking and Inspection -----------------------------------------------2 Product Contents -----------------------------------------------------------2 Software Requirements ---------------------------------------------------2 Chapter 2. Introduction -----------------------------------------------------3 Features-----------------------------------------------------------------------3 Important Notes ------------------------------------------------------------4 Cleaning ----------------------------------------------------------------------5 Getting Started --------------------------------------------------------------6 Remote Reference ----------------------------------------------------------7... - Page 7 Chapter 4. Installation & Programming ------------------------------ 19 Mounting Height --------------------------------------------------------- 19 Mounting Options ------------------------------------------------------- 20 Wiring Connection Options-------------------------------------------- 20 RK2 Removable Terminal Block Description ---------------------- 22 Programming The RK2 ------------------------------------------------- 23 Chapter 5. Troubleshooting---------------------------------------------- 25 Display is Dim, Blank or Unreadable-------------------------------- 25...
-
Page 8: Chapter 1. Welcome
The RK2 can be used as a stand-alone device or as part of an expandable central control system. When used with the available... -
Page 9: Unpacking And Inspection
After unpacking your new RK2 universal system controller, save all of the packing materials in case you ever have to ship the unit. Thoroughly inspect the RK2 and packing materials for signs of damage. Report any damage to the carrier immediately. Report... -
Page 10: Chapter 2. Introduction
Chapter 2. Introduction FEATURES The RK2 provides superior quality and reliability as well as these specific features: Stylish low-profile faceplate with integrated attachment § latches. Integrated mounting wings for easy installation. § High contrast STN LCD to display custom buttons, text, §... -
Page 11: Important Notes
Do not use sharp objects on the touchscreen. It is designed to § operate with a touch of your finger. Do not let the RK2 get wet. It should not be handled with § wet hands or placed in an area where it could get wet. -
Page 12: Cleaning
Occasional cleaning may be required, depending on use. It is recommended that you create a “Clean” button somewhere on the Home page of the RK2. This button should link to a page that does not contain commands or macros that could be inadvertently executed while cleaning the unit. -
Page 13: Getting Started
RK2 Universal System Controller GETTING STARTED The RK2 is turned-on by simply applying power to it. RTI provides two power supply solutions which are sold separately: Single Unit Power Supply 16VDC, 1.6Amp § Provides power for up to eight RK2’s §... -
Page 14: Remote Reference
Introduction REMOTE REFERENCE Ambient Light Sensor Plasma Friendly Infrared Receiver Programming Port Touchpanel LCD Display Function Buttons Home Page Button Power LED Front View Power Button Control Port Removable Terminal Block Rear View Integrated Mounting Wings... - Page 15 RK2 Universal System Controller...
-
Page 16: Chapter 3. Operation
Chapter 3. Operation THE TOUCHSCREEN DISPLAY The RK2 touchscreen display is organized into a series of pages. Normally each page contains objects (buttons, text, graphics, etc.) that are related in some way. For instance, they may all display information necessary for controlling a particular CD player. -
Page 17: The Control Panel Page
RK2 Universal System Controller THE CONTROL PANEL PAGE The Control Panel page can be displayed by pressing and holding the frame number box at the bottom of the touchscreen continuously for 3 seconds. You can also access the Control Panel page by assigning a “Control Panel”... -
Page 18: Adjust Contrast
Operation ADJUST CONTRAST This button displays a window that allows you to adjust the LCD contrast. Press the Left Arrow or Right Arrow keypad buttons to adjust. Press the button in the window to close. IR RECEIVER This button displays a window that allows you to enable or disable the front panel IR Receiver. -
Page 19: Beeper
RK2 Universal System Controller BEEPER This button displays a window that allows you to turn the audible beep on or off. The beeper provides feedback that a button was pressed. On means the beeper is enabled. Off means the beeper is disabled. -
Page 20: Active Backlight
ACTIVE BACKLIGHT This button displays a window that allows you to adjust the backlight brightness for the RK2 Active mode. If the light sensor is disabled, there is only one backlight level to adjust. Press the left arrow or right arrow buttons in the window to adjust. -
Page 21: Idle Backlight
IDLE BACKLIGHT This button displays a window that allows you to adjust the backlight brightness for the RK2 Idle mode. If the light sensor is disabled, there is only one backlight level to adjust. Press the left arrow or right arrow buttons in the window to adjust. -
Page 22: Time Out
Operation TIME OUT This button displays a window that allows you to adjust the amount of time the unit stays in active mode after the last button press. The time is variable from 1 second to 60 seconds (the default is 10 seconds). Press the arrows to the left or right of the Time Out setting to adjust the time. - Page 23 RK2 Universal System Controller Now enter a new four-digit passcode. You will be prompted to enter the new four-digit passcode again for confirmation. When new code is entered successfully, the “Code Changed” window will pop up to let you know you have changed the passcode.
-
Page 24: Clear All
CLEAR ALL This button displays a window that will allow you to erase the current user program in the RK2. When the button is pressed, you will be prompted to enter the current passcode. If the proper code is entered, the entire user program in the RK2 will be erased. - Page 25 RK2 Universal System Controller...
-
Page 26: Chapter 4. Installation & Programming
Chapter 4. Installation & Programming The RK2 is designed for flush-mount installations in walls or cabinets. It requires an available mounting depth of 2.0 inches (50mm) from the front surface of the wall. There are numerous options for mounting and wiring the RK2. -
Page 27: Mounting Options
Removable Terminal Block. A minimum of 3-conductor wire is required for basic operation (+16VDC, GND, and IR DATA). CAT5 cable can be used to power the RK2 up to 1000 feet (300m) if a full wire pair is used for both +16VDC and GND. For longer... - Page 28 Installation & Programming RK2 Basic Wiring Connections Control Port Pin-Out Pin 8 GROUND Pin 7 GROUND Pin 6 INFRARED Pin 5 +16VDC Pin 4 +16VDC Pin 3 INFRARED (Future Use) Pin 2 RS-485 + (Future Use) Pin 1 RS-485 - Cat-5 Cable 20 AWG (min.) wire...
-
Page 29: Rk2 Removable Terminal Block Description
RK2 Universal System Controller RK2 REMOVABLE TERMINAL BLOCK DESCRIPTION TERMINAL NAME DESCRIPTION Positive power supply connection. This should be +16VDC connected to 9VDC-16VDC. Common ground connection. Use this ground reference for any device that is connected to any of the other pins on the connector. -
Page 30: Programming The Rk2
The RK2 is programmed using RTI’s TheaterTouch Designer™ software. RTI dealers can download the software free of charge from: www.rticorp.com/dealers A PC running Windows 98SE or higher with a USB port is ® required. The required USB cable is included with the RTI IR-PRO dealer kit. - Page 31 RK2 Universal System Controller...
-
Page 32: Chapter 5. Troubleshooting
Make sure you are using the programming cable that was supplied by RTI and that both ends are connected securely. Make sure the PC detects the presence of the RK2. If it doesn’t, unplug the USB cable, wait for about ten seconds, and plug it in again. -
Page 33: Ir Code Problems
RK2 Universal System Controller IR CODE PROBLEMS If you are using an IR repeater system, make sure it is working correctly with the original OEM remote. If not, you will need to troubleshoot the IR repeater system. If you are still having problems, try adjusting the IR code “Minimum... -
Page 34: Chapter 6. Service And Support
RTI TECHNICAL SUPPORT At RTI, customer service and satisfaction is an utmost priority. If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance. RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the following information ready, or provide it in your fax or e-mail. - Page 35 For Technical Support or assistance with your RTI product, contact RTI at: (952) 253-3137 support@rticorp.com www.rticorp.com/support For questions regarding Service or Repair of your RTI product, contact RTI at: (952) 253-3136 service@rticorp.com www.rticorp.com/service Please do not return products to RTI without return authorization.
-
Page 36: Specifications
Specifications 9 - 16 VDC, .3 Amp max Power Adjustable backlight Power Management brightness/power down time High-contrast STN LCD Display 128 x 64 pixels (Dark Blue on White) Digital Matrix, 7 x 2 Touchscreen Touchscreen never needs calibrating 2.4 in. x 1.3 in. (61mm x Display Size (L x W) 33mm) Display: white LED... - Page 37 RK2 Universal System Controller Unlimited steps allowed Macro Capability in a single macro Total number of macros is limited only by memory Macro capability on every button USB programming port Communications High-impact molded Enclosure ABS plastic, black/gray High-impact molded Front Plate...
- Page 38 ® It’s Under Control R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d 7651 Anagram Drive...
