Summary of Contents for RTI T3

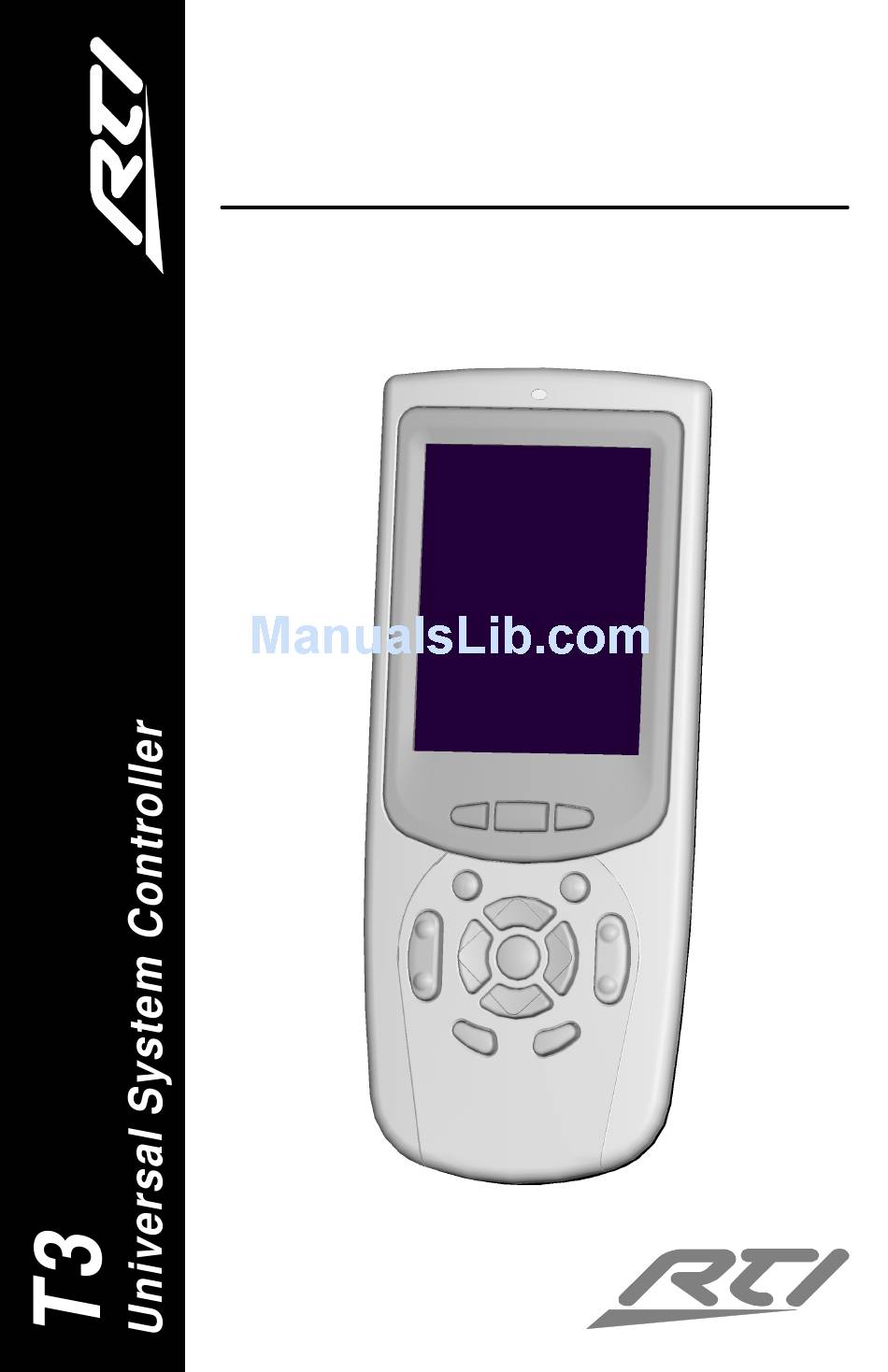

- Page 1 Operation Guide v1.0...
- Page 2 FEDERAL COMMUNICATIONS COMMISSION NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,...
-
Page 3: Safety Suggestions
T3 Universal System Controller BATTERY DISPOSAL For environmental reasons, your T3 universal system controller uses “environmentally sound” Lithium-ion rechargeable batteries. These batteries do not contain any poisonous heavy metals that can damage the environment. Li-ion In the interest of recycling, please do not dispose of these batteries in the household waste at the end of their useful life. -
Page 4: Limited Warranty
Servicing. Do not attempt any service beyond that described in the operating guide. Refer all other service needs to qualified service personnel. Damage Requiring Service. The unit should be serviced by qualified service personnel when: • The power supply cord or the plug has been damaged. •... -
Page 5: Disclaimer
Microsoft and Windows are registered trademarks of Microsoft Corporation. Other brands and their products are trademarks or registered trademarks of their respective holders. T3, It’s Under Control, TheaterTouch, and the RTI logo are trademarks of Remote Technologies Incorporated. -
Page 6: Table Of Contents
Contents Federal Communications Commission Notice ---------------------- i Battery Disposal ----------------------------------------------------------- ii Safety Suggestions -------------------------------------------------------- ii Limited Warranty -------------------------------------------------------- iii Disclaimer-------------------------------------------------------------------iv Contents------------------------------------------------------------------------ v Chapter 1. Welcome ----------------------------------------------------------1 Compatibility Note---------------------------------------------------------1 Unpacking and Inspection -----------------------------------------------2 Product Contents -----------------------------------------------------------2 Software Requirements ---------------------------------------------------2 Chapter 2. Introduction -----------------------------------------------------3 Features-----------------------------------------------------------------------3 Important Notes ------------------------------------------------------------4 Cleaning ----------------------------------------------------------------------5... - Page 7 T3 Universal System Controller Battery ------------------------------------------------------------------- 17 Sound -------------------------------------------------------------------- 18 Calibrate Touchscreen------------------------------------------------ 19 Programming The T3---------------------------------------------------- 20 Chapter 4. Troubleshooting---------------------------------------------- 21 Display is Dim, Blank or Unreadable-------------------------------- 21 USB Communication Problems --------------------------------------- 21 IR Code Problems -------------------------------------------------------- 22 Chapter 5. Service and Support----------------------------------------- 23...
-
Page 8: Chapter 1. Welcome
Sleek and perfectly balanced, the T3 is infinitely flexible and expandable. The T3 takes complete control of the home theater, replacing all other remotes. It features an intuitive, easy to read color LCD that can display custom buttons, text, graphics, symbols, and icons. In addition to the backlit display, 16 “Hard”... -
Page 9: Unpacking And Inspection
T3 Universal System Controller UNPACKING AND INSPECTION After unpacking your new T3 universal system controller, save all of the packing materials in case you ever have to ship the unit. Thoroughly inspect the T3 and packing materials for signs of damage. -
Page 10: Chapter 2. Introduction
Chapter 2. Introduction FEATURES The T3 provides superior quality and reliability as well as these specific features: A replacement for all of the remote controls in a home theater. The T3 can reproduce all of the commands of almost any other infrared remote control. -
Page 11: Important Notes
Do not use sharp objects on the touchscreen. It is designed to operate with a touch of your finger. Do not let the T3 get wet. It should not be handled with wet hands or placed in an area where it could get wet. -
Page 12: Cleaning
Occasional cleaning may be required, depending on use. It is recommended that you create a “Clean” button somewhere on the Home page of the T3. This button should link to a page that does not contain commands or macros that could be inadvertently executed while cleaning the unit. - Page 13 Since the T3 can safely be charged after each use, a docking station is included for convenience. If left out of the docking station, the T3 will remain in sleep mode for 1 – 2 months before shutting down. At that point the battery must be recharged.
-
Page 14: Getting Started
During normal use the T3 turns-on instantly from its sleep mode. The T3 is turned-on by touching any area of the display or any keypad button. If the tilt sensor is enabled, picking up the unit will also turn it on. -
Page 15: Remote Reference
T3 Universal System Controller REMOTE REFERENCE Front Light Sensor Touchscreen Display Home Page Button Keypad Buttons Page Scroll Buttons... - Page 16 Introduction Back IR Transmission Window Audio Speaker Lithium-ion Battery Pack Programming Port Power Switch Docking Station Contacts...
-
Page 17: Docking Station Reference
T3 Universal System Controller DOCKING STATION REFERENCE Front Charge Contacts Charge LED Back 1-3/8 in. (35mm) Wall Mount Power Jack Holes Wire Guide... -
Page 18: Chapter 3. Operation
Chapter 3. Operation THE TOUCHSCREEN DISPLAY The T3 touchscreen display is organized into a series of pages. Normally each page contains objects (buttons, text, graphics, etc.) that are related in some way. For instance, they may all display information necessary for controlling a particular DVD player. -
Page 19: The Control Panel Page
T3 Universal System Controller THE CONTROL PANEL PAGE The Control Panel page can be displayed by first setting the T3 power switch to the off position, and then pressing and holding the Home button while sliding the power switch to the on position. -
Page 20: Backlight Level
If the light sensor is disabled, there is only one backlight level to adjust. Press the left arrow or right arrow buttons to adjust. Press button when finished. With the light sensor disabled, the backlight brightness will always stay at the same level whenever the T3 is turned-on. - Page 21 T3 Universal System Controller If the light sensor is enabled, there are two backlight levels to adjust. Press the left arrow or right arrow buttons to adjust. Press button when finished. With the light sensor enabled, the backlight brightness will automatically change between the two levels, depending upon the ambient lighting conditions.
-
Page 22: Time Out
Press the arrows to the left or right of the Time Out setting to adjust the time. Press the button when finished. This setting can have a significant effect on the run-time of the T3 between battery charges. During Sleep mode, the T3 uses virtually no battery power. -
Page 23: Tilt Switch
The tilt switch is a motion detector that turns the remote on when activated. On means the tilt switch is active and will wake-up the T3 when it is moved. Off means the tilt switch is inactive. -
Page 24: Battery
Operation BATTERY This button displays a window that allows you to adjust the relative amount of time that the low battery icon appears on the display. This setting will determine how much time you have between the appearance of the low battery warning and the battery becoming completely depleted. -
Page 25: Sound
T3 Universal System Controller SOUND This button displays a window that allows you to adjust the volume of the audible speaker. The speaker sound provides feedback that a button was pressed. Press the arrows to the left or right to adjust the volume. Press the button when finished. -
Page 26: Calibrate Touchscreen
Operation CALIBRATE TOUCHSCREEN This button runs a routine that allows you to calibrate the touchscreen. Since it normally should not be necessary to calibrate the touchscreen, this routine is included as a precaution only. Warning: Do not attempt to calibrate the touchscreen with your fingertip. -
Page 27: Programming The T3
The T3 is programmed using RTI’s TheaterTouch Designer software. RTI dealers can download the software free of charge from: www.rticorp.com/dealers A PC running Windows 98SE or higher with a USB port is ® required. The required USB cable is included with the RTI IR-PRO dealer kit. -
Page 28: Chapter 4. Troubleshooting
Verify that your PC is running Windows 98SE or higher. ® Verify that the T3 USB driver was installed the first time the T3 was connected to your PC. Verify that the T3 is present in the Device Manager within the Windows Control Panel. -
Page 29: Ir Code Problems
T3 Universal System Controller IR CODE PROBLEMS If you are using an IR repeater system, make sure it is working correctly with the original OEM remote. If not, you will need to troubleshoot the IR repeater system. If you are still having problems, try adjusting the IR code “Minimum... -
Page 30: Chapter 5. Service And Support
RTI TECHNICAL SUPPORT At RTI, customer service and satisfaction is an utmost priority. If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance. RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the following information ready, or provide it in your fax or e-mail. - Page 31 For Technical Support or assistance with your RTI product, contact RTI at: (952) 253-3137 support@rticorp.com www.rticorp.com/support For questions regarding Service or Repair of your RTI product, contact RTI at: (952) 253-3136 service@rticorp.com www.rticorp.com/service Please do not return products to RTI without return authorization.
-
Page 32: Specifications
Specifications Power 3.6 VDC, 1300 mAH Li-Ion Battery Pack Power Management Automatic On/Off (tilt switch) Infrared Control Range 30 Feet (9.1m) @ 60 Degrees Infrared Frequency Range 15kHz – 460kHz Radio Frequency Control Range Up to 100 Feet (30.5m) (with optional receivers) Radio Frequency Carrier 433MHz Operating Temperature... - Page 33 T3 Universal System Controller Battery Charge Time 3-4 Hours Total System Memory 32MBytes Flash (non-volatile) Device Capability Total number of devices limited only by memory Macro Capability Up to 64 steps per macro Total number of macros limited only by memory...
- Page 34 ® It’s Under Control R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d 7651 Anagram Drive Eden Prairie, MN 55344 Tel: 952-253-3100 Fax: 952-253-3131 www.rticorp.com...
