Ozito BJK-1010 Instruction Manual

Ozito BJK-1010 Instruction Manual

Biscuit joiner 1010w
Hide thumbs Also See for BJK-1010:
Table of Contents

Advertisement

Quick Links

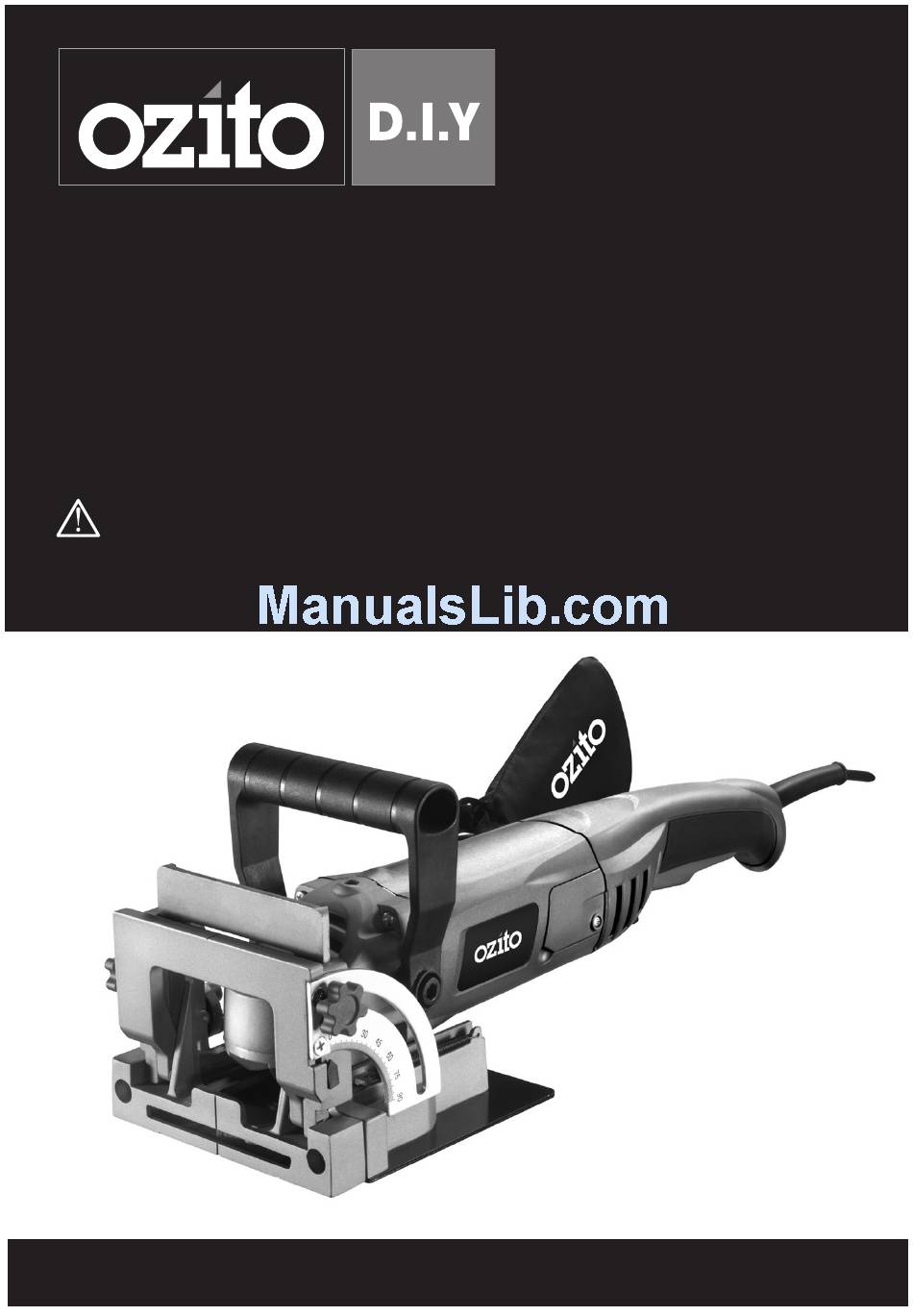

Biscuit Joiner
1010W
Instruction Manual
3 Year Replacement Warranty
BJK-1010
WARNING! Read all safety warnings and all instructions. Failure to follow
the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
0112
www.ozito.com.au
To view the full range visit:
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BJK-1010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ozito BJK-1010

Summary of Contents for Ozito BJK-1010

  • Page 1 1010W Instruction Manual 3 Year Replacement Warranty BJK-1010 WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 2: Specifications

    SpecificationS - model no. BJK-1010 motor Size: 1010W input: 230-240V~50Hz no-load speed: 11,000 min disc diameter: 100x22x4mm Blade bore diameter: 22mm max. cutting depth: 14mm fence adjustment: 0 - 90° Spindle dimension: M 10 Weight: 3.25kg KnoW your product Trigger switch (with safety lock off)

  • Page 3: Table Of Contents

    taBle of contentS SPECIFICATIONS ……………………………………….. Page 2 INTRODUCTION………………………………………… Page 4 ELECTRICAL SAFETY…………….……………………… Page 4 GENERAL POWER TOOL SAFETY WARNINGS……… Page 5 BISCUIT JOINER SAFETY WARNINGS ………………. Page 7 PREPARATION & SET-UP………………………………… Page 8 OPERATION……………………………………………… Page 12 BISCUIT GUIDE............Page 13 JOINTS.................

  • Page 4: Introduction

    The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

  • Page 5: General Power Tool Safety Warnings

    General poWer tool Safety WarninGS WarninG! read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”...
  • Page 6 General poWer tool Safety WarninGS d) remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

  • Page 7: Biscuit Joiner Safety Warnings

    BiScuit Joiner Safety WarninGS disc cutters must be rated for at least the speed marked on the tool. Disc cutters running over rated speed can fly apart and cause injury. always use the guard. The guard protects the operator from broken disc cutter fragments and unintentional contact with the disc cutter.

  • Page 8: Preparation & Set-Up

    preparation & Set-up make sure your biscuit joiner is unplugged before performing any of the preparation and setup operations described in this manual. WarninG! Failure to unplug your biscuit joiner could result in accidental starting causing possible serious personal injury. assembling the dust bag Ensure the zipper on the end of the dust bag (14) is closed.
  • Page 9 preparation & Set-up It is recommended that the centreline of the biscuit should be 65mm from the edge of the workpiece. Using a square, measure and mark a point 65mm from both edges of the workpiece. Draw the centreline of the biscuit.
  • Page 10 preparation & Set-up Your choice of biscuit is dictated by the size of the workpiece. The following table shows the relationship of the markings on the depth adjustment knob (9) to cutting depth and the biscuit used according to material thickness. marking Biscuit cutting depth...
  • Page 11 preparation & Set-up adjusting the height of the fence It is necessary to adjust the height of the fence to cater for different sized workpieces. The height should correspond to half of the material thickness of the workpiece taking into account the width of the blade. The groove for the biscuit should always be in the middle of the workpiece, unless you are joining thick workpieces, where multiple adjacent biscuit joins are sometimes used.

  • Page 12: Operation

    operation Ensure workpiece is clamped securely so that it will not move during the cut. (Fig. 14) Fig. 14 Plug your biscuit joiner into the power supply and prepare to make your first cut. Firmly grasp and hold your biscuit joiner with both hands using the assist handle (12) and rear handle (15).

  • Page 13: Biscuit Guide

    operation Repeat steps 9-12 for desired biscuit slots on all workpieces. Once all biscuit slots have been cut, place a biscuit in each joint and dry assemble the work pieces. Make sure each workpiece lines up and biscuits fit as required.

  • Page 14: Joints

    JointS types of Joints Types of joints that can be performed by your biscuit joiner are: Edge to edge joint Edge-to-edge joinery is one of the easiest joints to construct. It is commonly used when making larger panels from smaller boards. One such applicaation is a table top.

  • Page 15: Maintenance

    maintenance Spindle lock caution: never use the spindle lock while the machine is running. caution: never use the spindle lock to stop the motor. The spindle lock(11) (Fig. 19) is located on top of the gearbox casing. The purpose of the spindle lock(11) is to prevent the blade from turning to enable easy blade removal.
  • Page 16 Brushes should be replaced before they wear out. Both brushes should be replaced at the same time. Please see your authorised service agent to provide this service. note: Ozito Industries will not be responsible for any damage or injuries caused by repair of the biscuit joiner by an unauthorised person or by mishandling.

  • Page 17: Troubleshooting

    Check the mains power, power cord, extension On/Off switch broken cord, plug and house Carbon brushes are worn fuse. Motor Defective Contact Ozito customer service Biscuit joiner works Damaged electricity Check power cable. If intermittently power cord damaged, contact Ozito customer service.

  • Page 18: Spare Parts

    Spare partS Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to order the required spare parts. most common spare parts listed below Spare part part no. Blade ACBJ-0001 Assist Handle SPBJK1010-23 Switch SPBJK1010-29 Carbon brushes (pair) SPBJK1010-38...

  • Page 19: Pack Contents

    Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. pacK contentS 1 x Biscuit Joiner BJK-1010 1 x Pin Spanner 1 x Dust Bag 1 x Carbon Brush (set)

  • Page 20: Warranty

    3 year replacement Warranty Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty.
