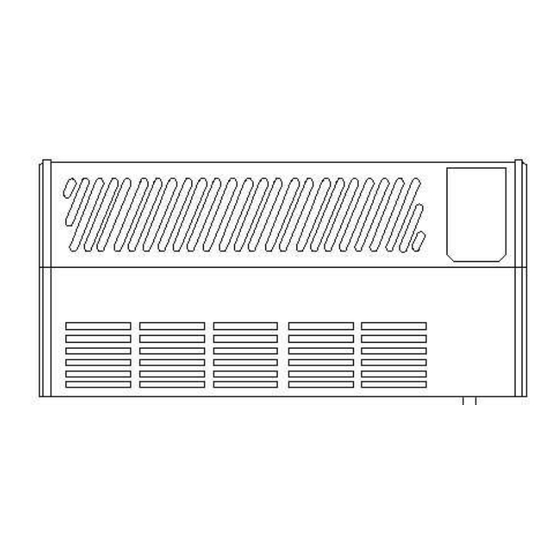

Signature, Sovereign, Sentry, Sentinel, Staccato
Fan-Assisted Radiator
Installation & User Guide
Dear Installer,
The following items should be included in the carton;
• Product complete with pre-wired mains cable
• Mounting Bracket
In the event of items missing or visible damage please contact our After Sales Service on
01245 324560.
We would be most grateful if you would leave this Installation & User Guide and the
Guarantee Registration Card with the owner.
Thank you for your co-operation
Steve Russell
Customer Service Manager
Advertisement
Related Manuals for Smith's Heating First Signature
Summary of Contents for Smith's Heating First Signature
- Page 1 Signature, Sovereign, Sentry, Sentinel, Staccato Fan-Assisted Radiator Installation & User Guide Dear Installer, The following items should be included in the carton; • Product complete with pre-wired mains cable • Mounting Bracket In the event of items missing or visible damage please contact our After Sales Service on 01245 324560.
-
Page 2: Installation Guide
Introduction These heaters are primarily intended for installation directly onto a wall at low level. They must not be installed in bathrooms or other high humidity areas. Please contact us on 01245 324900 for details of products suitable for these applications. The minimum recommended installation height from the floor to the underside of the heater is 100mm. - Page 3 Hang the heater onto the bracket and secure with fixings suitable for the wall. Signature & Sovereign Models It will be necessary to remove the bleed screw cover-plate situated at the top left hand side of the unit above the supply pipe work.
- Page 4 Commissioning 1. Turn on the electrical supply at the fused spur 2. Turn the thermostat control to maximum. For Signature & Sovereign models the heater controls are behind the access panel on the right hand side of the heater. 3. Set the controls to Air Circulation setting – see User Guide.
-
Page 5: Fault Finding
∆t 60°C ∆t 50°C Model Normal Boost Normal Boost kW (Btu/h) kW (Btu/h) kW (Btu/h) kW (Btu/h) Signature/Sovereign 7 1.3 (4400) 1.8 (6100) 1.1 (3800) 1.4 (4700) Signature/Sovereign 14 2.7 (9200) 3.6 (12300) 2.1 (7200) 2.9 (9900) Signature/Sovereign 21 4.1 (14000) 5.4 (18400) -
Page 6: User Guide
Signature, Sovereign, Sentry, Sentinel, Staccato Fan-Assisted Radiator User Guide Dear Customer We are delighted you have chosen our products and trust you are satisfied with the installation. We would ask you to take a few minutes to read through this User Guide. This will help you gain maximum benefit from your fan-assisted radiator. - Page 7 II (boost). Moving the heat-output switch to O will turn off the product. Air Circulation - Sentry, Sentinel, Signature/Sovereign 7, 14 & 21 models – see diagram A Ensure you central heating is OFF. Set the thermostat to maximum (7), the heat-output switch to I or II and push in the fan-only switch.
- Page 8 Air Circulation - Signature 30 & Sovereign 30 – see diagram C Ensure you central heating is OFF. Set the thermostat to maximum (7), the heat output switch to I or II and set the fan-only switch to BLUE. The product will provide a cooling flow of air.
