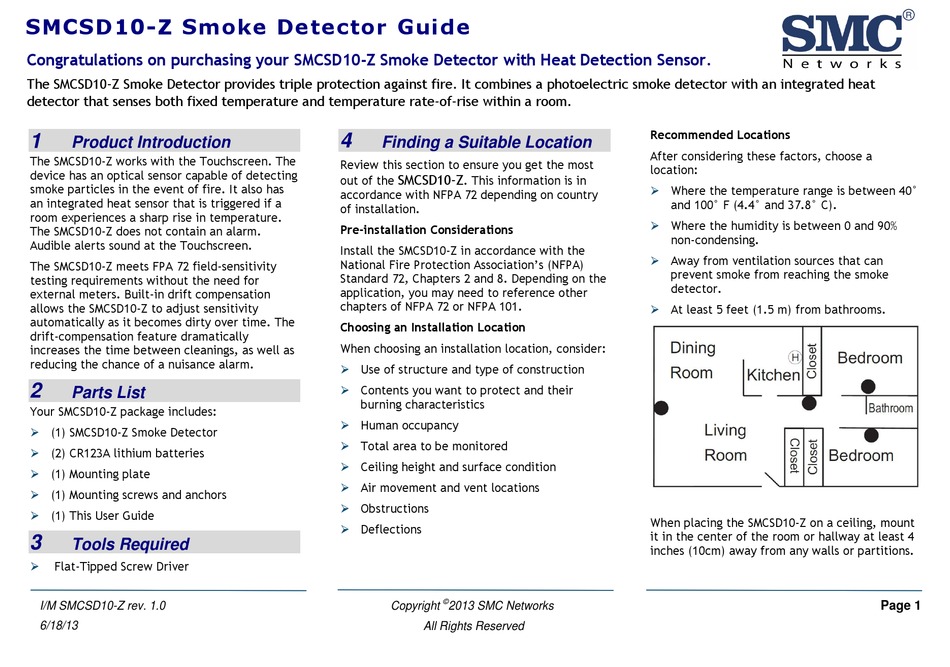

SMCSD10-Z Smoke Detector Guide
Congratulations on purchasing your SMCSD10-Z Smoke Detector with Heat Detection Sensor.
The SMCSD10-Z Smoke Detector provides triple protection against fire. It combines a photoelectric smoke detector with an integrated heat
detector that senses both fixed temperature and temperature rate-of-rise within a room.
1
Product Introduction
The SMCSD10-Z works with the Touchscreen. The
device has an optical sensor capable of detecting
smoke particles in the event of fire. It also has
an integrated heat sensor that is triggered if a
room experiences a sharp rise in temperature.
The SMCSD10-Z does not contain an alarm.
Audible alerts sound at the Touchscreen.
The SMCSD10-Z meets FPA 72 field-sensitivity
testing requirements without the need for
external meters. Built-in drift compensation
allows the SMCSD10-Z to adjust sensitivity
automatically as it becomes dirty over time. The
drift-compensation feature dramatically
increases the time between cleanings, as well as
reducing the chance of a nuisance alarm.
2
Parts List
Your SMCSD10-Z package includes:
(1) SMCSD10-Z Smoke Detector
(2) CR123A lithium batteries
(1) Mounting plate
(1) Mounting screws and anchors
(1) This User Guide
3
Tools Required
Flat-Tipped Screw Driver
I/M SMCSD10-Z rev. 1.0
6/18/13
4
Finding a Suitable Location
Review this section to ensure you get the most
SMCSD10-Z
out of the
. This information is in
accordance with NFPA 72 depending on country
of installation.
Pre-installation Considerations
Install the SMCSD10-Z in accordance with the
National Fire Protection Association's (NFPA)
Standard 72, Chapters 2 and 8. Depending on the
application, you may need to reference other
chapters of NFPA 72 or NFPA 101.
Choosing an Installation Location
When choosing an installation location, consider:
Use of structure and type of construction
Contents you want to protect and their
burning characteristics
Human occupancy
Total area to be monitored
Ceiling height and surface condition
Air movement and vent locations
Obstructions
Deflections
©
Copyright
2013 SMC Networks
All Rights Reserved
Recommended Locations
After considering these factors, choose a
location:
Where the temperature range is between 40°
and 100° F (4.4° and 37.8° C).
Where the humidity is between 0 and 90%
non-condensing.
Away from ventilation sources that can
prevent smoke from reaching the smoke
detector.
At least 5 feet (1.5 m) from bathrooms.
When placing the SMCSD10-Z on a ceiling, mount
it in the center of the room or hallway at least 4
inches (10cm) away from any walls or partitions.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMCSD10-Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMC Networks SMCSD10-Z

  • Page 1 Congratulations on purchasing your SMCSD10-Z Smoke Detector with Heat Detection Sensor. The SMCSD10-Z Smoke Detector provides triple protection against fire. It combines a photoelectric smoke detector with an integrated heat detector that senses both fixed temperature and temperature rate-of-rise within a room.
  • Page 2 In rooms with sloped, peaked, or gabled ceilings, areas. alarm may not be heard. A sound sleeper or place the SMCSD10-Z 3 feet (.9 m) down or away someone who has taken drugs or alcohol may not Near heating/air conditioning vents, fans, ...
  • Page 3: Installing / Replacing Battery

    Touchscreen. SMCSD10-Z to unsnap it and lift it off. The SMCSD10-Z ships with a dust cover for Is active. New sensors must be activated as protection on construction sites with dusty follows: Turn the back cover counter- environments.
  • Page 4: Mounting The Sensor

    Change the details as Line up the raised alignment tab on the lip needed or tap Next to cycle through all the of the SMCSD10-Z with the arrow on the sensors. The sensors are marked as mounting base.
  • Page 5: Basic Operation

    Touchscreen documentation. signal strength and other parameters. Using Smoke Using Test Button The SMCSD10-Z can be tested during install or at Press the SMCSD10-Z Test button for 10-to-15 Defaulting the Detector any time. It is recommended the SMCSD10-Z be seconds. The SMCSD10-Z sends a signal to the tested in place annually.
  • Page 6 Status header shows that some zones have one in the battery well. The RF Module LED flashes three times to been bypassed. signal the SMCSD10-Z is not paired with a Touchscreen. Deleting a Sensor Reinstall the top cover. Deleting a sensor from the premises removes it as a monitored within the customer’s system.
  • Page 7: Maintenance

    Maintenance an overall operational status. After the LED 8 - 9 Smoke Verify smoke chamber is The SMCSD10-Z is designed for a long service life flashes: detector is snapped down securely. Clean of 10-years. Although the Touchscreen might becoming too smoke detector and replace the ...
  • Page 8: Troubleshooting

    SMCSD10-Z Smoke Detector Guide  Be sure the SMCSD10-Z is enrolled into the Insert the cap into the smoke detector and Touchscreen properly. turn clockwise approximately 15 degrees. The cap snaps firmly into place when secure. Check with your Cable Operator to make sure ...
  • Page 9: Specifications

    SMCSD10-Z Smoke Detector Guide Specifications Compatible panel OpenHome Touchscreens Power Two CR123 battery 3.0 VDC lithium Battery type Panasonic CR123A, Sanyo 123A, Duracell DL123A ® ® Standby Current 35 A (typically) Battery Life 5 years (typically) USensor Photoelectric Sensitivity 2.2% +/- 1.3% / ft.
  • Page 10 RoHS Directive NFPA 72, 2-1.4.2.2 Partial Coverage 2002/95/EC RoHS Compliant. Hereby, SMC Networks declares that this product does not contain lead, mercury, cadmium, NFPA 72, 8-1.4.1.3.2 Detection in New Apartment If required, partial detection systems shall be provided in...
  • Page 11 SMCSD10-Z Smoke Detector Guide  Conformité Réglementaire If you have children and/or physically challenged Ce dispositif est conforme à la réglementation de la IC et people residing in your household, use window decals (Partie 15) de la FCC. Son fonctionnement est soumis à...
