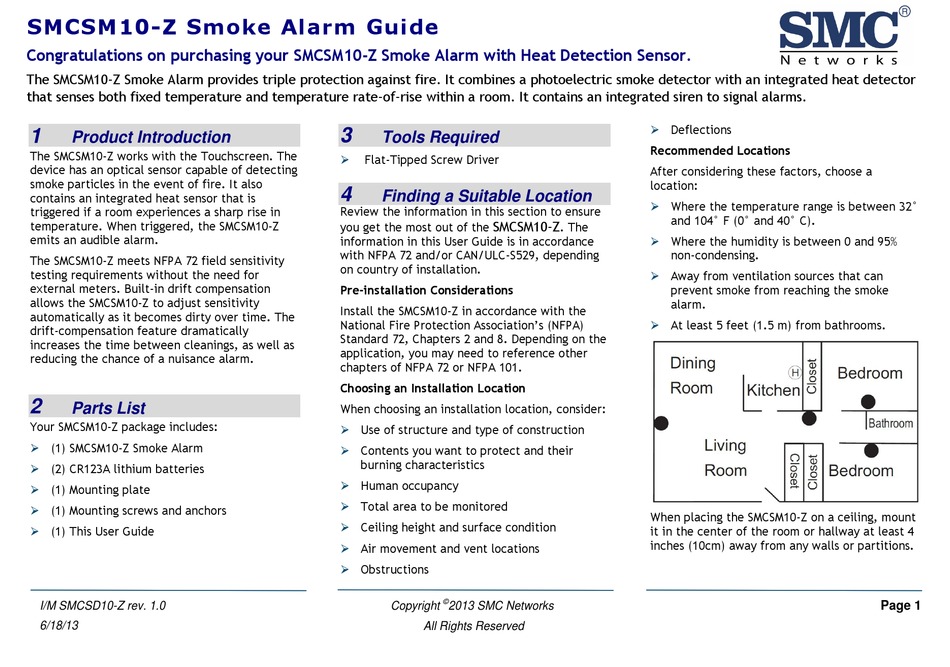

SMCSM10-Z Smoke Alarm Guide
Congratulations on purchasing your SMCSM10-Z Smoke Alarm with Heat Detection Sensor.
The SMCSM10-Z Smoke Alarm provides triple protection against fire. It combines a photoelectric smoke detector with an integrated heat detector
that senses both fixed temperature and temperature rate-of-rise within a room. It contains an integrated siren to signal alarms.
1
Product Introduction
The SMCSM10-Z works with the Touchscreen. The
device has an optical sensor capable of detecting
smoke particles in the event of fire. It also
contains an integrated heat sensor that is
triggered if a room experiences a sharp rise in
temperature. When triggered, the SMCSM10-Z
emits an audible alarm.
The SMCSM10-Z meets NFPA 72 field sensitivity
testing requirements without the need for
external meters. Built-in drift compensation
allows the SMCSM10-Z to adjust sensitivity
automatically as it becomes dirty over time. The
drift-compensation feature dramatically
increases the time between cleanings, as well as
reducing the chance of a nuisance alarm.
2
Parts List
Your SMCSM10-Z package includes:
(1) SMCSM10-Z Smoke Alarm

(2) CR123A lithium batteries

 (1) Mounting plate
 (1) Mounting screws and anchors
 (1) This User Guide
I/M SMCSD10-Z rev. 1.0
6/18/13
3
Tools Required
 Flat-Tipped Screw Driver
4
Finding a Suitable Location
Review the information in this section to ensure
SMCSM10-Z
you get the most out of the
information in this User Guide is in accordance
with NFPA 72 and/or CAN/ULC-S529, depending
on country of installation.
Pre-installation Considerations
Install the SMCSM10-Z in accordance with the
National Fire Protection Association's (NFPA)
Standard 72, Chapters 2 and 8. Depending on the
application, you may need to reference other
chapters of NFPA 72 or NFPA 101.
Choosing an Installation Location
When choosing an installation location, consider:
 Use of structure and type of construction
 Contents you want to protect and their
burning characteristics
 Human occupancy
 Total area to be monitored
 Ceiling height and surface condition
 Air movement and vent locations
 Obstructions
©
Copyright 2013 SMC Networks
All Rights Reserved
Deflections

Recommended Locations
After considering these factors, choose a
location:
 Where the temperature range is between 32°
and 104° F (0° and 40° C).
. The
 Where the humidity is between 0 and 95%
non-condensing.
 Away from ventilation sources that can
prevent smoke from reaching the smoke
alarm.
 At least 5 feet (1.5 m) from bathrooms.
When placing the SMCSM10-Z on a ceiling, mount
it in the center of the room or hallway at least 4
inches (10cm) away from any walls or partitions.
