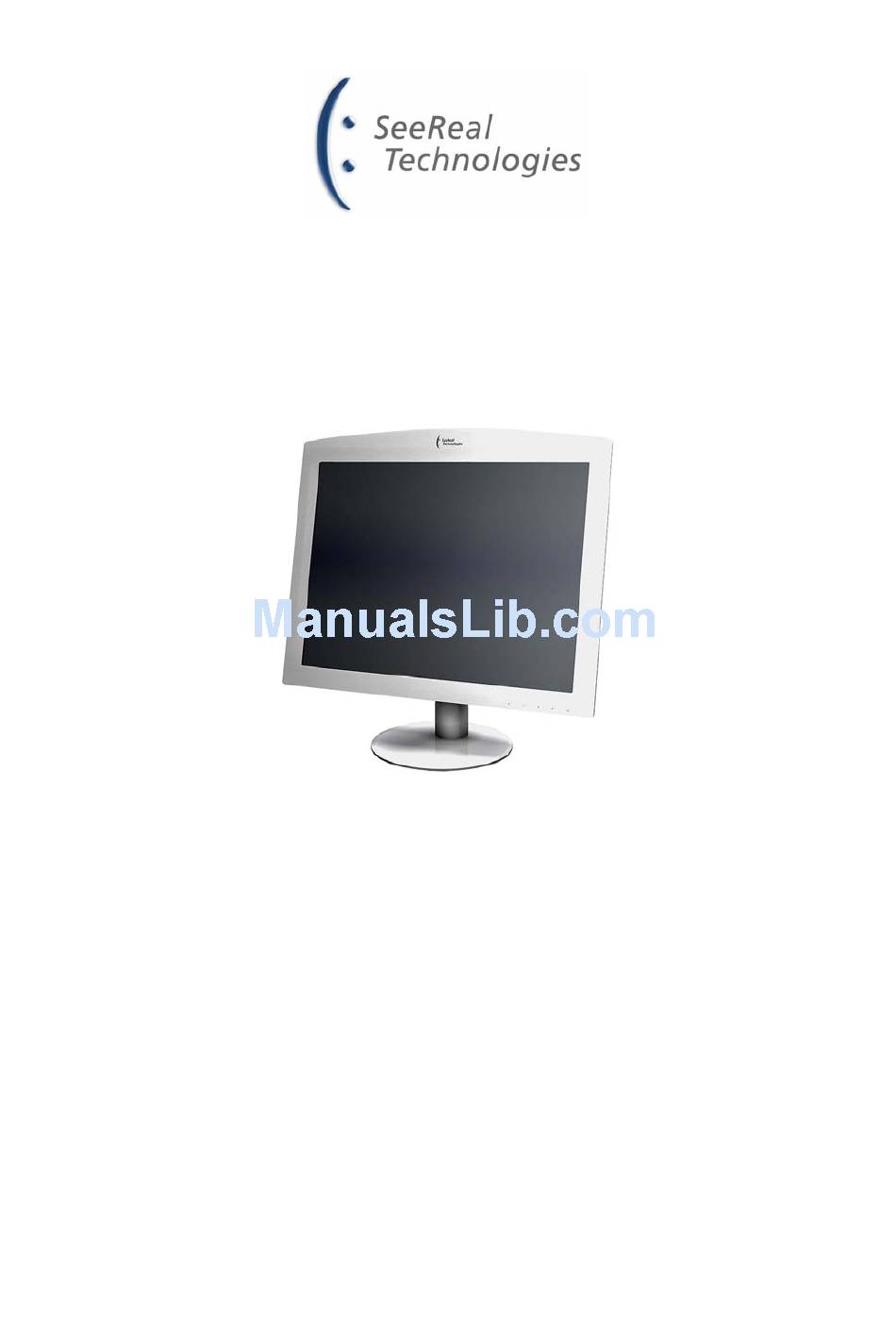

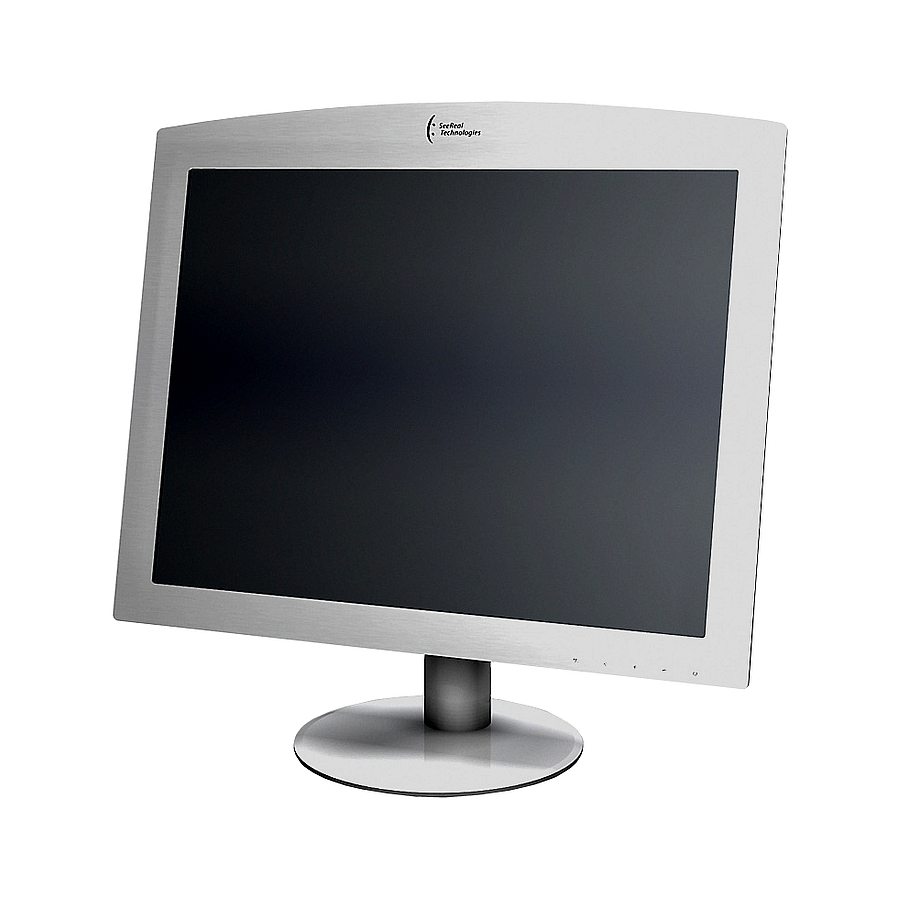

- Page 1 Autostereoscopic 3D Display "C" Product Line "Cn" Model Operating Manual...
- Page 2 Before you switch on the display for the first time, please make sure to carefully read this operating manual. SeeReal Technologies uses standard branded panels as the basis for the production of this autostereoscopic display. For basic information on the panel and safety regulations, please refer to the manufacturer's manual attached on TECHNICAL DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.
-
Page 3: Table Of Contents
SeeReal Technologies Cn Display Operating Manual Table of contents Table of contents Safety first !..................4 Applications and function ..............6 First-time operation................7 Installation ................... 7 Connection .................. 7 Switching on ................7 Hard- and software ..............8 Functional Principle ..............9 Display controls .................. -
Page 4: Safety First
SeeReal Technologies Cn Display Operating Manual 1. Safety first ! 1 Safety first ! Possible side effects: When operating a Cn display, you may experience side effects such as: • Headache or strain of the eyes • Dizziness, nausea or queasiness •... - Page 5 SeeReal Technologies Cn Display Operating Manual 1. Safety first ! • Individuals who have a poor or no spatial sight • Pregnant women and • Individuals under the influence of drugs and alcohol Termination of use: SeeReal recommends that you stop using the Cn display immediately if you experience any discomfort of any nature including but not limited to the side effects listed above such as headache, nausea, eye strain, dizziness etc.
-
Page 6: Applications And Function
SeeReal Technologies Cn Display Operating Manual 2. Applications and function 2 Applications and function Using the "Cn" display, images and videos with stereoscopic content can be displayed and viewed without any additional image separating equipment (e.g. glasses etc.). This way, the user receives an image of a scene that is truly three- dimensional and extremely close to reality. -
Page 7: First-Time Operation
SeeReal Technologies Cn Display Operating Manual 3. First-time operation 3 First-time operation 3.1 Installation Make sure to place the display in a fixed position, dry and well-ventilated. Protect from moisture, undue heat or cold and areas containing excess dirt. 3.2 Connection 1. -
Page 8: Hard- And Software
SeeReal Technologies Cn Display Operating Manual 3. First-time operation 3.4 Hard- and software Resolution and refresh rate The display works with a resolution of 1600 x 1200 pixels and with a refresh rate of 60 Hz. Other resolutions are not supported for stereo display. -
Page 9: Functional Principle
SeeReal Technologies Cn Display Operating Manual 3. First-time operation The display can be used at workplaces with one- or two-monitor-operation. If you do not only want to display stereoscopic content but also applications with 2D elements, we would recommend using an ordinary monitor as the second one. -
Page 10: Display Controls
SeeReal Technologies Cn Display Operating Manual 4. Display controls 4 Display controls The display is controlled by 7 buttons on the right side of the monitor (see Figure 3). The buttons povide functionality as following: Switch monitor on/off Show/hide main menu... -
Page 11: Cleaning
SeeReal Technologies Cn Display Operating Manual 5. Cleaning 5 Cleaning Warning! Always disconnect power supply before carrying out any cleaning work! Never use any hard or sharp objects that might scratch the protective screen or the housing when cleaning. Do not use any aggressive cleaning agents such as solvent, benzine, scrubbing detergents, spray-on cleaners, acid or alkaline solutions, or wax. -
Page 12: Transport
6 Transport The display may only be transported in an adequate, solid transportation box. SeeReal Technologies does not take responsibility for any damages to the display during transport that result from inadequate packaging or improper handling of the product by a third party. -
Page 13: Scope Of Delivery
SeeReal Technologies Cn Display Operating Manual 7. Scope of delivery 7 Scope of delivery The following accessories will come enclosed with your "Cn" display: "Cn" display operating manual on CD-ROM 3D demo CD-ROM Mains cable and DC power supply with round low-voltage connector for... -
Page 14: Technical Data
SeeReal Technologies Cn Display Operating Manual 8. Technical data 8 Technical data General data Distance 760 mm Sweetspot - width > 45 mm - depth ca. 200 mm Number of viewers Size 20.1" Resolution 1600 x 1200 pixels Stereo resolution... -
Page 15: Address
SeeReal Technologies Cn Display Operating Manual 9. Address 9 Address SeeReal Technologies GmbH Blasewitzer Str. 43 01307 Dresden / Germany Phone: +49 (0) 351 450 3240 Fax: +49 (0) 351 450 3250 Web: www.seereal.com eMail: info@seereal.com Support: support@seereal.com - 15 -...
