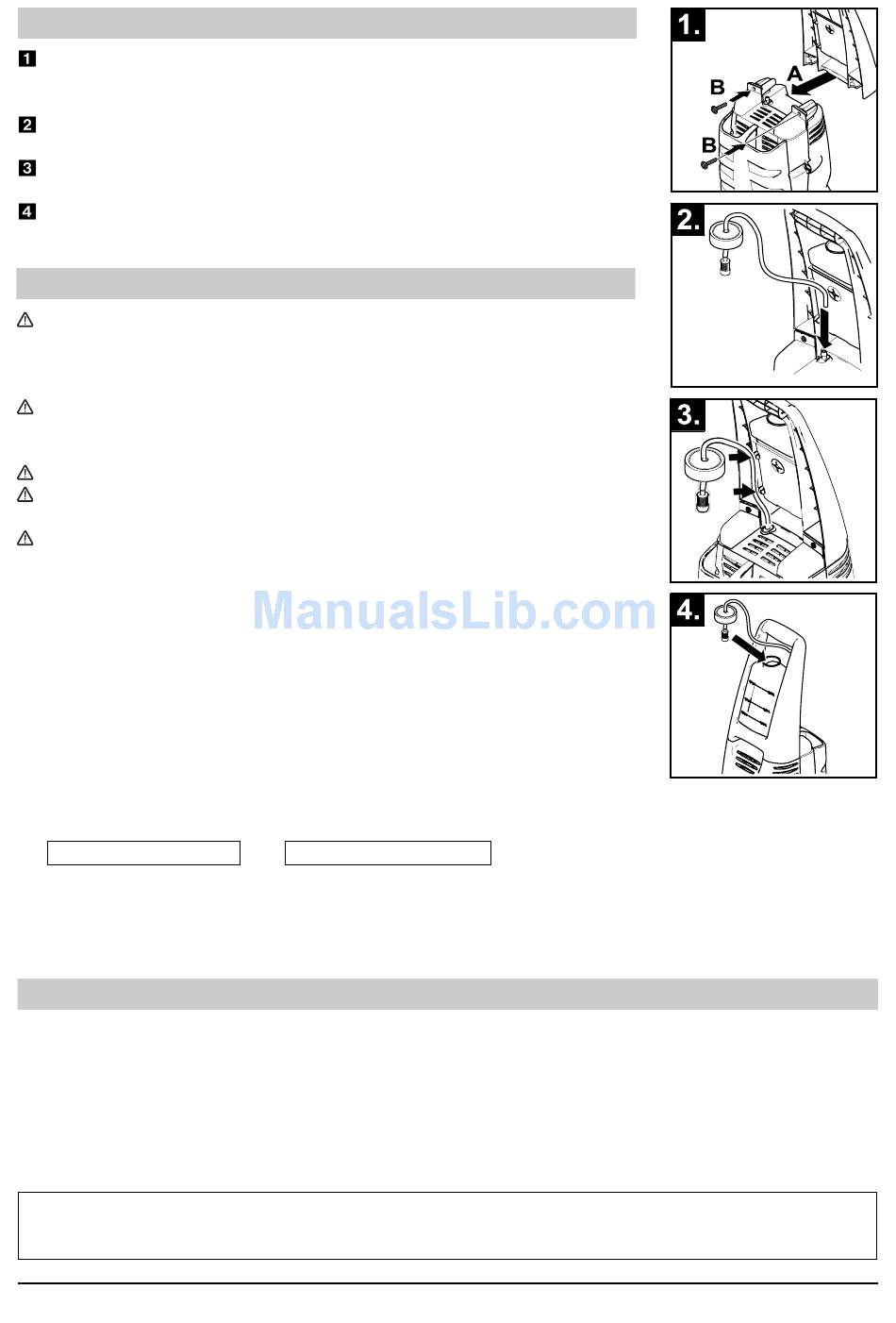

Attaching the Transport Handle and Detergent Tank

A) Slide the transport handle on to the casing.
B) Fasten the transport handle using the two screws provided for the
purpose.
Insert the detergent suction hose with the filter on the connection
nipple.
Also fasten the detergent suction hose in the two guides of the trans-
port handle.
Insert the detergent suction hose with the filter in the detergent tank
and close it with a lid.
Never use defect connection or extension cables! If the connec-
tion cable is damaged, it must be replaced with a special
connection cable that is available from the manufacturer or his
customer service.
Please make sure that the connection or extension cables are
not damaged by being ran over, pulled or dragged. Protect the
connection cables from heat, oil, and sharp edges.
Never touch the mains plug and the socket with wet hands.
The connection between connection cable and extension cable
must not lie in the water.
All current-carrying components within the working area must be
jet-proof.
- The appliance may only be connected to an electrical connection
that was performed by an electrician according to IEC 60364.
- Only connect the appliance to alternating current. The voltage
must comply with the voltage specified on the rating plate.
- Minimum fuse protection of the socket 10 A (delay-action fuse).
- To avoid electric accidents, we recommend to use sockets with
a series connected residual current operated device (rated
breaking current max. 30 mA).
- Warning: Inappropriate extension cables may be dangerous. If
you work outside, only use extension lines that are approved and
specifically labelled and provide of a sufficient conductor cross
section:
1 to 10 m: 1.5 mm²
- The plug and the coupling of an extension cable must be
waterproof.
- Always unwind the extension cable completely from the cable
drum.
Please conform with the regulations of the water supply company.
The water supply may not exceed 10 litres/minute; the water may have a maximum temperature of
40 °C and a maximum pressure of 12 bar.
Note: The unit must be connected to the drinking water supply mains via a non-return valve.

Water hose (not in supply kit):

Use a fabric-reinforced hose with a commercially available quick-fitting coupling. The hose should
have an internal diameter of at least 1/2" 13 mm) and a length of at least 7,5 m.
Attention: Dirt in the water supply can damage the unit. We recom-
mend the use of a water filter, 3/4" fitting, to avoid this.
4

Electrical Connection

10 to 30 m: 2.5 mm²

Water connection
