2000W PRESSURE WASHER
Now you have purchased a PowerCraft
product you can rest assured in the
knowledge that as well as your 3 year parts
and labour warranty you have the added
peace of mind of dedicated helplines and
web support.
AFTER SALES SUPPORT
UK / N.IRELAND HELPlINE NO
REP . IRELAND HELPLINE NO
AFTER SALES SUPPORT
MODEL NUMBER: 43736
MONTH ON SALE: 10/2010
User Guide &
Original Manual
0151 649 1500
1890 946 6244
www.einhell-uk.co.uk
Warranty
Advertisement
Related Manuals for Power Craft PCPW 135
Summary of Contents for Power Craft PCPW 135
- Page 1 2000W PRESSURE WASHER User Guide & Warranty Original Manual Now you have purchased a PowerCraft product you can rest assured in the knowledge that as well as your 3 year parts and labour warranty you have the added peace of mind of dedicated helplines and web support.
-
Page 2: Table Of Contents
Contents 03 Introduction 04 Assembly and Parts List 10 Getting Started 11 Instructions 14 Other Useful Information 15 FAQ Packaging The unit is supplied in packaging to prevent its contents being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system. -
Page 3: Introduction
Introduction Congratulations on choosing to buy a PowerCraft product. By doing so you now have the assurance and peace of mind that comes with purchasing a product made by one of Europe’s leading manufacturers. All products brought to you by PowerCraft are manufactured to the highest standards of performance and safety, and, as part of our philosophy for customer service and satisfaction,... -
Page 4: Assembly And Parts List
Assembly & Parts List Important! When using equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place so that the information is available at all times. If you give the equipment to any other person, give them these operating instructions as well. - Page 5 Assembling the equipment Assemble the high-pressure cleaner as shown in Fig. 2-7. Water inlet connector (Fig. 1/13) The connection for the water inlet (13) is equipped with a connector for standard hose coupling systems. Remove the transport cap (fig.5) and attach the hose coupling on the supply hose (min.
- Page 6 Helpline No. UK/Northern Ireland 0151 6491500 Rep. Ireland 1890 946244 Web Support www.einhell-uk.co.uk Model Number: 43736...
- Page 7 Helpline No. UK/Northern Ireland 0151 6491500 Rep. Ireland 1890 946244 Web Support www.einhell-uk.co.uk Model Number: 43736...
- Page 8 Helpline No. UK/Northern Ireland 0151 6491500 Rep. Ireland 1890 946244 Web Support www.einhell-uk.co.uk Model Number: 43736...
- Page 9 Proper use The high-pressure cleaner is designed to clean vehicles, machines, buildings, facades, etc. in the private sector. The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
-
Page 10: Getting Started
Getting Started Before putting the machine into operation Correctly using the device • The high-pressure cleaner must be set on a level, stable surface. • It is recommended that you maintain the correct operating position every time you use the machine by placing one hand on the pistol and the other on the lance. • Never direct the water jet toward electrical lines or the machine itself. • It is normal for the pump to leak a little; this is necessary to avoid damage to the pump when it is at a standstill. -
Page 11: Instructions
Instructions Operation The equipment consists of an assembly with a pump, which is encased in a shock absorbing housing. The equipment comes with a lance and a non-slip gun (for an optimal working position), whose shape and configuration comply with the applicable regulations. Using for the first time Once you have completely assembled the high-pressure cleaner and connected all connections, proceed as follows:... - Page 12 Cleaning, maintenance and ordering of spare parts Important! Always pull out the mains power plug before starting any cleaning work. Cleaning • Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure. • We recommend that you clean the device immediately each time you have finished using it.
- Page 13 Cleaning the nozzle (Fig. 12) Use the supplied wire (A) to clean clogged nozzles. Ordering replacement parts Please quote the following data when ordering replacement parts: • Type of machine • Article number of the machine • Identification number of the machine • Replacement part number of the part required For our latest prices and information please go to www.einhell-uk.co.uk Disposal and recycling The unit is supplied in packaging to prevent its being damaged in transit.
- Page 14 Useful Information Technical data Mains voltage: 230-240 V ~ 50 Hz Power input: 2000 W Operating pressure (EW bar): (135 bar) Delivery rate: 6 l/min Max. water inlet pressure: 0.4 MPa (4 bar) Totally insulated: Sound pressure level LpA: 75 dB Sound power level LWA: 97 dB Weight: 10 kg Directive:...
-
Page 15: Faq
Helpline No. UK/Northern Ireland 0151 6491500 Rep. Ireland 1890 946244 Web Support www.einhell-uk.co.uk Model Number: 43736... - Page 16 For EU countries only Never place any electric tools in your household refuse. To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g.
- Page 17 Helpline No. UK/Northern Ireland 0151 6491500 Rep. Ireland 1890 946244 Web Support www.einhell-uk.co.uk Model Number: 43736...
- Page 18 Helpline No. UK/Northern Ireland 0151 6491500 Rep. Ireland 1890 946244 Web Support www.einhell-uk.co.uk Model Number: 43736...
- Page 19 Helpline No. UK/Northern Ireland 0151 6491500 Rep. Ireland 1890 946244 Web Support www.einhell-uk.co.uk Model Number: 43736...

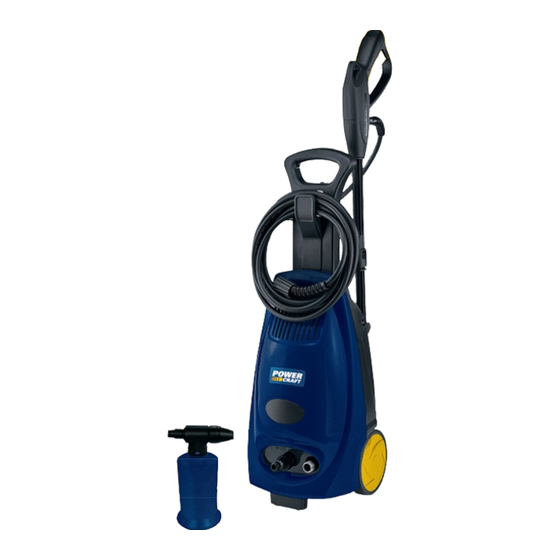

- Page 20 2000W PRESSURE WASHER PCPW-135 PCPW-135 10/2010...
