Kozy-World KWP800 User's Installation, Operation And Maintenance Manual

Kozy-World KWP800 User's Installation, Operation And Maintenance Manual

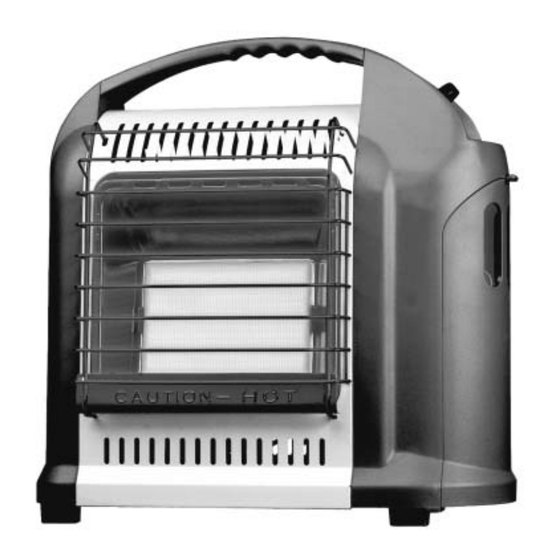

Portable gas-fired heater

Advertisement

Quick Links

Kozy-World PORTABLE
GAS-FIRED HEATER
USER S INSTALLATION, OPERATION AND MAINTENANCE MANUAL
MODEL:KWP800 (PROPANE, 8,000/4,500 BTU/HR)
WARNING : IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
- DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
- AN LP CYLINDER NOT CONNECTED FOR USE SHALL NOT BE STORED IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE.
- WHAT TO DO IF YOU SMELL GAS
DO NOT TRY TO LIGHT APPLIANCE.
EXTINGUISH ANY OPEN FLAME.
SHUT OFF GAS TO APPLIANCE OR DISCONNECT FROM FUEL SUPPLY.
- SERVICE MUST BE PERFORMED BY A QUALIFIED SERVICE AGENCY.
CALIFORNIA PROP 65- FUELS IN GAS OR OIL-FIRED APPLIANCES AND THE PRODUCTS OF COMBUSTION OF SUCH
FUELS, CONTAIN CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS AND
OTHER REPRODUCTIVE HARM.
THIS IS AN UNVENTED GAS-FIRED HEATER. IT USES AIR(OXYGEN) FROM THE AREA IN WHICH IT IS USED.
ADEQUATE COMBUSTION AND VENTILATION AIR MUST BE PROVIDED. REFER TO PAGE NO. 3.
CONSUMER : RETAIN THIS MANUAL FOR FUTURE REFERENCE.
P/NO. S3HTA0021C
Charley's Home Page
FOR YOUR SAFETY
Charley's Greenhouses
9/04 Rev. 0
See All Heaters

Advertisement

loading
Need help?

Need help?

Do you have a question about the KWP800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kozy-World KWP800

  • Page 1 GAS-FIRED HEATER USER S INSTALLATION, OPERATION AND MAINTENANCE MANUAL MODEL:KWP800 (PROPANE, 8,000/4,500 BTU/HR) WARNING : IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
  • Page 2 Warranty Information SPECIFICATIONS; DANGER : CARBON MONOXIDE HAZARD This appliance produces carbon monoxide which has no ODOR. Carbon monoxide poisoning may lead to death. MODEL NO. KWP800 PROPANE INPUT RATIING 8,000/4,500 BTU/HR REGULATOR SETTING 11.0 W.C. MANIFOLD PRESSURE 10.7 W.C.
  • Page 3 GENERAL SAFETY INSTRUCTIONS: When used indoors, This heater requires an open area (window or roof vent) of 8 square inches for adequate Accidents are always tragic, especially because so many of combustion and ventilation air. them could have been prevented with little care and judgment. WARNING: If the recreational or commercial enclosure does The following are basic good practices, we hope you will follow...
  • Page 4 UNPACKING: Remove heater from carton. Remove all protective packaging applied to heater Minimum 5.3 (134.5mm) Minimum for shipment. from sides to Check heater for any shipping damage. If heater is adjacent damaged, promptly inform dealer/distributor where wall Right side you bought the heater. PRODUCT FEATURES: Minimum Self Contained...
  • Page 5 PROPANE CYLINDER REMOVAL: Lift and rotate propane cylinder as shown in Fig. 6. Disconnect cylinder by turning counter clockwise. Fig. 2 Attach only 16.4 oz (1 lb.) propane cylinder to regulator inlet fitting by turning cylinder clockwise as shown in Fig. Fig.
  • Page 6 Check for leaks by applying soap solution to cylinder and A listed overfilling prevention device. regulator connection. A shutoff valve terminating a propane gas cylinder valve outlet QCV-Type 1. 4. Push in gas control knob slightly and turn counterclockwise A safety relief valve having direct contact with the vapor to PILOT / IGN .
  • Page 7 NOTE: SAFETY Heater takes few minutes for the burner plaque to glow bright orange, it is normal and the heater is operating properly. BEWARE CAUTION: After heater shutdown, heater guard area will remain hot. Allow approx. 20 minutes SPIDERS for cooling before storing. CAUTION : BURNER TUBES MUST BE IN- SPECTED AND CLEANED BEFORE FIRST USE.
  • Page 8 In order to clean ODS pilot orifice, use pressurized air to blow dust out. Sometimes blowing air backwards through the pilot will get rid of the accumulated dirt. If that does not work, blow out any dust through primary air openings; CORRECT INCORRECT Air Passageways &...
  • Page 9: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE WHAT TO DO Piezo igniter does not produce 1. Spark electrode positioned wrong. 1. Adjust spark gap and/or replace spark, when control knob is spark electrode. pressed in and turned 2. Spark electrode broken. 2. Replace spark electrode. counterclockwise to ignition.
  • Page 11 DESCRIPTION PART PART NO. Q TY RIGHT SIDE - BEIGE S1HTA0002A COUNTERSUNK HEAD SCREW DOOR - BEIGE S2HTA0001A COUNTERSUNK HEAD SCREW CONTROL KNOB S3PHI0008A VALVE ASSEMBLY S1PMV0002A CONNECTOR ASSEMBLY S3HTA0003A REGULATOR S3PHZ017B REGULATOR BRACKET S3HTA0013A HANDLE - BEIGE S2HTA0002A TUBING OUTLET ASSEMBLY S2HTA0009A REAR PANEL - BEIGE S1HTA0008A...
  • Page 12 1 year from the date of retail sale. MARKETING OF AMERICA BE LIABLE FOR INCIDENTAL OR World Marketing of America, Inc., at it’s option will either provide CONSEQUENTIAL DAMAGES. replacement parts, replace or repair the unit, when properly returned to us.
