Summary of Contents for Marcum Technologies Showdown 5.6

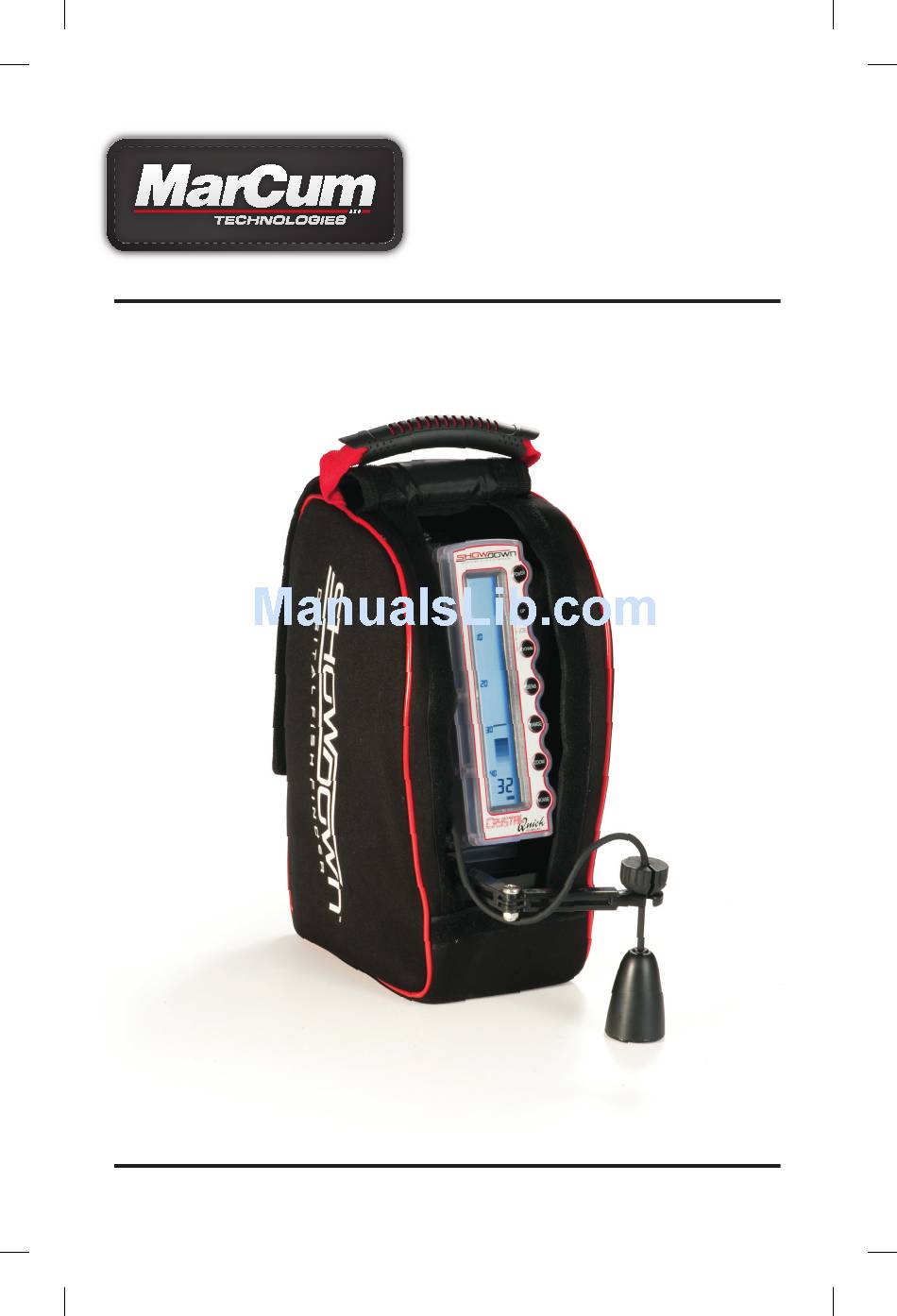

- Page 1 Showdown 5.6 Digital Fish Finder User Manual www.marcumtech.com...
-
Page 2: Table Of Contents
Caring For Your Showdown 5.6 ........11... -
Page 3: About Your New Showdown Digital Fish Finder
The ShowDown’s Auto Depth Range feature means there’s no switching between various depth ranges. Nor will you have to guess at bottom or depth itself. The Showdown 5.6 immediately locks on to the proper depth range, while also displaying digital depth at all times. -
Page 4: Getting Started
(7) Route transducer cable through the adjustable transducer turning arm. Affix rubber cable stopper at the desired depth above transducer. (8) Place your Showdown 5.6 on a relatively level spot on the ice, extend the transducer arm over ice hole, place the transducer into the water, and turn the unit ON by pressing the POWER key. -
Page 5: Battery Charging
Versa Electronics www.marcumtech.com Battery Charging Your Marcum system comes with a 3-stage battery charger. This style of charger has proven to be the most effective and easiest to use of all charging systems available. While the rate of charge is low, a completely discharged battery can be brought back to a full charge in as little as 12 hours. -
Page 6: Operating The Showdown 5.6
SENS to trigger sensitivity adjustment), then simply pressing the UP or DOWN keys to adjust levels. POWER ON— To turn your Showdown 5.6 POWER to ON, press and hold the POWER key for two seconds. OFF— To turn your Showdown 5.6 POWER to OFF, press and hold POWER for two seconds. - Page 7 You will now see the “ICE” mode indicator appear at the top of the Showdown 5.6 Dual Beam display screen. In ICE mode, an internal LCD heater is initiated. To exit ICE MODE and return Showdown 5.6 to normal operating mode, press the UP and DOWN keys simultaneously.
- Page 8 “A” icon at the bottom of the screen. NOISE (Interference Rejection) — The unit’s Noise Rejection feature allows you to use your Showdown 5.6 in close proximity to other sonar units, trolling motors, and other electronic devices without experiencing excessive signal interference.
-
Page 9: Other Showdown 5.6 Features
32’ of water. It also allows you to adjust and learn various sonar settings before you get out fishing. To turn Simulator mode off, it is necessary to turn your Showdown 5.6 power OFF by holding down the POWER button again. -
Page 10: Tips For Using Your Showdown 5.6
How do I “see” my lure? The best way to find your lure on the Showdown 5.6 screen is to simply drop your lure down to bottom, then reel it up about a foot. -
Page 11: Moving The Showdown To A New Location
To assure long battery life, and peak sonar performance, we recom- mend charging the battery after every use. Will the Showdown 5.6 read through the ice? Yes. This is a great way to save time while looking for a particular spot or depth. To receive a sonar signal directly through the ice (without drilling a hole), first clear off any snow that may be covering ice. -
Page 12: Troubleshooting
(negative) • Battery not sufficiently charged. (See Battery Charging) • Power cord may not be connected to Showdown 5.6 or shuttle power port. Check connections and try POWER again • Check wiring on power cable. Make sure all connections between Show- down 5.6 / transducer / battery are solid. -
Page 13: Showdown 5.6 Specifications
That means maximum customer satisfaction. If you have a problem Minneapolis, MN 55427 with your Showdown 5.6, please visit us at marcumtech.com, contact Versa RA# _________________ Electronics toll free number at 888-778-1208, or send an email for a Return Authorization number (RA#). -
Page 14: Showdown 5.6 Replacement Parts
Versa Electronics www.marcumtech.com Showdown 5.6 Replacement Parts The rigors of ice fishing can take a toll on equipment. Replacement parts that have become lost or damaged can be easily ordered, go to marcumtech.com, or you can call us at (888) 778-1208. - Page 15 Versa Electronics www.marcumtech.com OTHER MARCUM PRODUCTS Here are some other great systems from Marcum. These items can be pur- chased from one of our many fine retailers, or direct from us at marcumtech.com The LX-5 incorporates the latest in sonar technology, featuring a patented flexible zoom that can be set anywhere between surface and bottom, a patent pending TrueColor display, 2500 watts of peak-to-peak power, patented signal interference rejection, Superfine Line Technology, and target separation down...
- Page 16 www.marcumtech.com MarCum User Manuals are available for download from www.marcumtech.com.
