Marcum Technologies Showdown 5.6 Dual Beam User Manual

Digital fish finder
Hide thumbs Also See for Showdown 5.6 Dual Beam:
Table of Contents

Advertisement

Quick Links

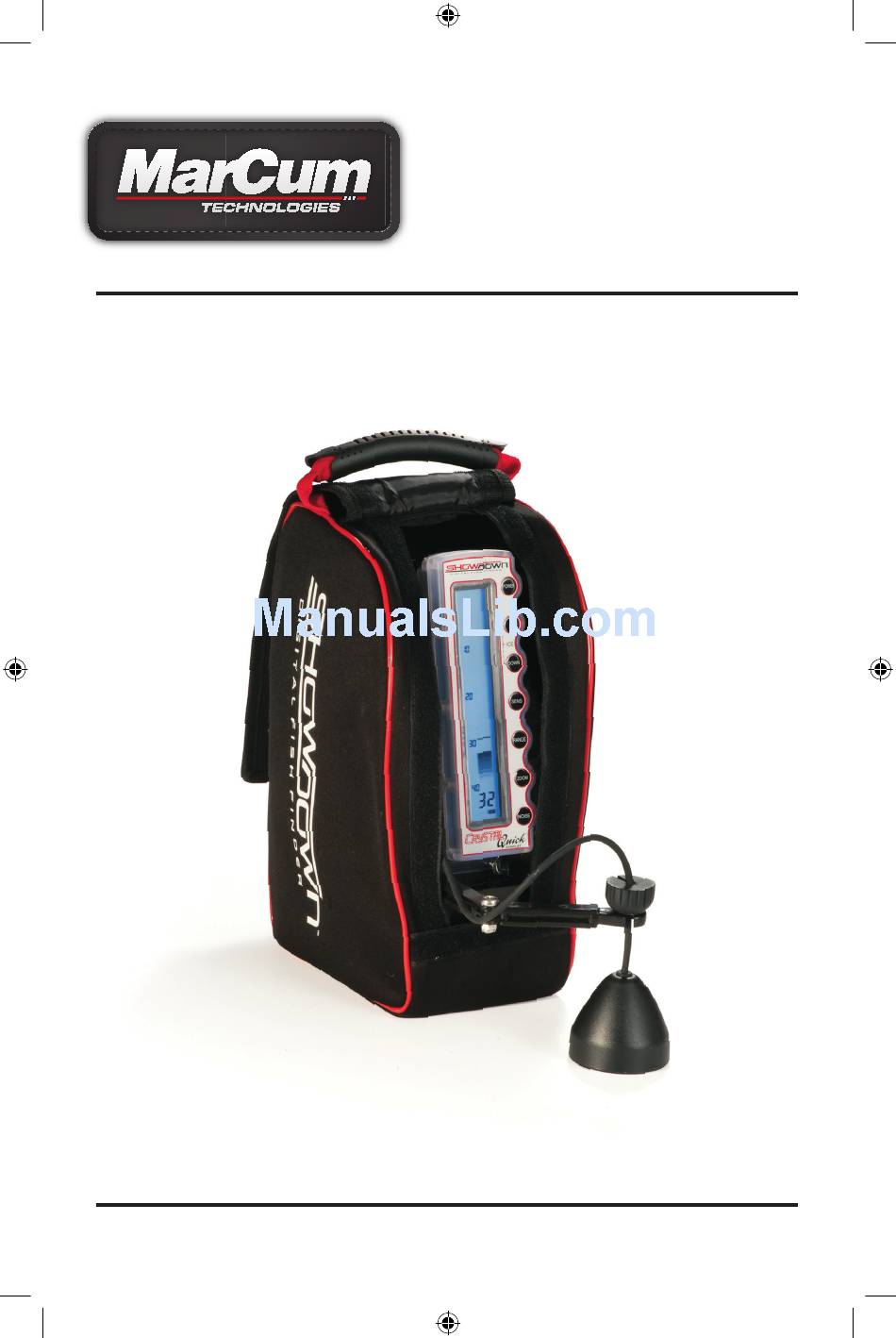

Showdown
5.6 Dual Beam
Digital Fish Finder
User Manual
www.marcumtech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Showdown 5.6 Dual Beam and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marcum Technologies Showdown 5.6 Dual Beam

Summary of Contents for Marcum Technologies Showdown 5.6 Dual Beam

  • Page 1 Showdown 5.6 Dual Beam Digital Fish Finder User Manual www.marcumtech.com...

  • Page 2: Table Of Contents

    Operating The Showdown 5.6 Dual Beam ......5 Showdown 5.6 Dual Beam Features ....... . 6 Ice-Mode .

  • Page 3: About Your New Showdown Dual Beam Digital Fish Finder

    With the Showdown 5.6 Dual Beam, you will catch more fish and have more fun. This is due in part to the simplicity of the ShowDown’s sonar presentation, as well as the user-friendliness of the interface.

  • Page 4: Getting Started

    (3) Check unit connections. Rectangular plug should be firmly attached to the rear of Showdown 5.6 Dual Beam unit. Do not force plug into place. Make sure that 5-holeside is on top when making this connection. This plug connects the ShowDown unit to the transducer and the 12-volt power source.

  • Page 5: Battery Charging

    UP or DOWN keys to adjust levels. POWER ON— To turn your Showdown 5.6 Dual Beam POWER to ON, press and hold POWER key for two seconds. OFF— To turn your Showdown 5.6 Dual Beam POWER to OFF, press and hold POWER for two seconds.

  • Page 6: Showdown 5.6 Dual Beam Features

    “Ice Mode”, you may find that your Showdown performs better under a wide variety of conditions when in “ICE” mode. NOTE: If your Showdown 5.6 Dual Beam is left in extreme cold for an extended time period with the POWER turned OFF, allow one to two minutes for the Ice Mode LCD heater to warm the crystals sufficiently after the POWER has been turned ON and ICE Mode has been activated.
  • Page 7 You will now see the “ICE” mode indicator appear at the top of the Showdown 5.6 Dual Beam display screen. In ICE mode, an internal LCD heater is initiated. To exit ICE mode and return Showdown 5.6 Dual Beam to normal operating mode, press the UP and DOWN keys simultaneously. The ICE mode indicator will no longer show at the top of the display screen.
  • Page 8 “A” icon at the bottom of the screen. NOISE (Interference Rejection) — The unit’s Noise Rejection feature allows you to use your Showdown 5.6 Dual Beam in close proximity to other sonar units, trolling motors, and other electronic devices without experiencing excessive signal interference.

  • Page 9: Other Showdown 5.6 Dual Beam Features

    32’ of water. It also allows you to adjust and learn various sonar settings before you get out fishing. To turn Simulator mode off, it is necessary to turn Showdown 5.6 Dual Beam Power OFF by holding down the POWER button again.

  • Page 10: Tips For Using Your Showdown 5.6 Dual Beam

    Reading the Showdown 5.6 Dual Beam Dual Beam sonar signals: The Showdown 5.6 Dual Beam displays the water column in its natural state (vertically), rather than in a confusing circular configuration, such as is the case with traditional dial flashers.

  • Page 11: Moving The Showdown Dual Beam To A New Location

    Will the Showdown 5.6 Dual Beam read through the ice? Yes. This is a great way to save time while looking for a particular spot or depth. To receive a sonar signal directly through the ice (without drilling a hole), first clear off any snow that may be covering ice.

  • Page 12: Caring For Your Showdown 5.6 Dual Beam

    (negative) • Battery not sufficiently charged. (See Battery Charging) • Power cord may not be connected to Showdown 5.6 Dual Beam or shuttle power port. Check connections and try POWER again • Check wiring on power cable. Make sure all connections between Show- down 5.6 Dual Beam/ transducer / battery are solid.

  • Page 13: Unit Turns On But Will Not Read Bottom

    Adjust range to be just slightly deeper than bottom. Screen seems to be getting heavy interference, with lots of “clutter”: • Adjust the Showdown 5.6 Dual Beam sensitivity. Often, decreasing the unit’s sensitivity will keep unwanted signals from appearing on screen.

  • Page 14: One-Year Limited Warranty

    We want our products to provide you with a pleasant on-the-water experi- ence. That means maximum customer satisfaction. If you have a problem with your Showdown 5.6 Dual Beam unit please contact Versa Electronics toll free number at 888-778-1208 or send email to service@versae.com for a Return Authorization number (RA#).
  • Page 15 Versa Electronics www.marcumtech.com Other Marcum Products Here are some other great systems from Marcum. These items can be purchased from one of our many fine retailers, or direct from us at marcum- tech.com The LX-5 incorporates the latest in sonar technology, featuring a patented flexible zoom that can be set anywhere between surface and bottom, a patent pending TrueColor display, 2500 watts of peak-to-peak power, patented signal interference rejection, Superfine Line Technology, and target separation down...
  • Page 16 www.marcumtech.com MarCum User Manuals are available for download from www.marcumtech.com.
