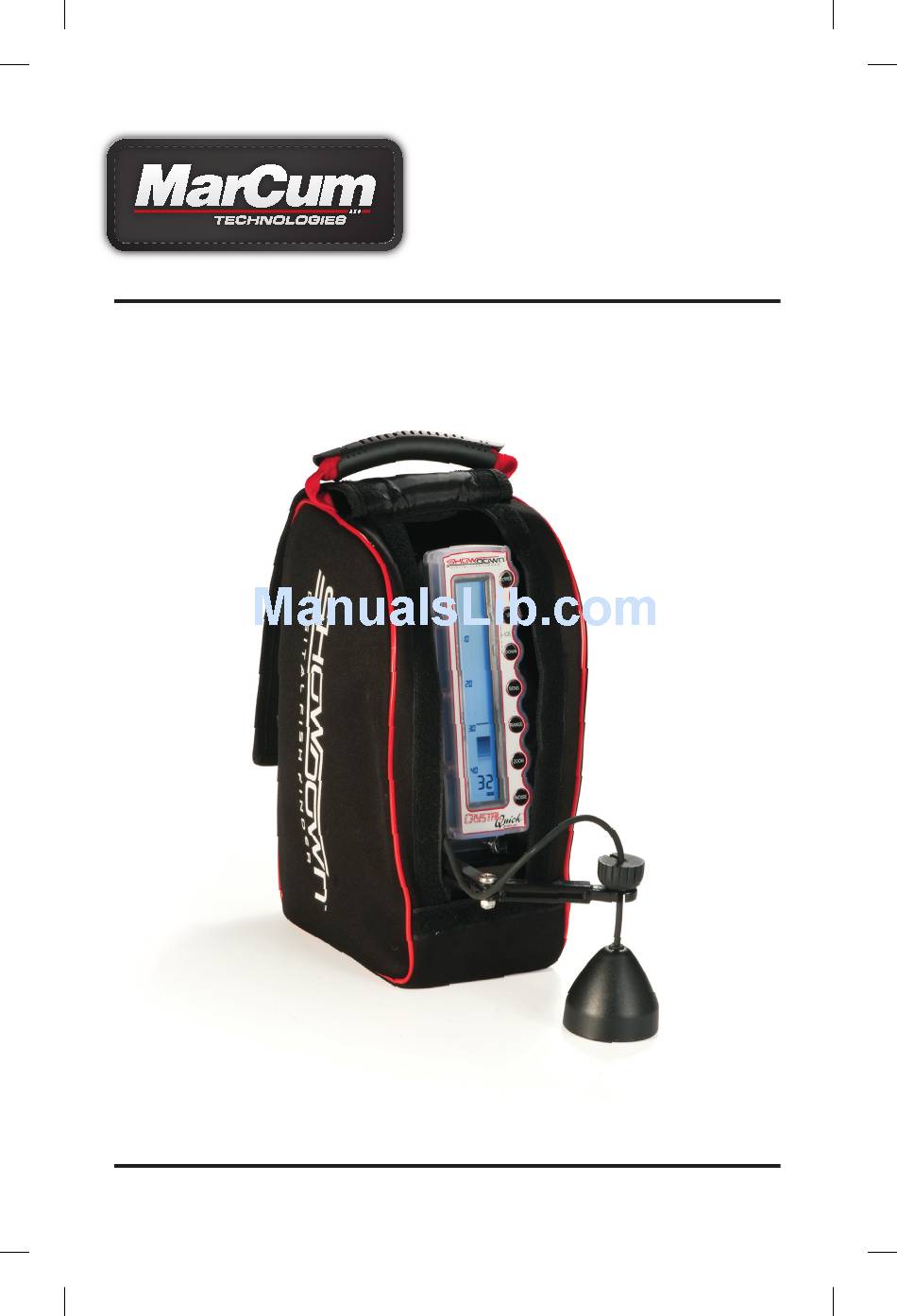

- Page 1 Showdown 5.6 Dual Beam Digital Fish Finder User Manual www.marcumtech.com...
-
Page 2: Table Of Contents
Operating The Showdown 5.6 Dual Beam ......6 Showdown 5.6 Dual Beam Features ....... . 6 Ice-Mode . -
Page 3: About Your New Showdown Dual Beam Digital Fish Finder
With the Showdown 5.6 Dual Beam, you will catch more fish and have more fun. This is due in part to the simplicity of the ShowDown’s sonar presentation, as well as the user-friendliness of the interface. -
Page 4: Getting Started
(3) Check unit connections. Rectangular plug should be firmly attached to the rear of Showdown 5.6 Dual Beam unit. Do not force plug into place. Make sure that 5-holeside is on top when making this connection. This plug connects the ShowDown unit to the transducer and the 12-volt power source. -
Page 5: Some Common Sense Safety Tips
Versa Electronics www.marcumtech.com make the most of them. The most important thing you can do is to promptly recharge your battery after each use. Not charging your battery immediately after use is the number one thing that leads to battery failure. When you get home from a trip, put your battery on charge right away, and leave it there overnight, or for around 8-12 hours. -
Page 6: Operating The Showdown 5.6 Dual Beam
UP or DOWN keys to adjust levels. POWER ON— To turn your Showdown 5.6 Dual Beam POWER to ON, press and hold POWER key for two seconds. OFF— To turn your Showdown 5.6 Dual Beam POWER to OFF, press and hold POWER for two seconds. -
Page 7: Ice-Mode
Showdown performs better under a wide variety of conditions when in “ICE” mode. NOTE: If your Showdown 5.6 Dual Beam is left in extreme cold for an extended time period with the POWER turned OFF, allow one to two minutes for the Ice Mode LCD heater to warm the crystals sufficiently after the POWER has been turned ON and ICE Mode has been activated. - Page 8 For instance, in 32-feet of water, Showdown 5.6 Dual Beam will automatically lock in at the 40-foot depth range. Auto Range allows you to simply turn on the power and begin fishing.
-
Page 9: Other Showdown 5.6 Dual Beam Features
“A” icon at the bottom of the screen. NOISE (Interference Rejection) — The unit’s Noise Rejection feature allows you to use your Showdown 5.6 Dual Beam in close proximity to other sonar units, trolling motors, and other electronic devices without experiencing excessive signal interference. -
Page 10: Tips For Using Your Showdown 5.6 Dual Beam
The Showdown Dual Beam puts out enough power that in most cases it is not necessary to have your transducer down more than a few inches below the water line to get a good reading. -
Page 11: Moving The Showdown Dual Beam To A New Location
How do I “see” my lure? The best way to find your lure on the Showdown 5.6 Dual Beam screen is to simply drop your lure down to bottom, then reel it up about a foot. -
Page 12: Caring For Your Showdown 5.6 Dual Beam
Showdown will be ready to go for your next outing. During prolonged storage periods, recharge the battery every few months. -
Page 13: Unit Turns On But Will Not Read Bottom
Adjust range to be just slightly deeper than bottom. Screen seems to be getting heavy interference, with lots of “clutter”: • Adjust the Showdown 5.6 Dual Beam sensitivity. Often, decreasing the unit’s sensitivity will keep unwanted signals from appearing on screen. -
Page 14: One-Year Limited Warranty
That means maximum customer satisfaction. If you have a problem with Minneapolis, MN 55427 your Showdown 5.6 Dual Beam unit please contact Versa Electronics toll free RA# _________________ number at 888-778-1208 or send email to service@versae.com for a Return Authorization number (RA#). - Page 15 LX7 is the perfect combination of macro features and micro precision. Showdown Troller The new Showdown Troller Digital Fish Finder is a palm- sized sonar device with full size performance. For use in either ice-fishing or open water situations…quickly “troll” from hole to hole while ice-fishing or shoot through your canoe or kayak in order to find fish and the correct depth.
- Page 16 www.marcumtech.com MarCum User Manuals are available for download from www.marcumtech.com.
