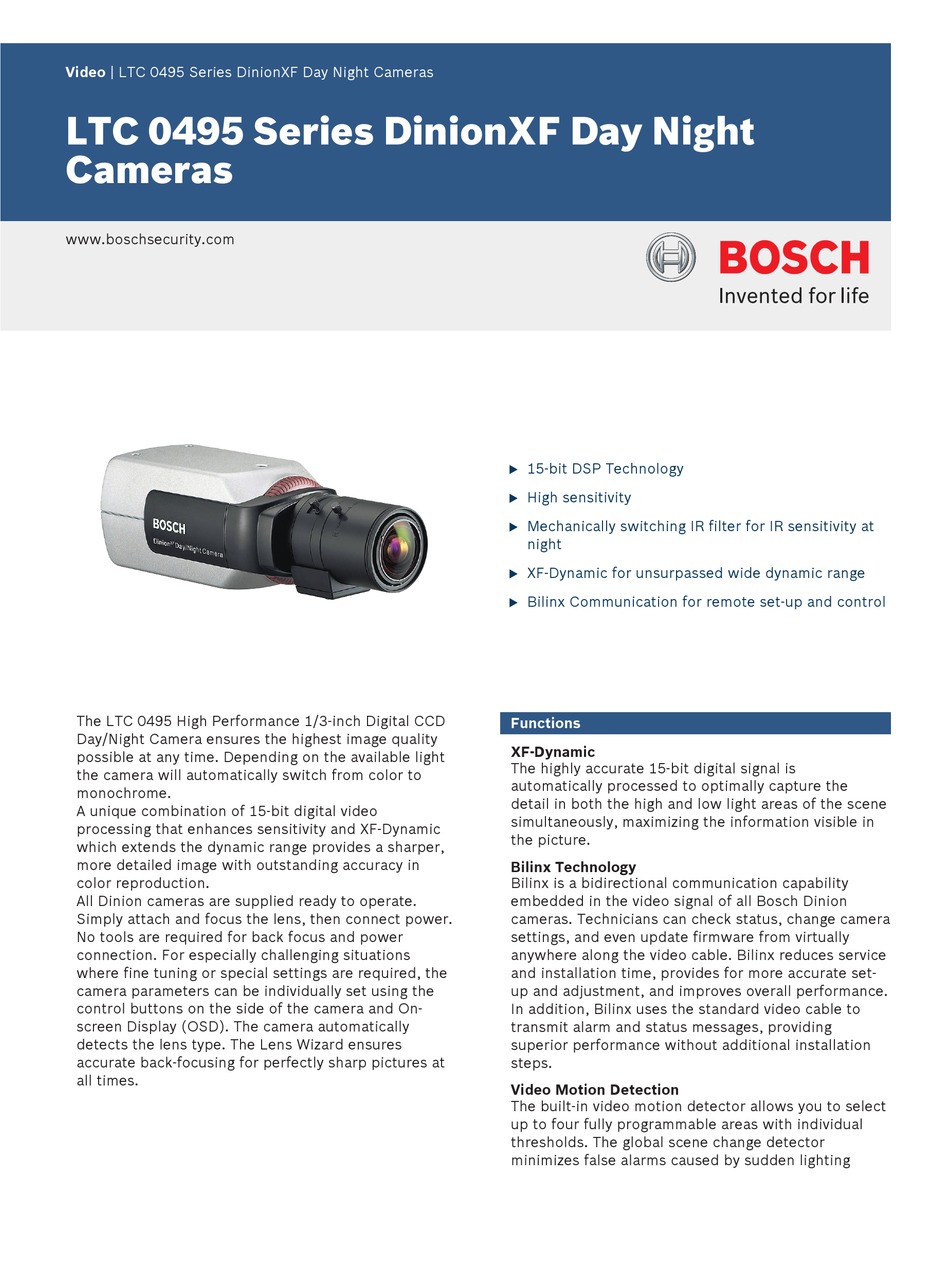

Video | LTC 0495 Series DinionXF Day Night Cameras
LTC 0495 Series DinionXF Day Night
Cameras
www.boschsecurity.com
The LTC 0495 High Performance 1/3-inch Digital CCD
Day/Night Camera ensures the highest image quality
possible at any time. Depending on the available light
the camera will automatically switch from color to
monochrome.
A unique combination of 15-bit digital video
processing that enhances sensitivity and XF-Dynamic
which extends the dynamic range provides a sharper,
more detailed image with outstanding accuracy in
color reproduction.
All Dinion cameras are supplied ready to operate.
Simply attach and focus the lens, then connect power.
No tools are required for back focus and power
connection. For especially challenging situations
where fine tuning or special settings are required, the
camera parameters can be individually set using the
control buttons on the side of the camera and On-
screen Display (OSD). The camera automatically
detects the lens type. The Lens Wizard ensures
accurate back-focusing for perfectly sharp pictures at
all times.
15-bit DSP Technology
u
High sensitivity
u
Mechanically switching IR filter for IR sensitivity at
u
night
XF-Dynamic for unsurpassed wide dynamic range
u
Bilinx Communication for remote set-up and control
u
Functions
XF-Dynamic
The highly accurate 15-bit digital signal is
automatically processed to optimally capture the
detail in both the high and low light areas of the scene
simultaneously, maximizing the information visible in
the picture.
Bilinx Technology
Bilinx is a bidirectional communication capability
embedded in the video signal of all Bosch Dinion
cameras. Technicians can check status, change camera
settings, and even update firmware from virtually
anywhere along the video cable. Bilinx reduces service
and installation time, provides for more accurate set-
up and adjustment, and improves overall performance.
In addition, Bilinx uses the standard video cable to
transmit alarm and status messages, providing
superior performance without additional installation
steps.
Video Motion Detection
The built-in video motion detector allows you to select
up to four fully programmable areas with individual
thresholds. The global scene change detector
minimizes false alarms caused by sudden lighting

Advertisement

loading

Summary of Contents for Bosch LTC 0495 Series

  • Page 1 Video | LTC 0495 Series DinionXF Day Night Cameras LTC 0495 Series DinionXF Day Night Cameras www.boschsecurity.com 15-bit DSP Technology High sensitivity Mechanically switching IR filter for IR sensitivity at night XF-Dynamic for unsurpassed wide dynamic range Bilinx Communication for remote set-up and control...
  • Page 2 2 | LTC 0495 Series DinionXF Day Night Cameras condition changes, such as switching on or off the Safety indoor or security lighting. When motion is detected LTC 0495/11 and LTC 0495/51: EN60065 alarms may be displayed in the video signal while the...
  • Page 3 3 | LTC 0495 Series DinionXF Day Night Cameras Active Pixels Lens Types Manual, DC- and Video-Iris auto-detect with override DC-iris drive: max. 50 mA PAL Model: 752 x 582 continuous NTSC Model 768 x 492 Video-iris: 11.5 ± 0.5 VDC, max 50 mA...
  • Page 4: Software Options

    Fax: +65 6571 2699 Phone +86 21 22181111 Fax: +55 19 2103 2862 www.boschsecurity.us www.boschsecurity.com apr.securitysystems@bosch.com Fax: +86 21 22182398 latam.boschsecurity@bosch.com www.boschsecurity.asia www.boschsecurity.com.cn www.boschsecurity.com © Bosch Security Systems 2013 | Data subject to change without notice 2007154699 | en, V2, 04. Oct 2013...
