Thank you for purchasing this Panasonic Product.
Before operating this product, please read the instructions carefully, and save this manual
J
for future use.
For information on using the product via a network, refer to "Operating Instructions – Network
Operations".

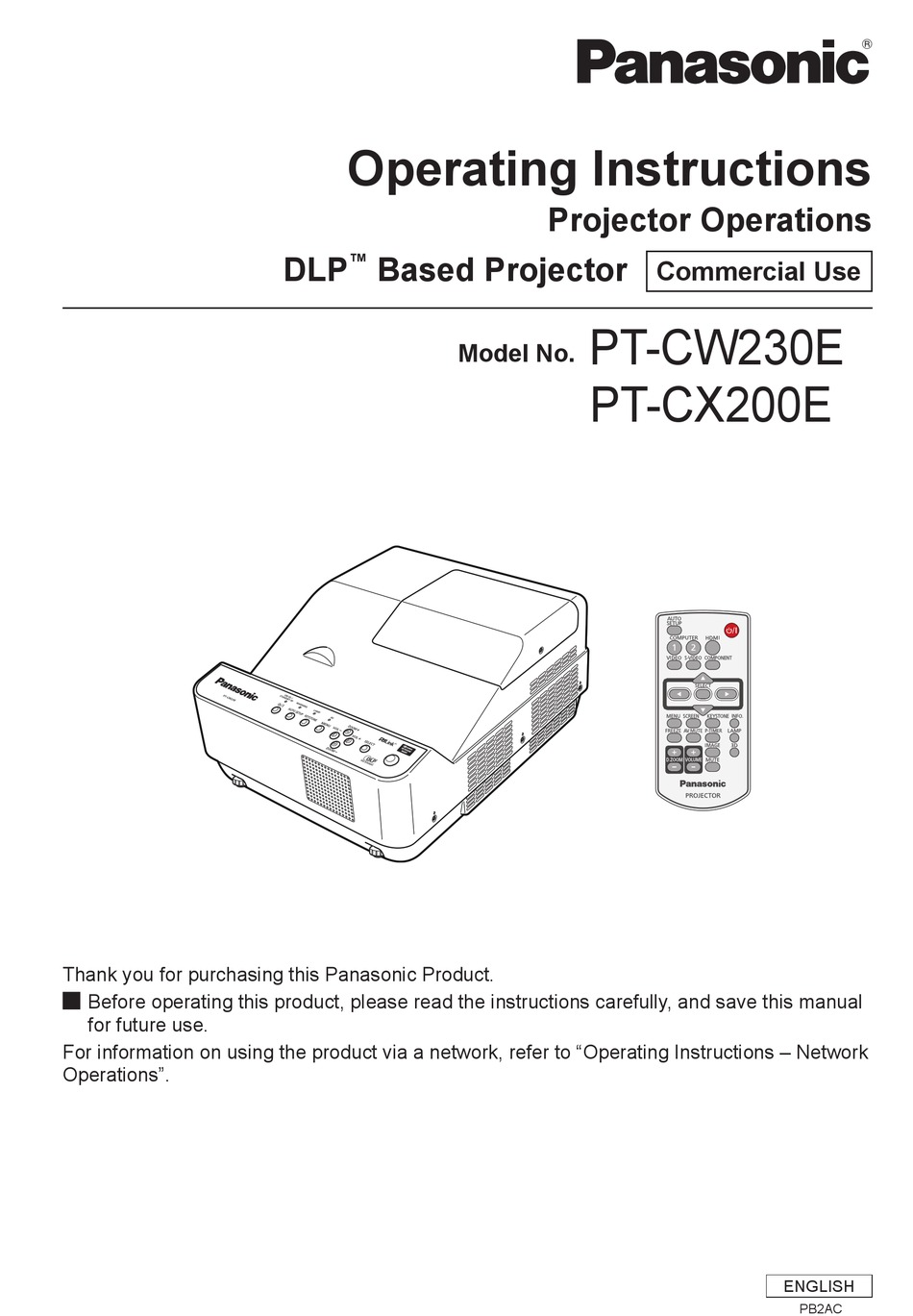

Operating Instructions
DLP
Based Projector
™
Projector Operations
PT-CW230E
Model No.
PT-CX200E
Commercial Use
ENGLISH
PB2AC
Advertisement
Chapters
Table of Contents
Related Manuals for Panasonic PT-CW230E
Summary of Contents for Panasonic PT-CW230E
-
Page 1: Operating Instructions
PT-CW230E Model No. PT-CX200E Thank you for purchasing this Panasonic Product. Before operating this product, please read the instructions carefully, and save this manual for future use. For information on using the product via a network, refer to “Operating Instructions – Network Operations”. -
Page 2: Read This First
Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 70 dB (A) according to ISO 7779. - Page 3 Read this first! WARNING: POWER „ The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock. If foreign objects or water get inside the projector, cut off the power supply.
- Page 4 If liquid enters inside of the projector, consult your dealer. Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Defects in the ceiling mount bracket will result in falling accidents. Attach the supplied safety cable to the ceiling mount bracket to prevent the projector from falling down.
- Page 5 Read this first! WARNING: ACCESSORIES „ Do not use or handle the batteries improperly, and refer to the following. Failure to observe this will cause burns, batteries to leak, overheat, explode or catch fire. Use AAA/R03 or AAA/LR03 batteries. Do not use unspecified batteries. Do not disassemble dry cell batteries.
- Page 6 Read this first! CAUTION: ON USE/INSTALLATION „ Do not put your weight on this projector. You could fall or the projector could break, and injury will result. Be especially careful not to let young children stand or sit on the projector. Do not place the projector in extremely hot locations.
-
Page 7: Auto Setup Function
Features of the Projector Quick steps For details, see the corresponding pages. Auto Setup Function 1. Set up your projector. This function enables Input search Æ page 19) and Auto PC adjustment by pressing the <AUTO SETUP> button. Direct Power Off Function 2. -
Page 8: Table Of Contents
Contents Be sure to read “Read this first!”. ( pages 2 to 6) Basic operations by using the remote Important Information control........... 31 Read this first! ........... 2 Using the AUTO SETUP function ......... 31 Switching the input signal ..........31 Contents ............. - Page 9 Full ................47 Replacing the unit ............60 Wide(16:9) ..............47 Troubleshooting ........64 Zoom ................47 True ................47 Natural wide (PT-CW230E Only) ........47 Appendix Custom ................. 47 Custom adj..............48 Technical Information ......66 Digital zoom +............... 48 Serial terminal ..............
-
Page 10: Precautions For Use
Precautions for Use Cautions when transporting When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. Doing so may damage the internal parts and result in malfunctions. Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet. Cautions when installing Do not set up the projector outdoors. -
Page 11: Security
Make your password as difficult to guess as possible. Change your password periodically. Panasonic or its affiliate company never inquires a password directly to a customer. Do not tell your password in case you receive such an inquiry. The connecting network must be secured by firewall or others. -
Page 12: Cautions On Use
Precautions for Use Cautions on use In order to get the picture quality Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen. Depending on where the projector is used, heated air from an exhaust port or warm or cold air from an air conditioner can cause a shimmering effect on screen. - Page 13 We do not recommend viewing 3D images if you need sleep or have been drinking alcohol. Pursuant to at the directive 2004/108/EC, article 9(2) Panasonic Testing Centre Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, F.R. Germany ENGLISH -...
-
Page 14: Accessories
Precautions for Use Accessories Make sure the following accessories are provided with your projector. Numbers in the brackets ( ) show the number of accessories. CD-ROM (x1) Batteries (AAA/R03 or Remote control unit (x1) Power cord (x1) (6103615875) AAA/LR03 type) (x2) (6451054586) (6103597768) (for remote control unit) -
Page 15: About Your Projector
About Your Projector Remote control (18) (10) < > Button Turn the projector on or off. ( page 26) Æ (10) (11) <KEYSTONE> Button Correct keystone distortion. ( page 32) Æ (12) <INFO.> Button Operate the information function. ( page 32) Æ... -
Page 16: Projector Body
About Your Projector Projector body (8) (9) (12) (10) (11) (13) WARNING: (1) Control Panel and Indicators ( page 17) Æ (2) Remote control signal receptor Keep your hands and other objects (3) Lamp cover (Lamp and Air Filter) ( page 63) Æ... -
Page 17: Control Panel
About Your Projector Control panel (5) <SELECT> button Execute the selected item. (6) < > button Turn the projector on/off. (7) <AUTO SETUP> button Execute the setting of Auto setup in the setting menu. ( page 31) Æ (8) <KEYSTONE> button (10) (11) Correct keystone distortion. -
Page 18: Using Remote Control
For details, please refer to the [Remote control] of the [Setting] menu. ( page 55) Æ This remote control is only for PT-CW230E and PT-CX200E. You cannot operate the other Panasonic projectors by using this remote control. MENU button IMAGE button... -
Page 19: Setting Up
Setting up Projection method You can use the projector with any of the following 6 projection methods. To set the desired method in the projector. J Mounting on the ceiling Mounting on the ceiling Vertical projecting and projecting forward and projecting from rear upwards (Using translucent screen) (Using translucent screen) -
Page 20: Screen Size And Throw Distance
When projecting to wall or flat objects, even slight warpage or irregularities of the screen may have an effect on the quality of the projected images. Projection distance for PT-CW230E (All measurements below are approximate and may differ slightly from the actual measurements.) - Page 21 Setting up Projection distance for PT-CX200E (All measurements below are approximate and may differ slightly from the actual measurements.) Projection size For 4:3 aspect ratio For 16:9 aspect ratio Screen diagonal (SD) 1.27 m(50") 24.8 cm(0.81') 35.5 cm(1.17') 1.40 m(55") 25.1 cm(0.82') 25.2 cm(0.83') 27.7 cm(0.91')
-
Page 22: Adjusting Front Adjustable Feet
Setting up Adjusting front adjustable feet Lift the front of the projector and rotate the adjustable feet to a proper height and tilt. You can turn the front adjustable feet to extend them. You can turn them in the opposite direction to contract them. -
Page 23: Connections
Connections Before connecting to the projector Read carefully the instruction manual for the device to be connected. Turn off the power switch of the devices before connecting cables. If any connection cable is not supplied with the device, or if no optional cable is available for connection of the device, prepare a necessary system connection cable to suit the device. -
Page 24: Powering On/Off
ic Operation Powering ON/OFF Connecting the power cord Be sure to insert the attached power cord securely to its base to prevent it from coming off. Power cord holder A power cord holder is designed to prevent the AC power cord from coming off the projector. Please insert the power cord into the power cord holder correctly as Picture (1) shown: AC Power cord holder Clamp... -
Page 25: On(G)/Standby(R) Indicator
Powering ON/OFF ON(G)/STANDBY(R) indicator The <ON(G)/STANDBY(R)> indicator informs you the status of the power. Confirm the status of the <ON(G)/ STANDBY(R)> indicator before operating the projector. ON(G)/STANDBY(R) indicator Indicator status Status No illumination or flashing The power cord is unplugged. The power cord is plugged. -
Page 26: Turning On The Projector
Powering ON/OFF Turning On the Projector Complete peripheral connections (with a Preparation display computer, VCR, etc.) before turning on the projector. Connect the projector’s AC power cord into an AC outlet. The <ON(G)/STANDBY(R)> indicator lights red. Press the < > button on the control panel or the remote control. -
Page 27: Enter A Pin Code
Powering ON/OFF Enter a PIN code Press ▲▼ to enter a number. Press ► to fix the PIN Code Input Dialog Box number and move the red frame pointer to the next box. The number changes to . If you fixed an incorrect number, use the ◄... -
Page 28: Turning Off The Projector
Powering ON/OFF Turning Off the Projector Press the < > button on the control panel or the remote control, and Power off? appears on the screen. Power off? disappears after 4 seconds. Press the < > button on the control panel or the remote control again to turn off the projector. -
Page 29: Projecting
Projecting Check the connections of the peripheral devices and connection of the power cord ( Æ page 24) and switch on the power ( Æ page 26) to start the projector. Select the image and adjust the state of the image. Selecting the image Select an input signal. -
Page 30: For Viewing 3D Contents
Projecting For Viewing 3D Contents To view 3D images, you need to prepare at least the 3D active shutter glasses, 3D content and 3D reproducing equipment. For example, as for computer, when transmitting 3D signals from a computer to the projector, you also need to install the graphic card which has the capability to sequentially output the 3D frames at 120Hz and software in the computer. -
Page 31: English
Basic operations by using the remote control Switch to Computer 1(RGB)/ COMPUTER 1 Computer 1(Scart) input. COMPUTER 2 Switch to Computer 2(RGB)input. HDMI Switch to HDMI input. VIDEO Switch to Video input. S-VIDEO Switch to S-video input. Switch to Computer 1 COMPONENT (Component) input. -
Page 32: Using The Keystone Button
Basic operations by using the remote control Using the KEYSTONE button Using the INFO. button This function allows you to correct keystone distortion. This function allows you to display the information menu. button button Press the <KEYSTONE> button on the control panel Press <INFO.>... -
Page 33: Using The Av Mute Function
Basic operations by using the remote control Using the AV MUTE function Using the D.ZOOM buttons This function allows you to enter to the Digital zoom +/– mode. button Press the < AV MUTE> button on the remote control buttons to black out the image. -
Page 34: Using The 3D Button
Basic operations by using the remote control Using the 3D button This function allows you to operate the 3D function. button Press <3D> button on the remote control. Note For details, see “3D” of "Setting" under Main menu. Æ page 52) Using the MUTE button Press this button on the remote control to select [On] to temporarily turn off the sound. -
Page 35: Menu Navigation
Menu Navigation Press ► or the <SELECT> button. Navigating through the menu The submenu appears so that you can select the sub-menu item. Operating procedure Press ▲▼ to select the desired sub- Press the <MENU> button. menu item. The Main Menu screen appears. Press the <SELECT>... -
Page 36: Main Menu
Menu Navigation Main menu Sub menu The main menu consists of the following 9 menu The sub-menu screen of the selected main menu items. appears, and you can set and adjust the various items When a main menu item is selected, the screen in the submenu. - Page 37 PIN code lock *1 : When input computer signal to the projector, these Remote control functions will be available. Serial number *2 : PT-CW230E Only. Sound [ Network [ Refer to “Operating Instructions, Network operations”. Sub-menu item Default Page Volume...
-
Page 38: Input Menu
Input menu Computer 2: RGB Select [Input] from the Main Menu (see “Navigating through the menu” on page 35), Press ▲▼ to select [Computer 2 (RGB)] then select the item from the sub-menu. and then press the <SELECT> button. Control Panel Remote Control Computer System Selection This projector automatically tunes to various types... -
Page 39: Hdmi
Input menu HDMI Press ▲▼to select [HDMI] and then press the <SELECT> button. Video Press ▲▼ to select [Video] and then press the <SELECT> button. S-video Press ▲▼ to select [S-video] and then press the <SELECT> button. Video System Selection The projector automatically detects an incoming video system, and adjusts itself to optimize its performance. -
Page 40: Auto Pc Adjust
AUTO PC adjust Select [PC adjust] from the Main Menu (see “Navigating through the menu” on page 35), then select the item from the sub-menu. Control Panel Remote Control AUTO PC adj. [Auto PC adjustment] function is provided to automatically adjust [Fine sync], [Total dots], [Horizontal] and [Vertical] positions to conform to your computer. -
Page 41: Manual Pc Adjust
Manual PC adjust Horizontal Select [PC adjust] from the Main Menu (see “Navigating through the menu” on page 35), then select the item from the sub-menu. Press ▲▼ to select [Horizontal]. Press the <SELECT> button to display Control Panel Remote Control the adjustment dialog box. -
Page 42: Current Mode
Manual PC adjust Current mode Press ▲▼ to select [Current mode]. Press ► or the <SELECT> button to enter the next submenu to show H-sync freq. and V-sync freq. of the connected computer. Clamp Press ▲▼ to select [Clamp]. Press the <SELECT> button to display the adjustment dialog box. -
Page 43: Image Select
Image select Image 1-4 Select [Image select] from the Main Menu (see “Navigating through the menu” on page 35), For viewing with the user preset image mode in the then select the item from the sub-menu. Image adjust Menu. Press ▲▼ to select [Image 1-4] and then press the <SELECT>... -
Page 44: Image Adjust
Image adjust Color Select [Image adjust] from the Main Menu (see “Navigating through the menu” on page 35), then select the item from the sub-menu. Press ▲▼ to select [Color]. Press the <SELECT> button to display Remote Control Control Panel the adjustment dialog box. -
Page 45: Red
Image adjust Sharpness Press ▲▼ to select [Red]. Press ▲▼ to select [Sharpness]. Press the <SELECT> button to display Press the <SELECT> button to display the adjustment dialog box. the adjustment dialog box. Press ◄► to adjust the setting value. Press ◄►... -
Page 46: Progressive
Image adjust Progressive Press ▲▼ to select [Progressive]. Press the <SELECT> button to display the dialog box. Press ◄► to select the desired item. An interlaced video signal can be displayed in progressive mode. Select one of the following options. Disabled For an active picture For a still picture... -
Page 47: Screen
Press ▲▼◄► to pan the image. When adjusted, the arrows will turn red. When reached to the correction limits, the arrows will disappear. Screen size (1 280 x 800) is only for PT-CW230E. Screen size (1 024 x 768) is for PT-CX200E. Note Normal When input computer signal to the projector, [True] will be available. -
Page 48: Custom Adj
Screen To exit the Digital zoom +/– mode, press any button Custom adj. except the <D.ZOOM +/->, <SELECT> and ▲▼◄► buttons. Adjust the screen scale and position manually with this function. To return to the previous screen size, select a screen Press ▲▼... -
Page 49: Ceiling
Press ▲▼ to change the image. When this function is set to [On], the picture will be left/right reversed. Screen aspect (PT-CW230E Only) This function is used to project the image to a 4:3 or 16:9 projection screen. Press ▲▼ to select [Screen aspect] and then press the <SELECT>... -
Page 50: Sound
Sound Select [Sound] from the Main Menu (see “Navigating through the menu” on page 35), then select the item from the sub-menu. Remote Control Control Panel Volume Press ▲▼ to select [Volume] and then press the <SELECT> button. Press ◄► to adjust the volume. Press <SELECT>... -
Page 51: Setting
Setting Menu position Select [Setting] from the Main Menu (see “Navigating through the menu” on page 35), This function is used to change the position of the On- then select the item from the sub-menu. Screen Menu. Press ▲▼ to select [Menu position]. Remote Control Control Panel Press the <SELECT>... -
Page 52: Setting
Setting 3D setting Background This function is used to set the 3D display function. Select the background screen for when no input signal Press ▲▼ to select these functions as is detected. follows: Press ▲▼ to select [Background]. Press the <SELECT> button. Press ▲▼... -
Page 53: Logo
Setting Logo HDMI setup This function allows you to customize the screen logo This function is only used for HDMI input source. with [Logo select], [Logo PIN code lock] and [Logo Press ▲▼ to select [HDMI setup]. PIN code change] functions. Press ►... -
Page 54: Standby Mode
Setting Timer Standby mode Press ▲▼ to select [Timer] and then This function can set the electric power when the press the <SELECT> button. projector is standing by. Press ▲▼ to set the Timer(1~30min). Press ▲▼ to select [Standby mode] and then press the <SELECT>... -
Page 55: Lamp Power
Setting Lamp power Security This function allows you to change brightness of the This function allows you to use the Key lock and PIN screen. code lock function to set the security for the projector operation. Press ▲▼ to select [Lamp power] and Press ▲▼... -
Page 56: Fan
Setting PIN code change *1 : Set this function to [Off] when using the projector in non-high altitude environment. The PIN code can be changed to your desired four- *2 : Select this mode when using the projector in high digit number. -
Page 57: Filter Counter
Setting Filter counter This function is used to set a frequency for the filter replacement. Press ▲▼ to select [Filter counter]. Press ►or the <SELECT> button to access the submenu items. Filter counter Show the total accumulated time of the filter use timer setting. -
Page 58: Information
Information Lamp runtime Select [Information] from the Main Menu (see “Navigating through the menu” on page 35), The cumulative lamp operating time is displayed. then select the item from the sub-menu. Power management Remote Control Control Panel [Off] , [Ready] or [Shut down], and [Timer] are displayed. -
Page 59: Lamp And Warning Indicators
LAMP and WARNING Indicators LAMP and WARNING Indicators Managing the indicated problems If a problem should occur inside the projector, the <ON(G)/STANDBY(R)> , <LAMP> and/or <WARNING> indicators will inform you. Manage the indicated problems as follow. CAUTION Before you take a remedial measure, follow the procedure of switching the power off indicated in “Turning off the projector”. Æ... -
Page 60: Replacement
Replacement Before replacing the unit When you perform maintenance or replacement of the parts, make sure to turn off the power and disconnect Æ the power plug from the wall outlet. ( pages 24, 28) Æ Be sure to observe the procedure “Turing off the projector” ( page 28) when performing power supply operation. -
Page 61: Resetting The Filter Counter
Replacement Resetting the Filter Counter Be sure to reset the Filter counter after replacing the air filter unit. ( page 57" Filter counter reset") Æ Attention Turn off the power before you replace the air filter unit. When attaching the air filter unit, make sure that the projector is stable, and work in an environment that is safe, even in the event of the air filter unit dropping. -
Page 62: Lamp Unit
Replacement Lamp unit The lamp unit is a consumable component. You can check the total usage time using Lamp runtime in the Information menu on page 58. It is recommended to ask an authorized engineer to replace the lamp unit. Contact your dealer. Consult your dealer to purchase a replacement lamp unit (ET-LAC100). -
Page 63: Replacing The Lamp Unit
Replacement Replacing the Lamp unit CAUTION: When the projector is mounted on a ceiling, do not work with your face close to the projector. Attach the lamp unit and the lamp cover securely. When you experience difficulty in installing the lamp, remove it and try again. If you use force to install the lamp, the connector may be damaged. -
Page 64: Troubleshooting
Troubleshooting Please check following points. For details, see the corresponding pages. Reference Problem Cause page The power cord may not be connected. — No electric supply is at the wall outlet. — Power does not turn The circuit breakers have tripped. —... - Page 65 Troubleshooting Reference Problem Cause page Is the HDMI cable securely connected? Picture from a HDMI device does not Turn off the power of the projector and the connected devices. Then turn — appear or picture is the power of the projector and the connected devices back on. not stable.
-
Page 66: Technical Information
Technical Information Serial terminal The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connector. Connection Connecting terminals on projector Computer... -
Page 67: Functional Execution Command
Technical Information Functional Execution Command Format The projector control command is defined as one command line that starts with "C" and ends with carriage return. More than 100ms Command “C” “0” “7” CR PC � Projector Next Command Projector � PC Response (A few ms ~ 5s) Command... -
Page 68: Status Read Command
Technical Information Status Read Command Format The projector control command is defined as one command line that starts with "CR" and ends with carriage return. Command PC � Projector “C” “R” “0” CR Projector � PC Processing (A few ms ~ 5s) Command Function Projector... -
Page 69: Other Terminals
Technical Information Other terminals Pin assignments and signal names of <S-VIDEO IN> terminal Pin No. Signal names Outside view GND (luminance signal) GND (color signal) Luminance signal Color signal Pin assignments and signal names of <COMPUTER 1 IN/COMPONENT IN> terminal Pin No. - Page 70 Technical Information Pin assignments and signal names of <HDMI> terminal Pin No. Signal names Pin No. Signal names Outside view T.M.D.S data 2+ T.M.D.S clock shield T.M.D.S clock - T.M.D.S data 2 shield Even-numbered pins T.M.D.S data 2 - T.M.D.S data 1+ —...
-
Page 71: List Of Compatible Signals
Technical Information List of compatible signals The following table specifies the types of signals compatible with the projectors. Format : V = VIDEO, S = S-VIDEO, C = COMPUTER, Y = YP , H = HDMI Scanning Picture Display Dot clock frequency quality * Mode... - Page 72 Technical Information Scanning Picture Display Dot clock frequency quality * Mode resolution * frequency PnP* Format Display (dots) (MHz) H (kHz) V(Hz) CW230E CX200E 48.360 60.000 65.000 ○ ○ 68.677 84.977 94.504 60.023 75.030 78.750 ○ 56.476 70.070 75.000 ○ 60.31 74.92 79.252...
- Page 73 Technical Information Scanning Picture Display Dot clock frequency quality * Mode resolution * frequency PnP* Format Display (dots) (MHz) H (kHz) (Hz) CW230E CX200E 75.00 60.00 162.00 ○ 81.25 65.00 175.50 UXGA 1 600 x 1 200 87.5 70.00 189.00 93.75 75.00 202.50...
- Page 74 The signal marked with circles (O) can be applied by plug-and-play device. Note The number of display dots is 1 280 x 800 for the PT-CW230E and 1 024 x 768 for the PT-CX200E. A signal with a different resolution will be projected after converting the resolution to match the projector display.
-
Page 75: Specifications
Specifications Model No. PT-CW230E PT-CX200E Power supply AC100 V - 240 V 50 Hz/60 Hz 100 V - 240 V 4.5 A-2.2 A, 350 W When [Standby mode] of [Setting] is set to [ECO]: 0.45W Power consumption When [Standby mode] of [Setting] is set to [Network]: 11.0W Size 0.65"(aspect ratio 16 : 10) - Page 76 Specifications Model No. PT-CW230E PT-CX200E 1 (D-sub 15 pin female) [RGB signal] 0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 [p-p] 75 Ω COMPUTER 1 IN/ HD/SYNC TTL high impedance, automatic positive/negative polarity compatible COMPONENT IN VD TTL high impedance, automatic positive/negative polarity compatible signal] Y: 1.0 V [p-p] including synchronization signal, P...
-
Page 77: Dimensions
Specifications Dimensions <Unit : mm(inch)> 125.8 (4.95) 114.5 (4.51) 104.2 (4.10) 107.9 (4.25) 10.0 (0.39) 134.6 (5.30) 77.5 (3.05) 170.0 (6.69) 178.0 (7.01) 321.0 (12.64) Actual dimension may differ by product. Ceiling mount bracket safeguards Installation work of the ceiling mount bracket should only be carried by a qualified technician. Even if it is during guaranteed period, the manufacturer is not responsible for any hazard or damage caused by using a ceiling mount bracket which is not purchased from an authorized distributors, or environmental conditions. -
Page 78: Index
Index Number Input search ........51 Switching the input signal ....31 Installing and Removing batteries ..18 3D setting ........52 Terminal ..........53 Keystone........32, 48 Tint ..........44 About Your Projector.......15 Troubleshooting ......64 Accessories ........14 Adjusting front adjustable feet ..22 True ..........47 LAMP indicator .......59 Turning Off the Projector ....28 AUTO PC adjust ......40 Lamp runtime........56... - Page 79 Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. Panasonic Corporation Web Site : http://panasonic.net/avc/projector/ © Panasonic Corporation 2012 M0312LH1062 -ST...
