PRODUCT DESCRIPTION

PACKAGE CONTENT
1*802.11n Pocket AP (ETR9350)
1*QIG
1*CD (User's Manual)
1*AC cord

> HARDWARE SPECIFICATION
Physical Interface
LEDs Status
Power Requirements
* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual throughput may vary. Network conditions and environmental factors lower actual
throughput rate.
** All specifications are subject to change without notice.
11/9/2009
ETR9350
802.11b/g/n SOHO Router
2.4 GHz
300Mbps

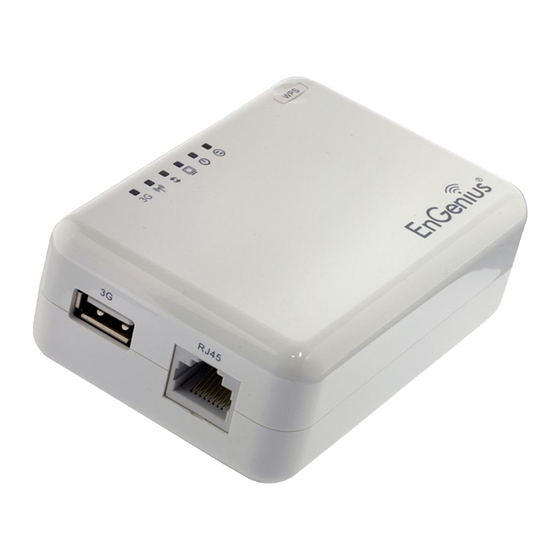

ETR9350 is a 2T2R Wireless Single chip 11N Travel AP/Router that delivers
up to 6x faster speeds than 802.11g devices.
performance and unparalleled wireless range. With easy to use on the WPS
function, it helps users to connect to wireless device with just one push button.
Just leave power adapter behind and enjoy the convenience that embedded
power brings. Device can be slipped into your pocket easily and build Wireless
Networks somewhere you want. With Clear LED indicator user can identify
running operation mode painless
TECHNICAL SPECIFICATION
WAN/LAN: One 10/100 Fast Ethernet RJ-45
Power Jack
WPS (WiFi Protected Setup)
USB port for 3G
Operation Mode
Power Status
WAN (Internet connection)
WLAN(Wireless connection)
WPS
USB port
Power Board embedded
11N Pocket size AP/Router
ETR9350 drives superior

Advertisement

loading
Need help?

Need help?

Do you have a question about the ETR9350 and is the answer not in the manual?

Questions and answers

Related Manuals for EnGenius ETR9350

Summary of Contents for EnGenius ETR9350

  • Page 1 300Mbps 11N Pocket size AP/Router PRODUCT DESCRIPTION ETR9350 is a 2T2R Wireless Single chip 11N Travel AP/Router that delivers up to 6x faster speeds than 802.11g devices. ETR9350 drives superior performance and unparalleled wireless range. With easy to use on the WPS function, it helps users to connect to wireless device with just one push button.
  • Page 2 ETR9350 802.11b/g/n SOHO Router 2.4 GHz 300Mbps 11N Pocket size AP/Router > TOP PANEL LED Operation Mode 1 (AP/Router/CB variant mode will display variant color) Power 1 ( Link-> blue static on) 1 ( Link-> blue static on, traffic->blink) WLAN 1 ( Link->...

  • Page 3: Software Features

    ETR9350 802.11b/g/n SOHO Router 2.4 GHz 300Mbps 11N Pocket size AP/Router IEEE802.11n MCS0@ -79dBm MCS7@ -61dBm IEEE802.11g Receive Sensitivity (Typical) 6Mbps@ -90dBm 54Mbps@ -70dBm IEEE802.11b 1Mbps@ -90dBm Mbps@ -87dBm IEEE802.11N MCS7@ 14dBm IEEE802.11g Available transmit power 6~54 Mbps@ 14dBm IEEE802.11b 1~11Mbps@ 17.5dBm...
  • Page 4 ETR9350 802.11b/g/n SOHO Router 2.4 GHz 300Mbps 11N Pocket size AP/Router Blocking Ping Firewall DoS(Blocking Ping, Port scan, Sync Flood) MAC / IP Filtering ICMP Blocking SPI (Stateful Packet Inspection) DMZ (Demilitarized Zone) Host Policy Based Parental Controls - Port Range / Service Filtering...

  • Page 5: Environment & Physical

    ETR9350 802.11b/g/n SOHO Router 2.4 GHz 300Mbps 11N Pocket size AP/Router 5sec Reset Reset Setting (WPS button) 10sec Reset to Default System monitoring Speed and Bandwidth monitoring Scheduling Enable power saving Easy access User can type model name and access the main page.
